Enerdrive B-TEC 125A/12V LiFePO4 Battery Gen2: Designed & Intended for Use in Deep Cycle Applications Where a Single Battery Is Required that Meets the Amp Hour Capacity

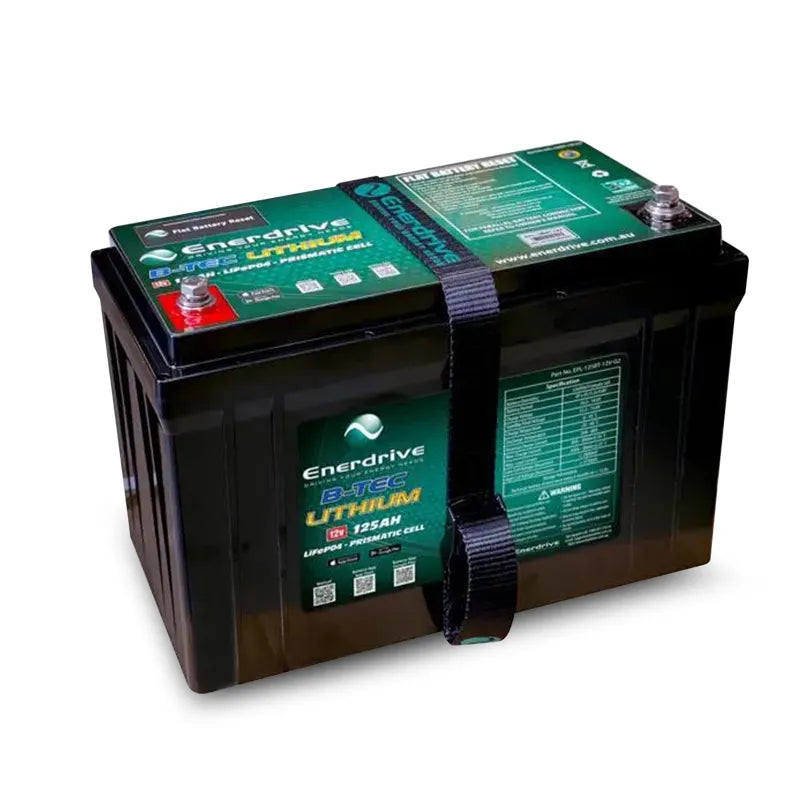

Enerdrive B-TEC G2 Lithium Battery

Available in 12v 125Ah capacity, designed and intended for use in deep cycle applications where a single battery is required that meets the amp hour capacity. The Enerdrive B-TEC G2 battery provides 60% more usable power than its equivalent lead acid cousin and being nearly 50% lighter and 30% smaller makes for a superior alternative.

The Enerdrive B-TEC G2 battery is perfect for camper trailers, 4WD’s (AUX battery), caravans, small water craft, low power communication sites or any other application that requires the use of a single deep cycle battery that meets the amp hour capacity.

The G2 now incorporates a “Built-In Reset Button” making re-starting a flat battery a breeze. No longer do you need to apply a voltage to the battery terminals to wake up the battery. Press the button and within seconds, the battery will come back to life ready to accept a charge source to rejuvenate the battery.

Smart Phone Monitoring System

The Enerdrive ePOWER B-TEC battery incorporates wireless Battery Monitoring Technology. By downloading the Android™ or Apple® app to your smartphone or tablet device, you can monitor the following information.

• Battery Capacity
• Battery Voltage
• Battery Current (Amps)
• Battery State of Charge (SOC)
• Battery State of Health (SOH)
• Battery Status
• Individual Cell Voltage
• Battery Temperature
• Battery Cycles
• Battery Alarms
• Battery Event Information

Battery Management System
The battery is also equipped with an internal Battery Management System that can monitor and optimise each Prismatic cell within the battery during normal operation. It will protect the battery pack from over charge, over discharge, over temperature & short circuit. The BMS helps to ensure safe and accurate operation of the battery.

Size & Weight Savings
Lithium v AGM Capacities:

• 100Ah Lithium = 160Ah AGM
• 125Ah Lithium = 200Ah AGM
• 200Ah Lithium = 320Ah AGM
• 300Ah Lithium = 480Ah AGM

Note: Based on standard depth of discharge for both Lithium (80%) and AGM (50%).

The increase in height allows for full 360° connection of the battery cables the make installation easier and more flexible. Also included for free is a hold down strap to complete the installation process.

Enerdrive EPL-125BT-12V Specifications:

• Nominal Voltage: 12.8V
• Nominal Capacity: 125Ah
• Cycle Life (DOD – 80% Under Controlled Conditions): ≥ 2000 Cycles
• Battery Charge Temperature: 0 Ì´ 45°C
• Normal Charge Voltage CV/CC*:14.40 Ì´ 14.60V
• Standby (Float) Voltage: 13.50 Ì´ 13.80V
• Maximum Charge Current: 60A @ 25°C for 30mins
• Recommended Charge Current for Maximum Life: ≤40A
• Battery Discharge Temperature: -20 Ì´ 60°C
• Battery Output Voltage Range: 11.00 Ì´ 14.60V
• Maximum Discharge Current: 100A @ 25°C ± 5°C for 30mins
• Pulse Discharge Current: 450A for 1.0s
• Discharge Cut-off Voltage: ≤11.20V
