Echomaster PHDCAMJW AHD/CVBS Rear Camera Kit Suitable For Jeep Wrangler JK

SKU: PHDCAMJW

No Longer Available. Please contact us for recommendations or alternatives. (02) 4257-2636

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Increase Visibility, Rugged, Weather-Ready Camera!

Add a rear camera to your JEEP Wrangler JK!

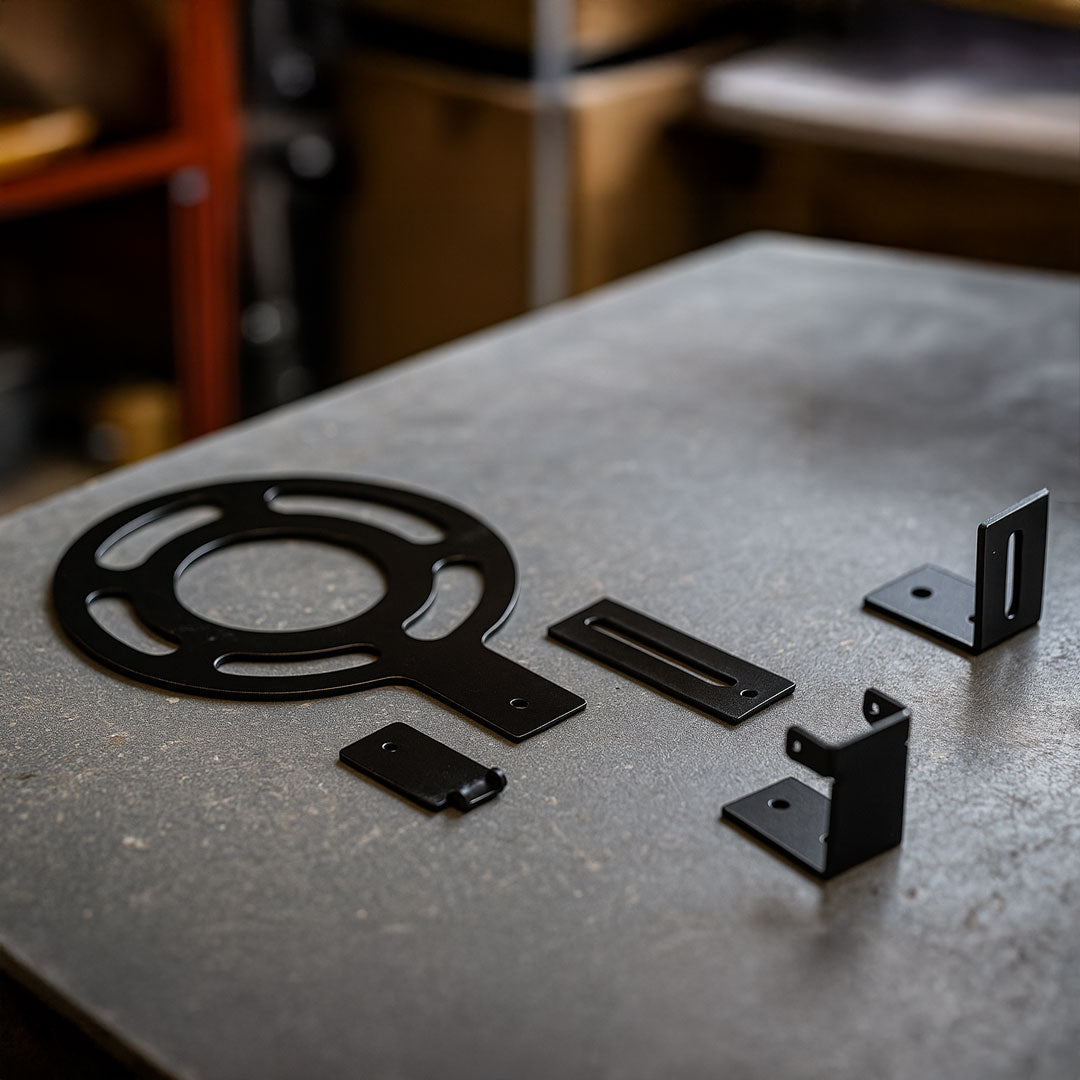

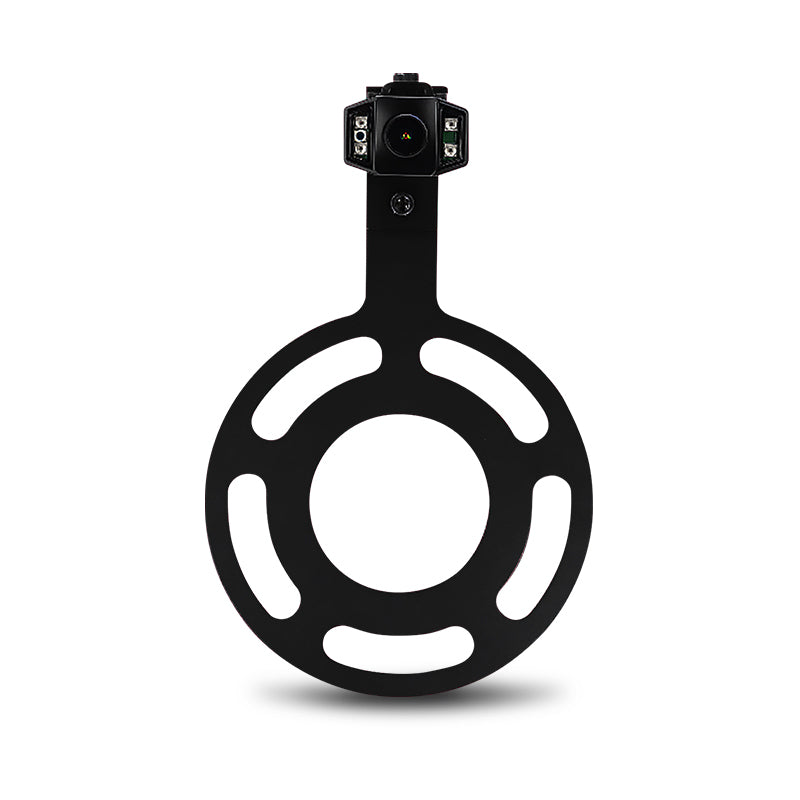

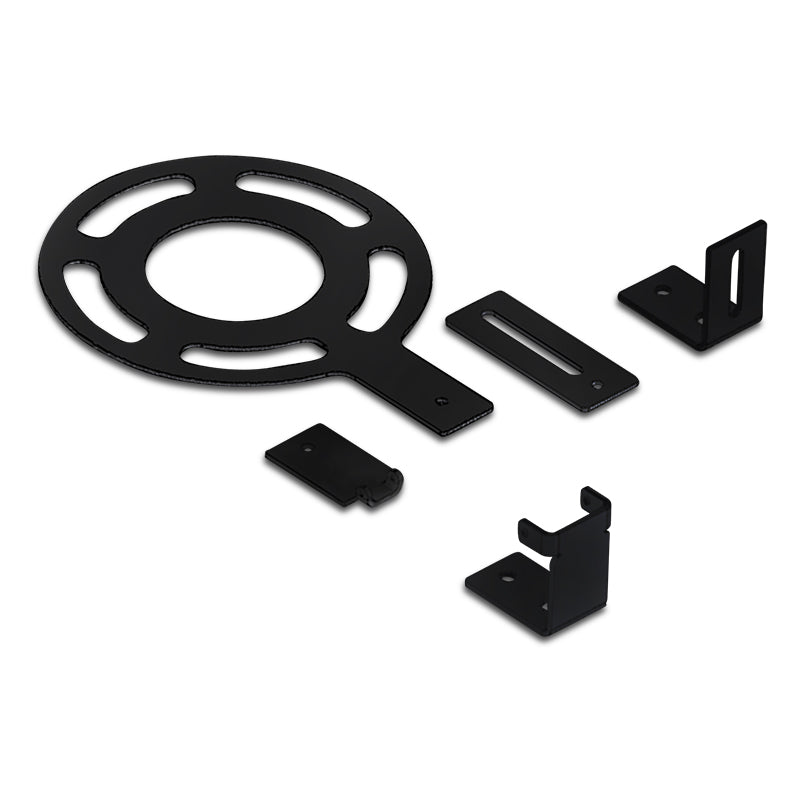

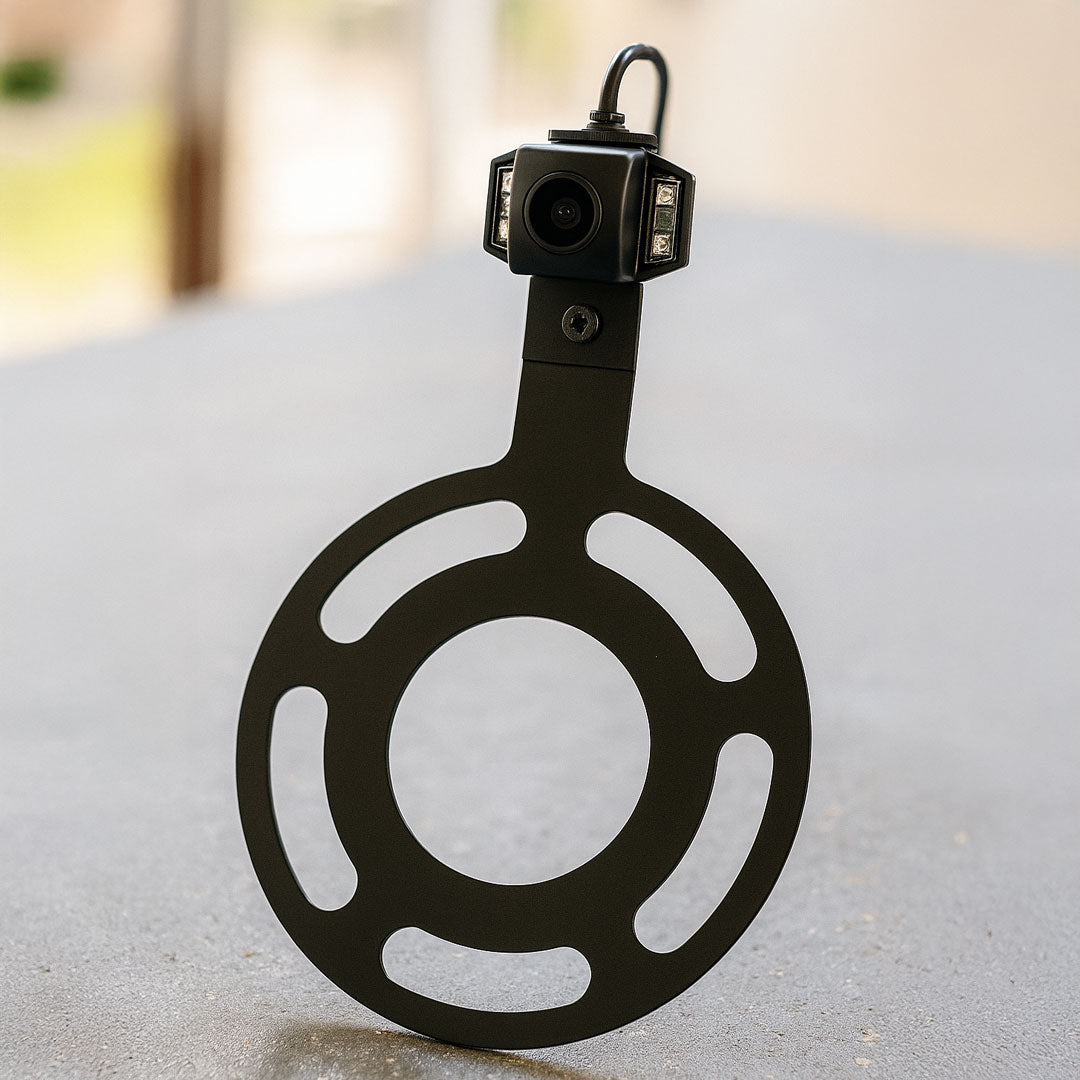

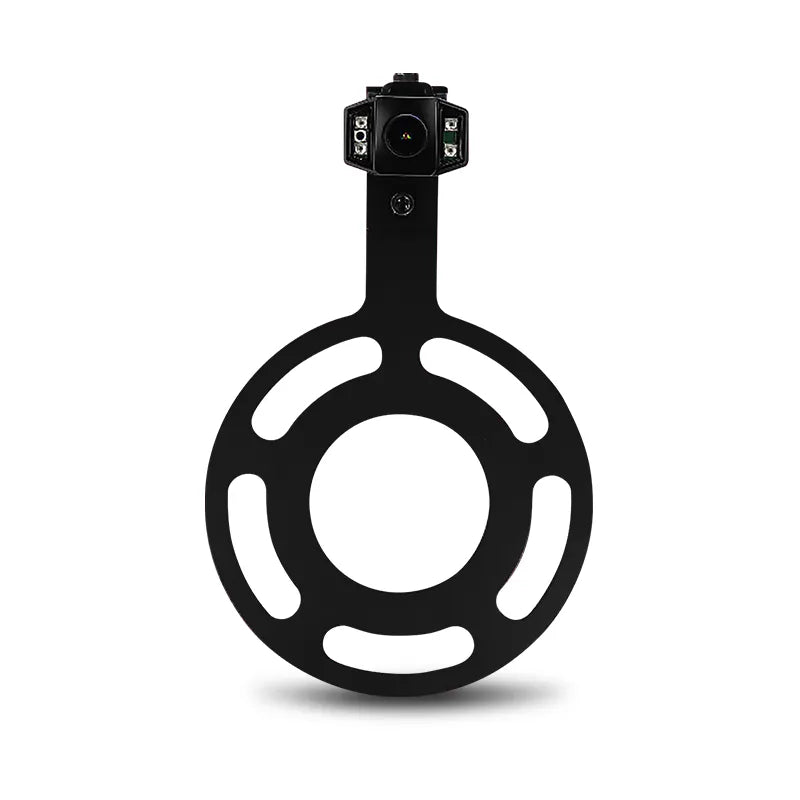

Increase visibility in the back of 2007 – 2018 JEEP Wranglers with this rugged, weather-ready camera featuring selectable output resolution. Designed for installation on the rear tyre carrier, this kit includes a vehicle-specific Jeep Wrangler bracket assembly with an adjustable camera mount for select factory and aftermarket wheels.

Superior Picture Quality

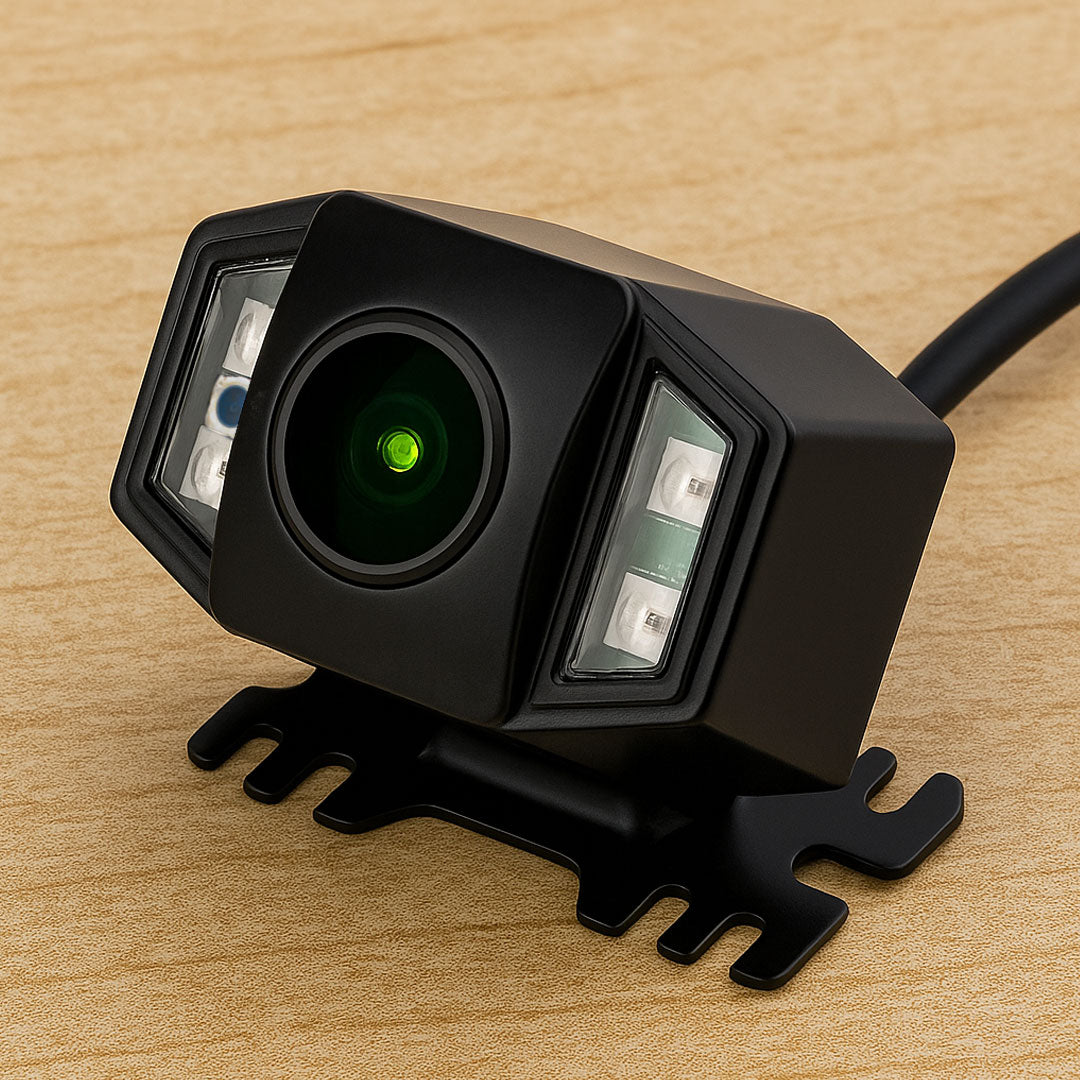

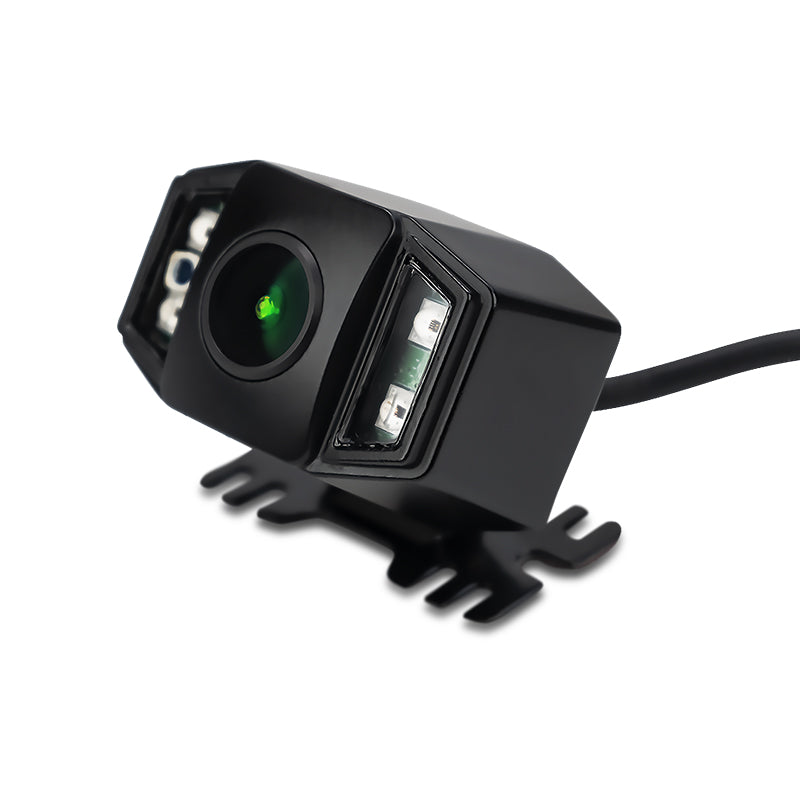

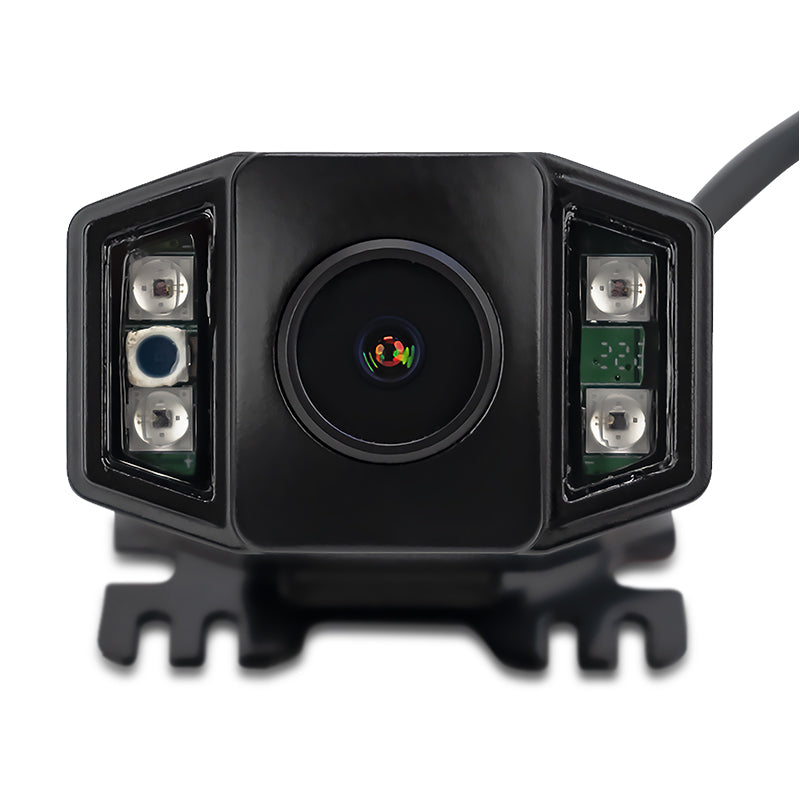

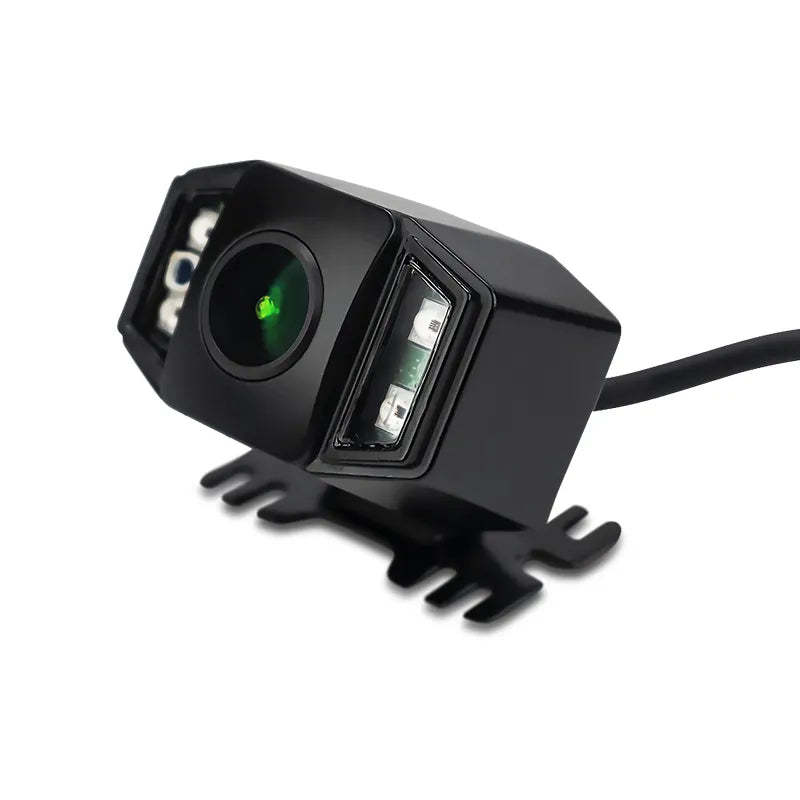

Choose between Analog High Definition* (AHD) or Standard (CVBS) resolution to provide high-quality images of obstacles behind your vehicle. The included Echomaster PHDCAM10U camera offers superior picture quality during the day or night with multiple IR LED designs.

Built To Last
Most aftermarket tire mount cameras only allow a 12 o’clock mounting location. Still, the PHDCAMJW allows you to mount the camera anywhere on the spare tire, giving you the clearest viewing angle possible! With an IP67 waterproof rating, this camera’s rugged design stands up to the elements, no matter the water, mud, dirt, or dust.

Features:

  • Selectable AHD (Analog High Definition) = 720P Output or CVBS = 480P Output (selectable)
  • 1/3” CMOS sensor
  • Operates at 0 LUX
  • 170° viewing angle
  • IP67 water/debris-proof rating
  • Parking lines (selectable)
  • Mirrored/non-mirrored image (selectable)
  • 20 ft. Camera Extension Harness
  • EchoMaster Standard 5-Pin Cable
  • Hardware Pack

Compatibility:

  • JEEP WRANGLER 2007 - 2018 (JK)

Compatibility Notes:

  • AHD High-Resolution mode requires an aftermarket head unit with AHD support.
  • Compatible with aftermarket AV headunits or monitors with standard RCA camera input
  • Can be used with PAC BCI-CH41 or BCI-CH21 for use on OEM Jeep Infotainment (NOT INCLUDED, AVAILABLE SEPARATELY)

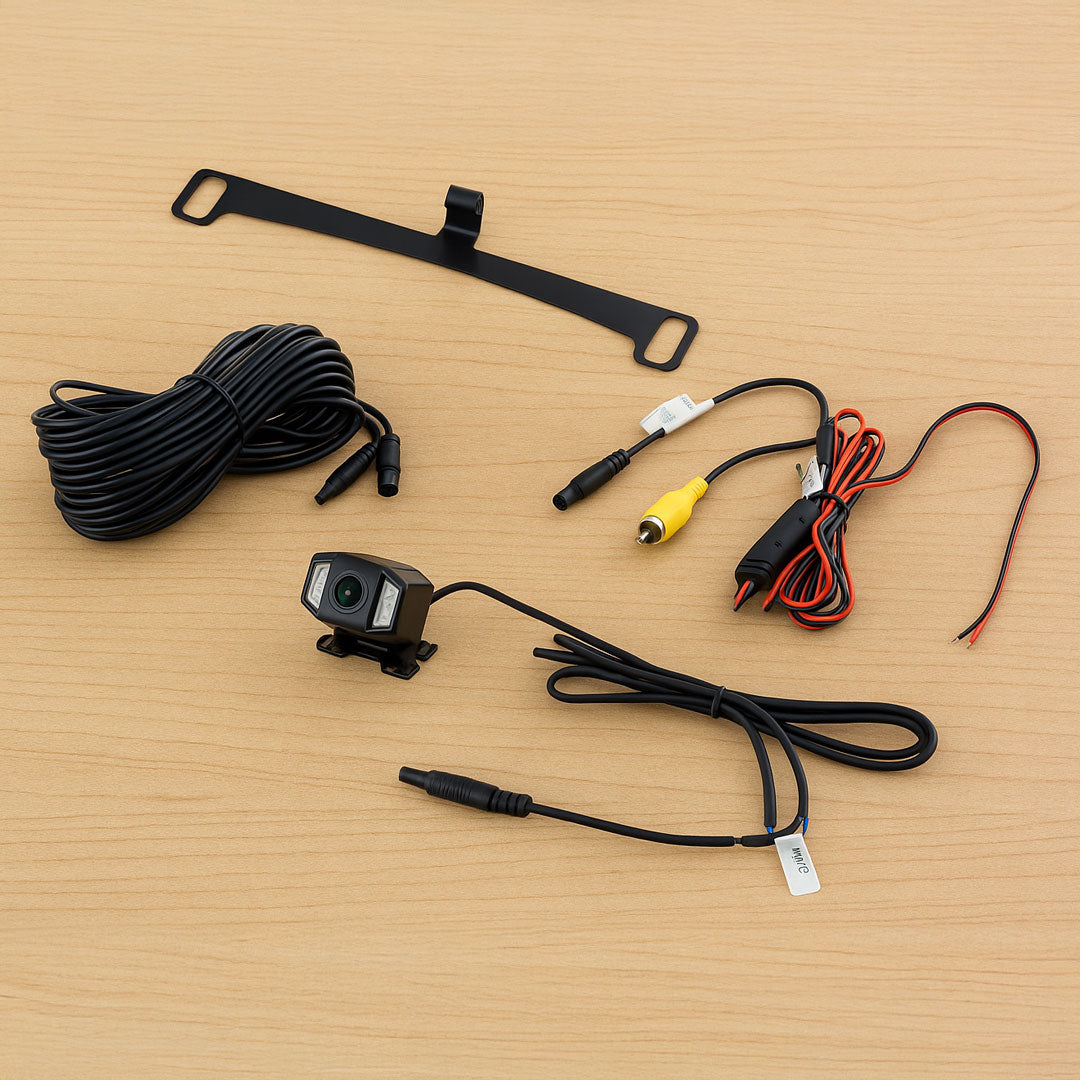

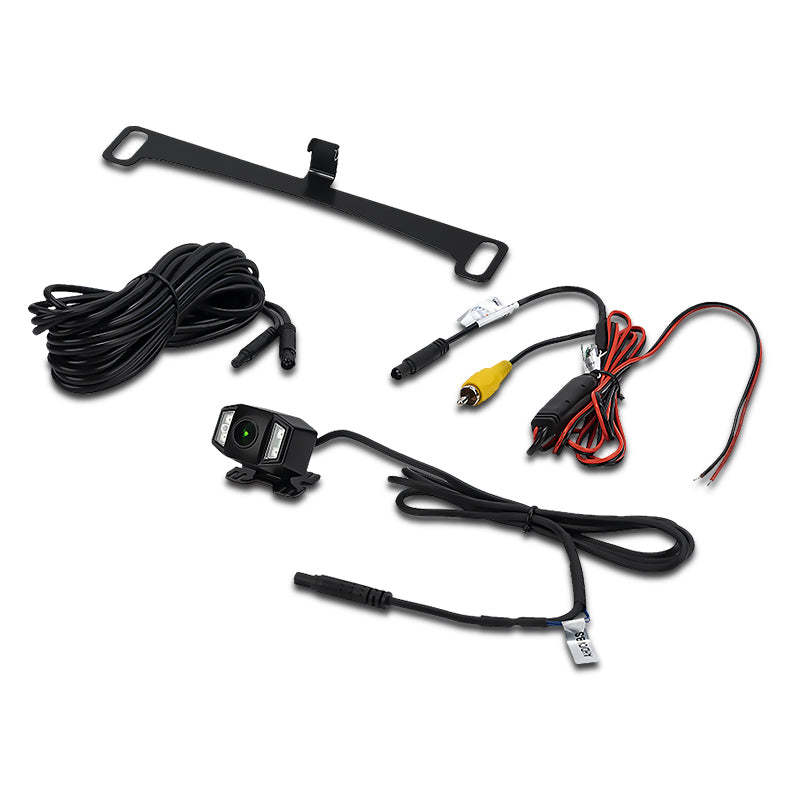

What’s in the box:

  • IP67 Rated Camera
  • License Plate Mounting Bracket
  • Butterfly Mounting Bracket
  • 20 Ft Camera Extension Cable
  • Camera Power/Video Adapter
  • Warranty Card
  • Wheel Bracket
  • Riser
  • Large Camera Mount (Not Used)
  • Camera Mount for PHDCAM10U
  • Right Angle Bracket
  • M6 x 1.00 Bolts, QTY 3
  • M6 Lock Washers, QTY 3
  • M3 x 0.5 Bolts, QTY 2
  • M3 Lock Washers, QTY 2
