Product features
Increase Visibility in Your Vehicle With this Rugged & Weather-Ready Camera!
ADD A REAR, FRONT, OR SIDE VIEW CAMERA TO YOUR VEHICLE!
Increase visibility in your vehicle with this rugged and weather-ready camera, designed to tackle blind spots from every angle! With selectable output resolution and 5 mounting options, it’s perfect for any driver seeking maximum versatility.

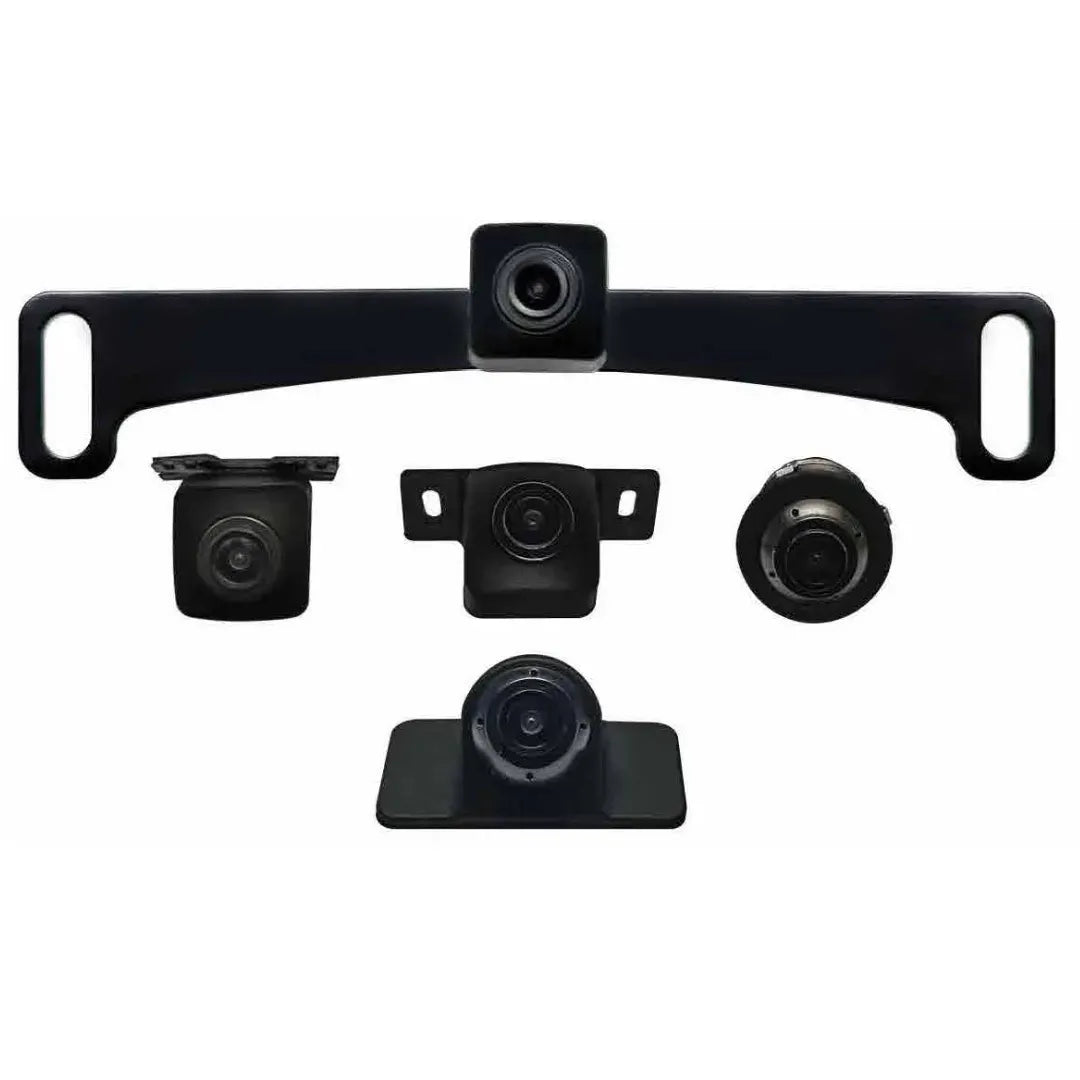

5 DIFFERENT BRACKETS, 1 CAMERA, UNLIMITED INSTALLATION OPTIONS
The Echomaster PHD5N1 can be installed front rear or side of vehicles using one of the included brackets
| Flush Mount (Fixed/Adjustable) | Adjustable Butterfly Mount | Fixed Lip Mount | Flexible Blind Spot Mount | USDM & JDM Licence Plate Mount |
HIGH DEFINITION 720P + STANDARD DEFINITION 480P SUPPORT
With support for high-definition 720P also known as AHD, you get crisper and clearer video pictures day and night with compatible AHD camera head units. Don’t have AHD? no worries with compatibility for Standard Definition 480P CVBS for standard monitors and head units, Echomaster has you covered.
INSTALLATION VIDEO
Specifications:
- Type: Universal HD Camera
- AHD (Analog High Definition): 720P Output (Selectable)
- CVBS: 480P Output (Selectable)
- Sensor Type: 1/4” CMOS
- Operation Rating: 0.1 LUX
- Viewing Angle: 170°
- Water/Debris-Proof Rating: IP67
- Parking Lines: Selectable
- Mirrored/Non-Mirrored Image: Selectable
Package Contents:
- AHD/CVBS Camera
- Standard Mount Housing with Hardware
- Blind-Spot Housing with Double-Sided Tape
- Lip Mount Housing with Hardware
- Flush Mount Housing with Hardware
- USDM & JDM Licence Plate Bracket
- Camera Extension Cable
- Camera Power/Video Adapter
- U-Shaped Camera Angle Adjustment Tool
- Warranty Card
