Drivetech4X4 DT-WG200 200W Horizontal Wind Turbine Generator Kit

SKU: DTWG200
Price
$813
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Not on our shelf right now. We order this one in from our supplier.

Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

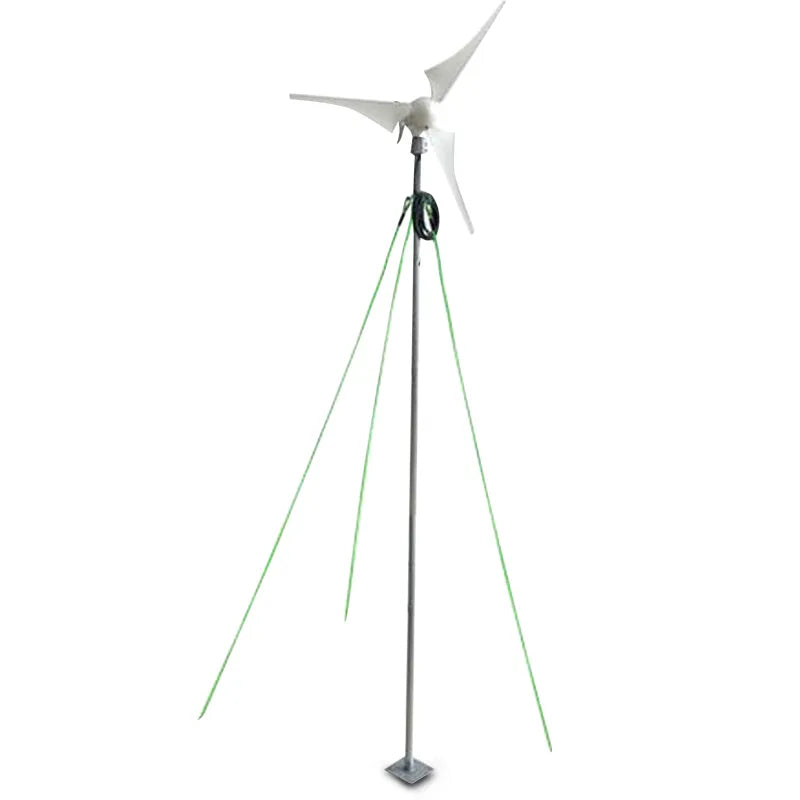

Drivetech4X4 DT-WG200 200W Horizontal Wind Turbine Generator Kit

Drivetech4X4 DT-WG200 200W Horizontal Wind Turbine Generator Kit

Price
$813

Product features

Complete Wind Generator Kit Including Generator, Regulator, Poles, Guy Ropes & Carry Bag

200W Wind Generator Kit
Complete kit in a handy carry bag. 2.5m/s Start up speed. Suitable for charging either 12v or 24v systems (turbine). Kit contains generator, mount pole ropes and voltage regulator (12v only).

Offers a cost-effective energy technology utilising an abundant, renewable resource. Fitted with a patented permanent magnet rotor alternator, with a unique stator design that efficiently decreases resistance torque of the generator. The wind turbine matched to the generator, which increases the reliability of the unit's operation.

This handy complete wind generator kit can be put together in minutes, giving endless charging while you're away.

Features:

  • Low Start Up Speed of 2.5m/s
  • Nylon Composite Blades
  • Die-Cast Aluminum Housing
  • High Strength Nylon Composite Blades
  • Aluminium Motor Housing
  • Charges 12/24V Systems
  • 200W Output
  • Includes Regulator
  • Comes in A Handy Carry Bag
  • Comes with All 3x1.5m Mount Poles and Ropes

Specifications:

  • 200W Horizontal Wind Turbine:
    • Rated Power: 200W
    • Maximum Power: 230W
    • Nominal Voltage: 12V/24V
    • Start-Up Wind Speed: 2.0m/s
    • Rated Wind Speed: 10m/s
    • Working Speed: 2~45m/s
    • Safe Speed 45m/s
    • Weight: 5.9 Kg
    • Blade Diameter: 1.1m
    • Number of Blades: 3
    • Blade Material: Nylon Fibre
    • Generator: Permanent Magnet Synchronous Generator with 3-Phase Alternating Current
    • Controller System: Electromagnetic
    • Speed Way: Automatic Adjustment of Wind Angle
    • Working Temperature: -40°C~80°C
    • Tower Type: Guyed Tower
    • 7m Wiring Harness & Wind Controller: 1
    • 1m Galvanised Steel Poles: 4
  • Wind Controller:
    • Rated Battery Voltage: 12V
    • Maximum Wind Turbine Input Power: 300W
    • Wind Turbine Charge Shut Off Voltage: 15V
    • Wind Turbine Charge Recovery Voltage: 13.5V
    • IP Protection Level: IP67
