Product features

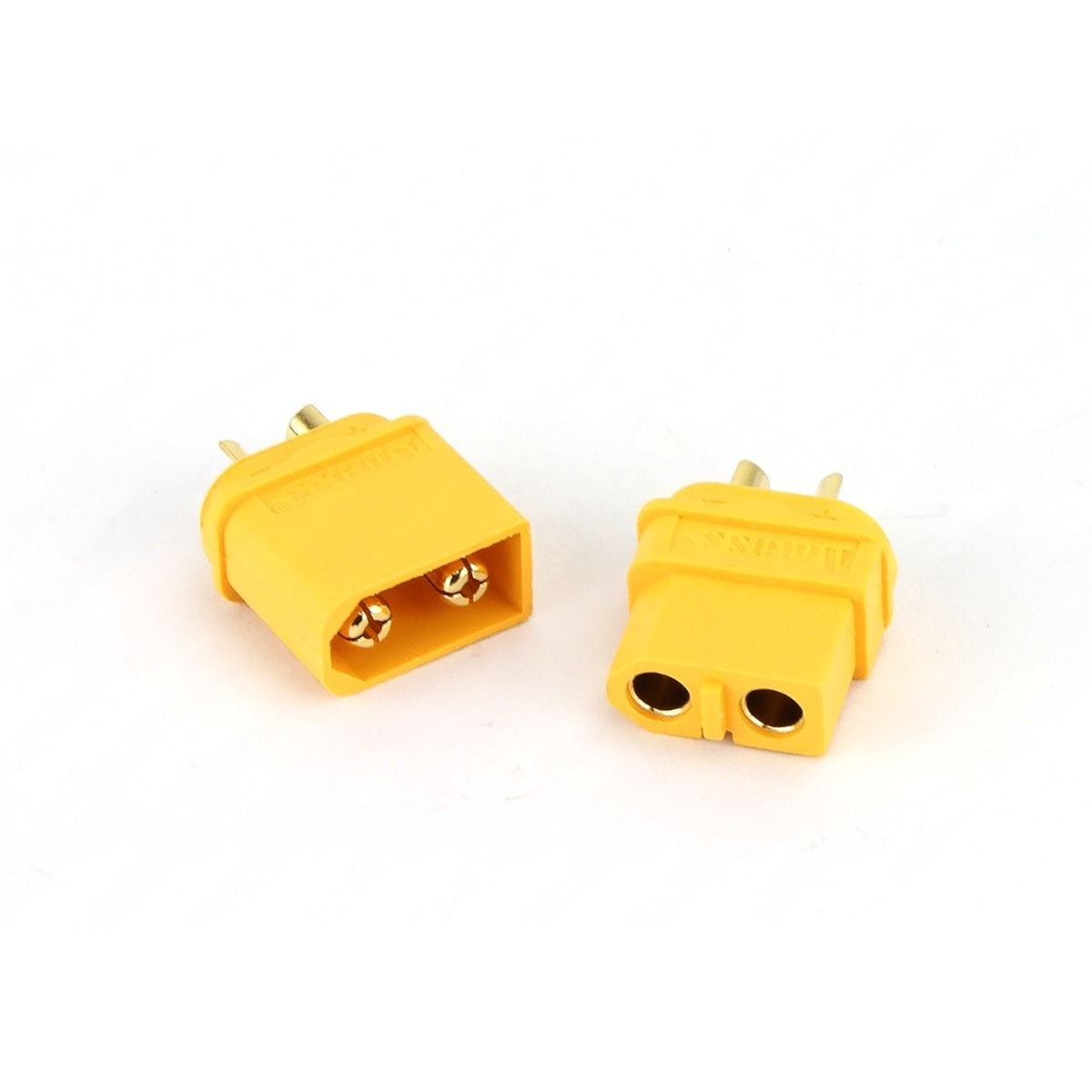

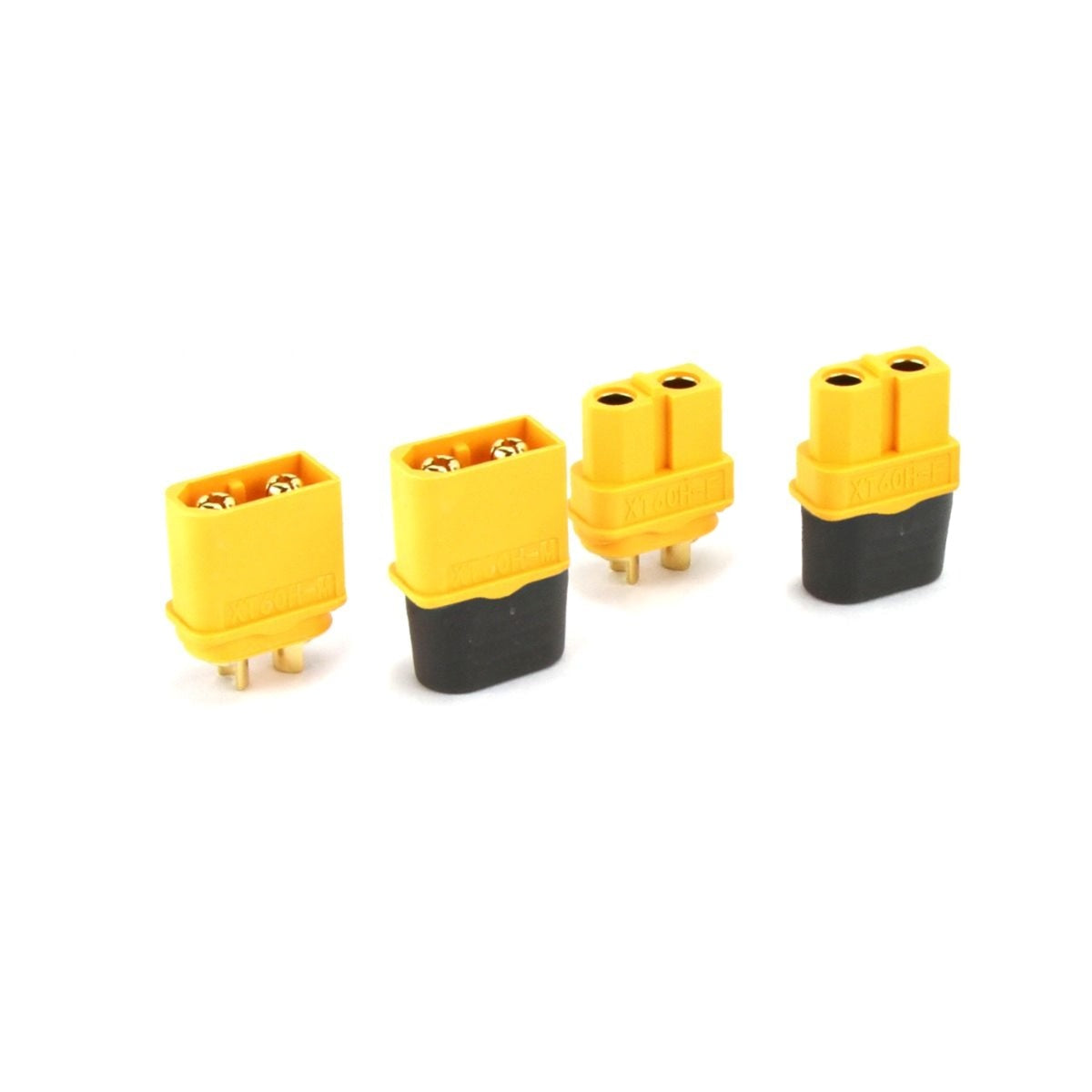

DNA WXT60H XT60H Solder Male And Female Connectors - 10 Pack

High-current 60-amp solder connectors with protective boots for professional audio installations

The DNA WXT60H XT60H Solder Connectors provide reliable high-current connections rated for up to 60 amps at 500VDC, making them ideal for speaker and subwoofer termination in professional car audio systems. This comprehensive 10-pack includes 10 male plugs, 10 female sockets, and 20 rear protective boots for complete connector solutions requiring permanent solder connections.

Designed for high-power audio applications where removable connections are needed without sacrificing current capacity, these connectors offer secure mating with gold-plated contacts for maximum conductivity. The included protective boots provide strain relief and environmental protection for long-term reliability in automotive installations.

DNA WXT60H Key Features & Benefits:

  • High Current Capacity: 60-amp rating handles high-power subwoofer and amplifier connections
  • Complete Kit: 10 male/female pairs with 20 protective boots for multiple installations
  • Solder Termination: Permanent connections ensure maximum conductivity and reliability
  • Professional Grade: 500VDC rating suitable for demanding car audio applications
  • Protective Boots: Included strain relief boots protect solder joints and provide professional appearance
  • Secure Mating: Positive connection prevents accidental disconnection during use

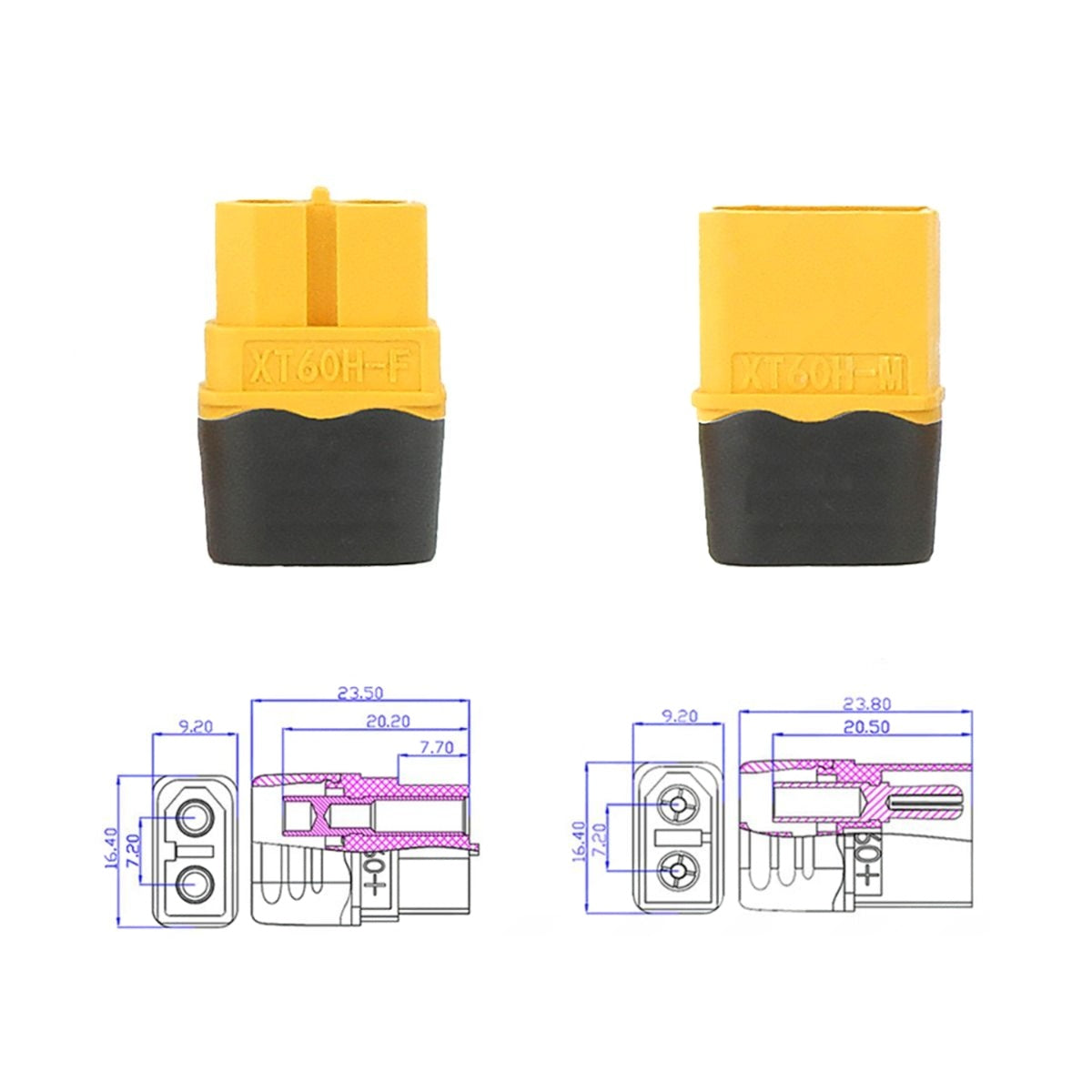

Technical Specifications:

  • Model: DNA WXT60H
  • SKU: WXT60H
  • Current Rating: 60 amps maximum
  • Voltage Rating: Up to 500VDC
  • Connection Type: Solder termination
  • Kit Contents: 10 male plugs, 10 female sockets, 20 rear boots
  • Contact Material: Gold-plated for maximum conductivity
  • Application: Speaker and subwoofer termination
  • Construction: High-temperature resistant materials

Kit Contents:

  • 10x Male Plugs: For positive connections and power distribution
  • 10x Female Sockets: For mating connections and equipment termination

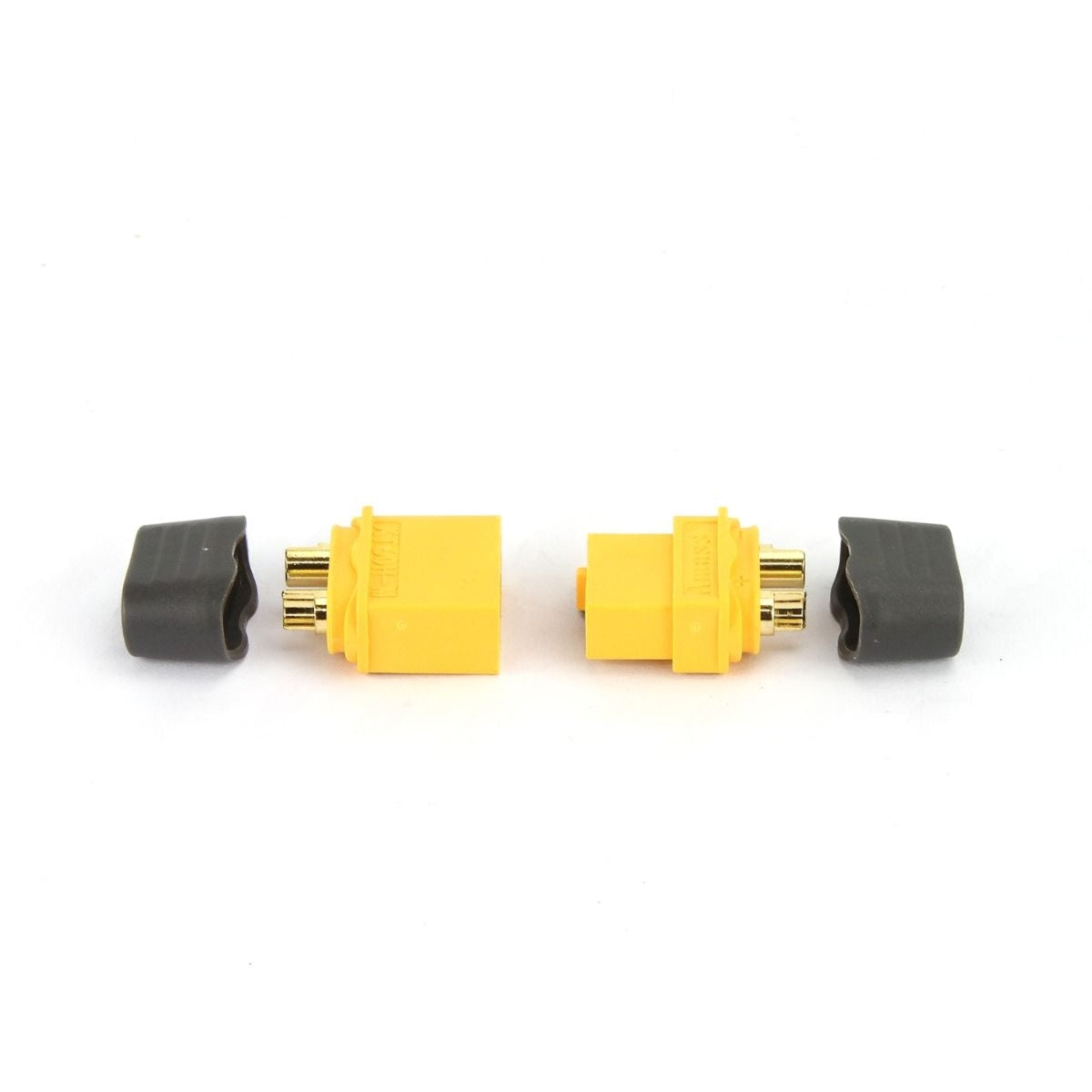

  • 20x Rear Boots: Protective covers for strain relief and professional finish

Installation Applications:

  • Car Audio Systems: High-power subwoofer and amplifier connections requiring removable termination
  • Competition Audio: Professional installations where maximum current flow is critical
  • Marine Audio: Boat audio systems requiring reliable, corrosion-resistant connections
  • Home Audio: Custom speaker systems and subwoofer installations
  • Commercial Audio: Professional sound installations requiring modular connections

Frequently Asked Questions

What's the advantage over standard audio connectors? 60-amp capacity handles high-power applications that would overload standard audio connectors.

Can I reuse these connectors? Solder connections are permanent - connectors can be mated/unmated but require resoldering to change wires.

Are these suitable for 12V automotive systems? Yes, 500VDC rating far exceeds automotive requirements while providing high current capacity.

How do I ensure proper solder connection? Use proper soldering technique with adequate heat and rosin-core solder for reliable joints.

What gauge wire can these handle? 60-amp rating typically accommodates 4-8 AWG wire depending on installation requirements.
