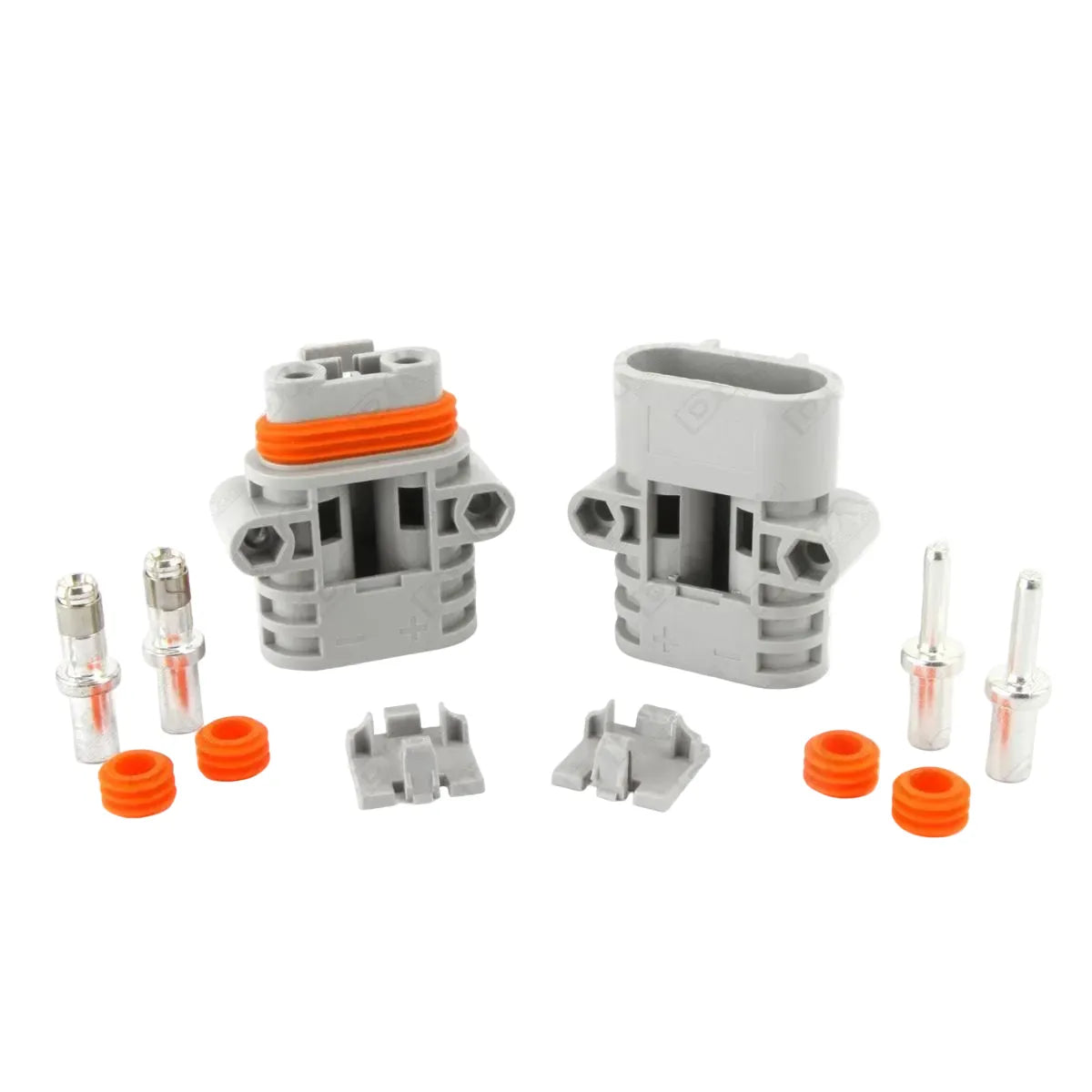

DNA WC502 grey waterproof 50A connector set with male and female housings
DNA WC502 grey waterproof 50A connector set with male and female housings

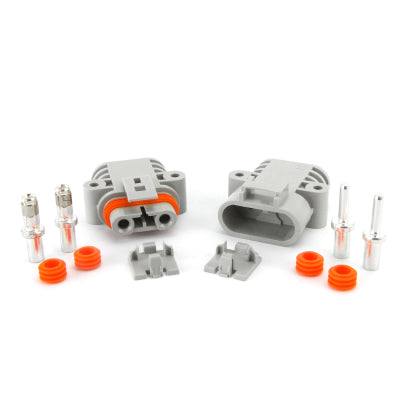

DNA WC502 male and female housings face on with pins, orange seals and locking wedges
DNA WC502 male and female housings face on with pins, orange seals and locking wedges

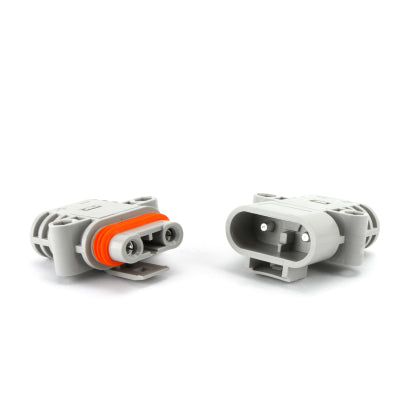

DNA WC502 male and female housings side by side, mating faces showing
DNA WC502 male and female housings side by side, mating faces showing

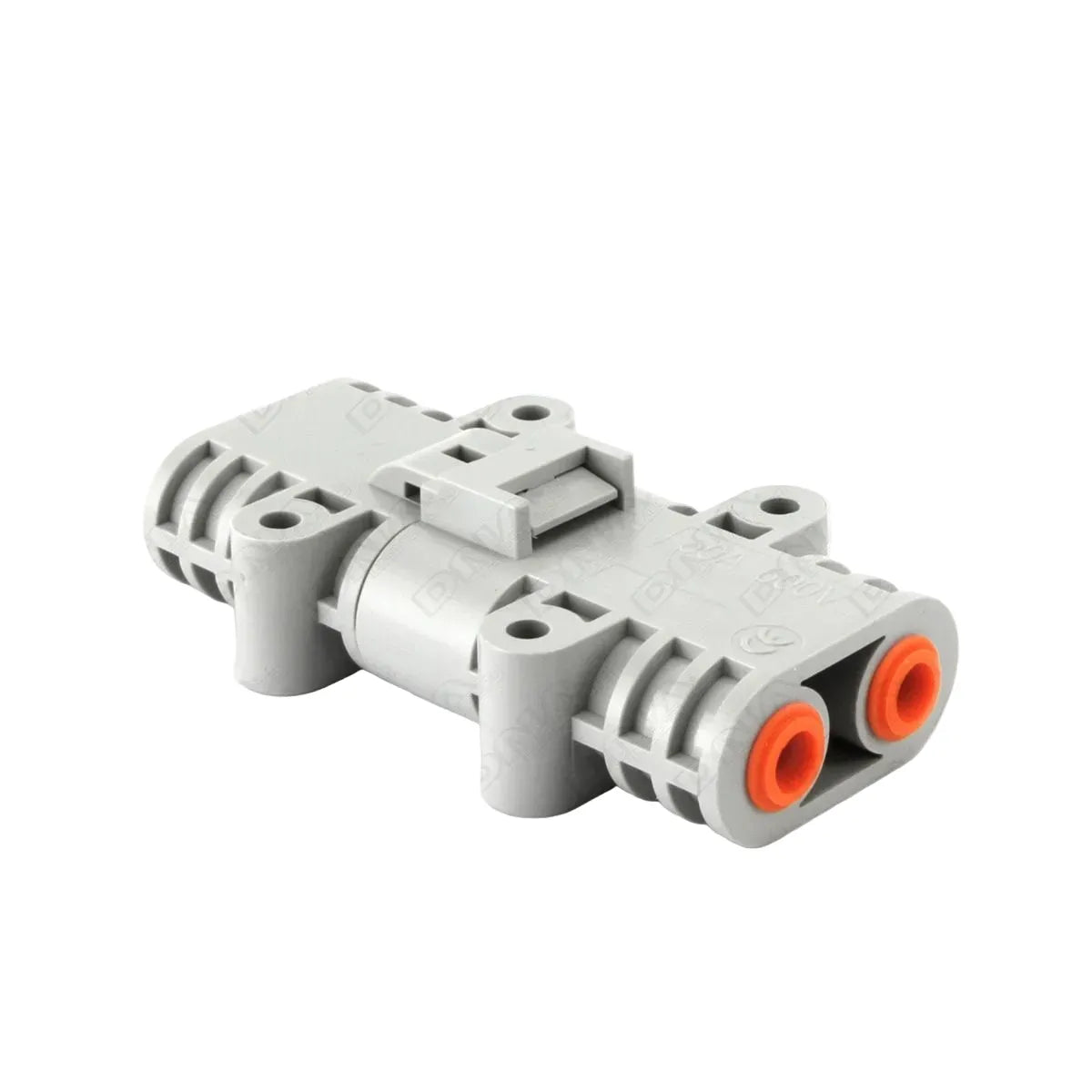

DNA WC502 housings joined together, rear view showing the orange cable seals
DNA WC502 housings joined together, rear view showing the orange cable seals

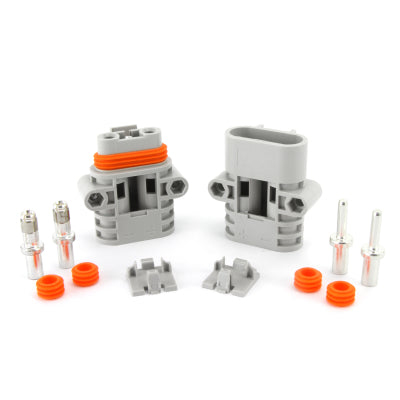

DNA WC502 pair of housings apart, angled to show both mating faces
DNA WC502 pair of housings apart, angled to show both mating faces
Click to open expanded view
DNA logo

DNA WC502 50A Waterproof Anderson Style Connector Set, Male and Female

SKU: WC502
Price
$16.95
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Not on our shelf right now. We order this one in from our supplier.
Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
DNA WC502 grey waterproof 50A connector set with male and female housings

DNA WC502 50A Waterproof Anderson Style Connector Set, Male and Female

$16.95

Product features

The DNA WC502 is a waterproof 50A Anderson style plug set: one male and one female housing with crimp pins to suit 10mm2 cable, for joining power on trailers, campers, fridges and second batteries.

Open 50A plugs on a drawbar collect mud, water and road salt, and the first you know about it is a camper battery that stops charging halfway up the coast. A sealed housing keeps the contacts clean between trips, so the connection you plug in at the caravan park is the same one you made in the shed.

In the box

  • 1 male connector housing with 2 male pins
  • 1 female connector housing with 2 female pins

Fitting it properly

Strip the 10mm2 cable to suit the pin barrel and crimp with a proper lug crimper, not pliers, then seat each pin until it locks in the housing. Run a fuse or circuit breaker close to the battery on the supply side.

Specifications

Current rating 50A
Voltage rating 600V
Flame rating UL94 V0
Housing material PPO
Plug style Straight
Contact type Crimp
Wire size 10mm2
Operating temperature Minus 20°C to 105°C
Plug sizes 50 x 49 x 25mm and 50 x 49 x 23mm
Colour Grey
Packaging Poly bag

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

Frequently asked questions

Will it mate with a standard grey Anderson plug?

DNA sells it as a 50A Anderson style plug but does not say it mates with other brands, so use both halves from this set. If you have to join it to an existing plug, call Albion Park Rail on (02) 4257 2636 and we will check before you order.

What cable does it suit?

The pins are listed for 10mm2 wire. Thicker cable will not fit the barrel properly.

Do I need a special crimper?

Yes, use a lug or Anderson pin crimper so the barrel closes evenly around the strands.
