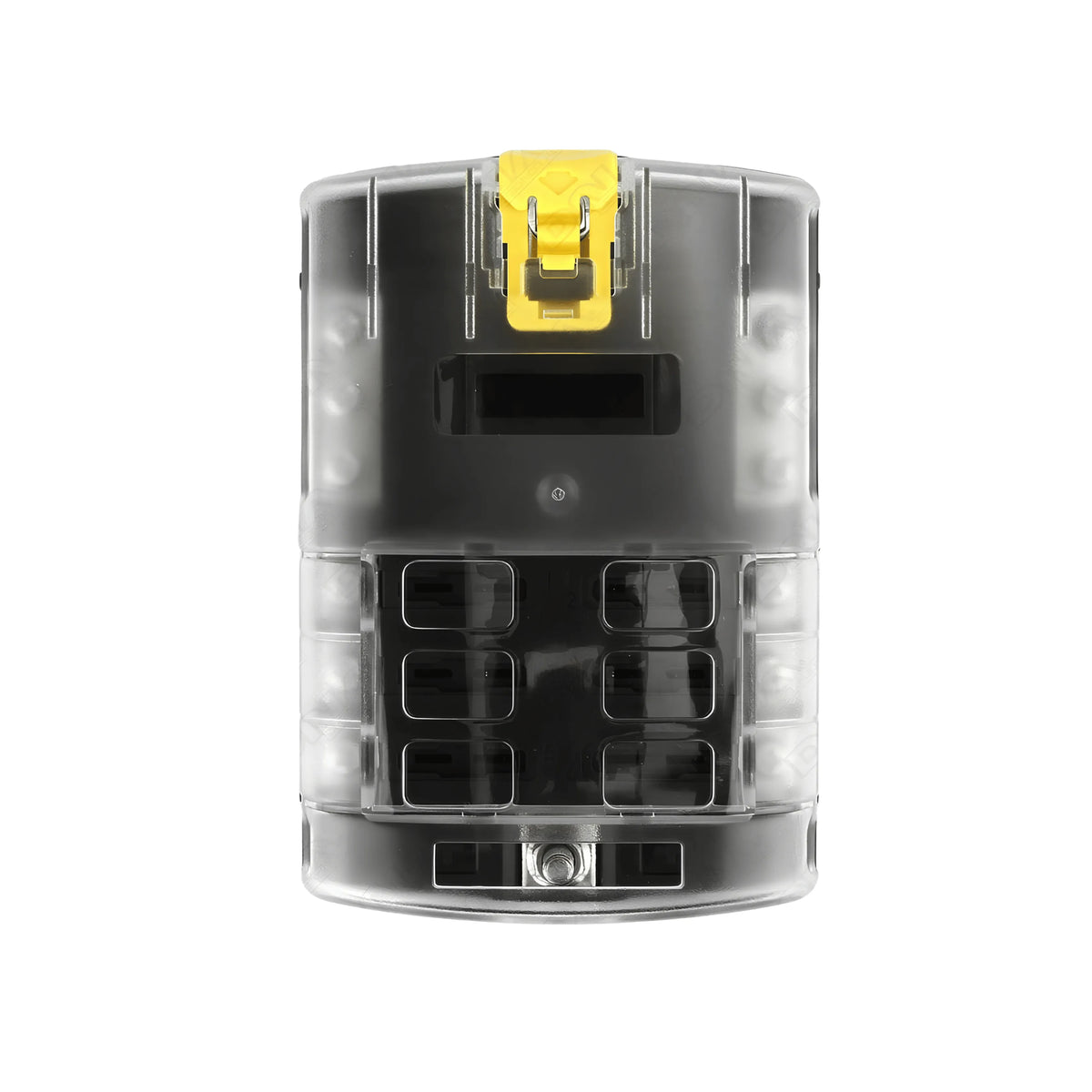

DNA WBFB06 6-Circuit ST Blade Fuse Block with Negative Bus
DNA WBFB06 6-Circuit ST Blade Fuse Block with Negative Bus
DNA WBFB06 6-Circuit ST Blade Fuse Block with Negative Bus
DNA WBFB06 6-Circuit ST Blade Fuse Block with Negative Bus
DNA WBFB06 6-Circuit ST Blade Fuse Block with Negative Bus
Click to open expanded view
DNA logo

DNA WBFB06 6-Circuit ST Blade Fuse Block with Negative Bus

SKU: WBFB06
Sale price
$40.46
Regular price
$44.95
You save
10%
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

DNA WBFB06 6-Circuit ST Blade Fuse Block with Negative Bus and Cover

A 6-circuit ST blade fuse block with integrated negative bus, clear protective cover, tin-plated copper buses and fuse clips, and support for ATO and ATC blade fuses at up to 100A total and 32V DC, the DNA WBFB06 consolidates multiple branch circuits for marine, automotive, RV, and DC electrical system installations.

Product Overview

The DNA WBFB06 is a 6-circuit ST blade fuse block designed to consolidate branch circuits and eliminate the need for numerous in-line fuse holders in marine, automotive, RV, and other DC electrical systems. The unit features a positive distribution bus and an integrated negative bus for clean and professional wiring management, with tin-plated copper buses and fuse clips providing superior corrosion resistance and conductivity in demanding environments.

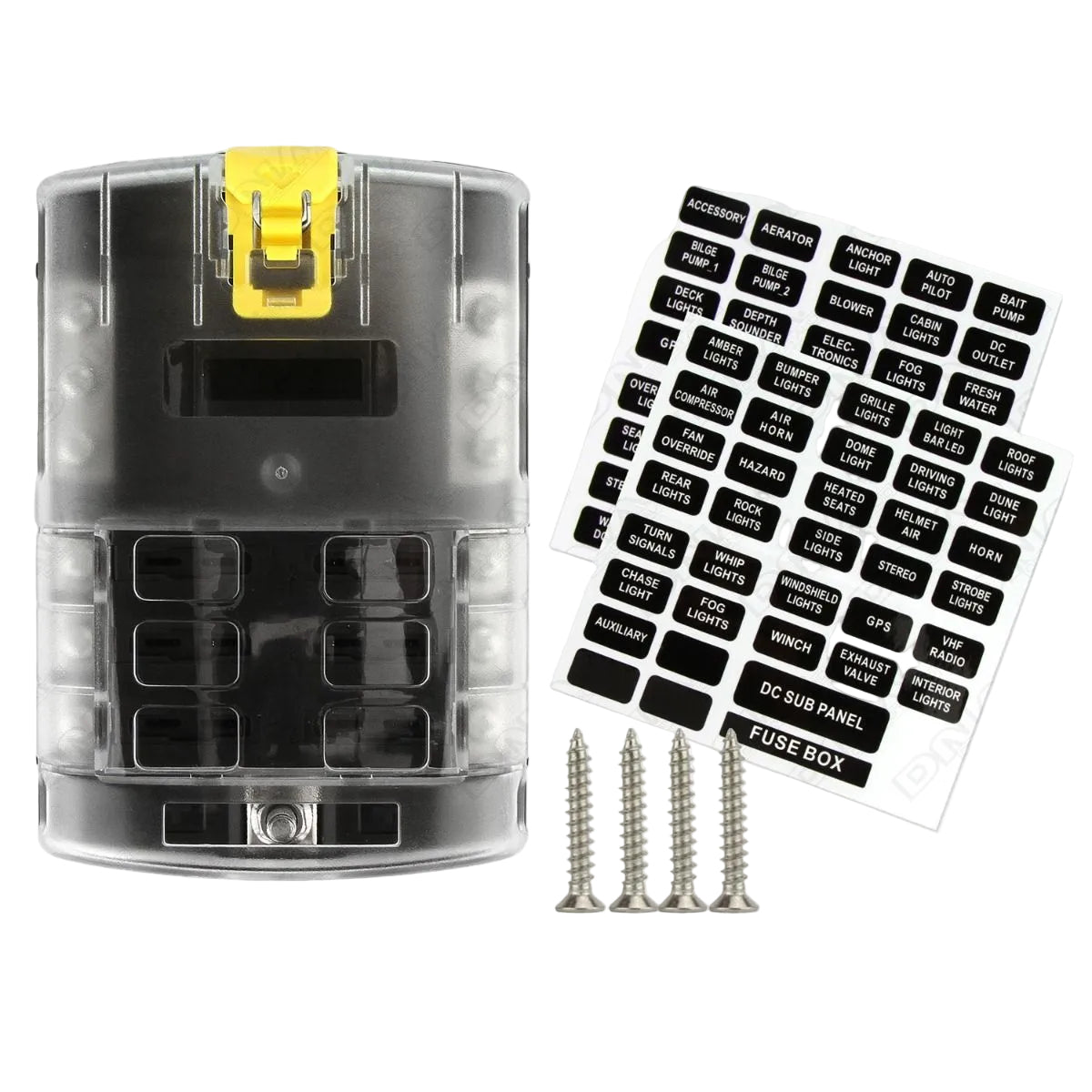

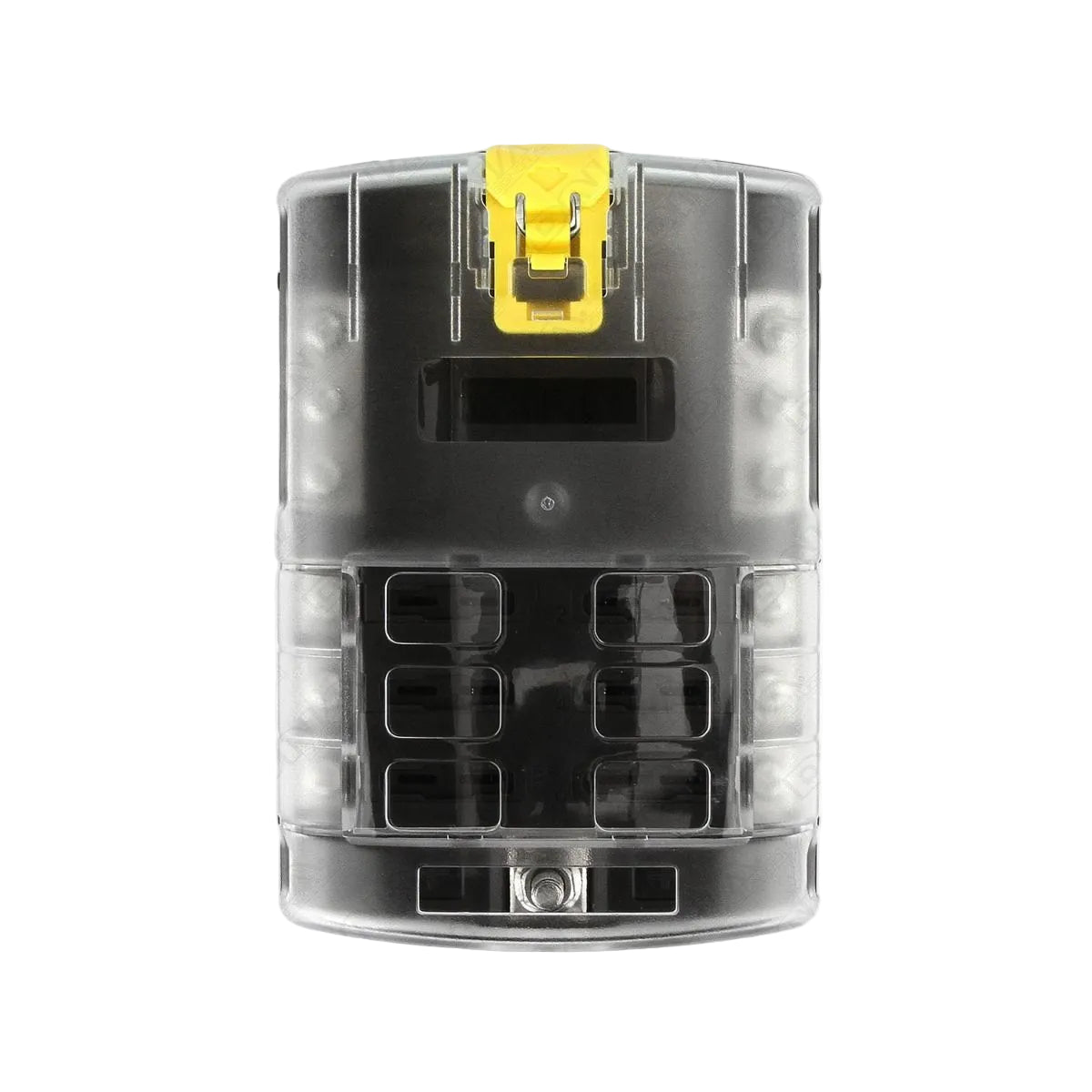

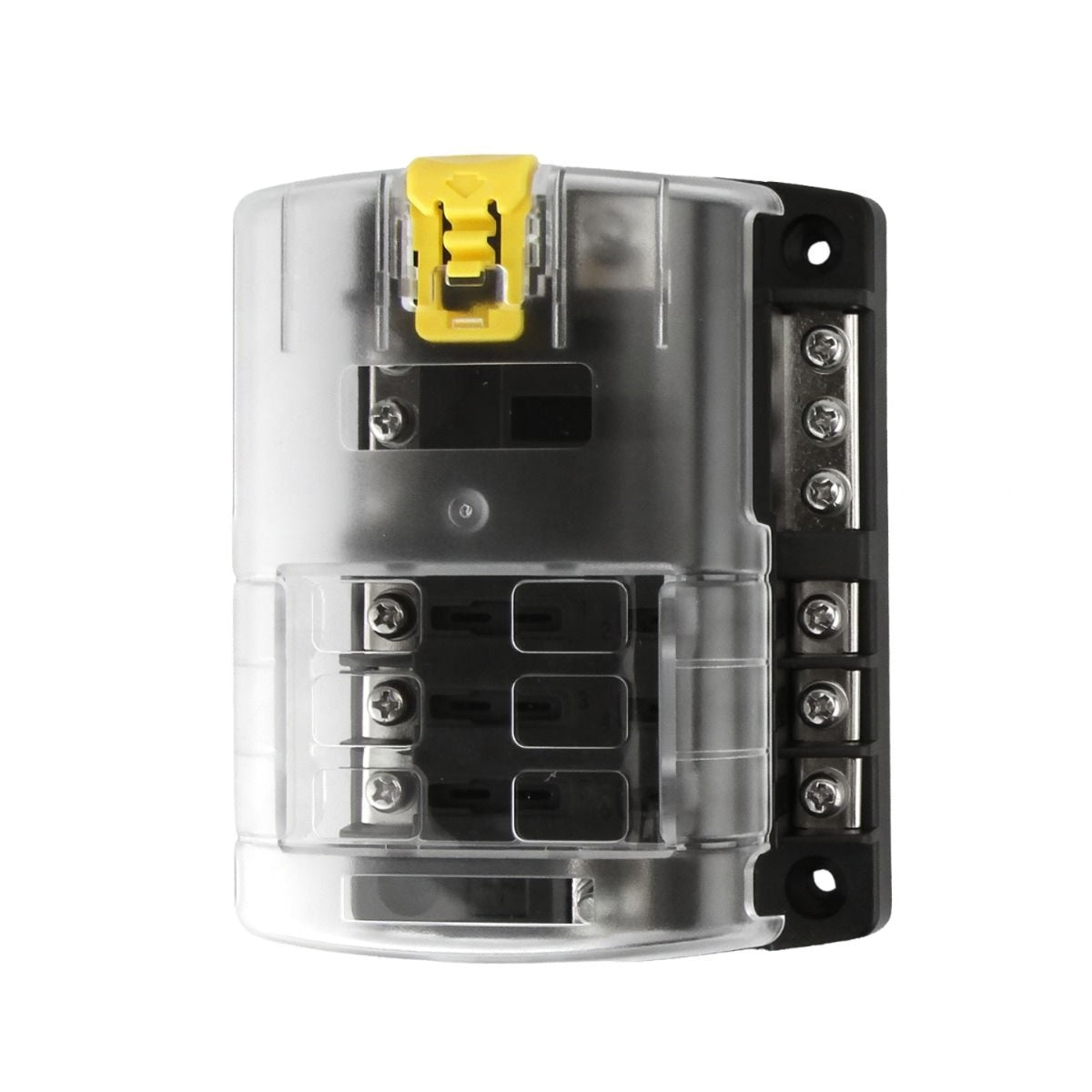

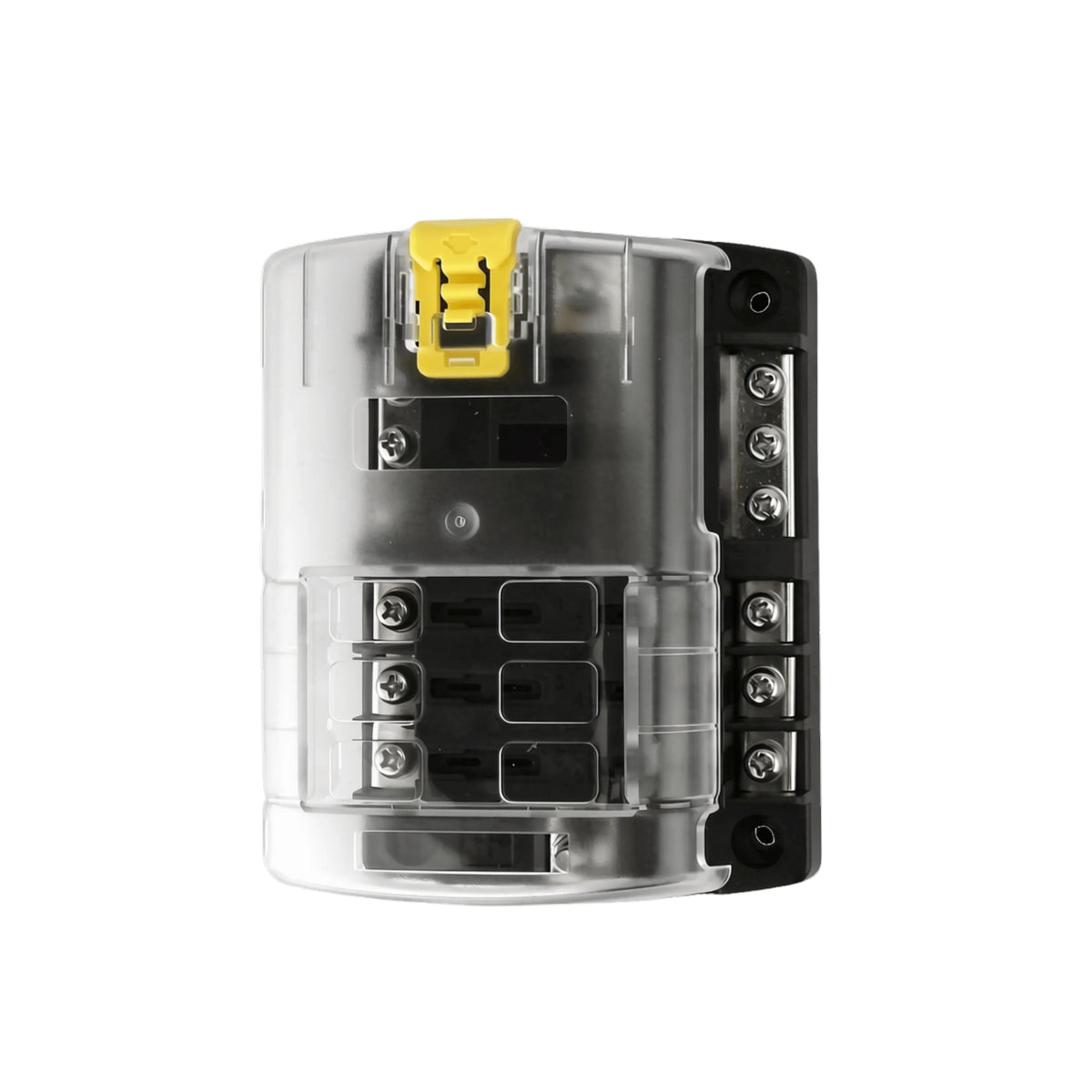

The clear protective cover enhances safety while allowing easy visual fuse inspection without removal of the cover. Compatible with ring or snap fork type terminals on M5 positive and negative terminal posts and M4 load terminal posts. Accepts standard ATO and ATC fast-acting blade fuses (sold separately) and supports up to 100A total current at a maximum of 30A per circuit at 32V DC. Suitable for 24-hour circuits. Two label sets and mounting screws are included. Dimensions are 124mm long by 84mm wide by 39mm high.

Features & Benefits

6-Circuit Branch Circuit Consolidation: The WBFB06 consolidates up to 6 branch circuits into a single fuse block, replacing multiple in-line fuse holders with a single organised and professional installation solution.

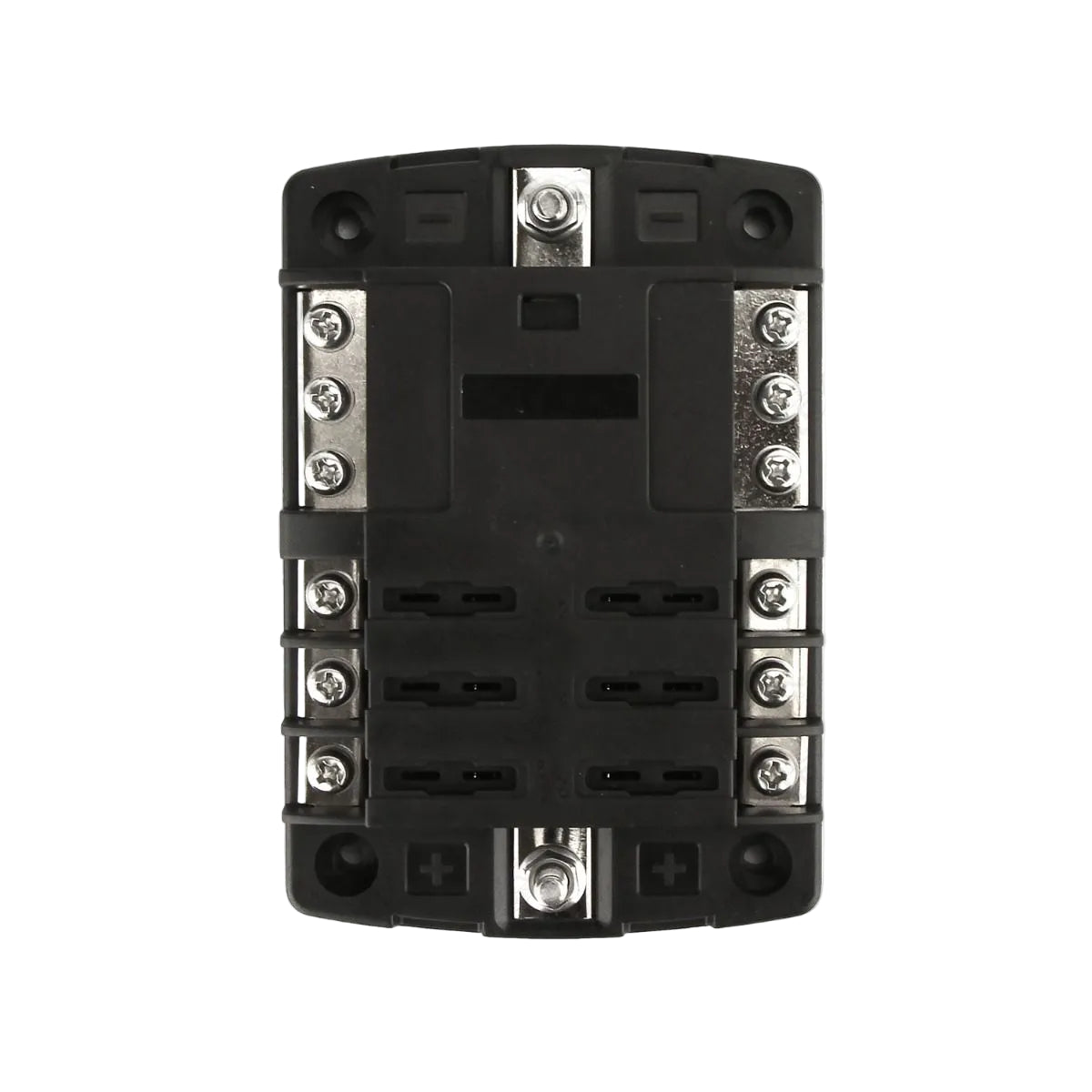

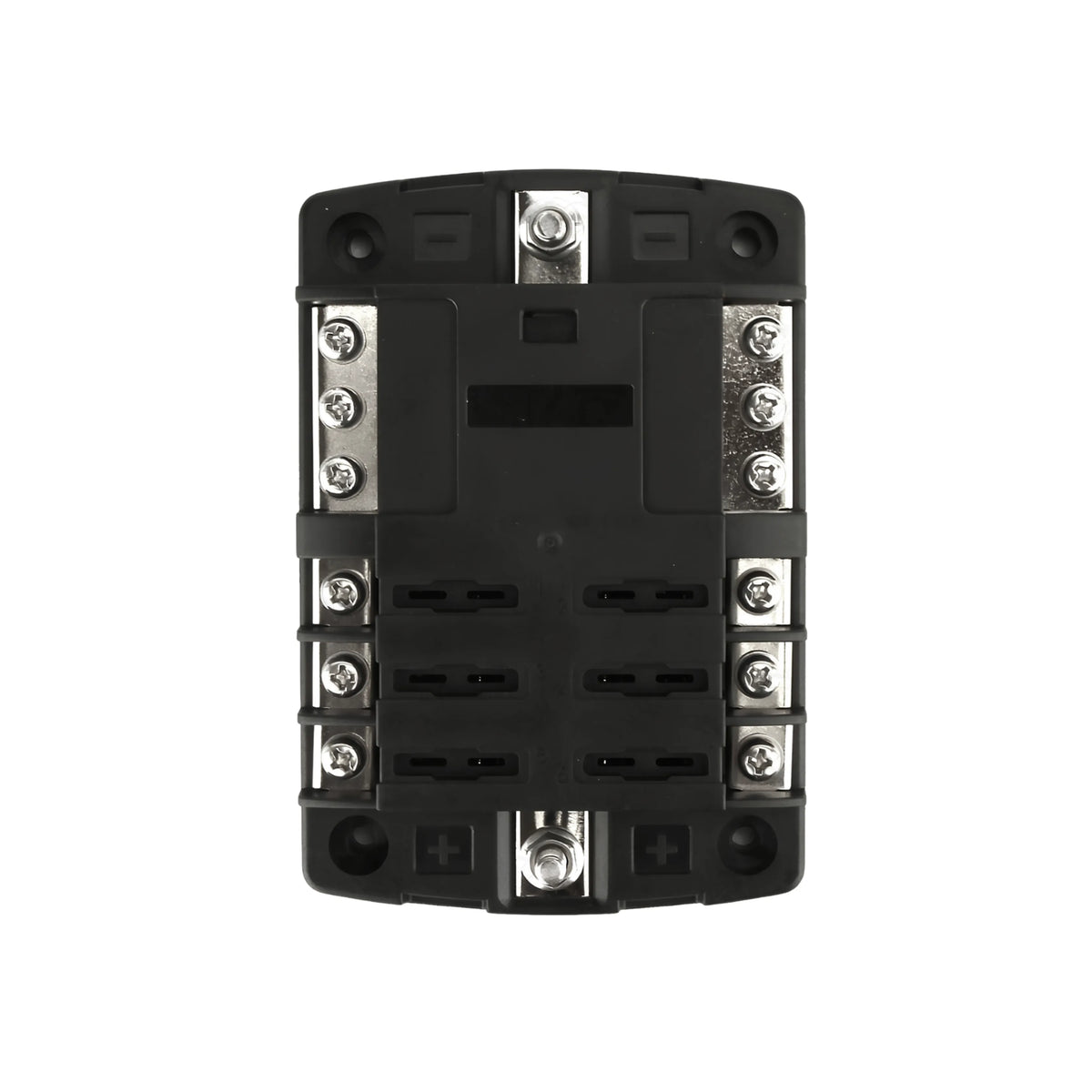

Integrated Negative Bus: The integrated negative bus allows negative connections from all circuits to be terminated at the fuse block without requiring a separate negative distribution point, simplifying wiring and reducing the number of components required for a complete installation.

Clear Protective Cover for Safe Fuse Inspection: The clear protective cover shields the fuse block from accidental contact and environmental contamination while allowing visual inspection of all fuse positions without removing the cover.

Tin-Plated Copper Buses and Fuse Clips: The buses and fuse clips are constructed from tin-plated copper, providing superior corrosion resistance and electrical conductivity suited to marine, outdoor, and high-humidity applications.

Accepts Standard ATO and ATC Blade Fuses: The WBFB06 accepts standard ATO and ATC fast-acting blade fuses, which are widely available in a broad range of current ratings. Fuses are sold separately.

Compatible with Ring or Fork Terminal Types: The terminal posts accept both ring type and snap fork type terminals on the positive (M5), negative (M5), and load (M4) posts, providing flexibility for different wiring termination styles.

Suitable for 24-Hour Circuits: The WBFB06 is suitable for use on 24-hour always-on circuits in addition to switched circuit applications.

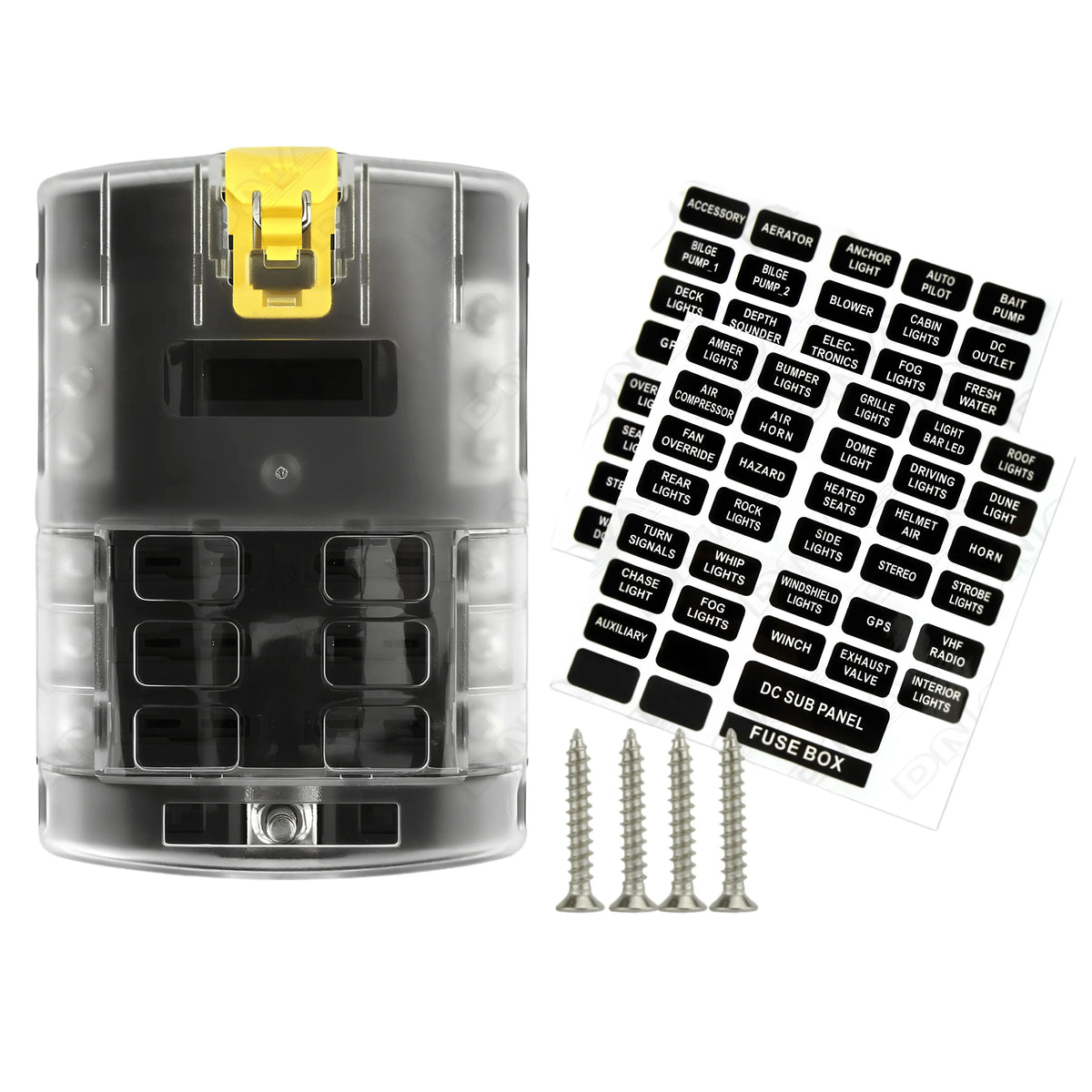

Two Label Sets and Mounting Screws Included: Two label sets are included for circuit identification at each fuse position, and mounting screws are included for securing the fuse block to the installation surface.

Wide Application Compatibility: The WBFB06 is suited to marine, automotive, RV, and general DC electrical system applications up to 32V DC.

Technical Specs

Specification Detail
SKU WBFB06
Brand DNA
Number of Circuits 6
Maximum Voltage 32V DC
Maximum Total Current 100A
Maximum Current per Circuit 30A
Bus Material Tin-Plated Copper
Fuse Clip Material Tin-Plated Copper
Fuse Type ATO and ATC Fast-Acting Blade Fuses (sold separately)
Positive Terminal Posts M5
Negative Terminal Posts M5
Load Terminal Posts M4
Terminal Type Ring or Fork
24-Hour Circuit Suitable Yes

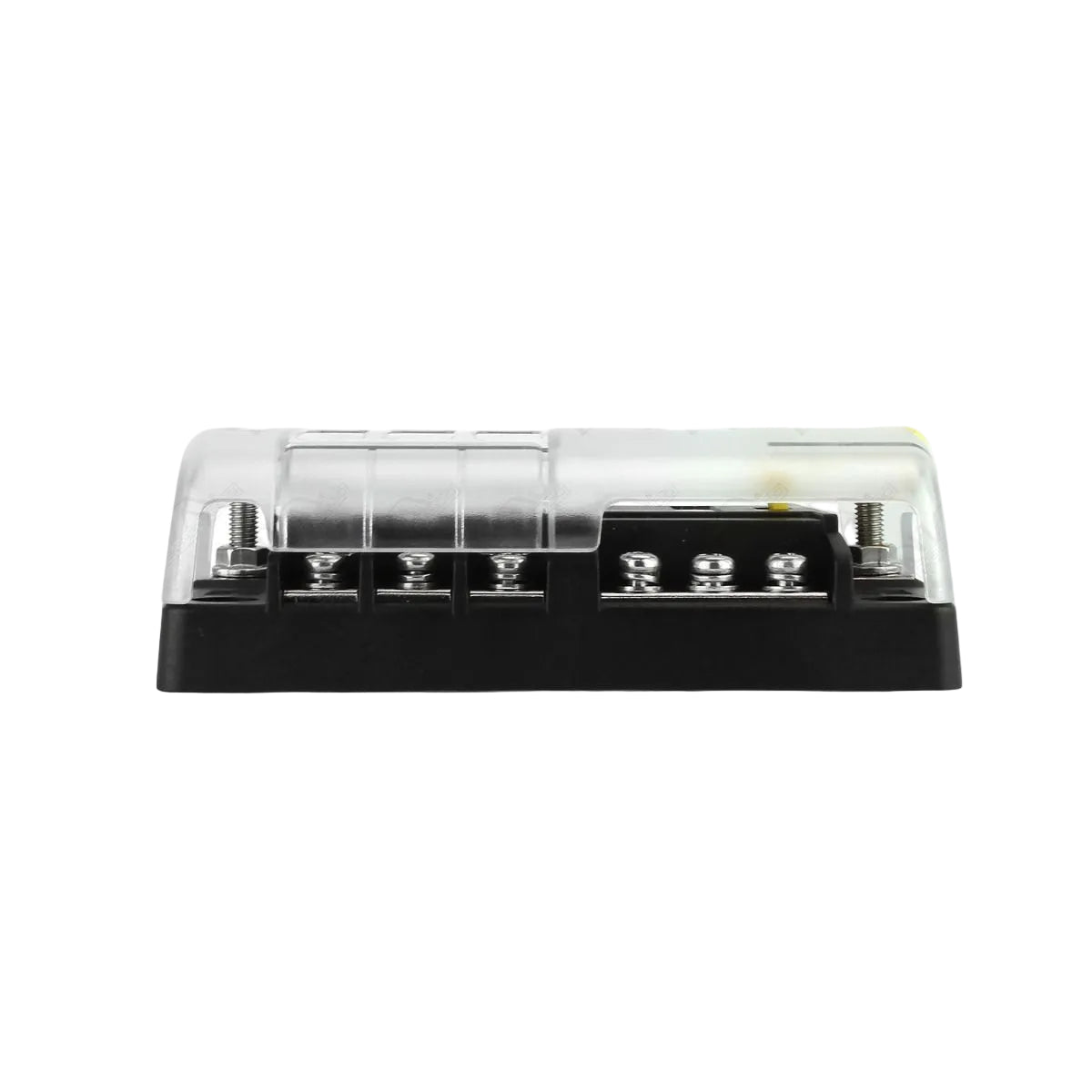

Dimensions 124mm L x 84mm W x 39mm H
Application Marine, RV, Automotive, DC Electrical Systems
Inclusions Clear Protective Cover, 2 Label Sets, Mounting Screws

Compatible With

The WBFB06 is suited to marine, automotive, RV, and DC electrical system applications up to 32V DC. It accepts standard ATO and ATC fast-acting blade fuses (sold separately). Compatible with ring or snap fork type terminals on M5 positive and negative terminal posts and M4 load terminal posts.

Frequently Asked Questions

Are fuses included with the WBFB06?

No. The WBFB06 accepts standard ATO and ATC fast-acting blade fuses which must be purchased separately. Select the appropriate current rating for each circuit based on the load requirements of that circuit.

What is the difference between the WBFB06 and the WBFB12?

Both are ST blade fuse blocks with integrated negative bus, clear cover, tin-plated copper construction, and the same electrical ratings. The WBFB06 provides 6 circuits and measures 124mm long, while the WBFB12 provides 12 circuits and measures 164mm long. Choose based on the number of branch circuits required for your installation.

What is the maximum current the WBFB06 can handle?

The WBFB06 supports a maximum total current of 100A across all 6 circuits combined, with a maximum of 30A per individual circuit at up to 32V DC.

Does the WBFB06 include a negative bus?

Yes. The WBFB06 has an integrated negative bus, allowing negative connections from all circuits to be terminated directly at the fuse block without requiring a separate negative distribution component.

Is the WBFB06 suitable for marine installations?

Yes. The tin-plated copper buses and fuse clips provide superior corrosion resistance suited to marine and high-humidity environments, and the clear protective cover shields the fuse block from moisture and contamination.
