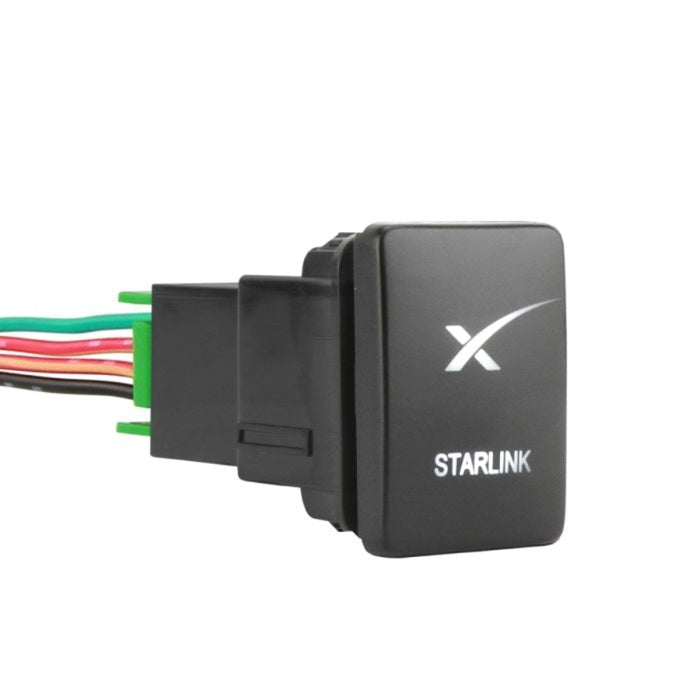

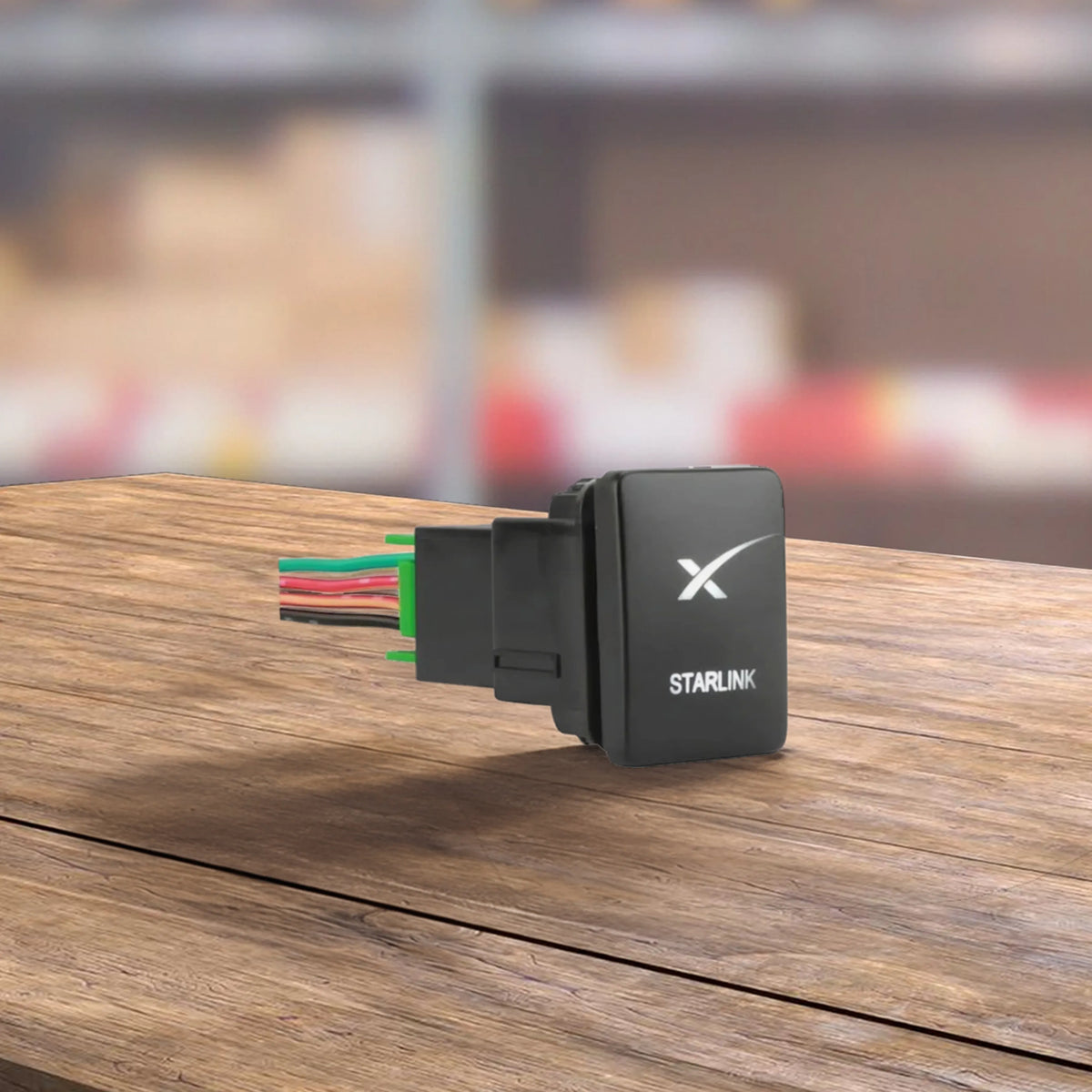

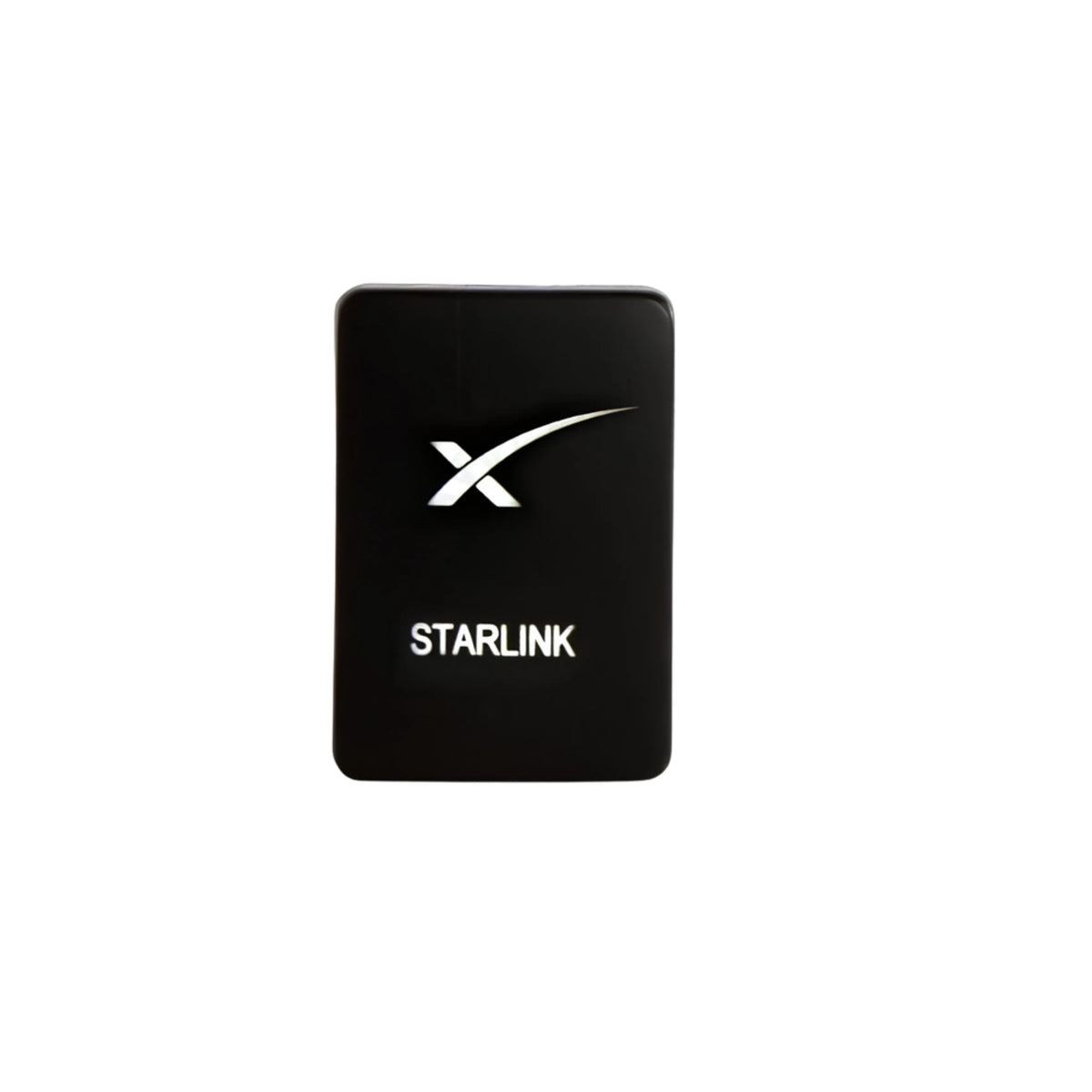

DNA TOYSW03SL Starlink Small Switch To Suit Toyota, Illuminated

Quick answer

The DNA TOYSW03SL is an illuminated on and off switch marked Starlink that pops into the small blank switch socket in many Toyota models, with no cutting or drilling.

The DNA TOYSW03SL is an illuminated on and off switch marked Starlink that pops into the small blank switch socket in many Toyota models, with no cutting or drilling. It also suits most 2018 and 2019 Mitsubishi Pajero and Triton.

It is rated at 3 amps, so run light bars, compressors and other bigger loads through a relay.

Specifications

• Suits small socket in Toyota: Camry 2011 to 2014, Corolla 2006 to 2013, Fortuner 2015 onwards, Hilux 2015 onwards, Kluger 2007 onwards, Landcruiser 200 Series 2016 onwards, Prado 200 Series 2015 onwards, Prado 150 Series 2010 to 2018, RAV4 2006 to 2011, Tundra 2007 to 2013
• Also suits: most 2018 and 2019 Mitsubishi Pajero and Triton
• Size: 32 x 20 x 52 mm
• Rating: 12 V DC, 3 A
• Type: SPST on and off, positive switching only
• Illumination: dual white LED
• Marking: Starlink
• Pin 1 green: positive input, to battery or ACC
• Pin 2 red: positive output, to relay
• Pin 3: not used
• Pin 4 red: 12 V illumination positive, optional
• Pin 5 black: earth
• Packaging: DNA blister and card

FAQ

What is the DNA TOYSW03SL?

An illuminated Starlink switch for the small Toyota blank socket.

Does the light need wiring for it to work?

No. Pin 4 only lights the switch with the dash; switching works without it.

Can it switch a light bar directly?

No. It is rated at 3 amps, so use it to trigger a relay for bigger loads.
