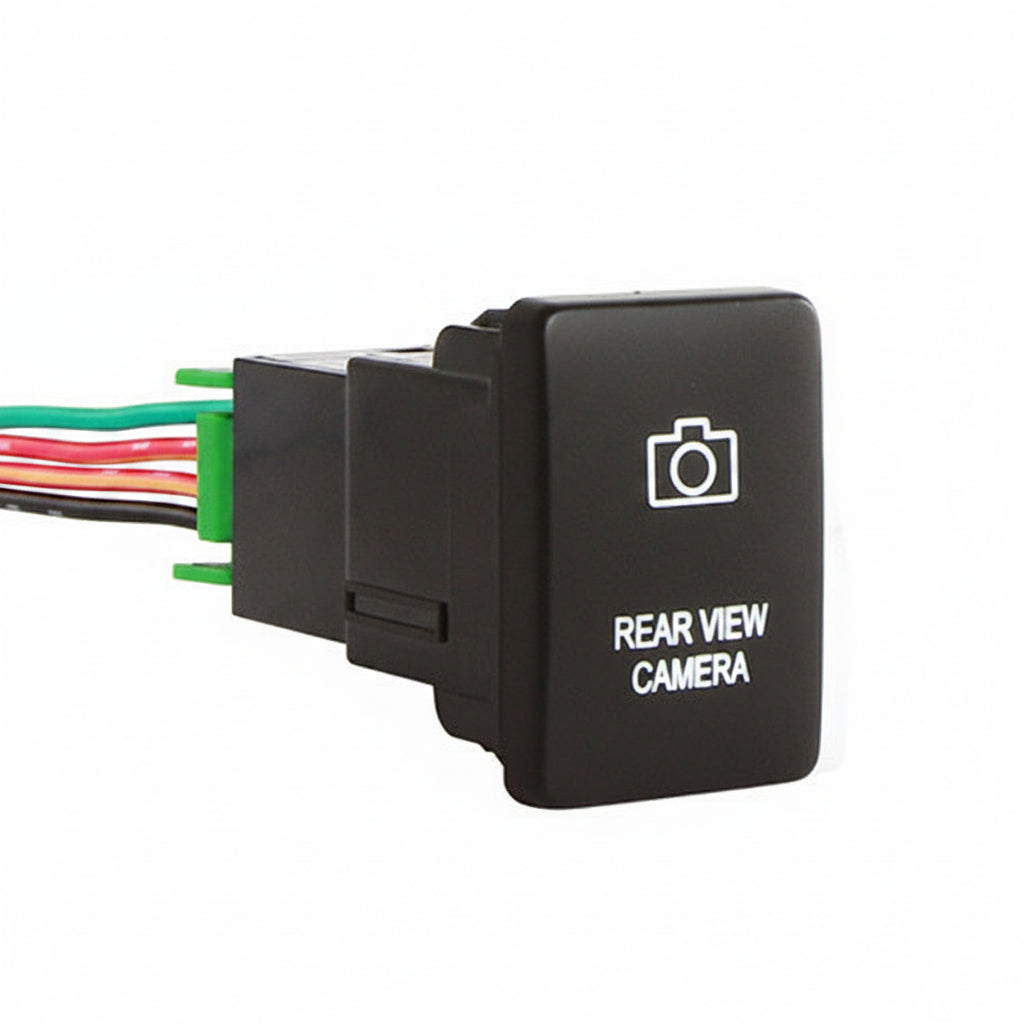

DNA TOYSW03RC Small Switch To Suit Toyota - Rear View Camera

Designed to Work with Factory Switch Socket in Toyota Vehicles

Designed to fit directly into a small blank factory switch socket in Toyota vehicles. Simply just pop out the old blanking socket and plug this switch in. Also suits most 2018/2019 Mitsubishi Pajero and Triton vehicles

Features:

• Size: 32mm H x 20mm W x 52mm D
• Power Rating: 12VDC 3 Amp
• Illumination: Dual White
• Switch Style: SPST ON-OFF
• Switch Colour: Black
• Switch Markings: Rear View Camera
• Packaging: DNA Blister & Card

Wiring - From Top to Bottom:

• Pin 1 (Green) - Positive Input - Wire Direct to Battery or ACC+
• Pin 2 (Red) - Positive Output - Wire to Relay
• Pin 4 (Red) - 12V Positive Illumination - Connect to Vehicle Illumination
• Pin 5 (Black) - Earth Wire - Run to Vehicle Ground/ Earth
• Designed for Positive Switching Only

Suits the following Toyota vehicles:

• Camry 2011-2014
• Corolla 2006-2013
• Fortuner 2015-On
• Hilux 2015-On
• Kluger 2007-On
• Landcruiser 200 Series 2016-On
• Prado 200 Series 2015-On
• Prado 150 Series 2010-2018
• RAV4 2006-2011
• Tundra 2007-2013
