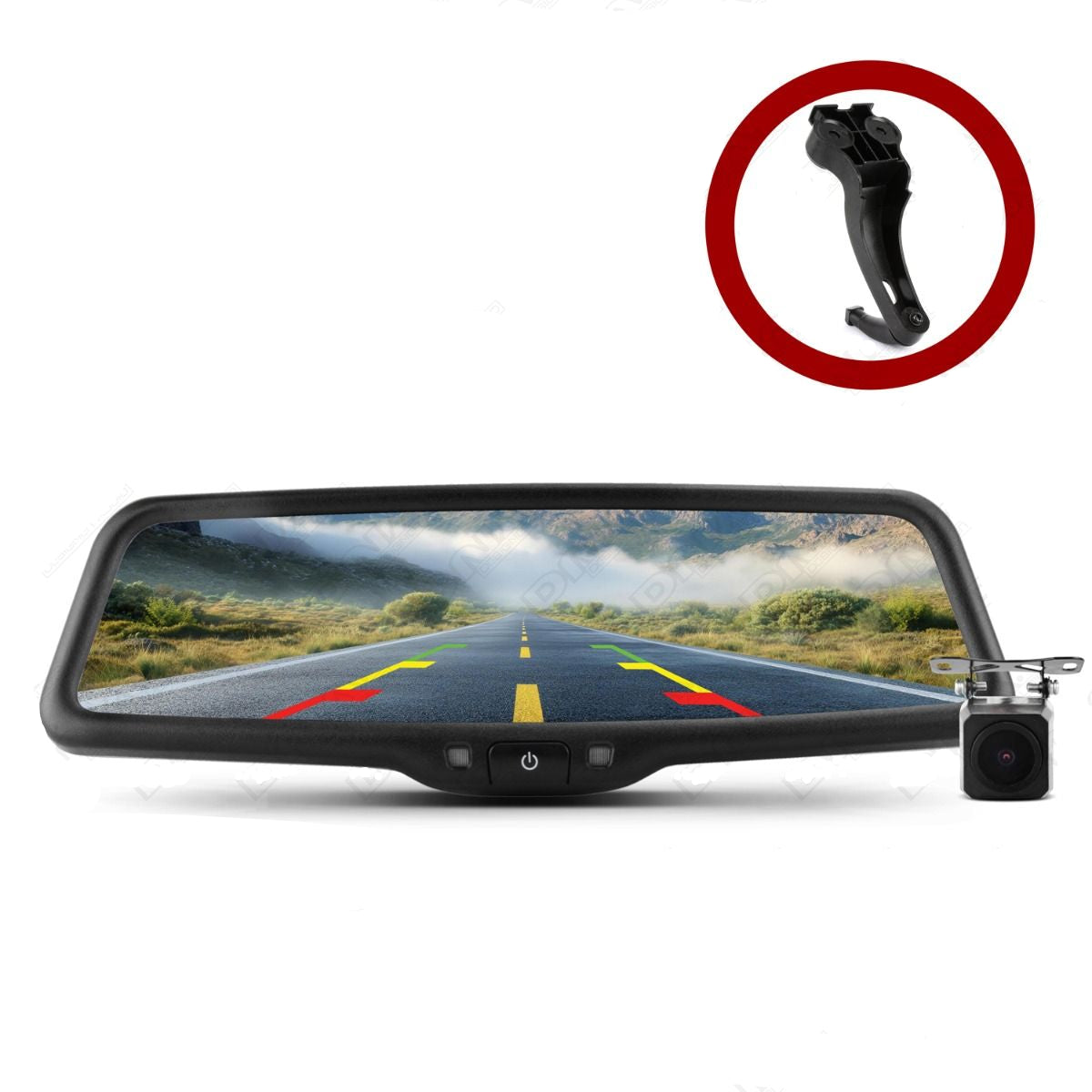

DNA RVS966SU01 9.66" OEM Style Mirror and Camera Kit Suzuki Jimny

SKU: RVS966SU01
Regular price
$599.95
Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

DNA RVS966SU01 9.66" OEM Style Replacement Mirror and Camera Kit Suzuki Jimny

A premium OEM-style 9.66" replacement mirror and camera kit for Suzuki vehicles including the Jimny, the RVS966SU01 includes a full screen IPS display, a 1080P AHD 120-degree rear camera with butterfly or glass mount options, a 6-metre camera cable with trigger wire, and a Suzuki-specific OEM mirror mount bracket.

Product Overview

The DNA RVS966SU01 is a complete 9.66" OEM-style replacement mirror and rear camera kit designed for Suzuki vehicles including the Jimny. It replaces the factory mirror using the existing windscreen mirror mount and includes a Suzuki-specific OEM mirror mount bracket. The 9.66" MIPI IPS full screen display at 1280x320 resolution activates automatically when reverse is selected and displays the 1080P AHD camera image with parking gridlines. When the vehicle moves out of reverse, the display returns to standard mirror operation.

The kit includes a 1080P AHD 120-degree rear camera with two mounting options: butterfly surface mount or glass mount. The camera connects to the mirror monitor via the included 6-metre camera extension cable with integrated trigger wire. The mirror monitor is powered via a 12/24V accessory power adaptor included in the kit, converting to the 5V 3A input required by the display. A separate bracket option is available and sold separately for alternative mounting configurations. The RVS966SU01 is supplied in a display gift box.

Features & Benefits

Specific Fitment for Suzuki Vehicles Including Jimny: The RVS966SU01 is supplied with a Suzuki-specific OEM mirror mount bracket, providing a factory-look installation using the existing windscreen mirror mounting point. The RVS966SU01 is also specifically suitable for the Suzuki Jimny. Alternative bracket options are available separately.

9.66" MIPI IPS Full Screen Display at 1280x320: The full screen 9.66" MIPI IPS display at 1280x320 resolution covers the entire mirror surface when active, providing a wide, high-quality rearward view from the included 1080P AHD camera.

Automatic Activation in Reverse with Parking Gridlines: The display activates automatically when reverse gear is engaged, displaying the rear camera image with parking gridlines for assisted manoeuvring. The display returns to standard mirror operation when reverse is disengaged.

1080P AHD Rear Camera with 120-Degree Angle: The included 1080P AHD rear camera provides high-definition rearward imaging at a 120-degree field of view. The compact camera body measures 23.5 x 23.5 x 34mm.

Dual Mount Options - Butterfly Surface Mount or Glass Mount: The rear camera is supplied with two mounting options: a butterfly surface mount for panel or body mounting, and a glass mount for rear window installation, providing flexibility for different mounting locations.

6-Metre Camera Cable with Trigger Wire: The included 6-metre camera extension cable with integrated trigger wire connects the rear camera to the mirror monitor and provides the reverse trigger signal required for automatic display activation.

12/24V Power Adaptor Included: The mirror monitor operates at 5V 3A and is powered via the included 12/24V accessory power adaptor, making it compatible with both 12V and 24V vehicle electrical systems without additional components.

4-Pin Camera Connection: The rear camera uses a 4-pin connector for a secure and reliable connection to the mirror monitor via the included extension cable.

Technical Specs

Specification Detail
SKU RVS966SU01
Brand DNA
Compatible Vehicles Suzuki Various Models, Suzuki Jimny
Monitor Size 9.66"
Monitor Type MIPI IPS Full Screen
Monitor Resolution 1280 x 320 pixels
Monitor Dimensions 253mm W x 81.6mm H x 48.3mm D
Monitor Input Voltage 5V 3A
Power Adaptor 12/24V to 5V 3A (included)
Video Input 1x (reverse camera)
Auto Reverse Activation Yes
Parking Gridlines Yes
Mounting Type OEM Mirror Mount Bracket (Suzuki specific, included)
Alternative Bracket Available separately
Camera Resolution 1080P AHD
Camera Angle 120 Degrees
Camera Input Voltage 12V
Camera Connection 4 Pin
Camera Mount Options Butterfly Surface Mount or Glass Mount
Camera Dimensions 23.5mm H x 23.5mm W x 34mm D
Camera Cable Length 6 Metres (with trigger wire)
Packaging Display Gift Box

What's in the Box

  • 9.66" Mirror Monitor
  • AHD Reverse Camera
  • Camera Extension Cable with Trigger Wire
  • OEM Mirror Mount Bracket
  • 12/24V Power Adaptor

Compatible With

The RVS966SU01 is designed for Suzuki vehicles including the Jimny, and uses the existing windscreen mirror mount with the included Suzuki-specific OEM mirror mount bracket. An alternative bracket option is available separately for other mounting configurations. Confirm your specific Suzuki model and build date before purchase.

Frequently Asked Questions

Does the RVS966SU01 use the existing mirror mount on Suzuki vehicles?

Yes. The RVS966SU01 is designed to use the existing windscreen mirror mount on Suzuki vehicles. The included Suzuki-specific OEM mirror mount bracket connects the monitor to the factory mounting point without drilling or permanent modification to the vehicle. An alternative bracket option is available separately.

Is the RVS966SU01 compatible with the Suzuki Jimny?

Yes. The RVS966SU01 is confirmed suitable for the Suzuki Jimny in addition to other Suzuki vehicles. Confirm your specific Jimny model and build date before purchase.

What mounting options are available for the rear camera?

The included 1080P AHD rear camera is supplied with two mounting options: a butterfly surface mount for panel or body installation and a glass mount for rear window installation. Choose the mount type that best suits the camera placement on the vehicle.

Does the RVS966SU01 work on 24V vehicles?

Yes. The included power adaptor accepts 12V or 24V input and converts to the 5V 3A required by the mirror monitor, making the RVS966SU01 compatible with both 12V and 24V vehicle electrical systems.

Does the display show parking gridlines when reversing?

Yes. The 9.66" display activates automatically when reverse gear is engaged and overlays parking gridlines on the 1080P AHD camera image to assist with reversing and parking manoeuvres.
