DNA RVS966FM01 9.66" OEM Style Replacement Mirror and Camera Kit Ford Ranger and Mazda BT-50

A premium OEM-style 9.66" replacement mirror and camera kit for the Ford Ranger and Mazda BT-50, also suitable for the Ford Ranger (2023 onwards) and Volkswagen Amarok (2023 onwards), the RVS966FM01 includes a full screen IPS display, a 1080P AHD 120-degree rear camera with butterfly or glass mount options, a 6-metre camera cable with trigger wire, and a Ford Ranger and Mazda BT-50 specific OEM mirror mount bracket.

Product Overview

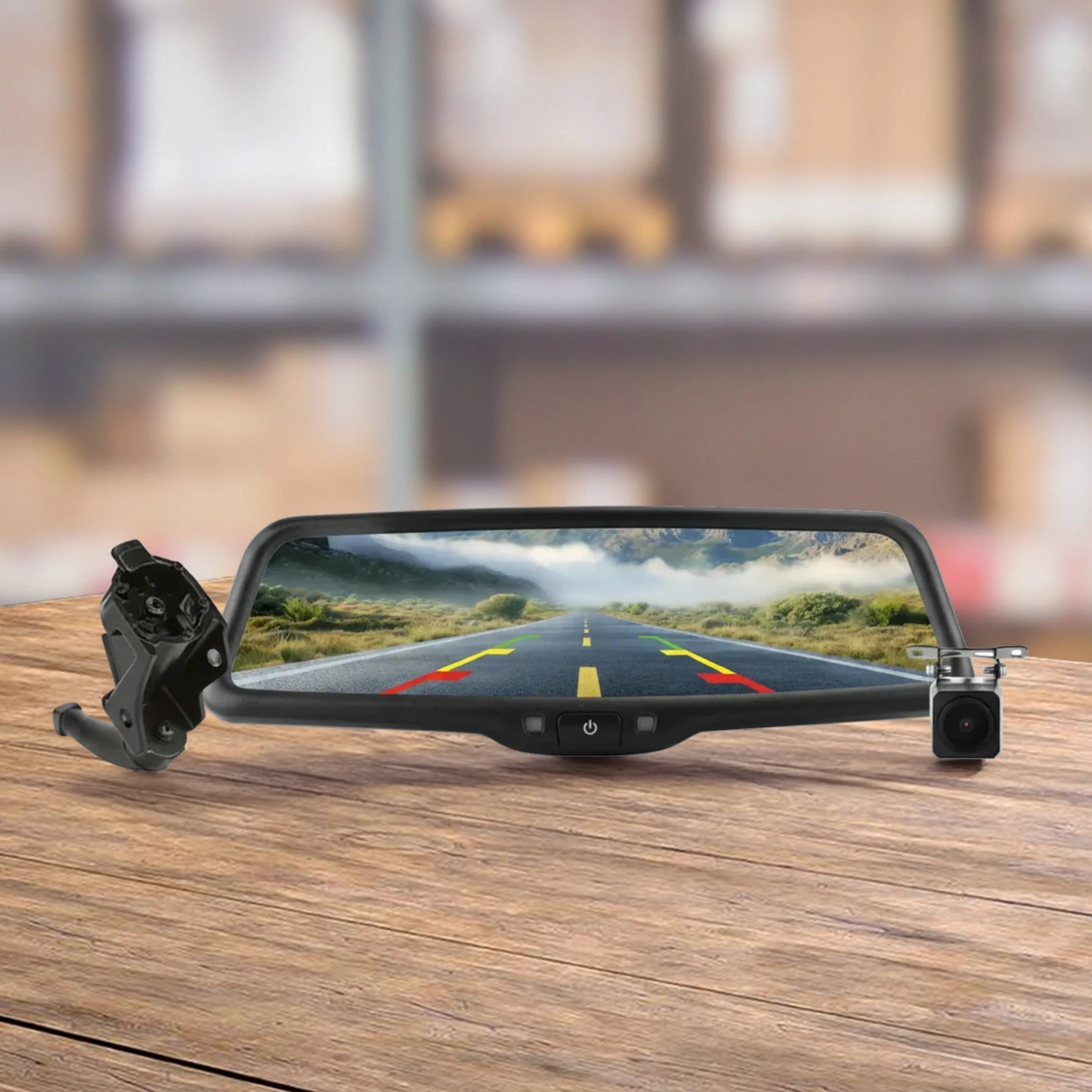

The DNA RVS966FM01 is a complete 9.66" OEM-style replacement mirror and rear camera kit designed for the Ford Ranger and Mazda BT-50, and also suitable for the Ford Ranger from 2023 onwards and the Volkswagen Amarok from 2023 onwards. It replaces the factory mirror using the existing windscreen mirror mount and includes a mirror mount bracket suited to the Ford Ranger and Mazda BT-50. The 9.66" MIPI IPS full screen display at 1280x320 resolution activates automatically when reverse is selected and displays the 1080P AHD camera image with parking gridlines. When the vehicle moves out of reverse, the display returns to standard mirror operation.

The kit includes a 1080P AHD 120-degree rear camera with two mounting options: butterfly surface mount or glass mount. The camera connects to the mirror monitor via the included 6-metre camera extension cable with integrated trigger wire. The mirror monitor is powered via a 12/24V accessory power adaptor included in the kit, converting to the 5V 3A input required by the display. A separate bracket option is available and sold separately for alternative mounting configurations. The RVS966FM01 is supplied in a display gift box.

Features & Benefits

Fitment for Ford Ranger, Mazda BT-50, Ford Ranger 2023-On, and Volkswagen Amarok 2023-On: The RVS966FM01 is supplied with a mirror mount bracket suited to the Ford Ranger and Mazda BT-50, and is also confirmed suitable for the Ford Ranger from 2023 onwards and the Volkswagen Amarok from 2023 onwards. Alternative bracket options are available separately.

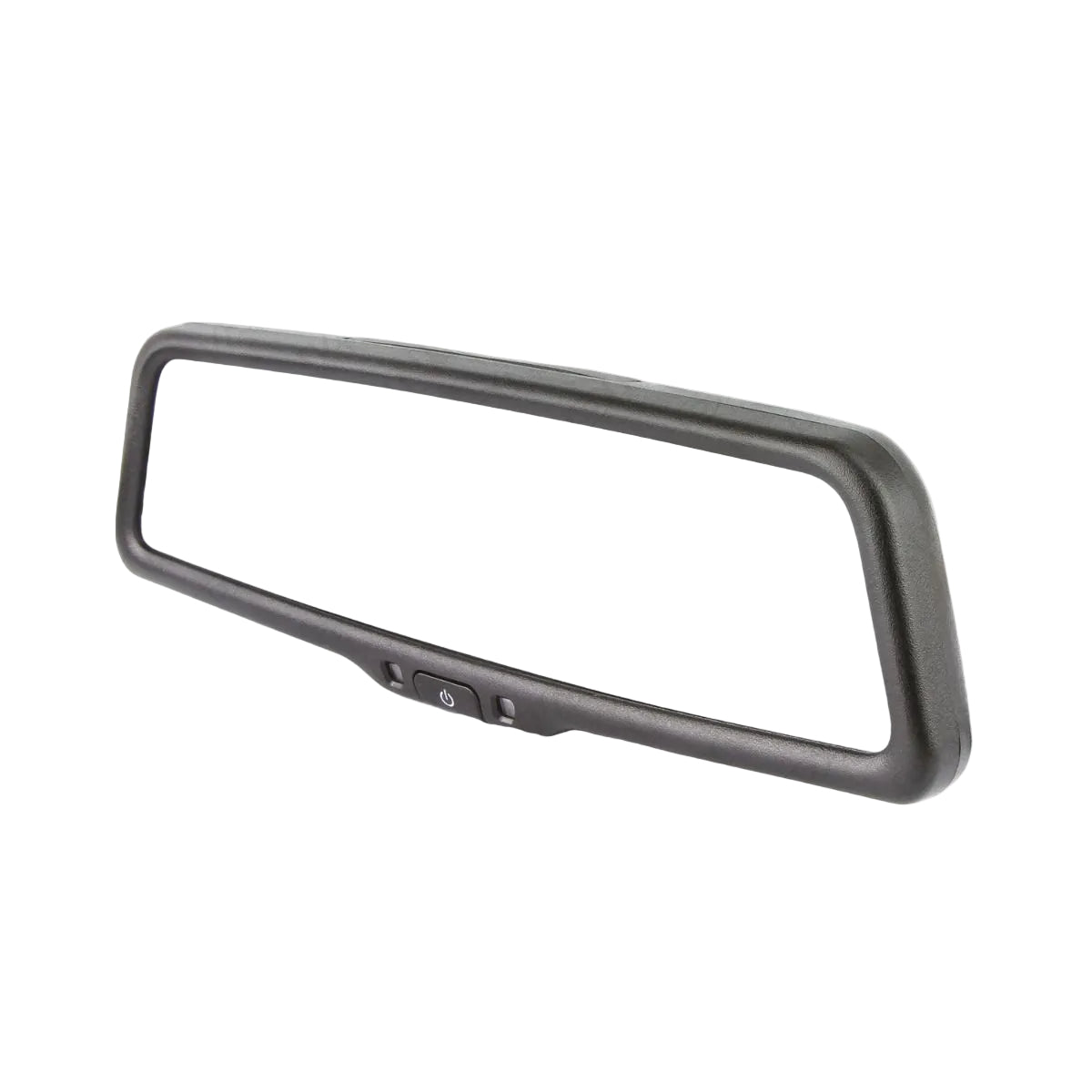

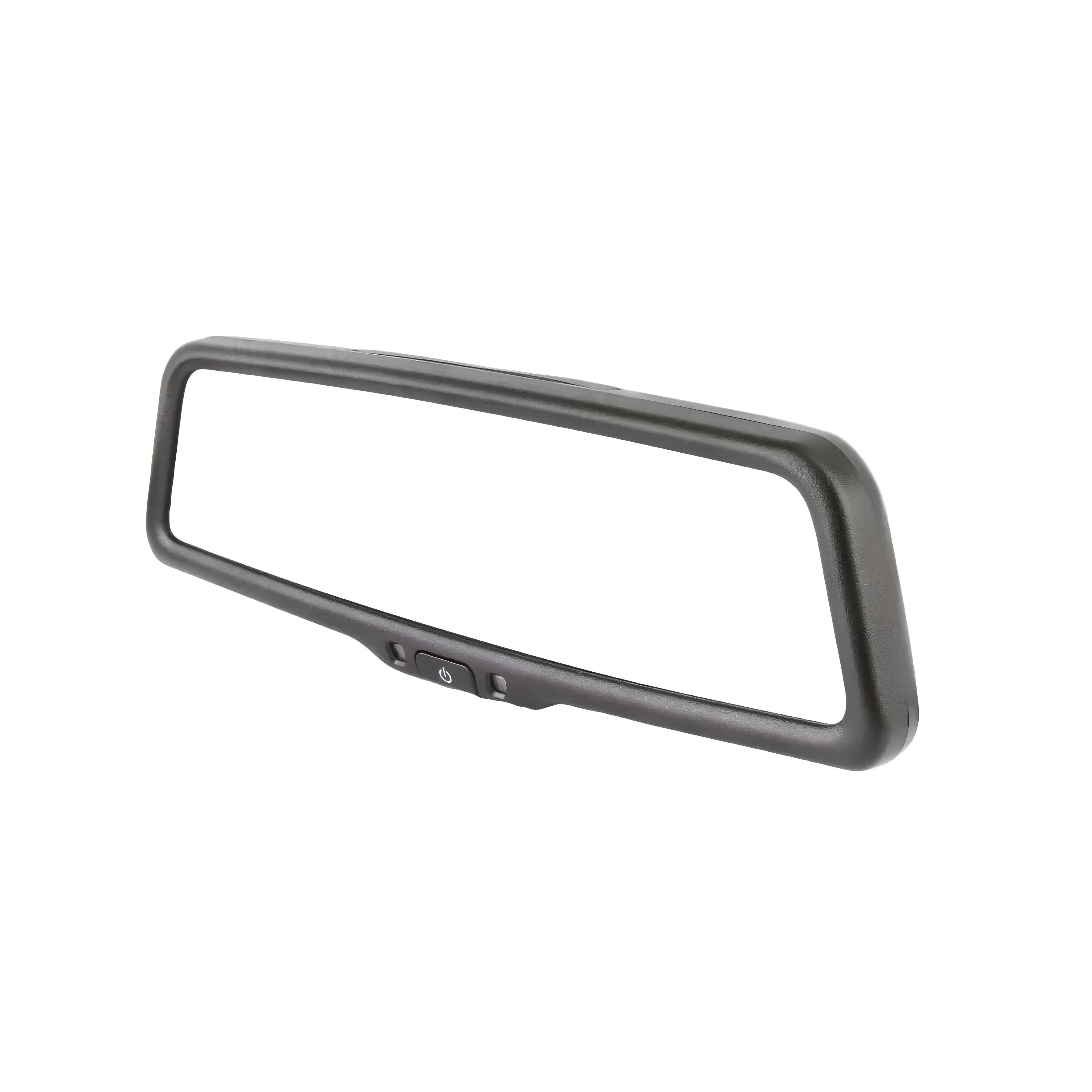

9.66" MIPI IPS Full Screen Display at 1280x320: The full screen 9.66" MIPI IPS display at 1280x320 resolution covers the entire mirror surface when active, providing a wide, high-quality rearward view from the included 1080P AHD camera.

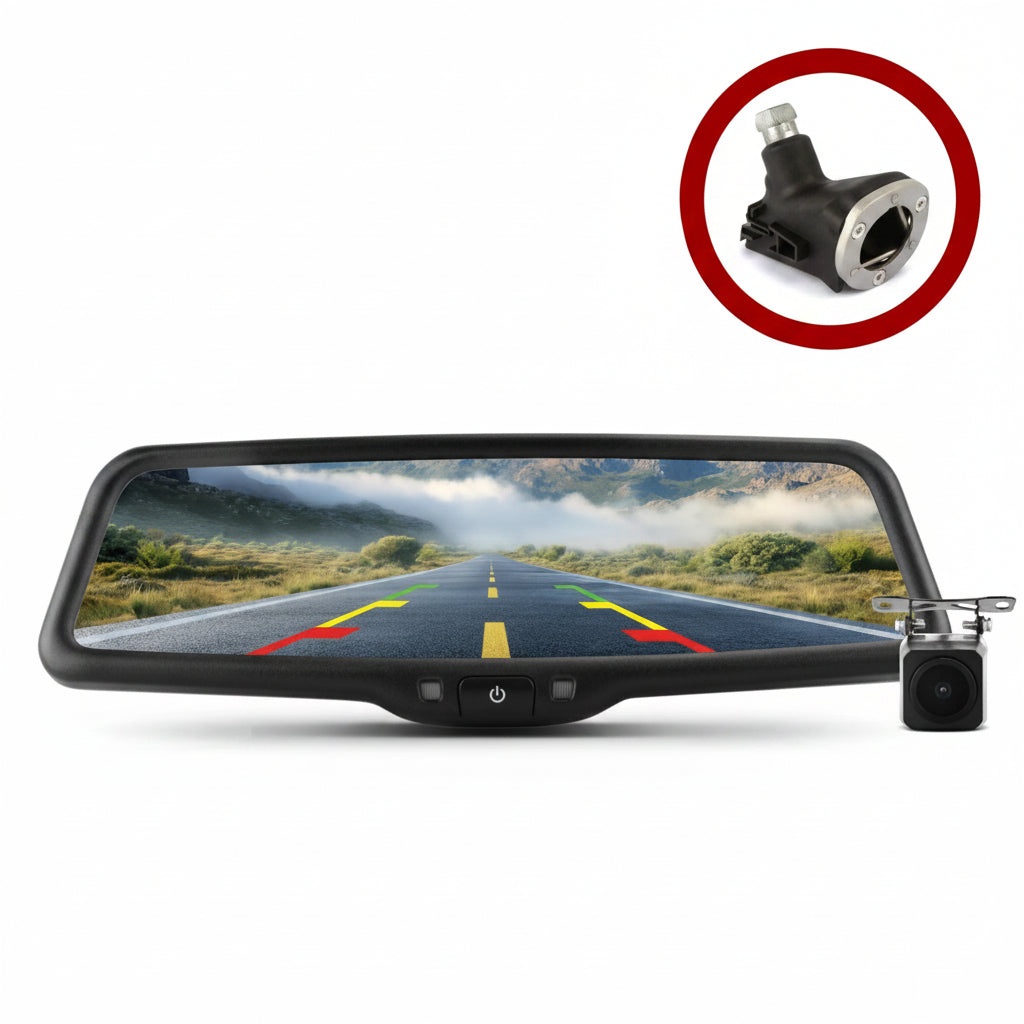

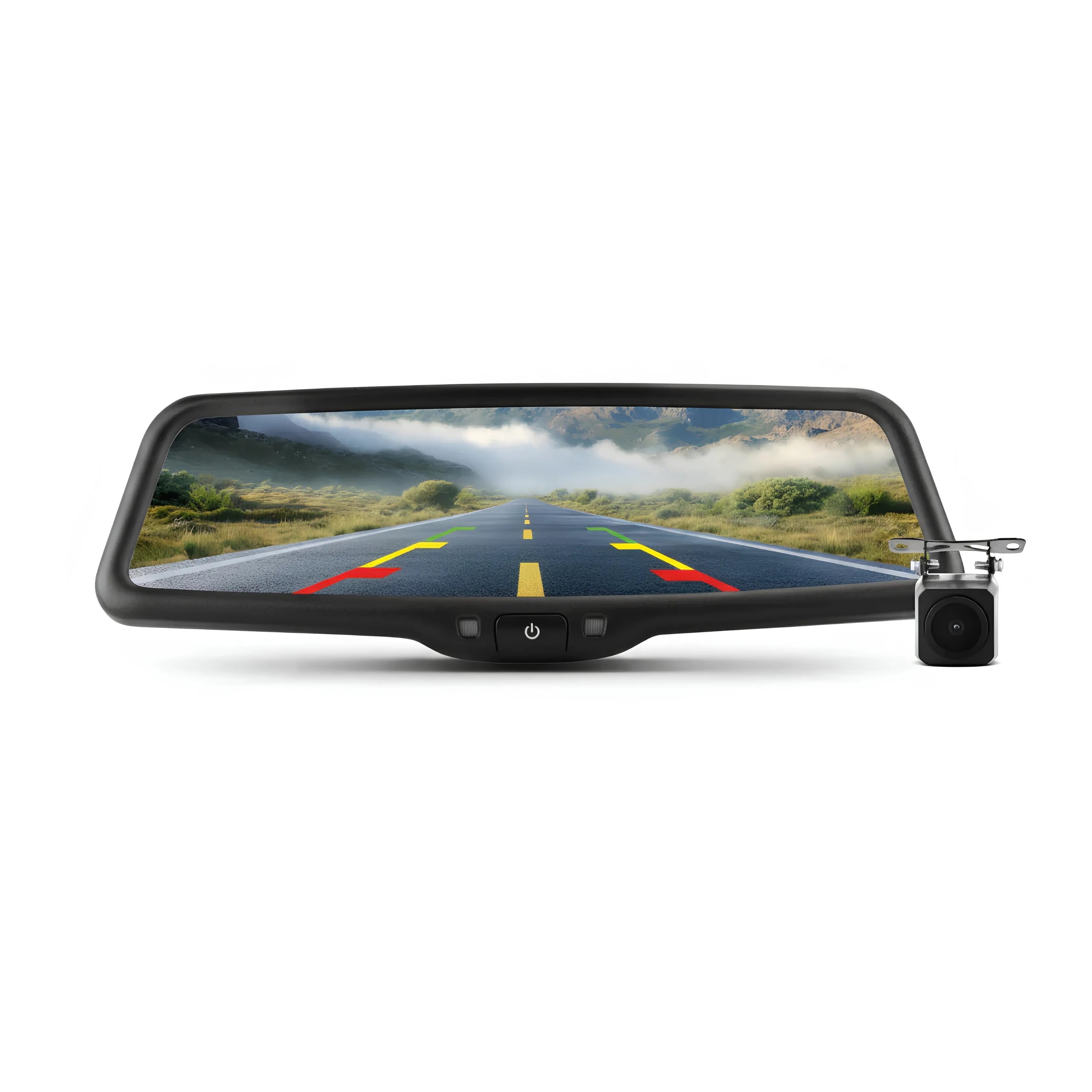

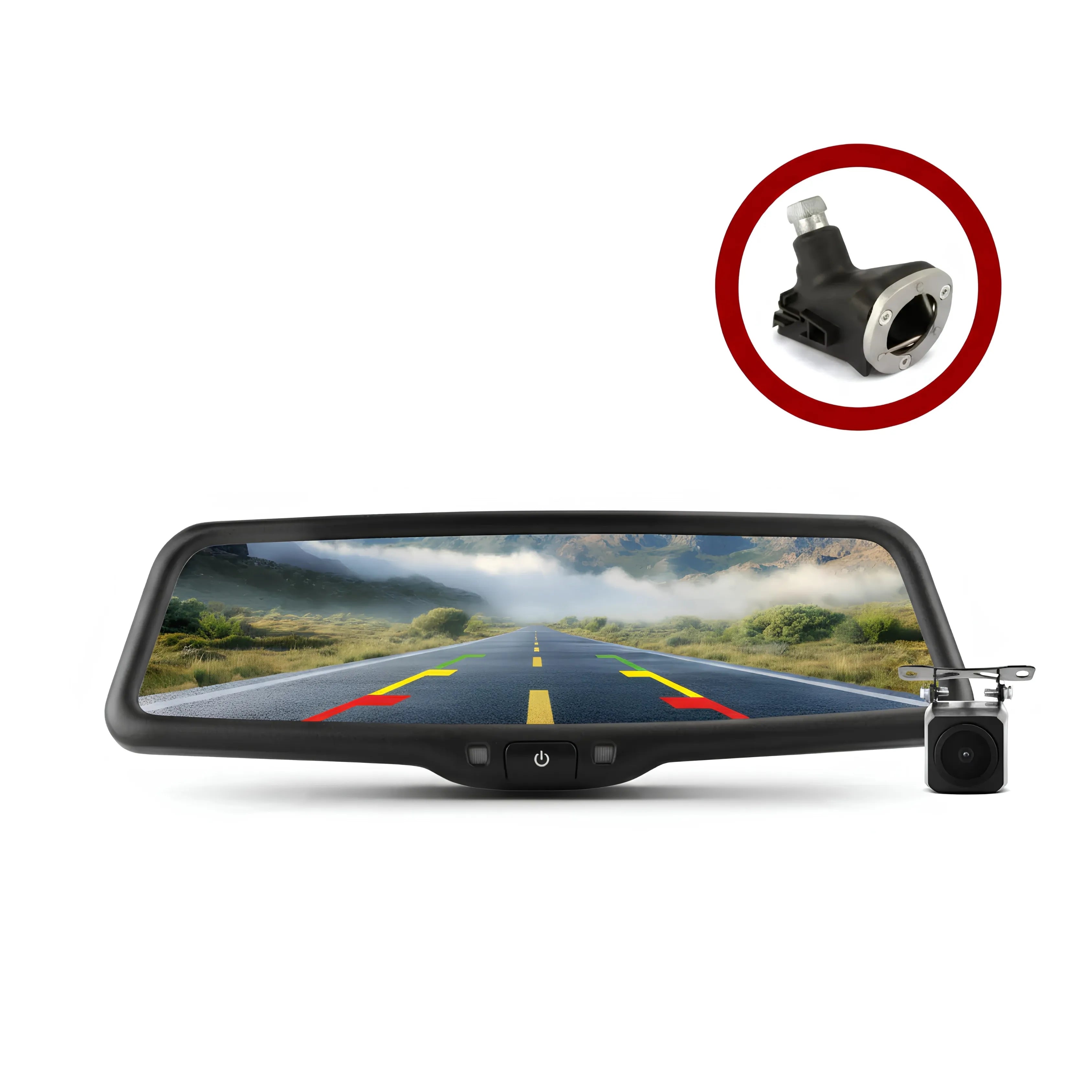

Automatic Activation in Reverse with Parking Gridlines: The display activates automatically when reverse gear is engaged, displaying the rear camera image with parking gridlines for assisted manoeuvring. The display returns to standard mirror operation when reverse is disengaged.

1080P AHD Rear Camera with 120-Degree Angle: The included 1080P AHD rear camera provides high-definition rearward imaging at a 120-degree field of view. The compact camera body measures 23.5 x 23.5 x 34mm.

Dual Mount Options - Butterfly Surface Mount or Glass Mount: The rear camera is supplied with two mounting options: a butterfly surface mount for panel or body mounting, and a glass mount for rear window installation, providing flexibility for different mounting locations.

6-Metre Camera Cable with Trigger Wire: The included 6-metre camera extension cable with integrated trigger wire connects the rear camera to the mirror monitor and provides the reverse trigger signal required for automatic display activation.

12/24V Power Adaptor Included: The mirror monitor operates at 5V 3A and is powered via the included 12/24V accessory power adaptor, making it compatible with both 12V and 24V vehicle electrical systems without additional components.

4-Pin Camera Connection: The rear camera uses a 4-pin connector for a secure and reliable connection to the mirror monitor via the included extension cable.

Technical Specs

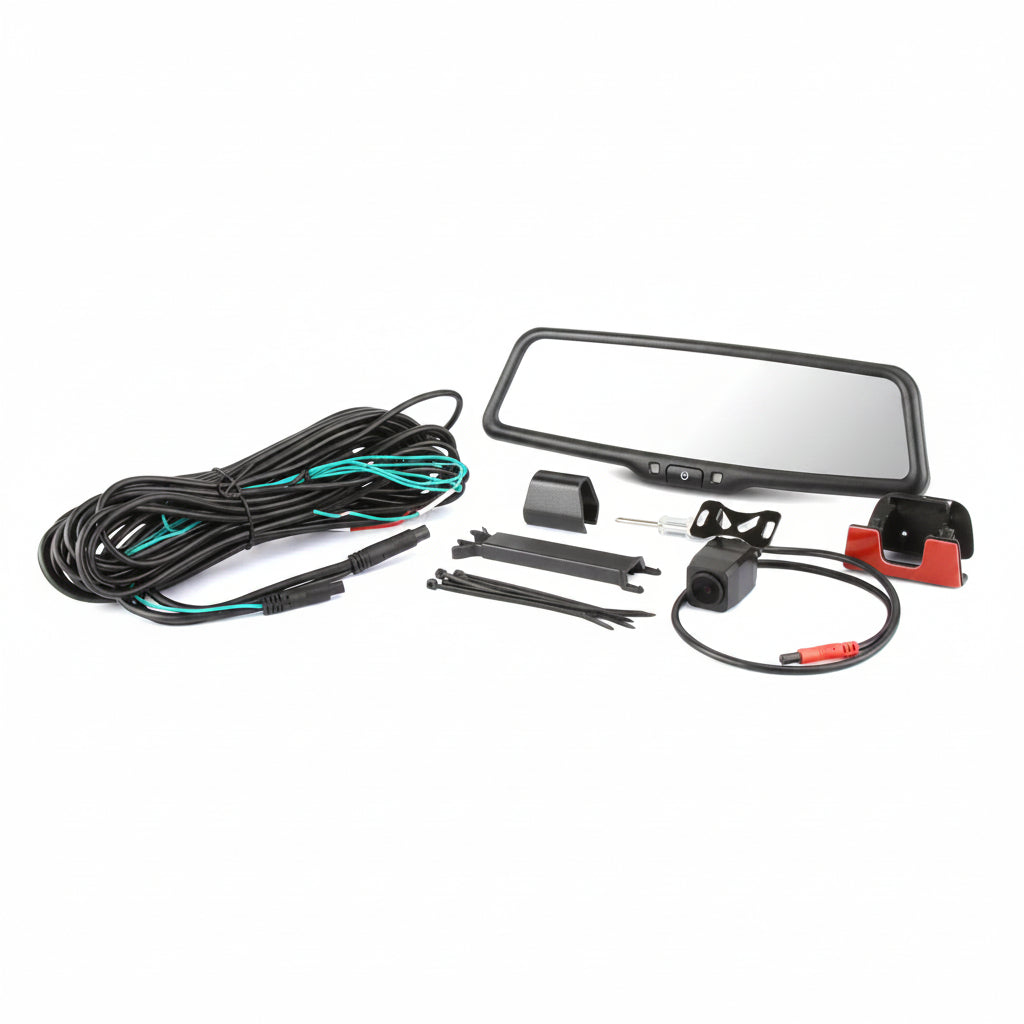

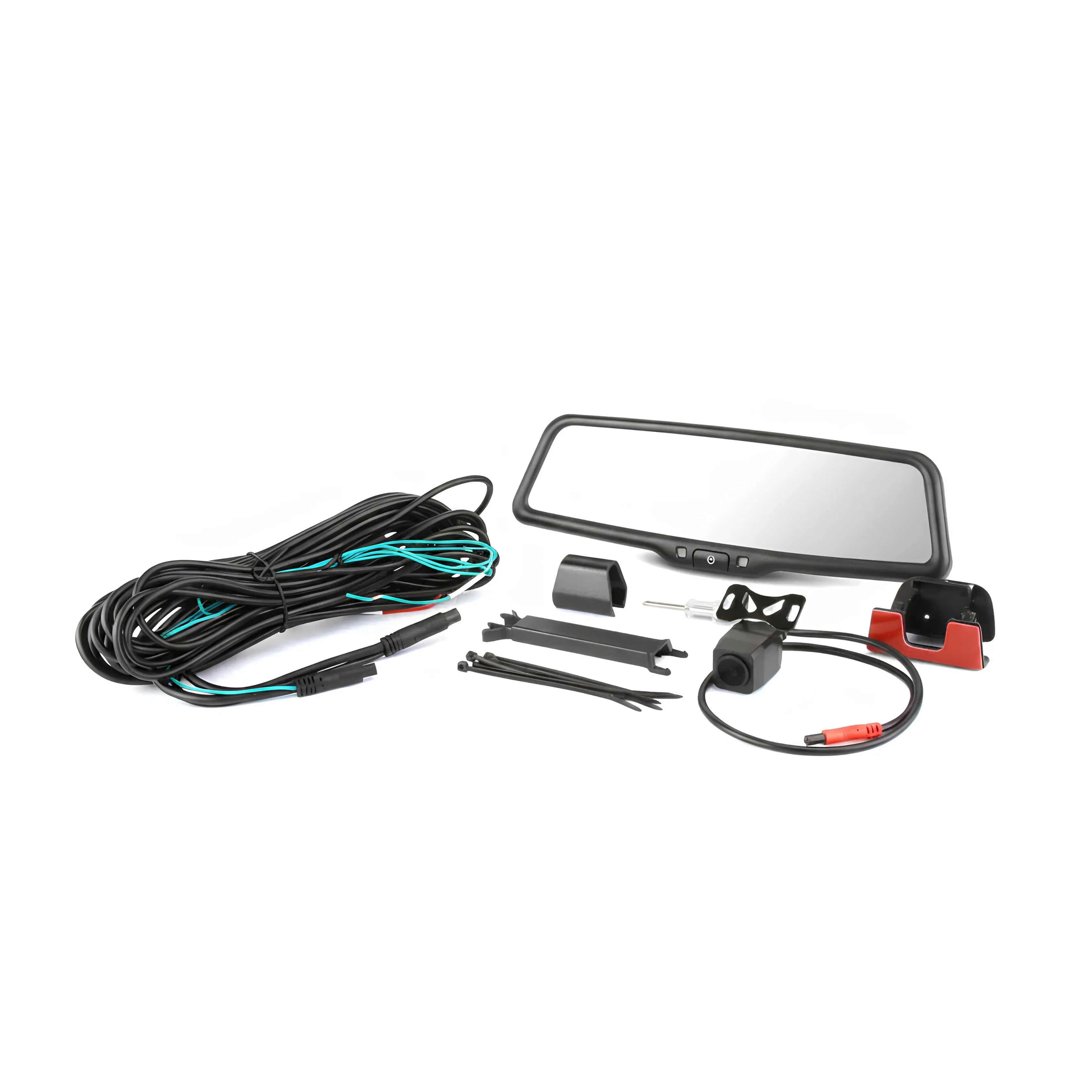

What's in the Box

• 9.66" Mirror Monitor
• AHD Reverse Camera
• Camera Extension Cable with Trigger Wire
• OEM Mirror Mount Bracket
• 12/24V Power Adaptor

Compatible With

The RVS966FM01 is designed for the Ford Ranger and Mazda BT-50 and is also confirmed suitable for the Ford Ranger from 2023 onwards and the Volkswagen Amarok from 2023 onwards. It uses the existing windscreen mirror mount with the included vehicle-specific OEM mirror mount bracket. An alternative bracket option is available separately for other mounting configurations. Confirm your specific model and build date before purchase.

Frequently Asked Questions

Which vehicles is the RVS966FM01 compatible with?

The RVS966FM01 is designed for the Ford Ranger and Mazda BT-50 and is also confirmed suitable for the Ford Ranger from 2023 onwards and the Volkswagen Amarok from 2023 onwards. Confirm your specific model and build date before purchase.

Does the RVS966FM01 use the existing mirror mount on the Ford Ranger and Mazda BT-50?

Yes. The RVS966FM01 is designed to use the existing windscreen mirror mount on the Ford Ranger and Mazda BT-50. The included vehicle-specific OEM mirror mount bracket connects the monitor to the factory mounting point without drilling or permanent modification to the vehicle. An alternative bracket option is available separately.

What mounting options are available for the rear camera?

The included 1080P AHD rear camera is supplied with two mounting options: a butterfly surface mount for panel or body installation and a glass mount for rear window installation. Choose the mount type that best suits the camera placement on the vehicle.

Does the RVS966FM01 work on 24V vehicles?

Yes. The included power adaptor accepts 12V or 24V input and converts to the 5V 3A required by the mirror monitor, making the RVS966FM01 compatible with both 12V and 24V vehicle electrical systems.

Does the display show parking gridlines when reversing?

Yes. The 9.66" display activates automatically when reverse gear is engaged and overlays parking gridlines on the 1080P AHD camera image to assist with reversing and parking manoeuvres.
