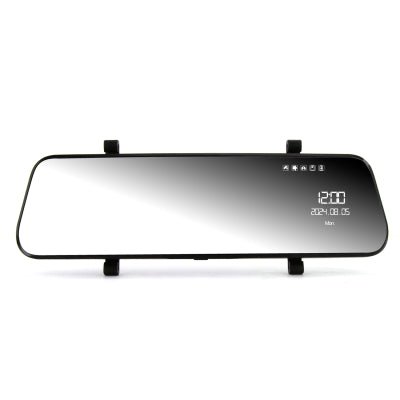

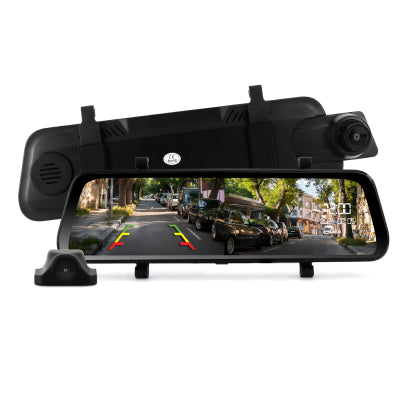

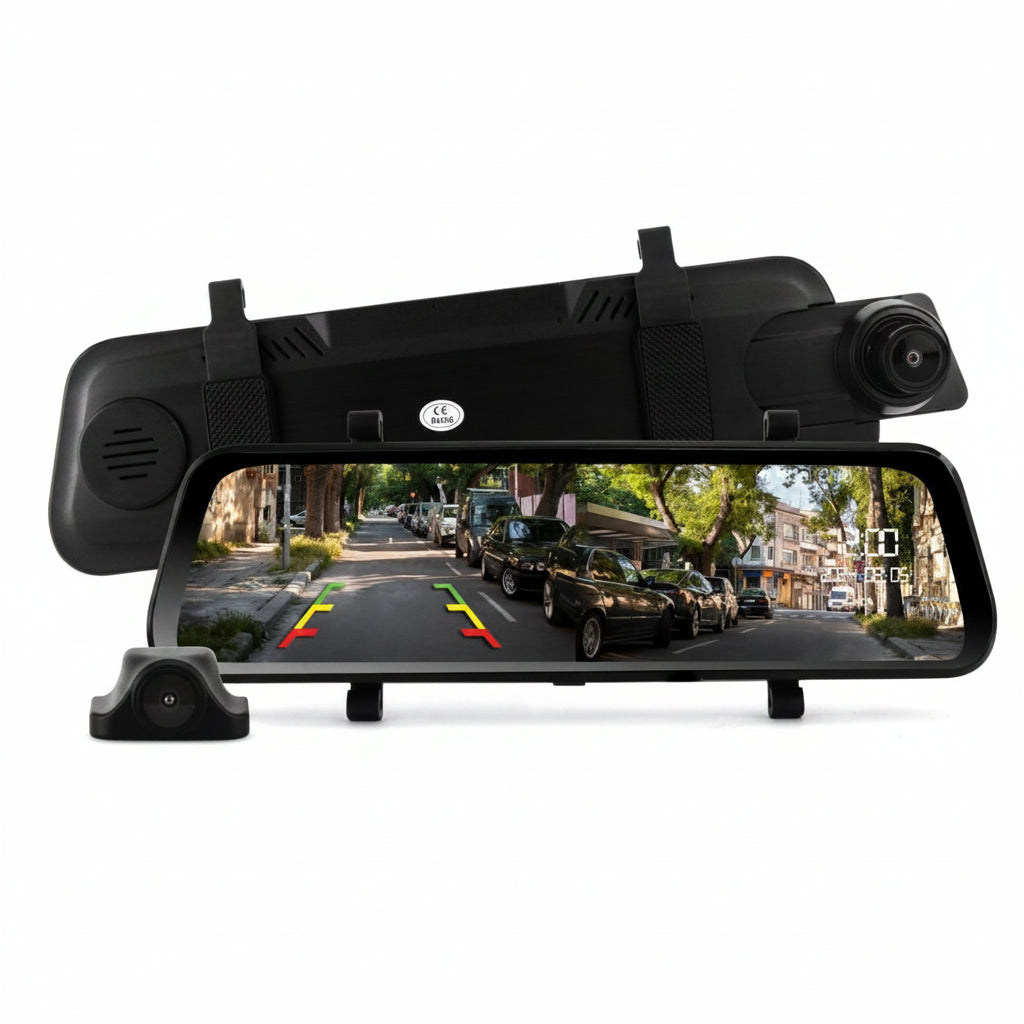

DNA RVS966-AHD 9.66" AHD Rear-View DVR Mirror & Camera Pack
9.66” AHD Touch Screen Rear-View DVR Mirror with 1080P Dual Recording, Streaming & Reverse Camera Kit
The DNA RVS966-AHD 9.66” AHD Rear-View DVR Mirror & Camera Pack combines a high-definition mirror display, dual-channel dash camera recording, and an AHD reversing camera into one premium safety and monitoring solution. Designed for cars, SUVs, 4WDs, trucks, and RVs, this system provides superior front and rear recording, enhanced visibility, and real-time streaming — all in a compact clip-on mirror design.
Featuring dual 1080P cameras, the integrated DVR records front and rear views simultaneously, while the live streaming function ensures constant rear visibility, making it perfect for vehicles with limited rear vision. A built-in G-Sensor automatically detects collisions and locks footage, while continuous loop recording ensures you never miss a moment.
DNA RVS966-AHD Key Features & Benefits:
- Dual 1080P Recording: Front dash camera and rear reverse camera record in crisp Full HD for complete coverage.
- Large 9.66” AHD Touch Screen: High-resolution 1920×480 LCD mirror display for improved clarity and safety.
- Live Streaming Rear Vision: Displays real-time video from the rear camera while driving — perfect for vehicles with poor visibility.
- 144° Wide-Angle Coverage: Reduces blind spots front and rear for safer driving.
- G-Sensor Collision Detection: Automatically locks impact footage to prevent overwriting during accidents.
- Continuous Loop Recording: Ensures uninterrupted footage by overwriting the oldest files.
- Parking Gridlines & Reverse Trigger: Automatically displays reversing guidelines when reverse gear is engaged.
- Includes 16GB TF Card: Ready to use out of the box and expandable up to 128GB (Class 10, sold separately).
- Optional GPS & Hard-Wire Kit: GPS tracking available with optional module; supports RVS966-HWA hard-wire installation.

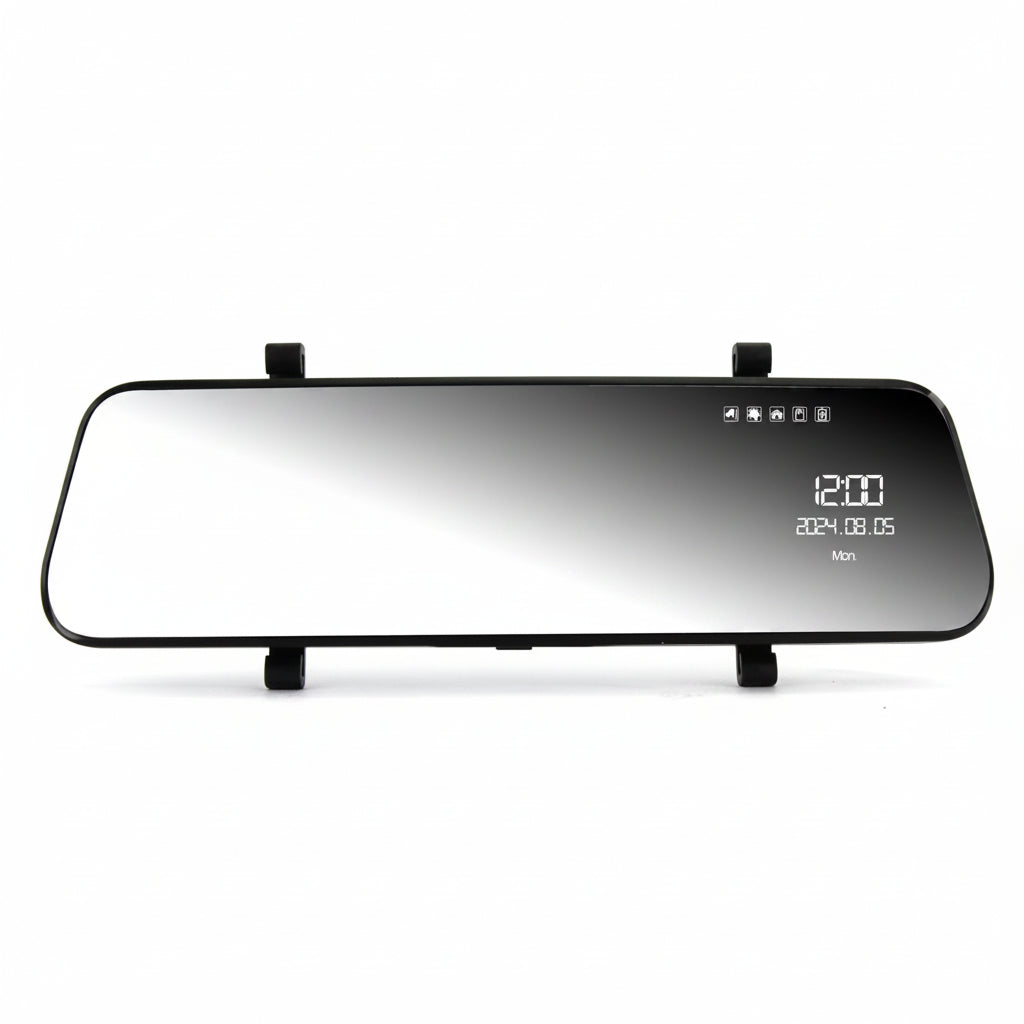

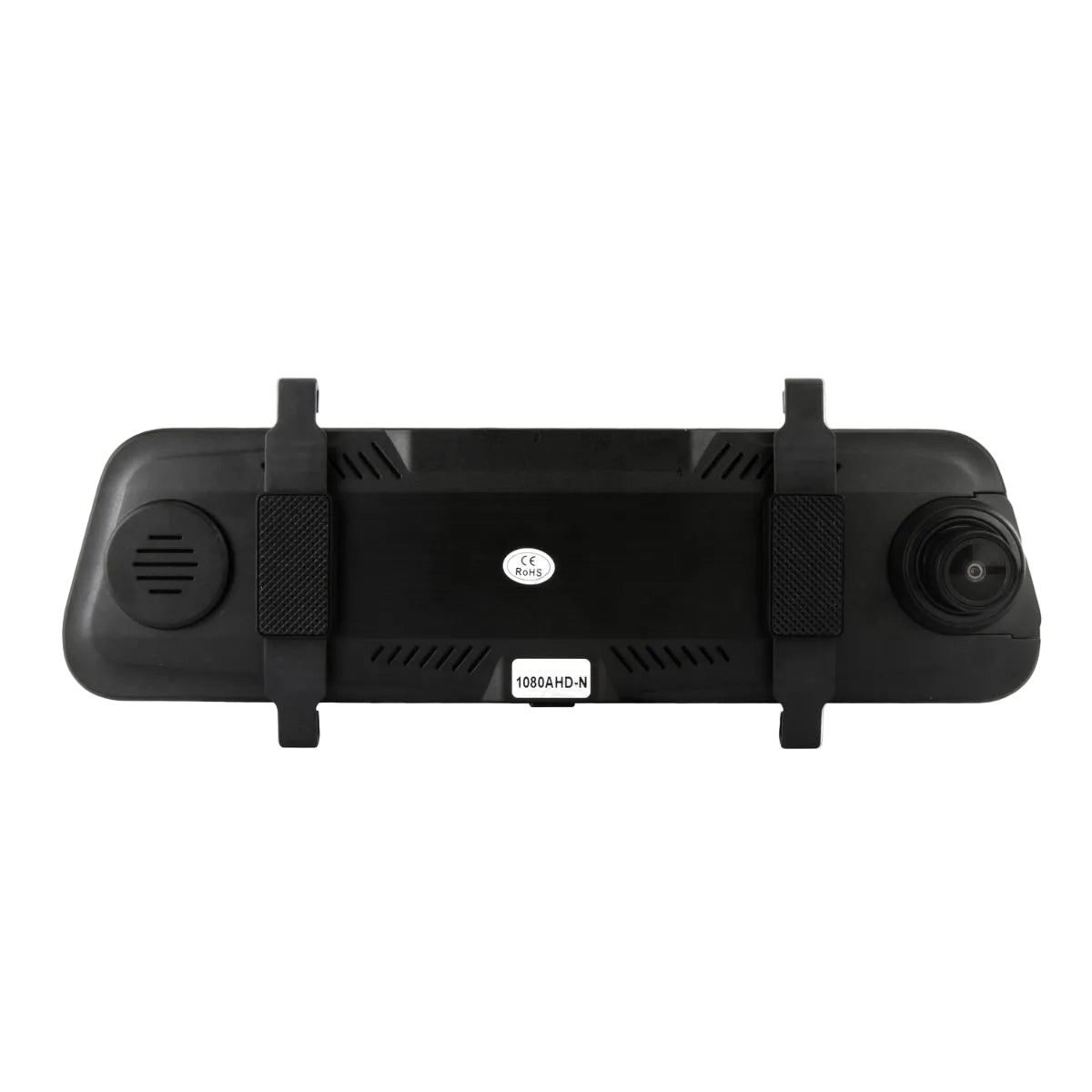

Mirror Monitor Specifications:
- Display Size: 9.66 Inches
- Resolution: 1920 × 480 pixels
- Mounting Type: Clip-on rear-view mirror
- Video Input: 1 × 2.5mm socket (reverse camera)
- GPS Input: 1 × 3.5mm (GPS module sold separately)
- Dimensions: 72mm (H) × 257mm (W) × 38mm (D)
- Power Input: Micro USB
- Input Voltage: 5V 2.5A (12/24V accessory adaptor included)
Dash Camera DVR Specifications:
- Channels: 2 (Front & Rear)
- Front Camera: 1920×1080 @ 30FPS
- Rear Camera: 1920×1080 @ 25FPS
- Viewing Angle: 144° wide angle
- G-Sensor: Yes
- Battery: 800mAh built-in
- Recording Format: TS video, JPG images
- Storage Format: H.264 / H.265
- Memory: Includes 16GB TF card, supports up to 128GB
- Audio: Built-in microphone & speaker

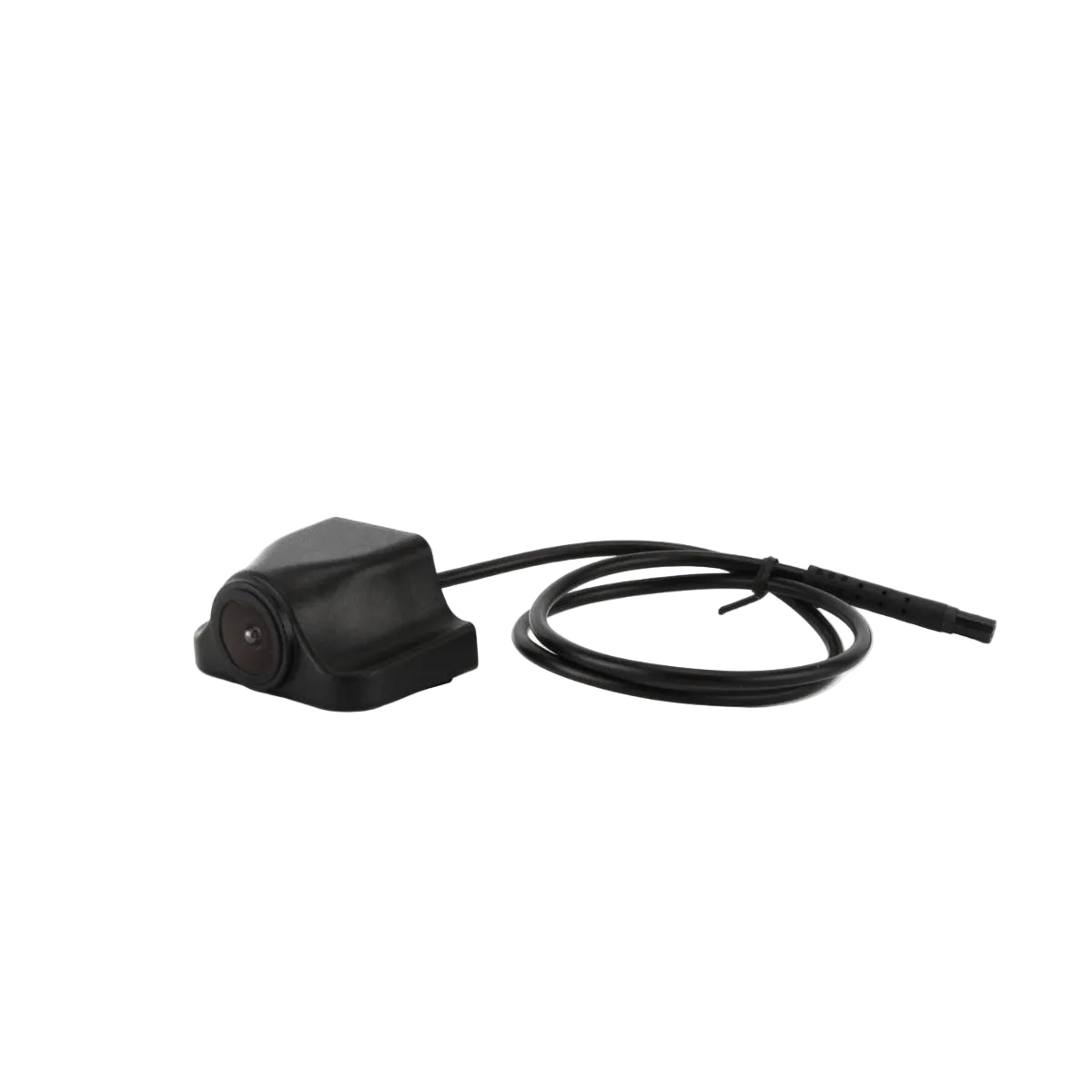

Rear Camera Specifications:
- Resolution: 1080P AHD CMOS
- Camera Angle: 144°
- Mount Type: Surface mount with butterfly bracket
- Input Voltage: 12V
- Connection Type: 4-Pin
- Cable Length: 8 metres
- Parking Gridlines: Yes, enabled via reverse trigger
- Camera Size: 26mm (H) × 45.5mm (W) × 40mm (D)

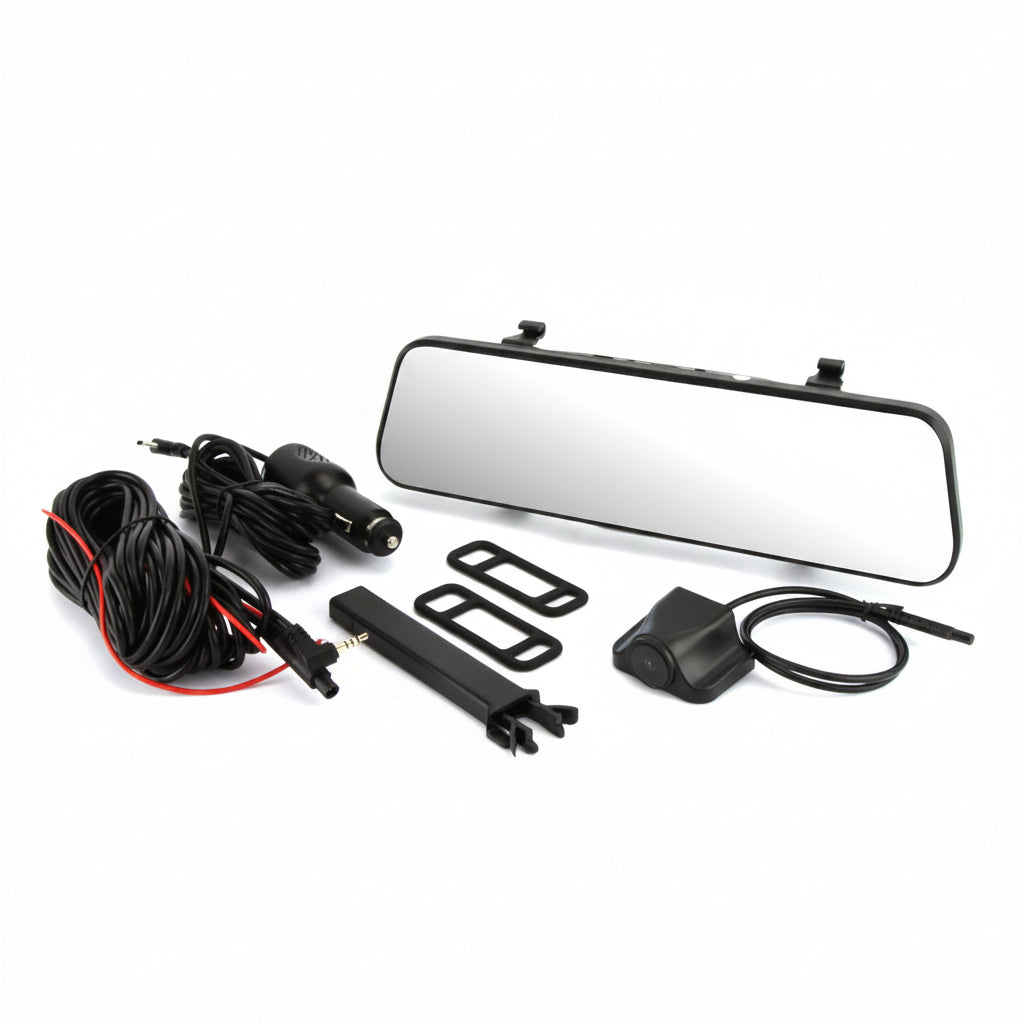

Kit Contents:
- 9.66” AHD Mirror Monitor with Integrated DVR
- AHD 1080P Reverse Camera with Mounting Screws & Double-Sided Tape
- 8m Camera Extension Cable with Trigger Wire
- 12V/24V Accessory Power Adaptor
- Rubber Mirror Mounting Clips & Protective Pads
- Includes 16GB TF Card
- Display Gift Box Packaging
Optional Accessories (Sold Separately):
- RVS966-HWA – Hard Wire Kit for Fuse Box Installations
- GPS Module – For location tracking and route recording
- Extension Cables: 7.5m and 15m available for longer vehicles
Frequently Asked Questions
-
Does this kit record while driving?
Yes, it features dual 1080P front and rear recording with continuous loop support. -
Can I use GPS with this system?
Yes, an optional GPS module is available for route and location tracking. -
Does it support parking gridlines?
Yes, reversing guidelines appear when the reverse trigger is connected. -
Is the rear camera weatherproof?
Yes, it’s designed for outdoor conditions with robust build quality. -
Can I expand storage capacity?
Yes, it includes a 16GB TF card but supports up to 128GB.
