DNA RVS966 9.66 Inch AHD Mirror & Reverse Camera Kit

DNA RVS966 9.66 Inch AHD Mirror & Reverse Camera Kit

High-resolution AHD mirror monitor and reverse camera kit designed for superior rear visibility and safer driving

The DNA RVS966 9.66 Inch AHD Mirror & Reverse Camera Kit delivers a professional-grade reversing and blind spot monitoring solution for cars, SUVs, trucks, RVs, and 4WDs. Featuring a large 9.66-inch LCD mirror monitor and an advanced AHD 1080P reverse camera, this kit provides crisp, clear visuals to improve safety and eliminate blind spots.

With its live streaming function, the display shows continuous rear vision while driving — perfect for vehicles with limited rear visibility. The included reverse trigger circuit automatically switches to the camera feed with parking gridlines when reverse gear is engaged. Simple clip-on mirror installation ensures a clean, factory-like finish without modifying your vehicle’s interior.

DNA RVS966 Key Features & Benefits:

• Large 9.66” LCD Mirror Display: High-resolution 1280×320 pixels with a wide, ultra-clear display.
• Full AHD 1080P Camera: Delivers superior image quality for reversing and live rear vision.
• Live Streaming Rear Vision: Displays continuous rear video feed while driving, ideal for vehicles with limited visibility.
• Wide Viewing Angle: 144° camera coverage reduces blind spots and increases overall safety.

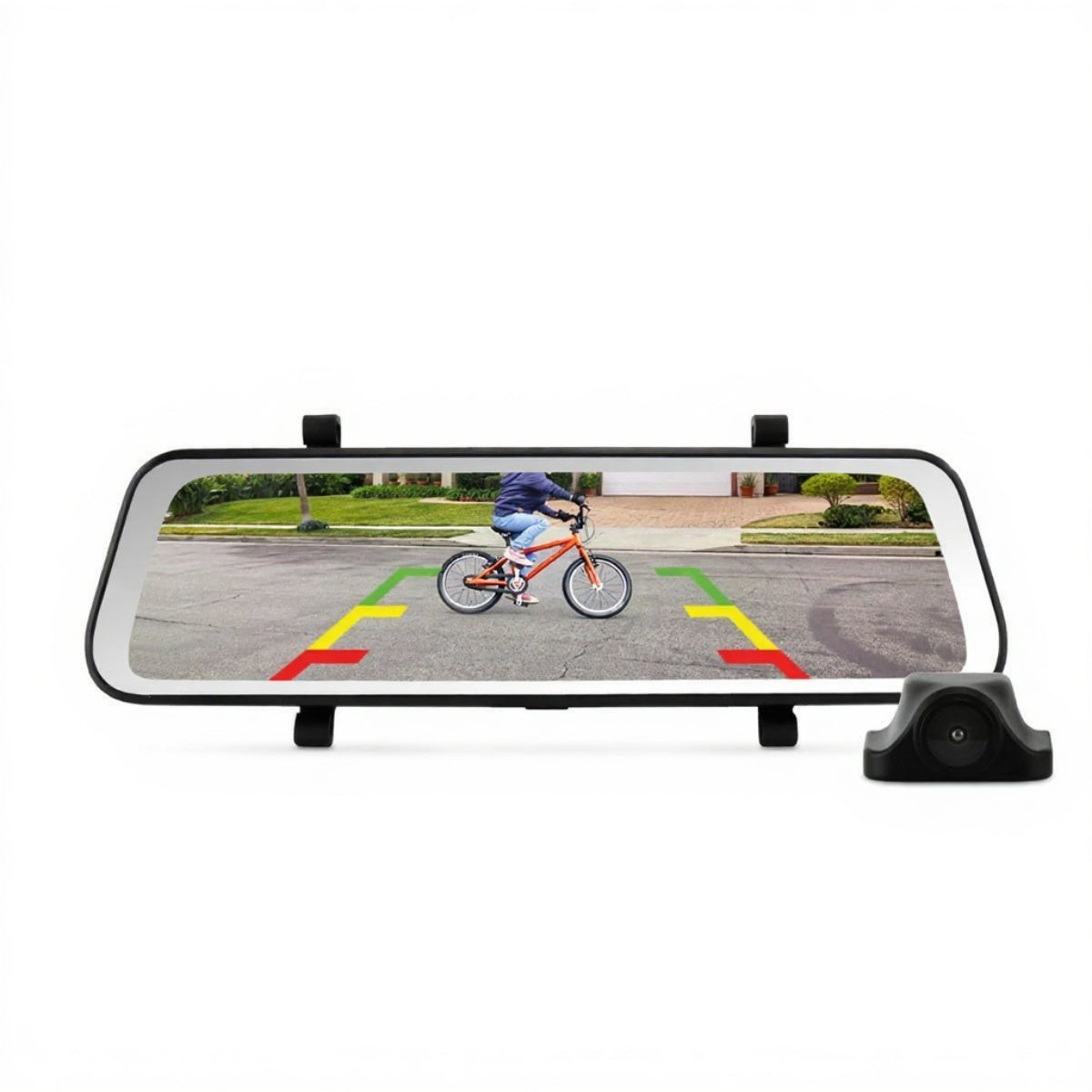

• Parking Assist Gridlines: Reverse trigger circuit displays guidelines automatically when reverse gear is engaged.
• Simple Clip-On Installation: Rubber mounts allow secure installation over your existing rear-view mirror.
• Optional Hard Wiring: Compatible with the RVS966-HWA Hard Wire Kit for permanent installation.

Mirror Monitor Specifications:

• Monitor Size: 9.66 Inches
• Resolution: 1280 × 320 pixels
• Mounting Type: Clip-on rear-view mirror
• Video Input: 1 x 2.5mm socket (reverse camera connection)
• Dimensions: 72mm (H) × 257mm (W) × 38mm (D)
• Input Voltage: 5V 3A (12V/24V adaptor included)
• Power Input: Micro USB
• Optional Hard Wire Kit: RVS966-HWA

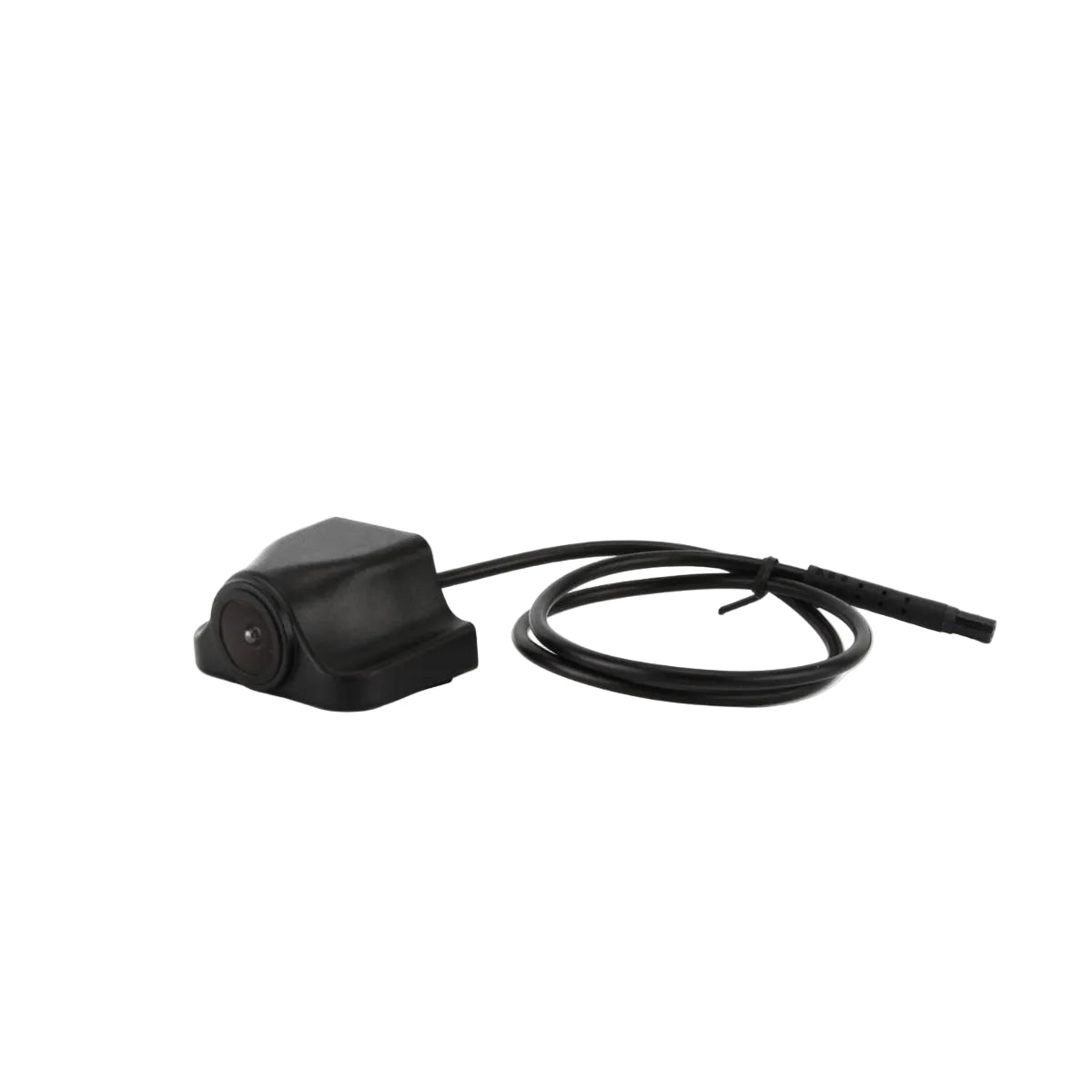

Reverse Camera Specifications:

• Resolution: 1080P AHD CMOS
• Camera Angle: 144° wide viewing
• Mount Type: Surface mount with butterfly bracket
• Input Voltage: 12V
• Connection Type: 4-Pin
• Cable Length: 7.5 metres
• Parking Gridlines: Yes, enabled via reverse trigger wire
• Camera Size: 26mm (H) × 45.5mm (W) × 40mm (D)

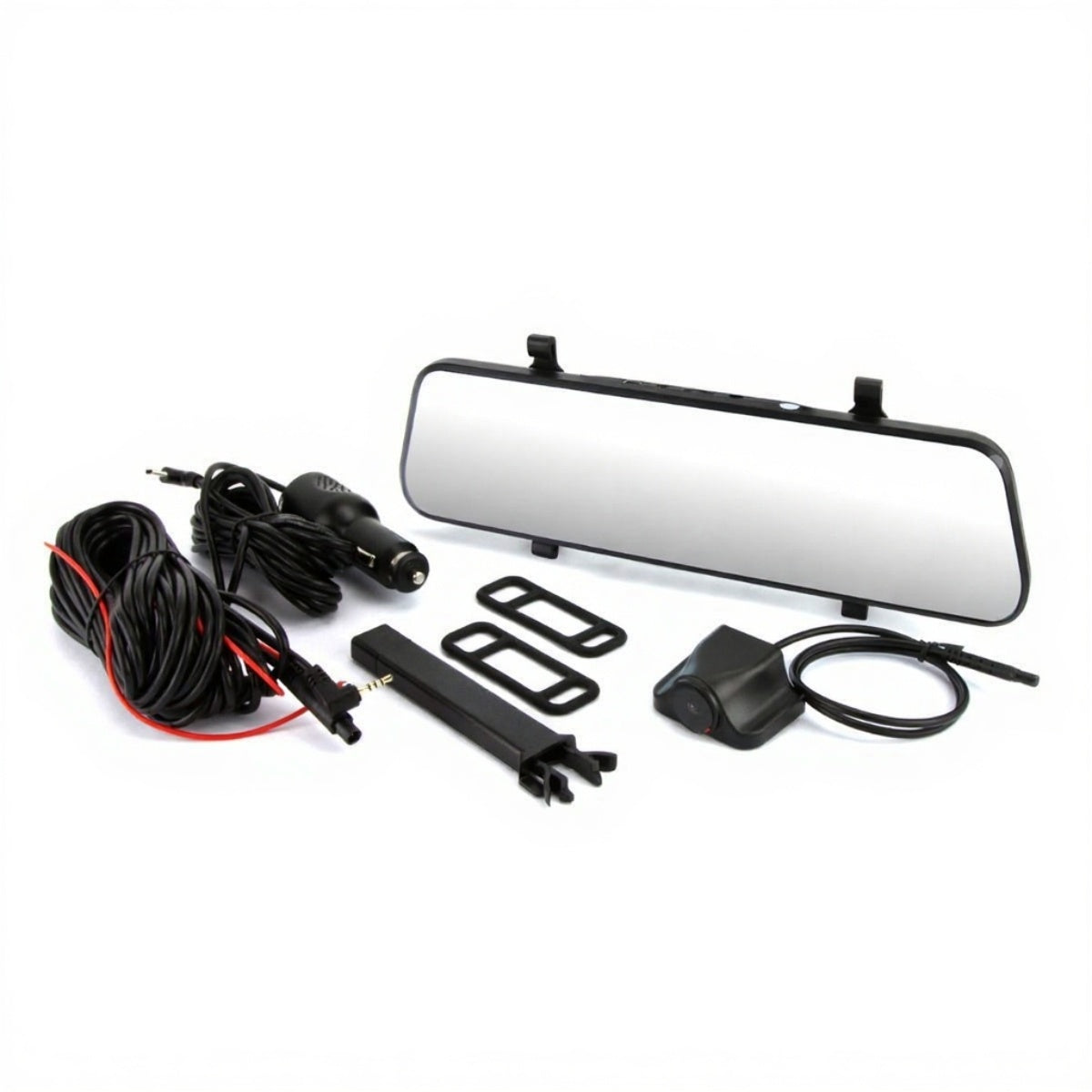

Kit Contents:

• 9.66” Mirror Monitor
• AHD 1080P Butterfly Reverse Camera with Mounting Hardware
• 7.5m Camera Extension Cable with Trigger Wire
• 12V/24V Accessory Power Adaptor
• Rubber Mirror Mounting Clips & Protecting Pads
• Display Gift Box Packaging

Optional Accessories (Sold Separately):

• RVS966-07M: 7.5m Camera Extension Cable
• RVS966-15M: 15m Camera Extension Cable
• RVS966-HWA: Hard Wire Kit for Fuse Box Installations

Compatible With / Goes Well With:

• 4WD and Off-Road Touring Setups
• Trucks and Commercial Fleets
• RVs, Caravans, and Motorhomes
• Vehicles with Limited Rear Visibility
• Car Multimedia Head Units

Installation Applications:

• Reversing Camera Integration: Installs seamlessly with aftermarket or OEM displays.
• Blind Spot Monitoring: Enhances rear awareness on larger vehicles.
• Fleet Management Solutions: Perfect for trucks and utility vehicles.
• Caravan & RV Safety: Essential for towing, reversing, and parking assistance.
• Custom Installations: Professional-grade system suitable for advanced setups.

The DNA RVS966 9.66 Inch AHD Mirror & Reverse Camera Kit provides exceptional rear visibility, live streaming functionality, and parking assistance, making it the ideal solution for anyone seeking safer driving and reversing.

Frequently Asked Questions

• Does this kit provide continuous rear vision?
  Yes, it supports live streaming for constant rear camera display.
• Can I hard-wire the system?
  Yes, an optional RVS966-HWA Hard Wire Kit is available separately.
• Are parking assist lines included?
  Yes, the system automatically displays parking gridlines when reversing.
• Is the reverse camera weatherproof?
  Yes, the camera is built for durability in all weather conditions.
• Can I extend the camera cable?
  Yes, 7.5m and 15m extension cables are available separately.
