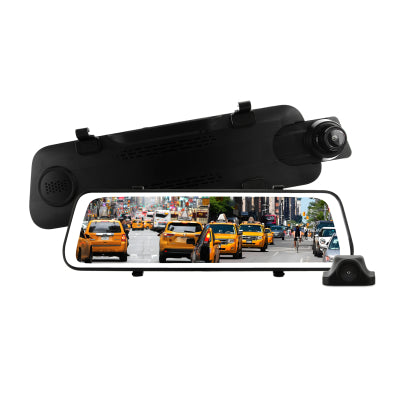

DNA RVS966-4K 9.66" 4K Rear-View DVR Mirror & Camera Pack

DNA RVS966-4K 9.66" 4K Rear-View DVR Mirror & Camera Pack

9.66” 4K Touch Screen Rear-View DVR Mirror with Dual Recording, Streaming & Reverse Camera Kit

The DNA RVS966-4K 9.66” 4K Rear-View DVR Mirror & Camera Pack is the ultimate safety and monitoring solution for cars, SUVs, 4WDs, trucks, and RVs. Featuring an ultra-high-definition 4K front dash camera, 1080P rear camera, and a stunning 9.66-inch touch-screen AHD mirror display, this premium kit delivers unmatched recording quality, live streaming visibility, and superior reversing assistance.

With dual-channel 4K + 1080P recording, seamless loop recording, and a built-in G-Sensor, this DVR mirror ensures every moment is captured in crystal clarity. Its live streaming rear-view function makes it perfect for vehicles with limited rear visibility, while the integrated reverse trigger enables automatic parking gridlines when reversing.

DNA RVS966-4K Key Features & Benefits:

• 4K Ultra-HD Front Recording: Capture sharp, detailed footage at 3840×2160 @ 30FPS.
• Dual-Channel DVR: Simultaneous front 4K recording and rear 1080P camera coverage for complete visibility.
• 9.66” AHD Touch Display: High-resolution 1920×480 LCD mirror display with seamless navigation.
• Live Rear Vision Streaming: Real-time rear camera feed while driving — perfect for vehicles with restricted rear vision.
• Wide 144° Viewing Angles: Both cameras provide expansive coverage to reduce blind spots.
• G-Sensor Incident Lock: Automatically secures video files when impact or collision is detected.
• Continuous Loop Recording: Records indefinitely by overwriting the oldest files with the newest footage.

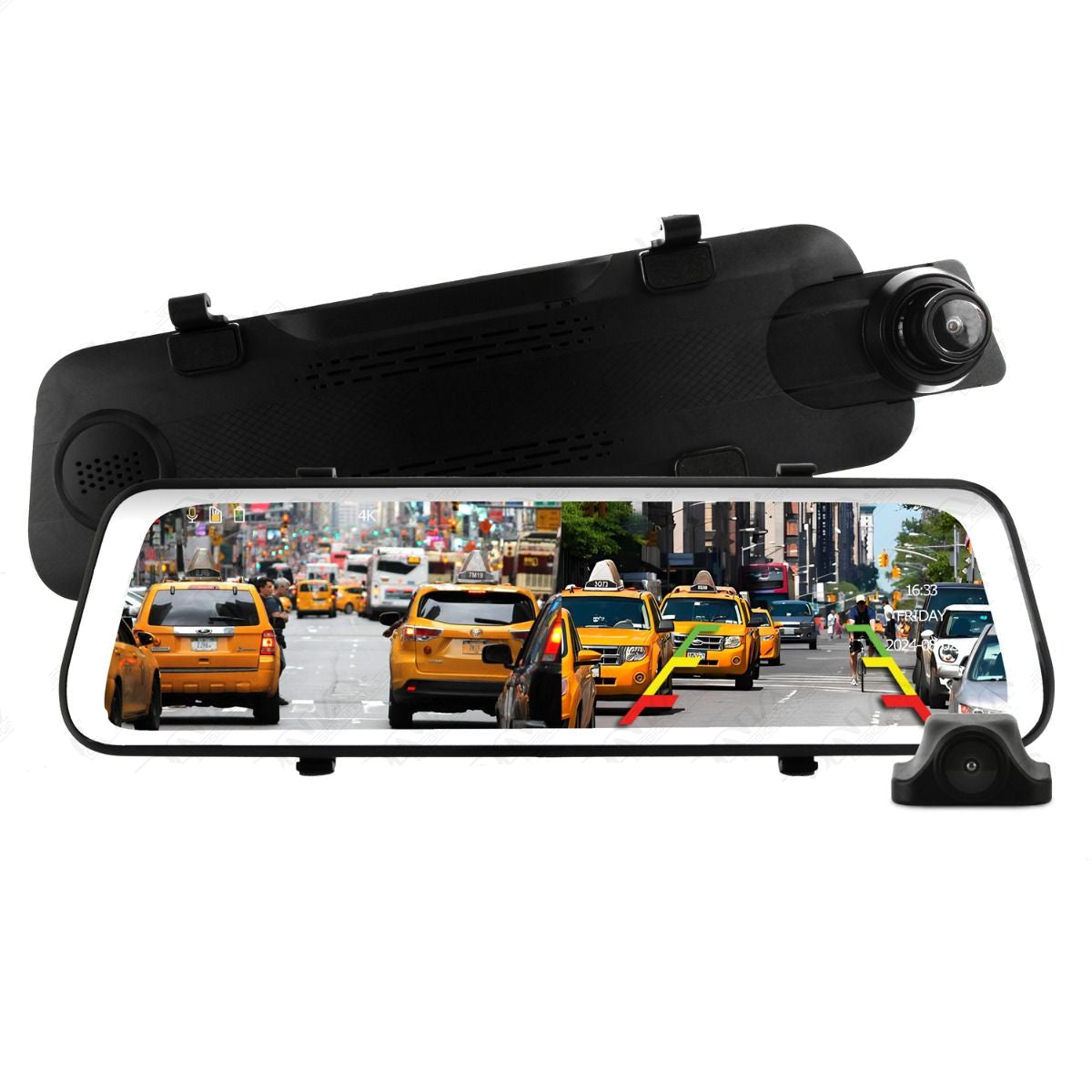

• Parking Assist Gridlines: Integrated reverse trigger shows guidelines when reversing.
• Includes 32GB TF Card: Ready to use out of the box; supports up to 128GB Class 10 for extended storage.
• Optional GPS & Hard-Wire Kit: Expand functionality with GPS tracking and fuse box wiring (sold separately).

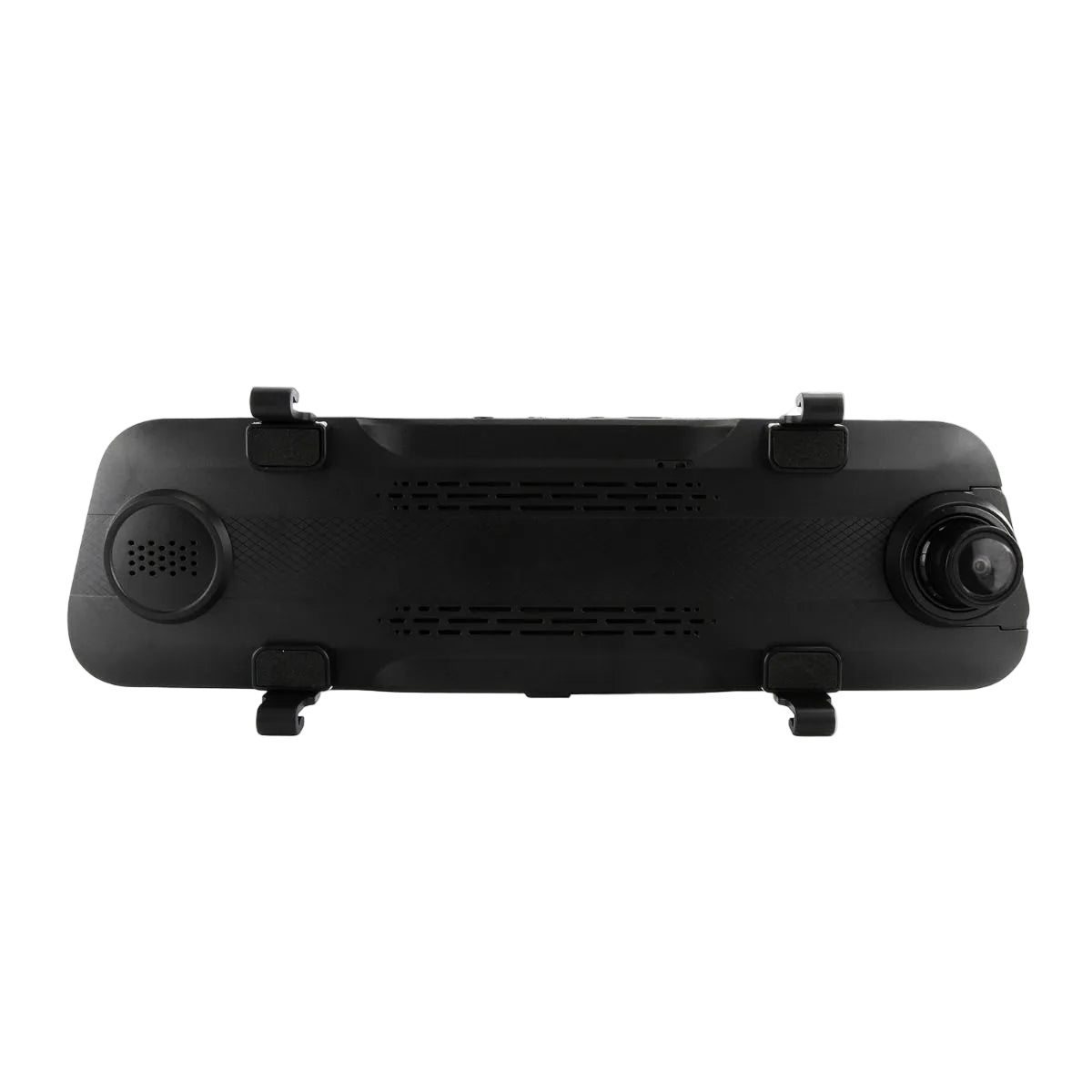

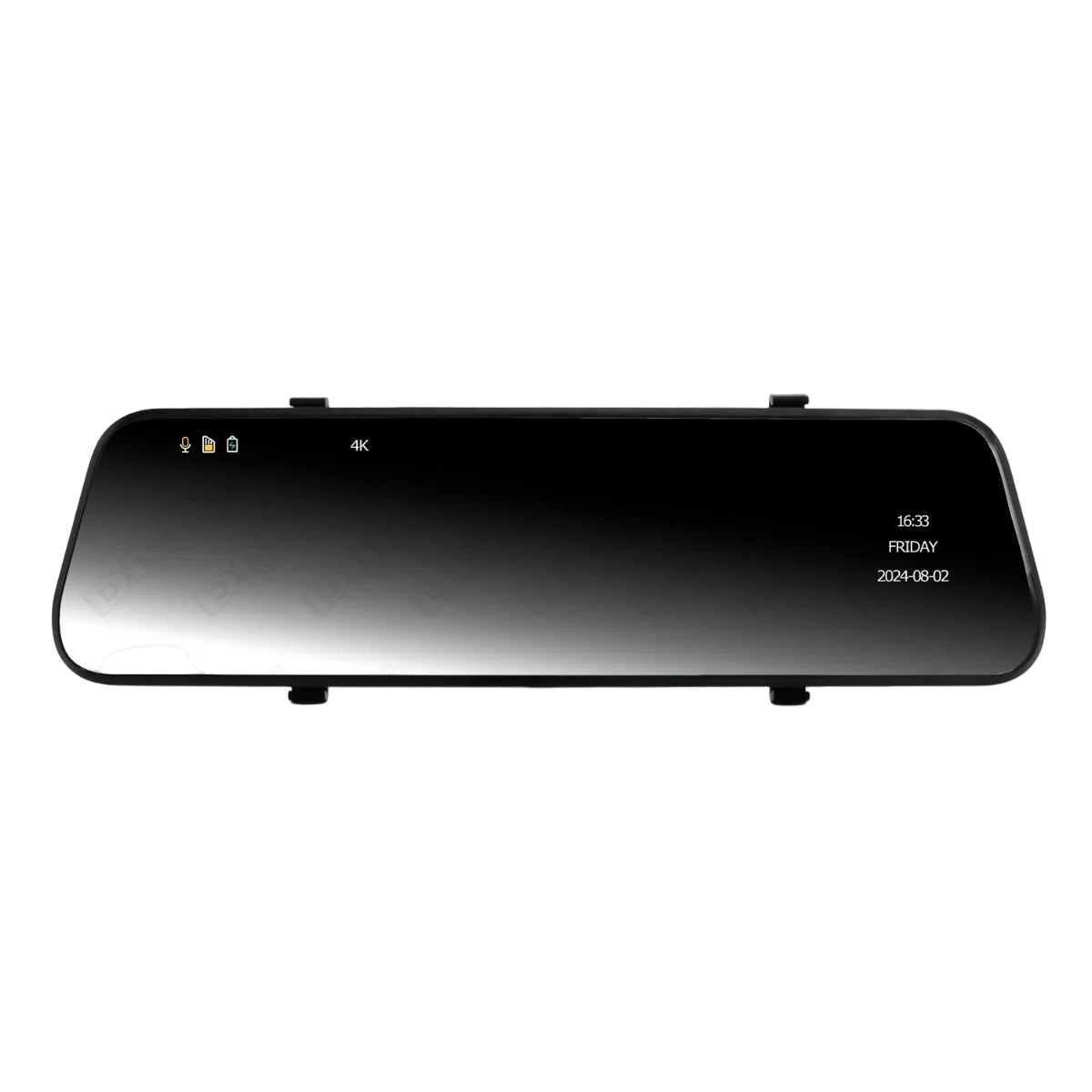

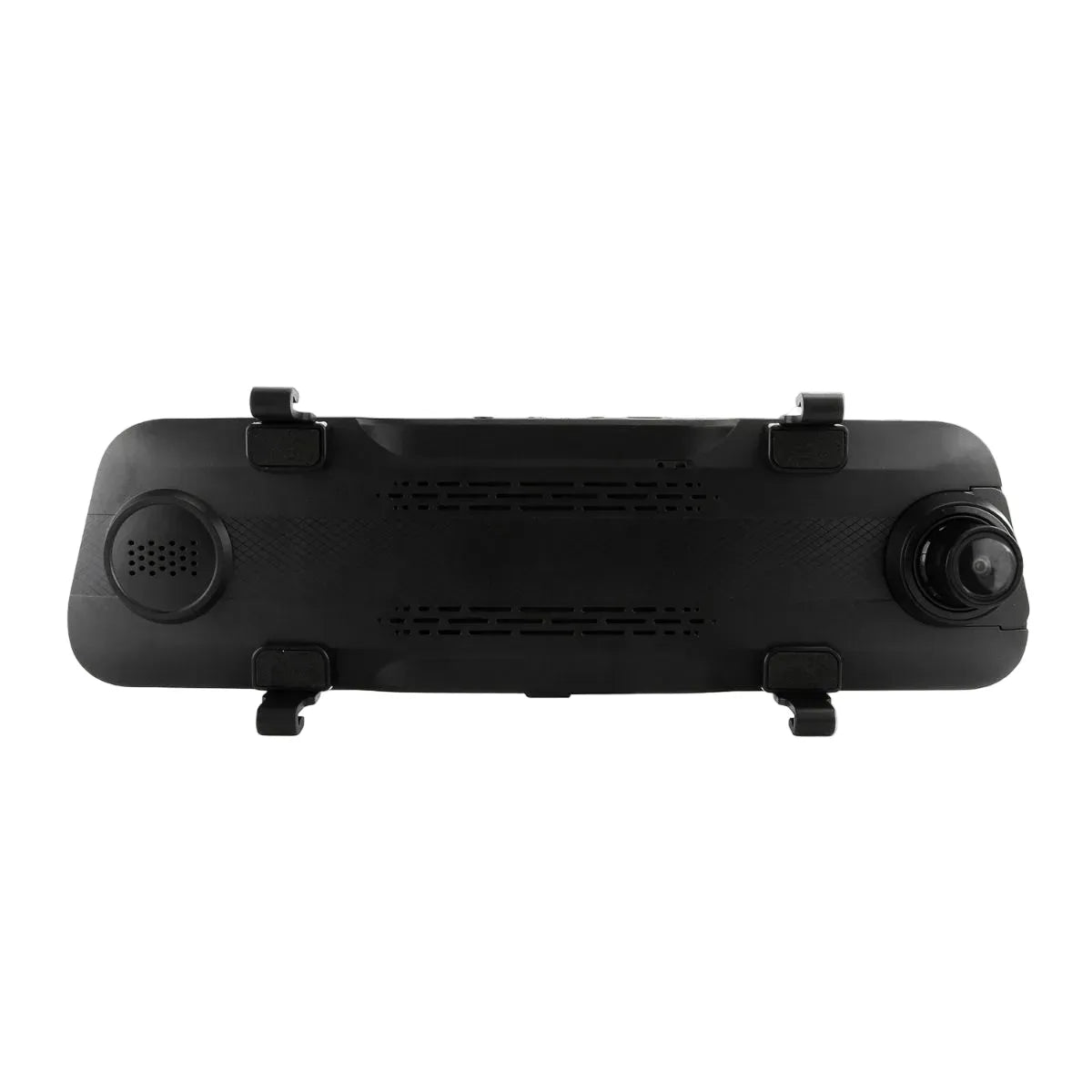

Mirror Monitor Specifications:

• Display Size: 9.66 Inches
• Resolution: 1920 × 480 pixels
• Mounting Type: Clip-on rear-view mirror
• Video Input: 1 × 2.5mm socket (reverse camera)
• GPS Input: 1 × 3.5mm (GPS module sold separately)
• Dimensions: 72mm (H) × 257mm (W) × 38mm (D)
• Power Input: USB Type-C
• Input Voltage: 5V 3A (12V/24V accessory adaptor included)

Dash Camera DVR Specifications:

• Channels: 2 (Front & Rear)
• Front Camera: 3840×2160 @ 30FPS (4K Ultra HD)
• Rear Camera: 1920×1080 @ 25FPS
• Viewing Angles: 144° (front and rear)
• Battery: 800mAh built-in
• Audio: Built-in microphone & speaker
• Recording Formats: TS video, JPG image format
• Compression: H.264 / H.265
• Storage: 32GB TF card included, supports up to 128GB
• Input Voltage: 5V 3A

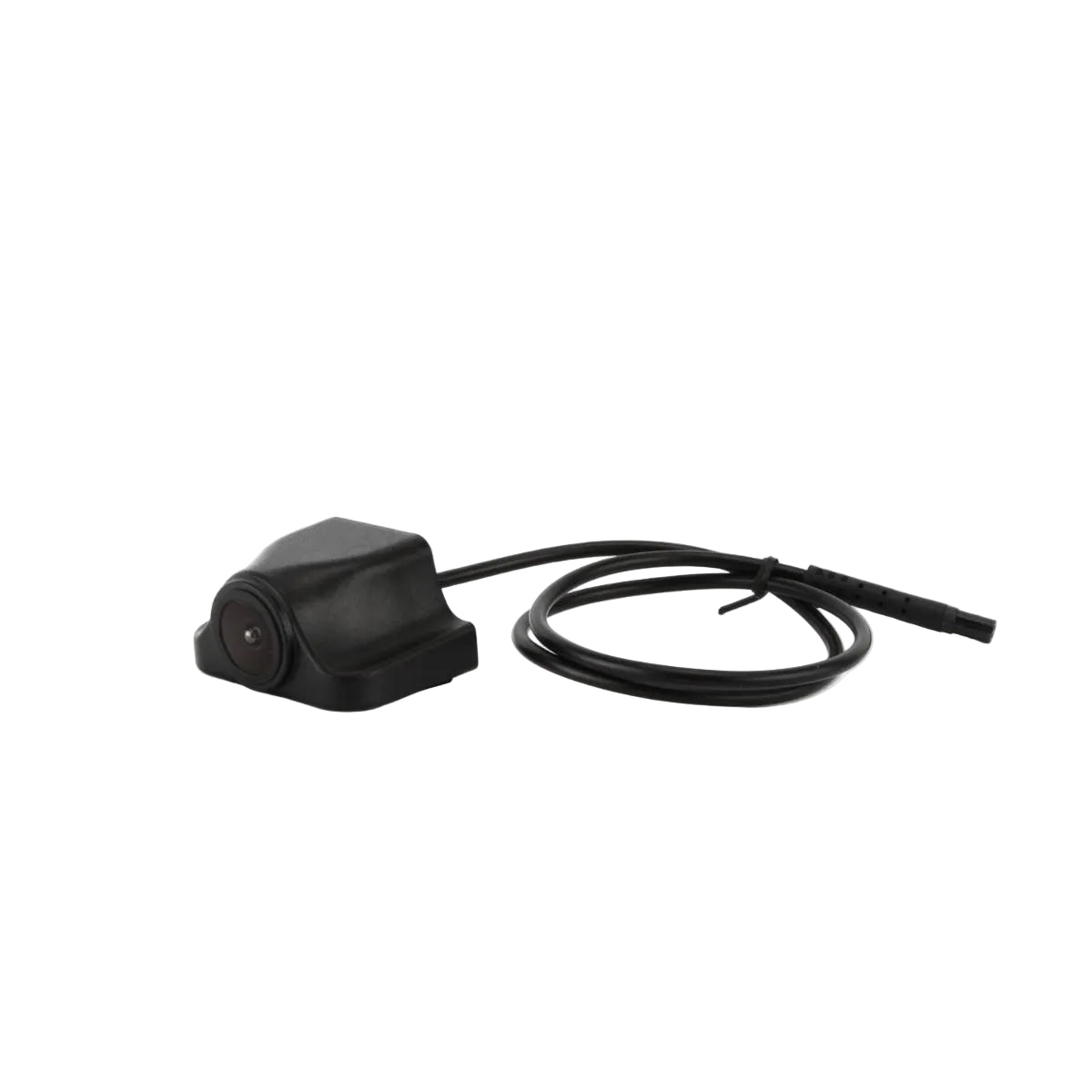

Rear Camera Specifications:

• Resolution: 1080P AHD CMOS
• Camera Angle: 144°
• Mount Type: Surface mount with butterfly bracket
• Input Voltage: 12V
• Connection Type: 4-Pin
• Cable Length: 8 metres
• Parking Gridlines: Yes, enabled via reverse trigger
• Camera Size: 26mm (H) × 45.5mm (W) × 40mm (D)

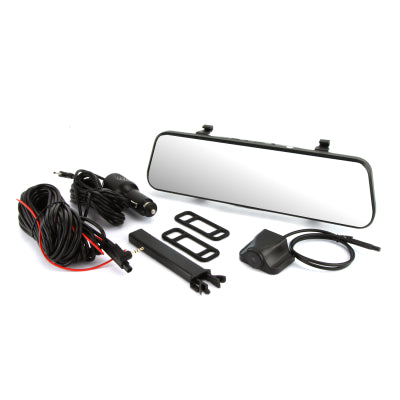

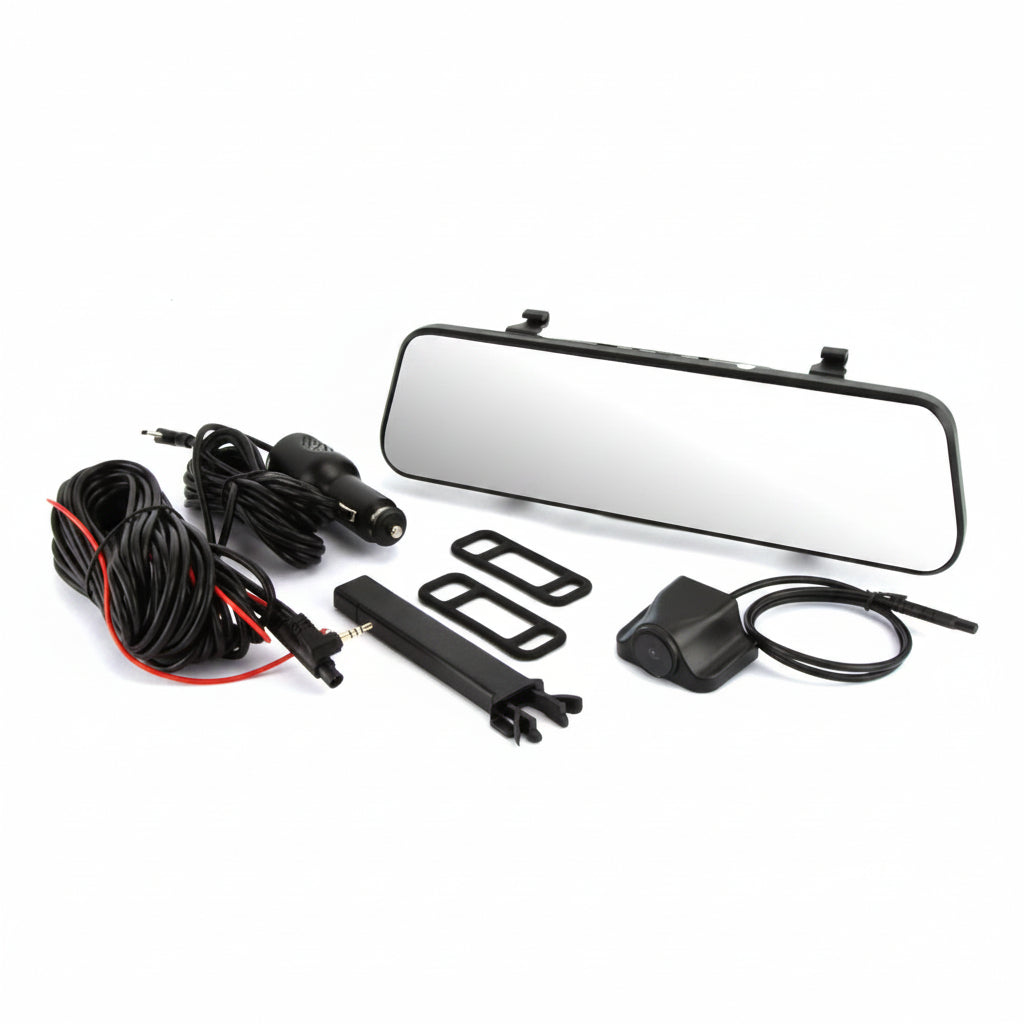

Kit Contents:

• 9.66” 4K Mirror Monitor with Integrated DVR
• AHD 1080P Reverse Camera with Mounting Screws & Tape
• 8m Camera Extension Cable with Trigger Wire
• 12V/24V Accessory Power Adaptor
• Rubber Mirror Mounting Clips & Protective Pads
• Includes 32GB TF Card
• Display Gift Box Packaging

Optional Accessories (Sold Separately):

• RVS966-HW4 – Hard Wire Kit for Fuse Box Installations
• GPS Module – For advanced route and speed tracking
• Extension Cables: 7.5m and 15m options available

Frequently Asked Questions

• Does this kit record in 4K?
  Yes, the front dash camera records at 3840×2160 Ultra HD.
• Can I hard-wire the kit?
  Yes, the RVS966-HW4 Hard Wire Kit is compatible and sold separately.
• Does this support GPS tracking?
  Yes, a GPS module is available for optional purchase.
• Are parking assist gridlines included?
  Yes, reversing lines display automatically when reverse gear is engaged.
• Is the rear camera weatherproof?
  Yes, it’s built for outdoor and off-road use with rugged construction.
