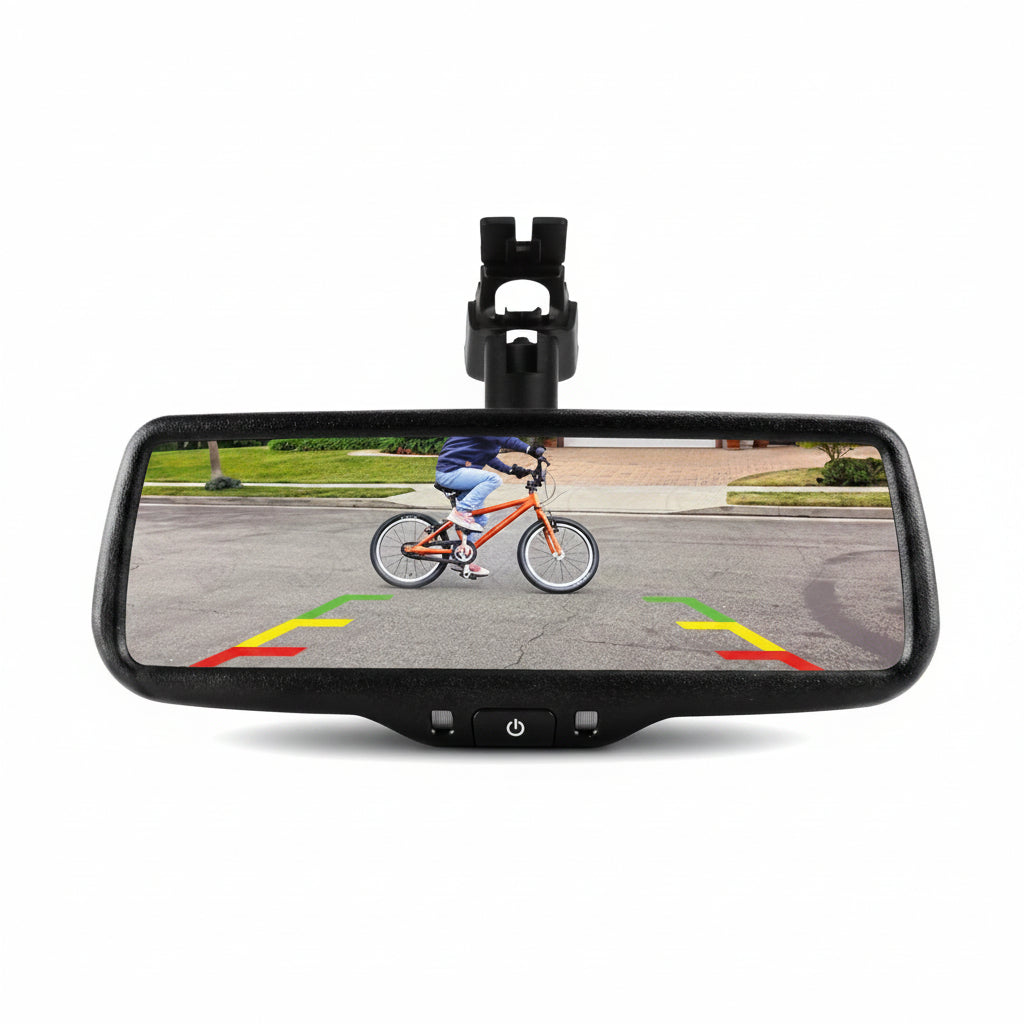

DNA RVS79HY01 7.9" OEM Style Replacement Rear View Mirror Hyundai

DNA RVS79HY01 7.9" OEM Style Replacement Rear View Mirror Hyundai

A premium OEM-style 7.9" full screen replacement rear view mirror for Hyundai vehicles, the RVS79HY01 features a TFT-LCD display with auto brightness control, 4 video inputs, hidden smart touchscreen controls, and compatibility with all DNA series reverse cameras, supplied with a Hyundai-specific mirror mount bracket.

Product Overview

The DNA RVS79HY01 is a 7.9" full screen OEM-style replacement mirror designed for Hyundai vehicles. It replaces the factory mirror using the existing windscreen mirror mount and includes a Hyundai-specific mirror mount bracket. Confirmed compatible models include the Hyundai iX35 LM (February 2010 to December 2015), Hyundai Elantra MD (June 2011 to December 2015), and Hyundai Tucson (August 2015 onwards). The 7.9" TFT-LCD full screen display at 1280x370 resolution and 16:9 aspect ratio activates automatically when reverse is selected and returns to standard mirror operation when drive is re-engaged.

Auto brightness control senses ambient light and adjusts the display to optimum brightness across daytime, dusk, and night conditions, eliminating sun glare during daylight reversing. Four video inputs allow up to four cameras to be connected across the vehicle, caravan, or trailer, with Video-1 operating without a trigger and Video-2 through Video-4 each assigned to individual trigger inputs. Input selection is managed via the hidden smart touchscreen controls that illuminate on touch and hide again after 10 seconds. Parking line display is adjustable or can be disabled via the touchscreen.

Camera type for each of the four inputs is configurable via a setup menu accessed by pressing and holding the power button at startup. Each camera input can be individually set to the appropriate video format by short pressing the power button to cycle through available formats and holding for two seconds to confirm before moving to the next channel. The mirror is compatible with all DNA series reverse cameras and supports PAL, NTSC, AHD, and HD-TVI video system inputs. The housing uses 4mm thick glass and a high-quality PC and ABS plastic construction, with a large diameter mounting bracket tube featuring an internal spring for stiffness and adjustability. Operating voltage is 12V DC.

Features & Benefits

Premium OEM-Style Design for Hyundai Vehicles: The RVS79HY01 is styled to match the OEM interior aesthetic of Hyundai vehicles and is supplied with a Hyundai-specific mirror mount bracket, providing a factory-look installation using the existing windscreen mirror mounting point. Confirmed compatible models include the Hyundai iX35 LM (February 2010 to December 2015), Hyundai Elantra MD (June 2011 to December 2015), and Hyundai Tucson (August 2015 onwards).

7.9" TFT-LCD Full Screen Display at 1280x370: The full screen 7.9" TFT-LCD display at 1280x370 resolution covers the entire mirror surface when active, providing a clear, wide rearward view from connected cameras without the smaller inset screen format of standard monitor mirrors.

Auto Brightness Control: The auto brightness system senses ambient light levels and automatically adjusts the display brightness across daytime, dusk, and night conditions, ensuring the screen remains clearly visible in bright sunlight while reducing glare in low-light conditions.

Automatic Activation in Reverse: The display activates automatically when reverse gear is selected and returns to standard mirror operation when the vehicle moves out of reverse, providing seamless hands-free camera monitoring without driver input.

4 Video Inputs for Multi-Camera Configurations: The RVS79HY01 provides four independent video inputs supporting configurations of up to four cameras across the vehicle, caravan, or trailer. Video-1 has no trigger, while Video-2, Video-3, and Video-4 are each assigned to individual trigger inputs for automatic camera selection.

Per-Channel Camera Type Configuration: Each of the four video inputs can be individually configured to the correct video format via the setup menu, accessed by pressing and holding the power button at startup. Short pressing cycles through available formats and holding for two seconds confirms the selection before advancing to the next channel.

Hidden Smart Touchscreen Controls: The mirror controls are hidden within the touchscreen surface, illuminating when touched and automatically hiding after 10 seconds of inactivity, maintaining the clean OEM mirror appearance when not in use.

Adjustable Parking Lines: Parking line overlay is displayed on the reverse camera image and can be adjusted for positioning or turned off entirely via the hidden touchscreen controls.

Compatible with All DNA Series Reverse Cameras: The RVS79HY01 is compatible with all DNA series reverse cameras and supports PAL, NTSC, AHD, and HD-TVI video system inputs.

4mm Thick Glass and PC and ABS Plastic Housing: The mirror is constructed with 4mm thick glass and a high-quality PC and ABS plastic housing, providing durability suited to Australian conditions including heat, UV exposure, and vibration.

Large Diameter Mounting Bracket with Internal Spring: The mirror mount bracket features a large diameter tube with an internal spring that provides stiffness and adjustability, ensuring the mirror holds its set position securely during vehicle operation.

Technical Specs

What's in the Box

• Mirror
• Bracket
• Remote Control
• Harness
• Wire Cover

Compatible With

The RVS79HY01 is designed for Hyundai vehicles and uses the existing windscreen mirror mount with the included Hyundai-specific bracket. Confirmed compatible models include the Hyundai iX35 LM (February 2010 to December 2015), Hyundai Elantra MD (June 2011 to December 2015), and Hyundai Tucson (August 2015 onwards). It is compatible with all DNA series reverse cameras and supports PAL, NTSC, AHD, and HD-TVI video system inputs. Up to four cameras can be connected simultaneously across the vehicle, caravan, or trailer. Confirm your specific Hyundai model and build date before purchase.

Frequently Asked Questions

Which Hyundai models is the RVS79HY01 compatible with?

The RVS79HY01 is confirmed compatible with the Hyundai iX35 LM from February 2010 to December 2015, the Hyundai Elantra MD from June 2011 to December 2015, and the Hyundai Tucson from August 2015 onwards. Confirm your specific model and build date before purchase.

Does the RVS79HY01 use the existing mirror mount on Hyundai vehicles?

Yes. The RVS79HY01 is designed to use the existing windscreen mirror mount on compatible Hyundai vehicles. The included Hyundai-specific mirror mount bracket connects the RVS79HY01 to the factory mounting point without drilling or permanent modification to the vehicle.

How do I configure the camera type for each input on the RVS79HY01?

Camera type configuration is accessed by pressing and holding the power button while turning on the power accessory. A beep and backlight illumination confirm the system is active. Press and hold the power button for two seconds to enter the Camera 1 selection menu, then short press to cycle through available formats and hold for two seconds to confirm and advance to the next channel. Repeat for all four camera inputs, then hold for two seconds after the final channel to exit the setup menu.

How many cameras can be connected to the RVS79HY01?

The RVS79HY01 provides four video inputs, allowing up to four cameras to be connected simultaneously across the vehicle, caravan, or trailer. Video-1 has no trigger, while Video-2, Video-3, and Video-4 each have individual trigger inputs for automatic activation.

Is the RVS79HY01 compatible with AHD cameras?

Yes. The RVS79HY01 supports PAL, NTSC, AHD, and HD-TVI video system inputs and is compatible with all DNA series reverse cameras.
