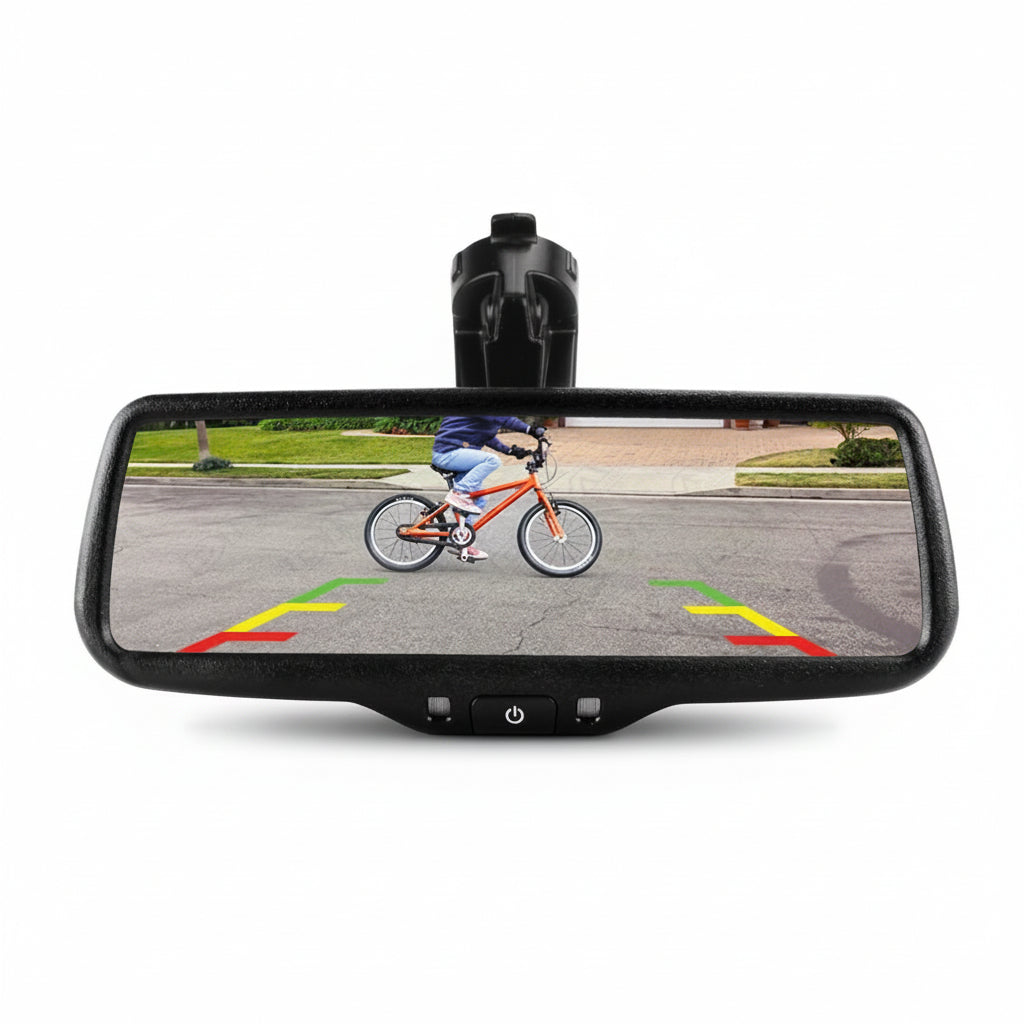

DNA RVS79DG01 7.9" OEM Style Replacement Rear View Mirror Dodge Ram

DNA RVS79DG01 7.9" OEM Style Replacement Rear View Mirror Dodge Ram

A premium OEM-style 7.9" full screen replacement rear view mirror for Dodge Ram vehicles, the RVS79DG01 features a TFT-LCD display with auto brightness control, 4 video inputs, hidden smart touchscreen controls, and compatibility with all DNA series reverse cameras, supplied with a Dodge Ram-specific mirror mount bracket.

Product Overview

The DNA RVS79DG01 is a 7.9" full screen OEM-style replacement mirror designed specifically for Dodge Ram vehicles. It replaces the factory mirror using the existing windscreen mirror mount and includes a Dodge Ram-specific mirror mount bracket. The 7.9" TFT-LCD full screen display at 1280x370 resolution and 16:9 aspect ratio activates automatically when reverse is selected and returns to standard mirror operation when drive is re-engaged.

Auto brightness control senses ambient light and adjusts the display to optimum brightness across daytime, dusk, and night conditions, eliminating sun glare during daylight reversing. Four video inputs allow up to four cameras to be connected across the vehicle, caravan, or trailer, with Video-1 operating without a trigger and Video-2 through Video-4 each assigned to individual trigger inputs. Input selection is managed via the hidden smart touchscreen controls that illuminate on touch and hide again after 10 seconds. Parking line display is adjustable or can be disabled via the touchscreen. The mirror is compatible with all DNA series reverse cameras and supports PAL, NTSC, AHD, and HD-TVI video system inputs. The housing uses 4mm thick glass and a high-quality PC and ABS plastic construction, with a large diameter mounting bracket tube featuring an internal spring for stiffness and adjustability. Operating voltage is 12V DC.

Features & Benefits

Premium OEM-Style Design for Dodge Ram: The RVS79DG01 is styled to match the OEM interior aesthetic of Dodge Ram vehicles and is supplied with a mirror mount bracket specifically suited to the Dodge Ram windscreen mount, providing a factory-look installation using the existing mirror mounting point.

7.9" TFT-LCD Full Screen Display at 1280x370: The full screen 7.9" TFT-LCD display at 1280x370 resolution covers the entire mirror surface when active, providing a clear, wide rearward view from connected cameras without the smaller inset screen format of standard monitor mirrors.

Auto Brightness Control: The auto brightness system senses ambient light levels and automatically adjusts the display brightness across daytime, dusk, and night conditions, ensuring the screen remains clearly visible in bright sunlight while reducing glare in low-light conditions.

Automatic Activation in Reverse: The display activates automatically when reverse gear is selected and returns to standard mirror operation when the vehicle moves out of reverse, providing seamless hands-free camera monitoring without driver input.

4 Video Inputs for Multi-Camera Configurations: The RVS79DG01 provides four independent video inputs, supporting configurations of up to four cameras across the vehicle, caravan, or trailer. Video-1 has no trigger, while Video-2, Video-3, and Video-4 are each assigned to individual trigger inputs for automatic camera selection.

Hidden Smart Touchscreen Controls: The mirror controls are hidden within the touchscreen surface, illuminating when touched and automatically hiding after 10 seconds of inactivity, maintaining the clean OEM mirror appearance when the controls are not in use.

Adjustable Parking Lines: Parking line overlay is displayed on the reverse camera image and can be adjusted for positioning or turned off entirely via the hidden touchscreen controls.

Compatible with All DNA Series Reverse Cameras: The RVS79DG01 is compatible with all DNA series reverse cameras, as well as PAL, NTSC, AHD, and HD-TVI video system inputs, providing flexibility in camera selection and compatibility with existing DNA camera installations.

4mm Thick Glass and PC and ABS Plastic Housing: The mirror is constructed with 4mm thick glass and a high-quality PC and ABS plastic housing, providing durability suited to Australian conditions including heat, UV exposure, and vibration.

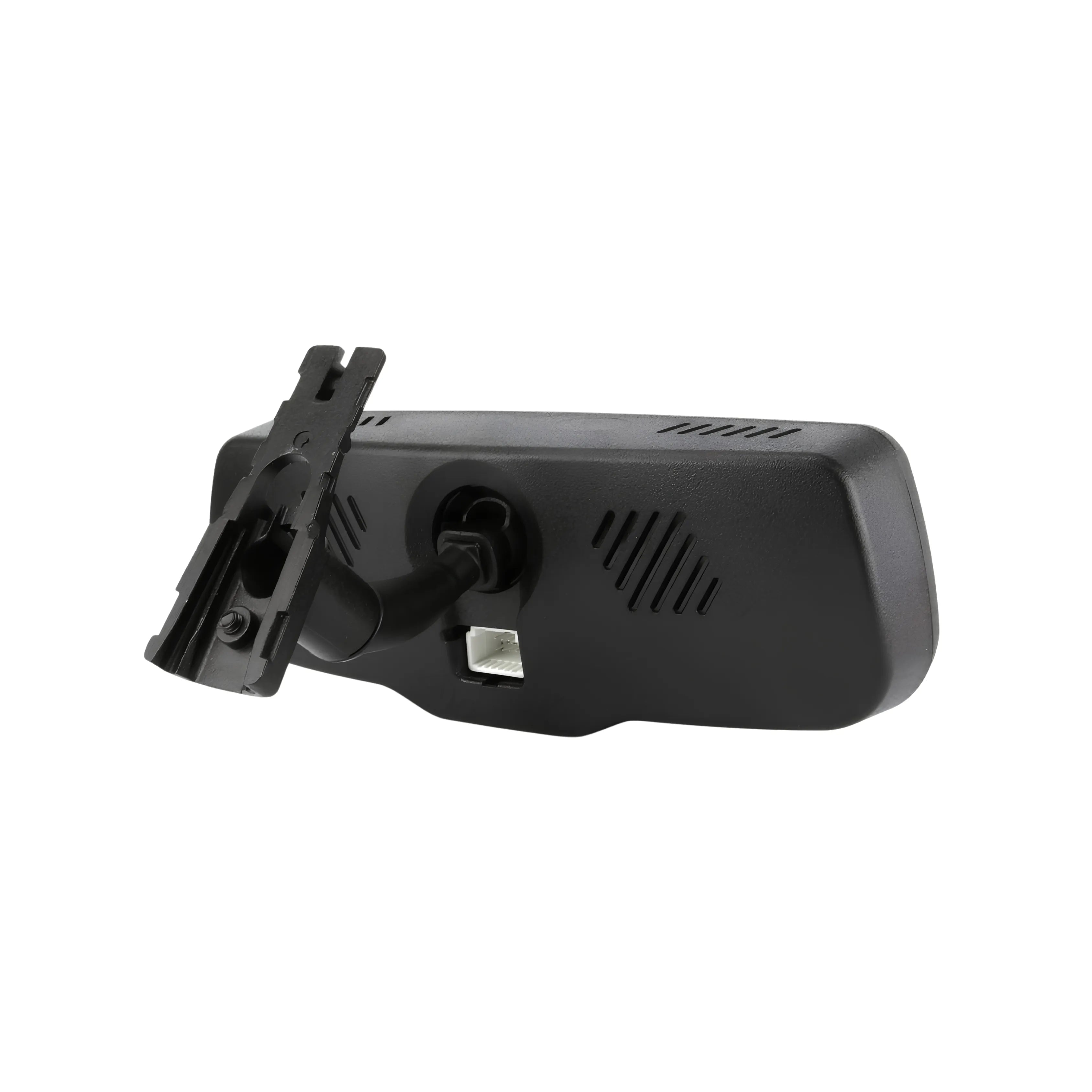

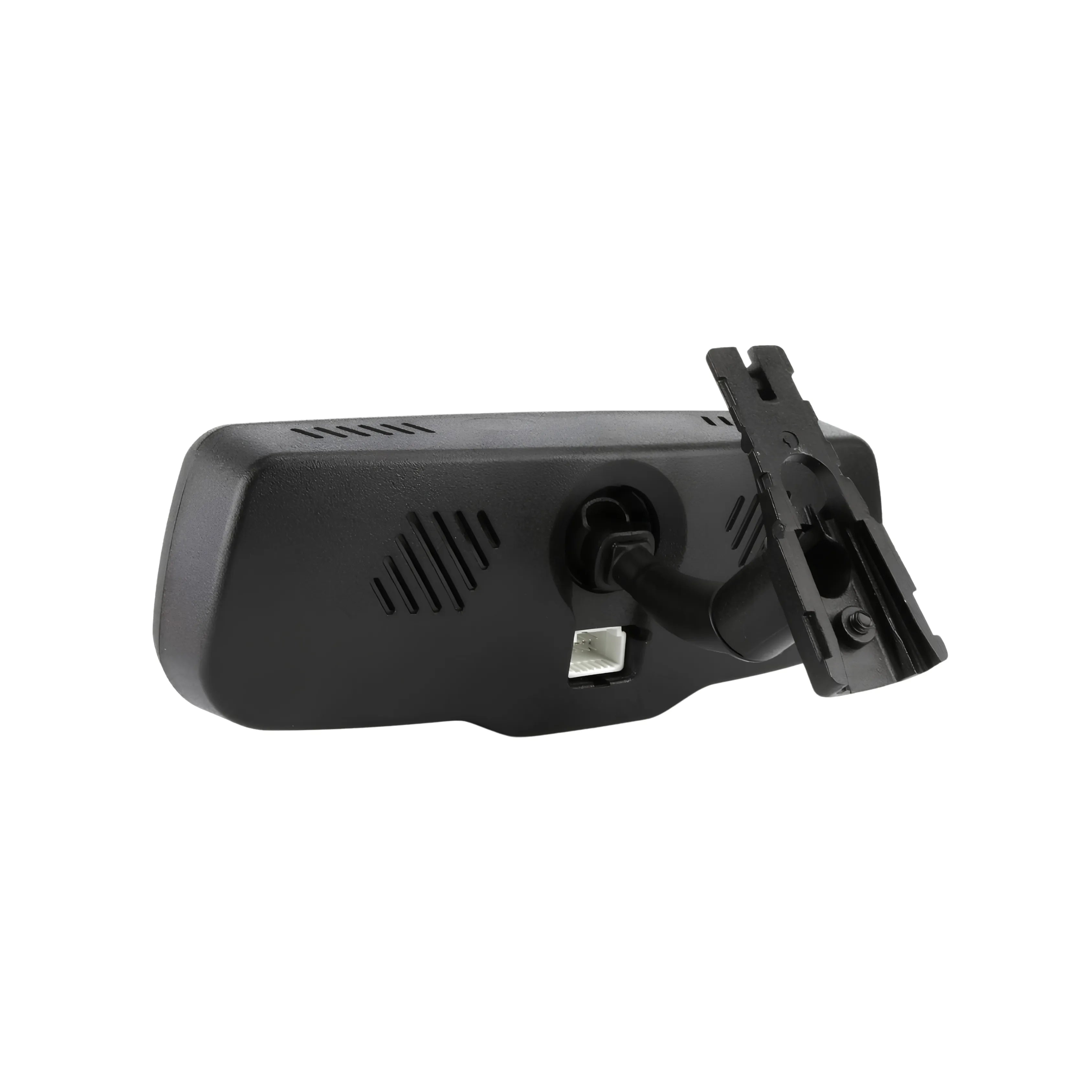

Large Diameter Mounting Bracket with Internal Spring: The mirror mount bracket features a large diameter tube with an internal spring that provides stiffness and adjustability, ensuring the mirror holds its set position securely during vehicle operation.

Technical Specs

What's in the Box

• Mirror
• Bracket
• Remote Control
• Harness
• Wire Cover

Compatible With

The RVS79DG01 is designed for Dodge Ram vehicles and uses the existing windscreen mirror mount with the included Dodge Ram-specific bracket. It is compatible with all DNA series reverse cameras and supports PAL, NTSC, AHD, and HD-TVI video system inputs. Up to four cameras can be connected simultaneously across the vehicle, caravan, or trailer. Confirm your specific Dodge Ram model and build date before purchase.

Frequently Asked Questions

Does the RVS79DG01 use the existing mirror mount on the Dodge Ram?

Yes. The RVS79DG01 is designed to use the existing windscreen mirror mount on the Dodge Ram. The included Dodge Ram-specific mirror mount bracket connects the RVS79DG01 to the factory mounting point without drilling or permanent modification to the vehicle.

How many cameras can be connected to the RVS79DG01?

The RVS79DG01 provides four video inputs, allowing up to four cameras to be connected across the vehicle, caravan, or trailer simultaneously. Video-1 has no trigger input and activates manually; Video-2, Video-3, and Video-4 each have individual trigger inputs for automatic activation.

Does the display activate automatically when reversing?

Yes. The 7.9" display activates automatically when reverse gear is selected and returns to standard mirror operation when the vehicle moves out of reverse.

Is the RVS79DG01 compatible with AHD cameras?

Yes. The RVS79DG01 supports PAL, NTSC, AHD, and HD-TVI video system inputs and is compatible with all DNA series reverse cameras.

Can the parking lines be turned off?

Yes. The parking line overlay can be adjusted for positioning or turned off entirely via the hidden smart touchscreen controls on the mirror surface.
