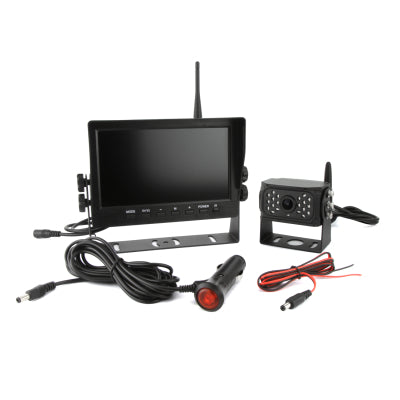

DNA RVS71W Wireless 7" Reverse Screen with AHD Camera

DNA RVS71W Wireless 7" Reverse Screen with AHD Camera

High-Resolution 7" Wireless Reverse Camera Kit for Easy Installation

The DNA RVS71W Wireless 7" Reverse Screen with AHD Camera is the perfect solution for vehicles that require a seamless single-camera installation without the hassle of running long cables from front to rear. Featuring advanced AHD video technology, this kit delivers crystal-clear 720p image quality and reliable wireless performance, making it ideal for caravans, trucks, buses, trailers, and RVs.

With its plug-and-play design, robust construction, and easy installation, this kit provides professional-grade reversing assistance with integrated parking lines, a wide viewing angle, and IP68 waterproof protection for tough environments.

DNA RVS71W Key Features & Benefits:

• Wireless Installation: Simplifies setup by eliminating the need for long video cables.
• High-Definition AHD Camera: Produces sharp, clear 720p images with improved visibility in all conditions.
• 7" IPS LCD Display: Vibrant, anti-glare screen ensures excellent viewing quality even in bright sunlight.
• Adjustable Image Modes: Choose between normal, mirror, flip, or mirror+flip modes.
• Selectable Parking Lines: Enable or disable parking assist lines as needed.
• Wide 130° Viewing Angle: Provides a broader field of view to minimise blind spots.
• Heavy-Duty Construction: Rugged aluminium alloy housing with built-in sun visor for maximum durability.
• Waterproof & Dustproof (IP68): Engineered to withstand harsh weather and off-road conditions.

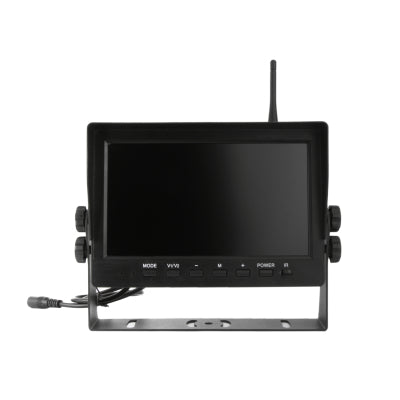

Monitor Specifications:

• Display Size: 7" IPS LCD
• Aspect Ratio: 16:9
• Resolution: 1024 x 600 pixels
• Video System: Auto-select PAL & NTSC
• Inputs: 1 x Camera (Wireless)
• Mounting: Dash mount with U-shaped bracket
• Image Modes: Normal, Mirror, Flip, Mirror+Flip
• Parking Lines: Yes (Selectable)
• Operating Voltage: 12V to 36V DC ±10%
• Operating Temperature: -30°C to +60°C
• Power Consumption: 400mA
• Dimensions: 180mm W x 121mm H x 51mm D
• Packaging: Display gift box

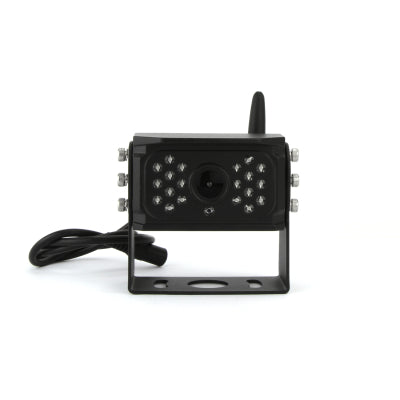

Wireless Camera Specifications:

• Image Processor: AHD High Definition
• Resolution: 720P
• Viewing Angle: 130° Wide Angle
• Night Vision: 20x IR LEDs for superior low-light performance
• Operating Voltage: 12V to 36V DC ±10%
• Material: Aluminium Alloy Housing
• Waterproof Rating: IP68
• Camera Dimensions: 94mm W x 80mm H x 65mm D
• Included: Wireless antenna + built-in sun visor

Installation Applications:

• Caravans & RVs: Ideal for extended installations without the need to run lengthy cables.
• Trucks & Buses: Simplifies professional installations in heavy vehicles.
• 4WDs & Utes: Perfect for reversing in off-road and towing setups.
• Trailers: Designed for stable wireless camera connectivity.
• Commercial Fleets: Great for trade vehicles requiring quick, efficient installs.

Frequently Asked Questions

• How many cameras can I connect?
  This model supports one wireless camera connection only.
• Will this work in caravans and trucks?
  Yes, it's designed for long-range wireless performance, making it ideal for caravans, buses, and trucks.
• Is the system hard to install?
  Not at all. With wireless transmission, you only need to wire power to the camera and monitor.
• Does it have night vision?
  Yes, the built-in 20 IR LEDs provide excellent low-light visibility.
• Can I add extra cameras?
  No, this kit supports a single wireless camera only.
