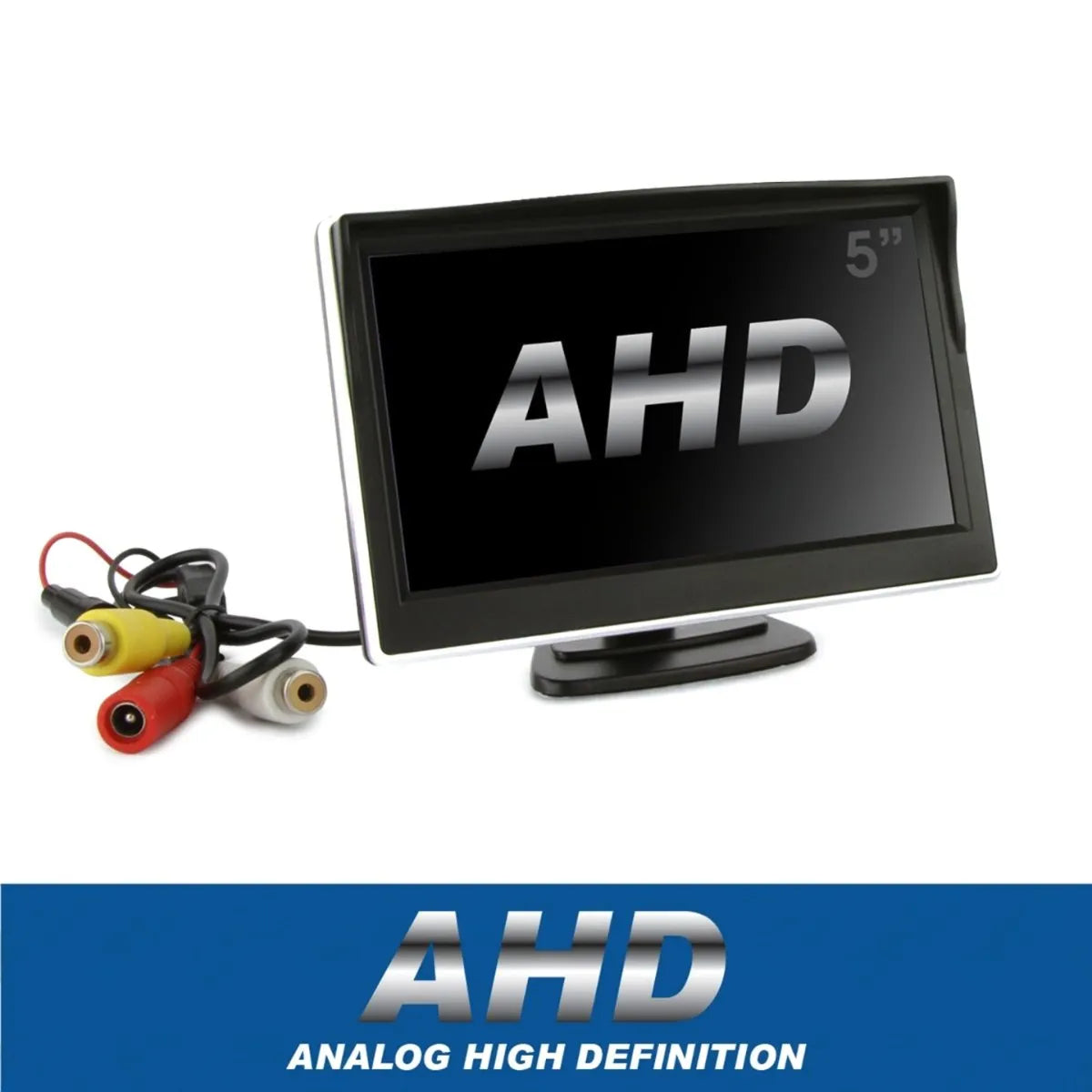

DNA RVS50-AHD 5 Inch AHD Rear View Screen

DNA RVS50-AHD 5 Inch AHD Rear View Screen

High-definition 5-inch AHD monitor with dual video inputs and adjustable mounting

The DNA RVS50-AHD 5 Inch AHD Rear View Screen delivers crystal-clear HD monitoring with 1920x1080 resolution designed for AHD and standard camera systems. This compact monitor features dual RCA video inputs with priority switching, 360-degree adjustable ball joint mount, and built-in sun visor for optimal viewing in all conditions. Perfect for dashboard installation with adhesive mounting system.

Engineered for Australian conditions with -10°C to +50°C operating range, this screen suits professional installers, fleet operators, and vehicle owners requiring reliable rear vision monitoring. Compatible with both AHD high-definition cameras and standard analogue cameras, offering maximum flexibility for existing and new installations.

DNA RVS50-AHD Key Features & Benefits:

• HD Display Quality: 1920x1080 resolution provides crystal-clear video from AHD and standard cameras
• Dual Video Inputs: Two RCA inputs with AV2 priority switching for multiple camera configurations
• 360-Degree Mount: Fully adjustable ball joint bracket allows perfect viewing angle positioning
• Dashboard Ready: Adhesive tape mounting system for clean, professional dashboard installation
• Built-in Sun Visor: Integrated shade reduces glare for clear viewing in bright sunlight conditions
• Universal Compatibility: Works with both AHD high-definition and standard analogue camera systems

Technical Specifications:

• Model: DNA RVS50-AHD
• SKU: RVS50-AHD
• Screen Size: 5 inch LCD display
• Display Mode: 4:3 or 16:9 selectable
• Resolution: 1920(H) x 1080(V) pixels
• Video Input: 1.0V±0.5V p-p 75Ω
• Input Connections: 2 x RCA video inputs
• Auto Switching: V1 & V2 with priority (AV2 over AV1)
• Operating Temperature: -10°C to +50°C
• Working Voltage: DC 12V (+/-10%)
• Power Consumption: 130mA±10%
• Mount Type: 360-degree adjustable ball joint
• Installation: Dashboard adhesive tape mounting
• Accessories: Built-in sun visor, 12V power cable included

Installation Applications:

• Passenger Vehicles: Dashboard rear view monitoring for cars, SUVs, and 4WDs
• Commercial Vehicles: Fleet vehicle monitoring for trucks, vans, and delivery vehicles
• Caravan & RV: Rear vision systems for recreational vehicles and motorhomes
• Agricultural Equipment: Farm vehicle and machinery monitoring applications
• Marine Applications: Boat and yacht rear vision systems requiring compact displays

Frequently Asked Questions

Will this work with my existing analogue camera? Yes, compatible with both AHD high-definition and standard analogue cameras.

Can I connect two cameras simultaneously? Yes, features dual RCA inputs with AV2 (white) taking priority over AV1 (yellow).

How do I mount this to my dashboard? Includes adhesive tape mounting system with 360-degree adjustable ball joint bracket.

What's the difference between AHD and standard cameras? AHD cameras provide higher resolution video, but this screen works with both types.

Does it automatically switch between camera inputs? Yes, AV2 input has priority and will automatically display when signal is present.
