DNA RVM74 7-Inch AHD 4 Channel Rear View TFT-LCD Monitor

DNA RVM74 7-Inch AHD 4 Channel Rear View TFT-LCD Monitor

Professional-grade 7 inch AHD rear view mirror monitor featuring four independent camera inputs with triggered activation enabling comprehensive multi-camera vehicle safety and visibility systems for trucks, buses, RVs, and commercial fleet applications. The DNA RVM74 mirror-style monitor combines non-reflective TFT-LCD display technology with OEM-inspired mirror housing delivering clear, stable video monitoring across four independent camera channels with 16 configurable display views and split-screen permutations. This versatile monitoring solution supports both CCD and AHD camera technologies with automatic PAL/NTSC video system detection, touch button controls, IR remote operation, and flexible installation options through clip-on mirror mount or bracket mounting systems. Operating across 12-24V electrical systems with water-resistant lockable camera connections, this professional monitoring solution delivers reliable multi-camera visibility for enhanced parking safety, blind spot monitoring, trailer tracking, and comprehensive vehicle perimeter surveillance across diverse commercial and recreational vehicle applications.

Product Overview

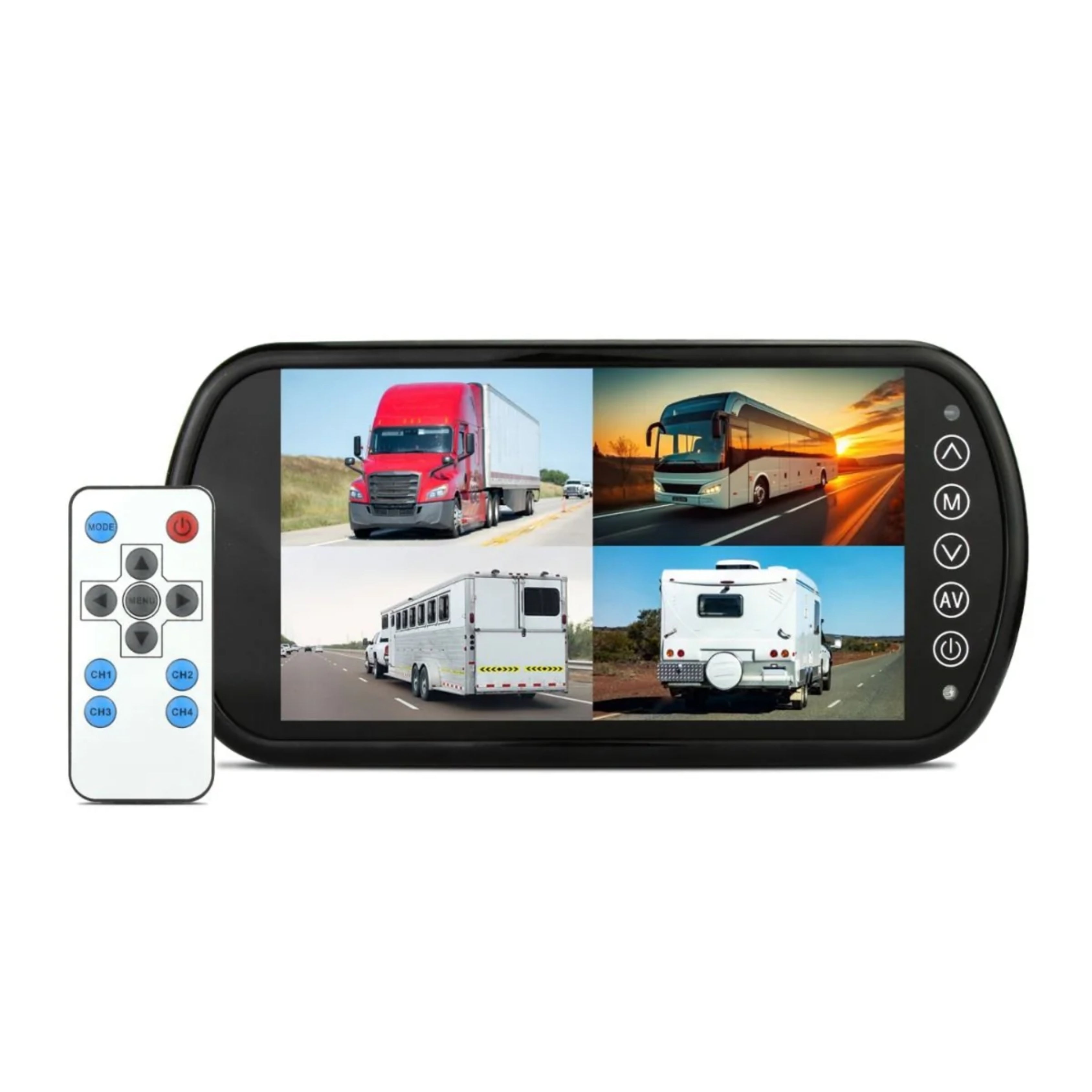

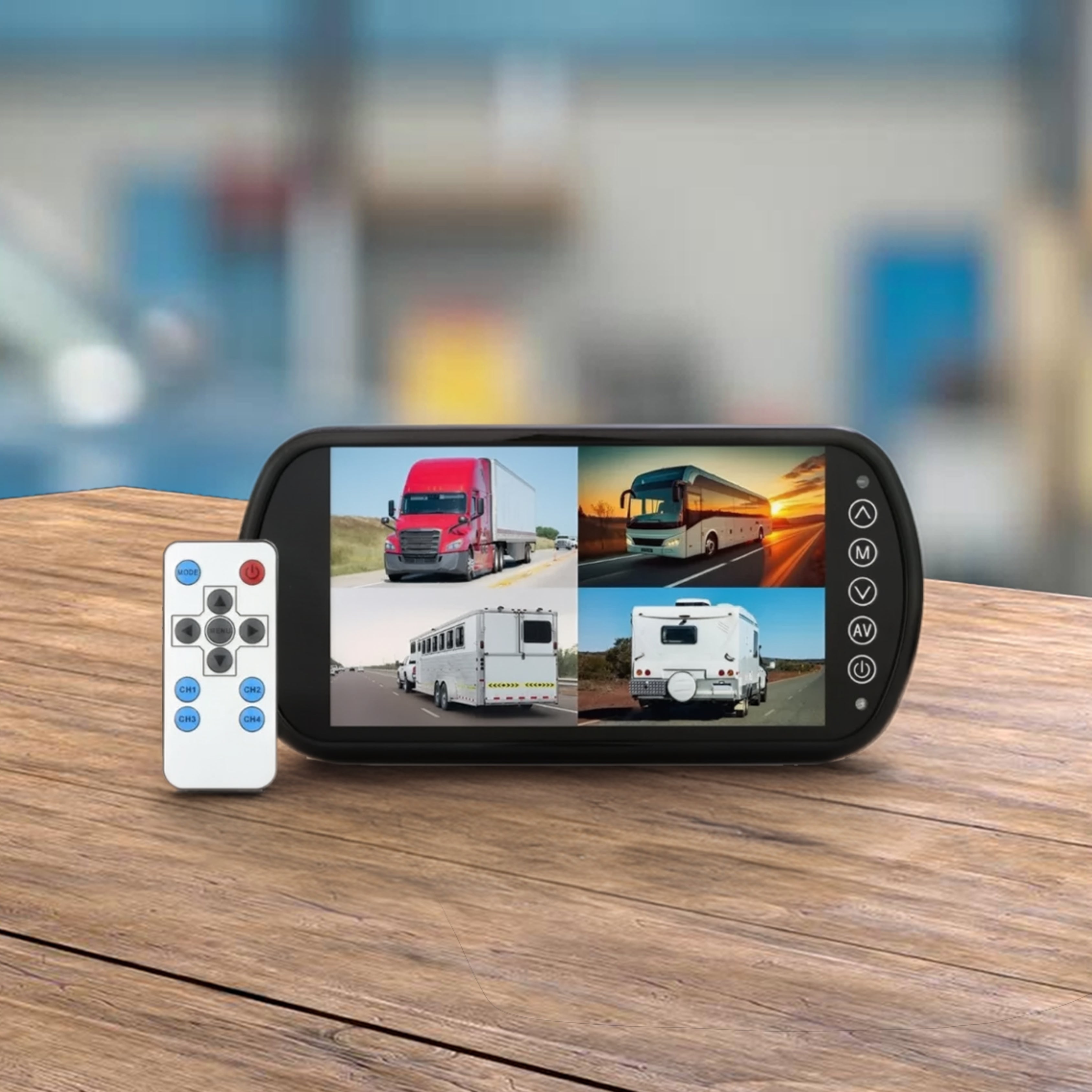

Enhance vehicle safety and visibility with this 7-inch AHD TFT-LCD rear view monitor, featuring a mirror-style housing with a non-reflective display for a clean, OEM-inspired appearance. Designed for multi-camera setups, this model supports four video inputs with four trigger wires, making it ideal for vehicles requiring expanded monitoring such as trucks, buses, RVs, and commercial fleets.

Multi-Camera System Architecture:

The widescreen 16:9 display delivers clear, stable images and supports 16 different display views and permutations, allowing flexible split-screen and camera layout configurations. Each of the four camera inputs features independent trigger wire activation enabling automatic camera display switching based on vehicle operation such as reverse gear engagement, turn signal activation, or manual camera selection.

Flexible Installation Options:

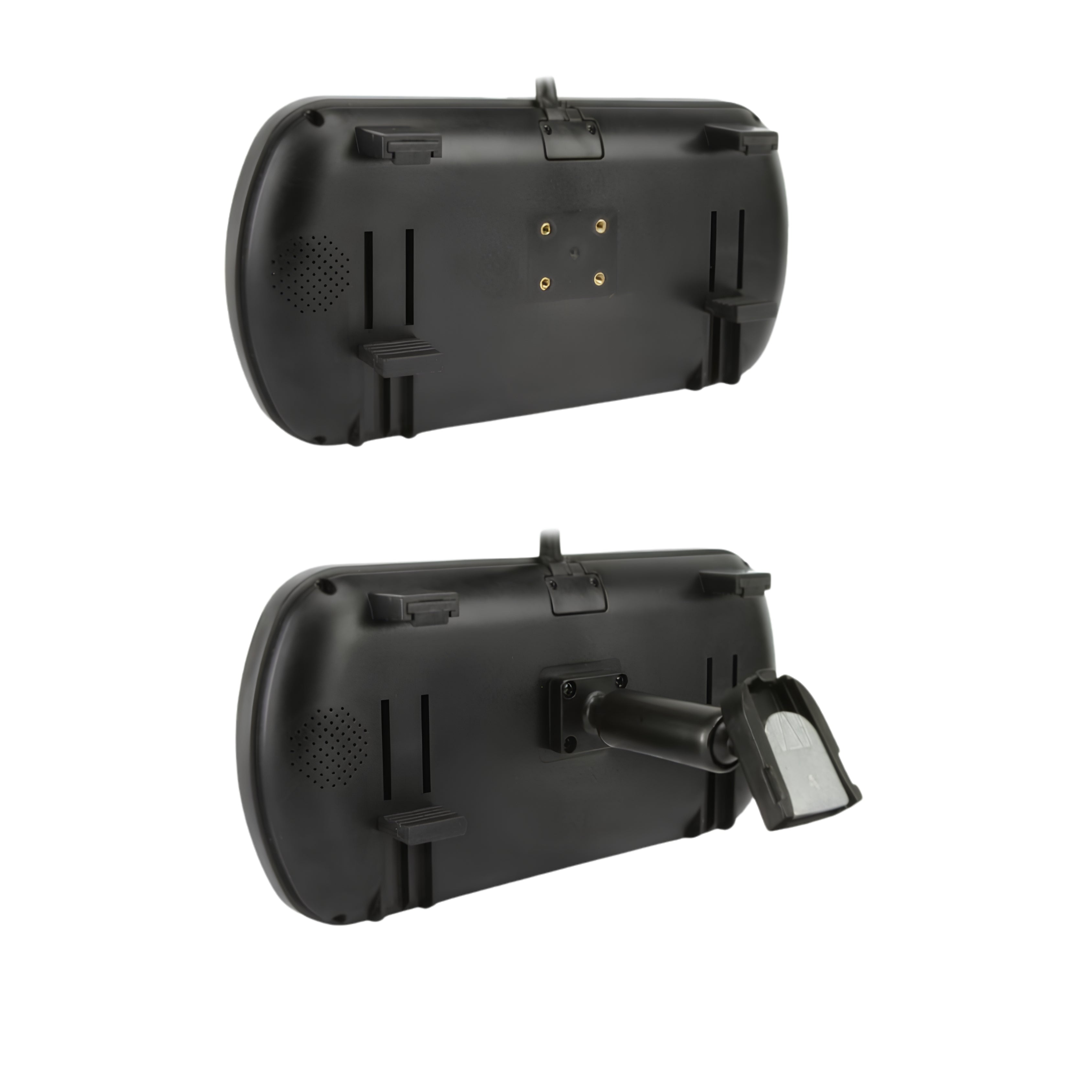

Installation is quick and adaptable thanks to two mounting options: a clip-on mirror-style mount that fits over most factory rear-view mirrors, or a bracket mount suitable for dashboard or custom installations. Supporting automatic PAL and NTSC video systems and a wide 12-24V operating range, this monitor is compatible with a broad range of vehicles.

Features & Benefits

Comprehensive Four-Camera Monitoring System

Professional four-channel video monitoring system enables simultaneous connection of front, rear, side, and auxiliary cameras providing complete vehicle perimeter visibility. The four independent trigger inputs allow automatic camera activation based on vehicle operation including reverse gear engagement, turn signal activation, or manual camera selection through touch controls or IR remote ensuring relevant camera views display automatically during critical maneuvering operations.

Flexible Display Configuration with 16 View Permutations

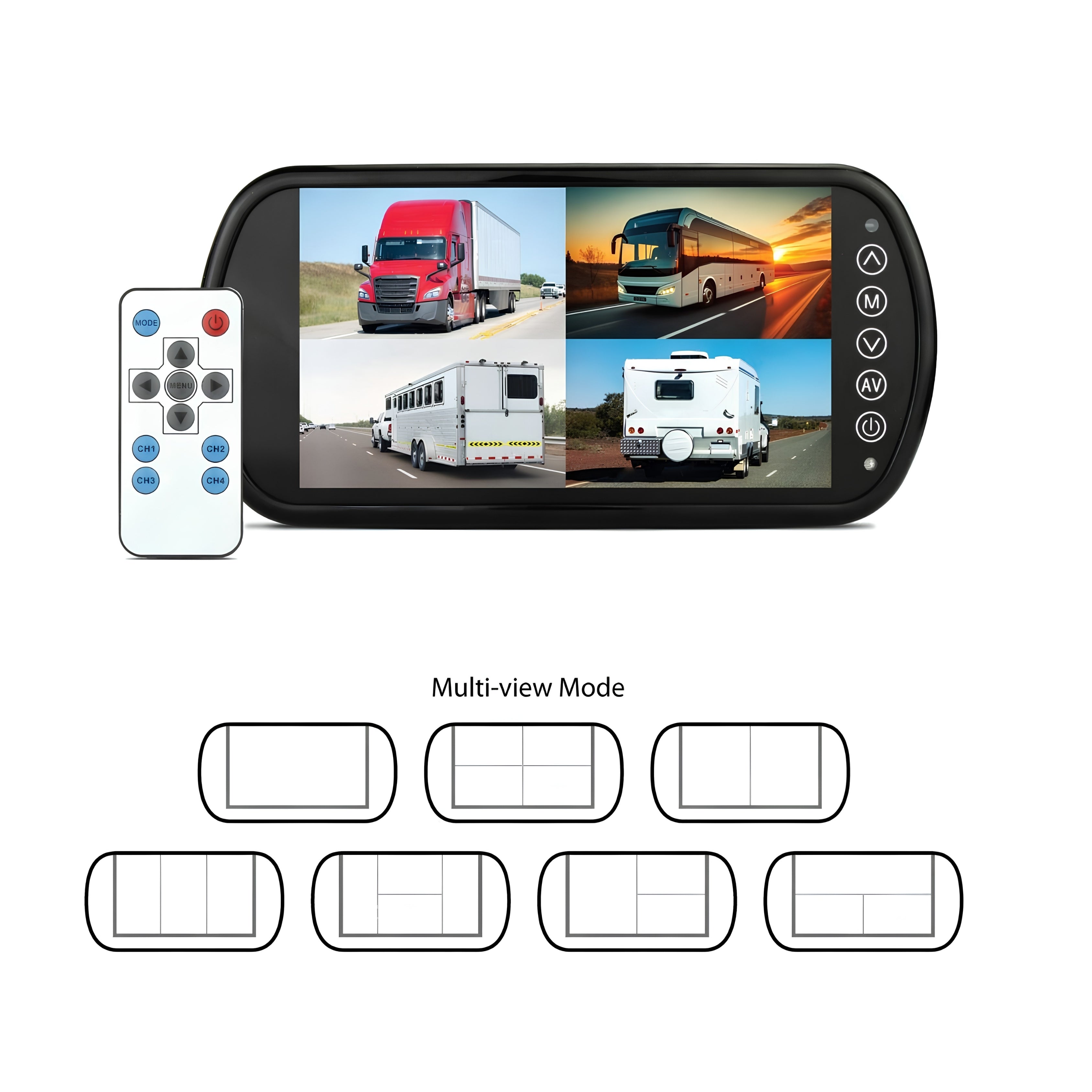

Advanced display processing supports 16 different view configurations including single camera full-screen display, dual split-screen, triple split-screen, and quad split-screen layouts with customizable camera positioning. This extensive display flexibility enables operators to configure optimal camera layouts for specific vehicle applications and operational requirements ensuring critical camera views remain visible during complex maneuvering operations.

AHD High-Definition Camera Support

Advanced AHD (Analog High Definition) technology support enables connection of high-resolution AHD cameras delivering superior image quality compared to traditional analog camera systems. Backward compatibility with standard CCD analog cameras ensures flexibility during system upgrades or mixed camera installations while automatic PAL/NTSC video system detection eliminates configuration requirements across international vehicle applications.

OEM-Style Mirror Housing with Non-Reflective Display

Professional mirror-style housing design integrates seamlessly with factory vehicle interiors providing clean OEM-inspired appearance. The non-reflective 7-inch TFT-LCD display eliminates glare and reflection issues common with traditional mirror monitors ensuring clear video visibility under all lighting conditions while maintaining traditional rear-view mirror functionality when the display is inactive.

Versatile Mounting and Installation Options

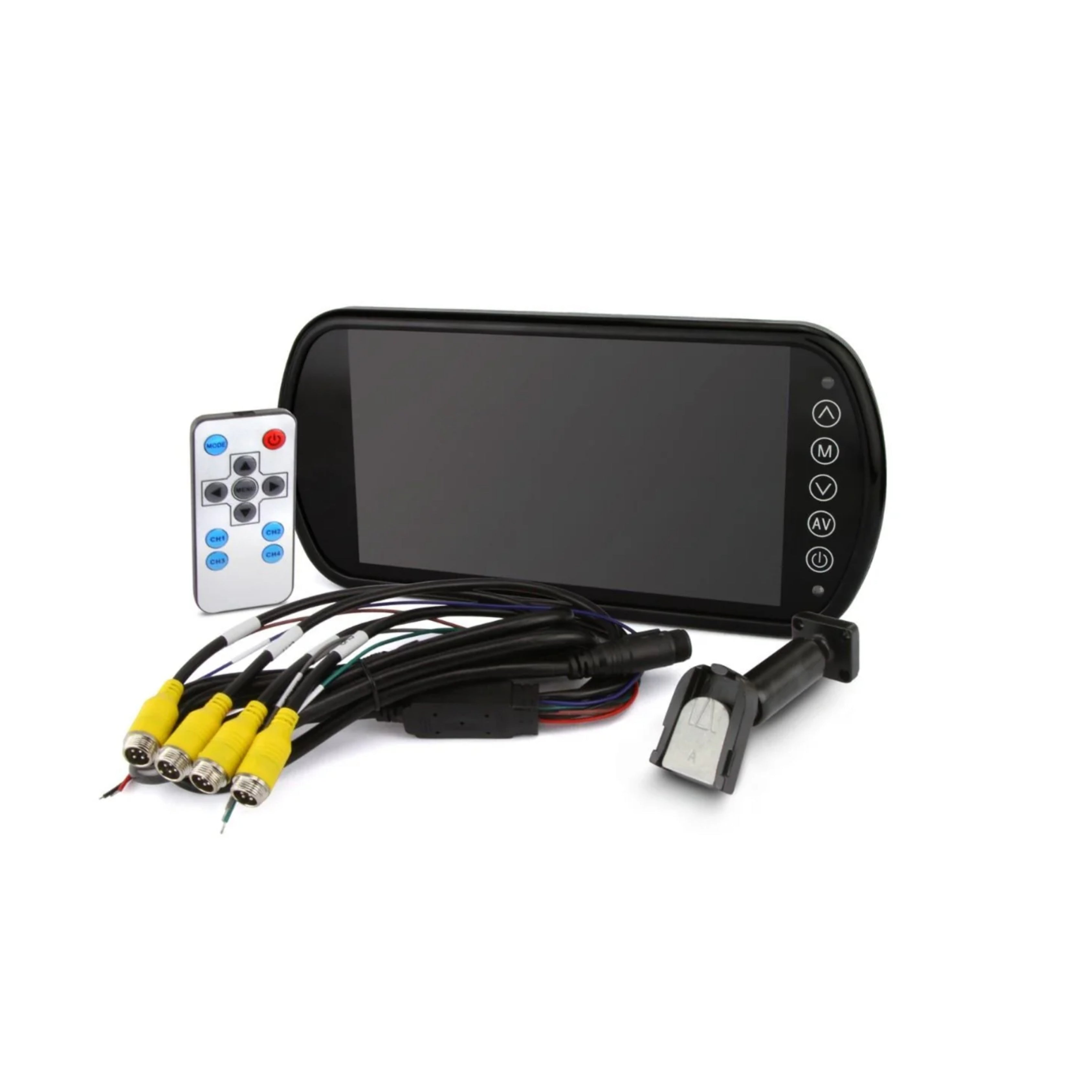

Dual mounting system provides installation flexibility through clip-on mirror bracket compatible with most Toyota, Mitsubishi, Nissan, and Holden factory rear-view mirrors, or bracket mount option for dashboard, overhead, or custom mounting locations. Water-resistant lockable 4-pin camera connections ensure secure weatherproof cable connections while 12-24V wide operating voltage range supports installation across passenger vehicles, commercial trucks, heavy equipment, and recreational vehicles.

Professional Control Interface with Auto-Dimming

Touch button control panel and included IR remote control provide convenient operation of camera selection, display configuration, and system settings without dashboard modification. Integrated auto-dimming function automatically adjusts display brightness based on ambient lighting conditions reducing eye strain during night driving while maintaining optimal video visibility during daytime operations.

Technical Specifications

Compatible With

Vehicle Applications:

• Commercial Trucks and Heavy-Duty Vehicles
• Buses and Passenger Transport Vehicles
• Recreational Vehicles (RVs) and Motorhomes
• Caravans and Towable Trailers
• Agricultural Equipment and Farm Machinery
• Construction Equipment and Heavy Machinery
• Delivery Vans and Commercial Fleet Vehicles
• 4WD and Off-Road Vehicles with Auxiliary Camera Requirements
• Passenger Vehicles Requiring Multi-Camera Monitoring

Camera System Compatibility:

• AHD High-Definition Backup Cameras
• CCD Analog Backup Cameras
• Side-View Blind Spot Cameras
• Front-View Parking Cameras
• Trailer Hitch Monitoring Cameras
• Any 4-pin video camera with PAL or NTSC output

Ideal Applications:

• Reverse parking and maneuvering assistance
• Blind spot monitoring and side visibility
• Trailer coupling and towing operations
• Front bumper parking assistance
• Multi-point vehicle perimeter surveillance
• Commercial fleet safety compliance
• Off-road obstacle detection

Frequently Asked Questions

Q: How many cameras can be connected simultaneously to this monitor?

The DNA RVM74 supports four independent camera inputs with four separate trigger wires enabling simultaneous connection of front, rear, side, and auxiliary cameras. Each camera input features independent trigger activation allowing automatic camera display switching based on vehicle operation such as reverse gear engagement or turn signal activation. The monitor supports 16 different display configurations including single, dual, triple, and quad split-screen layouts for flexible camera viewing.

Q: Will this monitor work with both AHD high-definition cameras and standard analog cameras?

Yes, the DNA RVM74 supports both AHD (Analog High Definition) cameras and traditional CCD analog cameras providing installation flexibility. AHD camera support enables high-resolution video monitoring with superior image quality compared to standard analog systems, while backward compatibility with CCD cameras ensures compatibility with existing camera installations. The monitor automatically detects PAL or NTSC video systems eliminating manual configuration requirements.

Q: What mounting options are available and how does the clip-on mirror mount work?

The DNA RVM74 includes two mounting options: a clip-on mirror-style bracket that attaches over most factory rear-view mirrors (compatible with most Toyota, Mitsubishi, Nissan, and Holden vehicles), or a bracket mount suitable for dashboard, overhead, or custom mounting locations. The clip-on mirror bracket provides quick installation without removing the factory mirror, while the bracket mount option offers flexible positioning for commercial vehicles or custom applications.

Q: Can this monitor operate in both 12V and 24V vehicle electrical systems?

Yes, the DNA RVM74 features a wide 12-24V DC operating voltage range making it compatible with both passenger vehicle 12V electrical systems and commercial truck/heavy equipment 24V electrical systems. This wide voltage compatibility ensures installation flexibility across diverse vehicle applications from passenger cars and light commercial vehicles to heavy-duty trucks, buses, and agricultural equipment without requiring voltage converters.

Q: How are the cameras activated and can I manually switch between camera views?

Cameras can be activated automatically through four independent trigger wires connected to vehicle circuits (such as reverse gear, turn signals, or ignition accessories) enabling automatic camera switching based on vehicle operation. Additionally, manual camera selection and display configuration is available through touch button controls on the monitor housing or via the included IR remote control allowing operators to manually select specific camera views or split-screen configurations as needed during operation.
