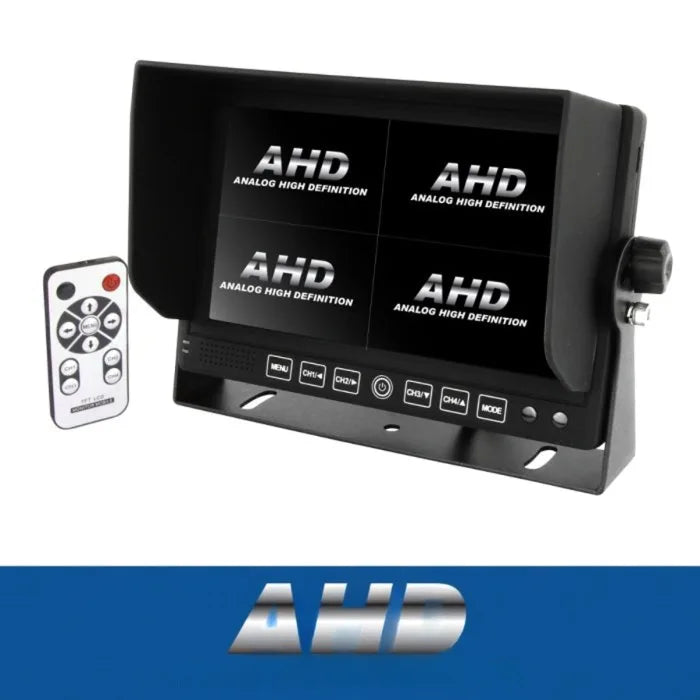

DNA RV74AHD 7in AHD LCD 4 Channel Quad Rearview Screen
DNA RV74AHD 7in AHD LCD 4 Channel Quad Rearview Screen
Click to open expanded view
DNA logo

DNA RV74AHD 7in AHD LCD 4 Channel Quad Rearview Screen

SKU: RV74AHD
Price
$429.95
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

DNA RV74AHD 7in Analog High Definition LCD 4 Channel Quad Rearview Monitor

The DNA RV74AHD is a 7-inch AHD LCD monitor with 4-channel quad picture display, supporting up to 1080P resolution and 11 different image viewing modes. Compatible with both AHD and standard CVBS cameras, it suits caravan, bus, and truck installations requiring large screen or multiple camera monitoring across a 12V to 24V DC system.

Product overview

The RV74AHD provides a versatile multi-camera monitoring solution for commercial and recreational vehicle applications. The 7-inch 1024 x 600 pixel display supports AHD resolutions of 720P and 1080P as well as standard CVBS camera signals, giving flexibility in camera selection. Eleven image view options cover full screen single camera display through to multiple split screen configurations, accommodating a wide range of monitoring setups.

Four AHD camera inputs are provided, each with a dedicated trigger input for automatic camera switching. The unit is dash mountable via a U-shaped bracket, includes a removable sun visor, illuminated front panel touch buttons, and an IR remote for convenient operation. All four camera connections use 4-pin water-resistant lockable connectors. Operating voltage covers 12V to 24V DC, making it suitable across passenger vehicles, caravans, buses, and trucks.

Features and benefits

7-inch AHD display: A 1024 x 600 pixel 16:9 display provides a large and clear viewing area for multi-camera monitoring in caravan, bus, and truck applications.

4-channel quad picture input: Accepts up to four camera inputs simultaneously with 11 selectable image view configurations, from full screen single camera to multiple split screen layouts.

AHD and CVBS camera compatibility: Supports both AHD cameras at 720P and 1080P resolution and standard non-AHD CVBS cameras, providing flexibility in camera selection and upgrade path.

Four triggered camera inputs: Each of the four camera inputs includes a dedicated trigger input, allowing automatic switching to a specific camera view when a trigger signal is received such as a reverse gear signal.

4-pin water-resistant lockable connectors: All camera connections use 4-pin water-resistant lockable connectors for secure and reliable camera connections in commercial vehicle environments.

Dash mountable with U-shaped bracket: The included U-shaped bracket allows the monitor to be mounted on the dash for clear sightlines in the cabin.

Removable sun visor: A large removable sun visor reduces glare on the screen in bright conditions, improving visibility during daytime operation.

IR remote included: An IR remote control is supplied for convenient operation of the monitor without reaching the front panel controls.

12V to 24V DC operating voltage: Compatible with both 12V and 24V vehicle electrical systems, covering passenger vehicles, caravans, buses, and trucks.

Technical specs

Specification Detail
SKU RV74AHD
Brand DNA
Screen Size 7 inches
Aspect Ratio 16:9
Resolution 1024 (RGB) x 600 pixels
Video System AUTO PAL and NTSC
Camera Inputs 4 x AHD with 4 triggered inputs
Supported Resolutions 720P @ 25/30fps, 720P @ 50/60fps, 1080P @ 25/30fps
Camera Compatibility AHD and CVBS
Image View Options 11
Camera Connectors 4-pin water-resistant lockable
Mount Type Dash mount with U-shaped bracket
Operating Voltage 12V to 24V DC (±10%)
Current Consumption 5W
Operating Temperature 0°C to +60°C
Dimensions 180mm W x 121mm H x 24mm D

Frequently asked questions

Will the RV74AHD work with my existing non-AHD cameras?
Yes. The RV74AHD is compatible with both AHD and standard CVBS non-AHD cameras, so existing cameras can be used alongside or instead of AHD cameras without issue.

How many cameras can the RV74AHD display at once?
The RV74AHD accepts up to four camera inputs and offers 11 image view options, including full screen single camera views and multiple split screen configurations showing up to four cameras simultaneously.

Is the RV74AHD suitable for 24V truck and bus applications?
Yes. The RV74AHD operates across a 12V to 24V DC input range, making it suitable for both 12V and 24V vehicle electrical systems including trucks and buses.

Does the RV74AHD include a sun visor?
Yes. A large removable sun visor is included to reduce screen glare in bright conditions, improving visibility during daytime operation.

What mounting options are available for the RV74AHD?
The RV74AHD includes a U-shaped bracket for dash mounting. Contact us for further guidance on alternative mounting options for your specific vehicle or installation setup.
