DNA logo

Out of stock

DNA RV74 7 Inch LCD 4 Channel Quad Rearview Screen

SKU: RV74
Regular price
$429.95
Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Product features

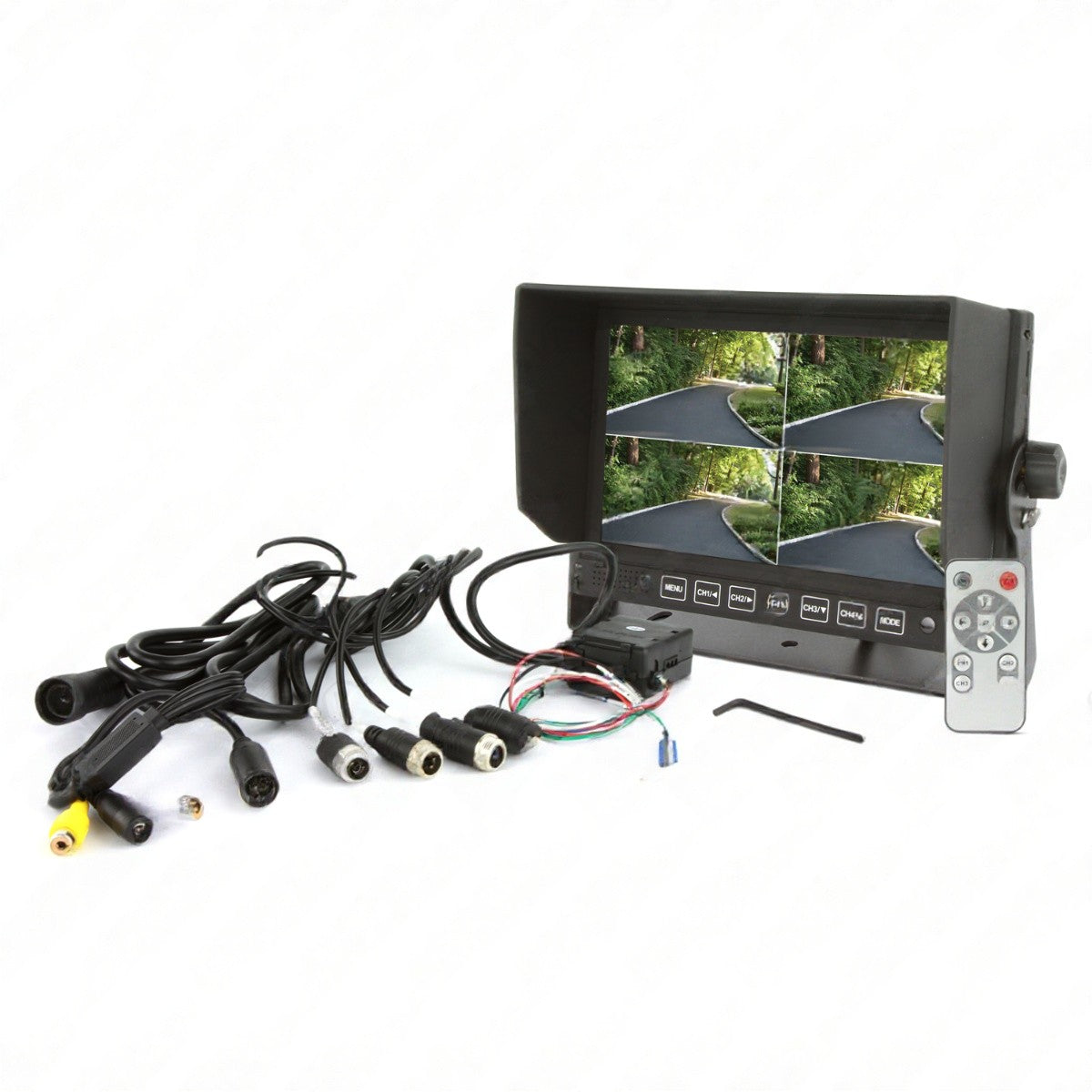

DNA RV74 7 Inch LCD 4 Channel Quad Rearview Screen

High-Resolution 7" Quad View TFT-LCD Monitor for Multi-Camera Setups

The DNA RV74 7 Inch LCD 4 Channel Quad Rearview Screen is designed for vehicles requiring multiple camera views and crystal-clear monitoring. Featuring a 7” high-resolution TFT-LCD display with 11 selectable image modes, this quad-view monitor allows seamless switching between full-screen, dual, and split-screen configurations. Perfect for caravans, trucks, buses, and RVs where multi-angle visibility is essential for safety and navigation.

With 4 independent camera inputs, triggered view switching, a detachable sun visor, and water-resistant lockable camera connections, the RV74 ensures superior reliability for both day and night driving conditions.

DNA RV74 Key Features & Benefits:

  • Quad-View Display: Supports up to 4 cameras simultaneously with 11 image layouts, including full-screen and split-screen modes.
  • High-Resolution TFT-LCD: 800 x 480 pixel clarity for sharp, vivid video monitoring.
  • Multiple Triggered Inputs: Automatically switches views based on front, rear, left, or right trigger signals.
  • Durable & Weather-Resistant: Features 4-pin lockable connections for enhanced reliability in all conditions.
  • Wide Compatibility: Suitable for caravans, trucks, RVs, and buses requiring large-screen monitoring.
  • Integrated Speaker: Built-in audio support for cameras with microphone capability.
  • Sun Visor & Remote Control: Provides clear daytime viewing and convenient IR remote operation.

Technical Specifications:

  • Model: DNA RV74
  • SKU: RV74
  • Type: 7" Quad View Rearview Screen
  • Display: 7” TFT-LCD
  • Aspect Ratio: 16:9
  • Resolution: 800 (RGB) × 480 Pixels
  • Video System: PAL & NTSC (Auto-Detect)
  • Camera Inputs: 4 with triggered switching for front, rear, left, and right cameras
  • Image Modes: 11 viewing configurations including full-screen, dual-view, and quad-view
  • Audio: Inbuilt speaker with volume control
  • Controls: Touch-sensitive front panel buttons with illumination
  • Connections: 4-pin water-resistant lockable connectors
  • Mounting: Dash mountable with U-shaped bracket
  • Power Input: 12V–24V DC ±10%
  • Power Consumption: 5W
  • Operating Temperature: -20°C to +70°C
  • Dimensions: 180mm W × 121mm H × 23mm D
  • Packaging: Display gift box

Installation Applications:

  • Caravans & Motorhomes: Enhance rear and side visibility for safer towing.
  • Trucks & Heavy Vehicles: Ideal for wide-angle blind spot monitoring in large transport vehicles.
  • Buses & Coaches: Perfect for multi-camera passenger safety monitoring setups.
  • 4WD & Off-Road Vehicles: Multi-angle monitoring for extreme terrain navigation.
  • Fleet Management: A reliable solution for businesses needing advanced vehicle vision systems.

Frequently Asked Questions

  • How many cameras can I connect?
    The RV74 supports up to 4 cameras with triggered switching options.
  • Does it support both PAL and NTSC formats?
    Yes, it automatically detects and supports both video formats.
  • Can I customize the viewing layout?
    Absolutely, it offers 11 different display configurations including quad, split, and full-screen views.
  • Is the monitor suitable for outdoor use?
    Yes, the water-resistant lockable connectors make it highly reliable in outdoor environments.
  • Does the kit include a sun visor?
    Yes, a detachable sun visor is included for improved visibility in bright conditions.
