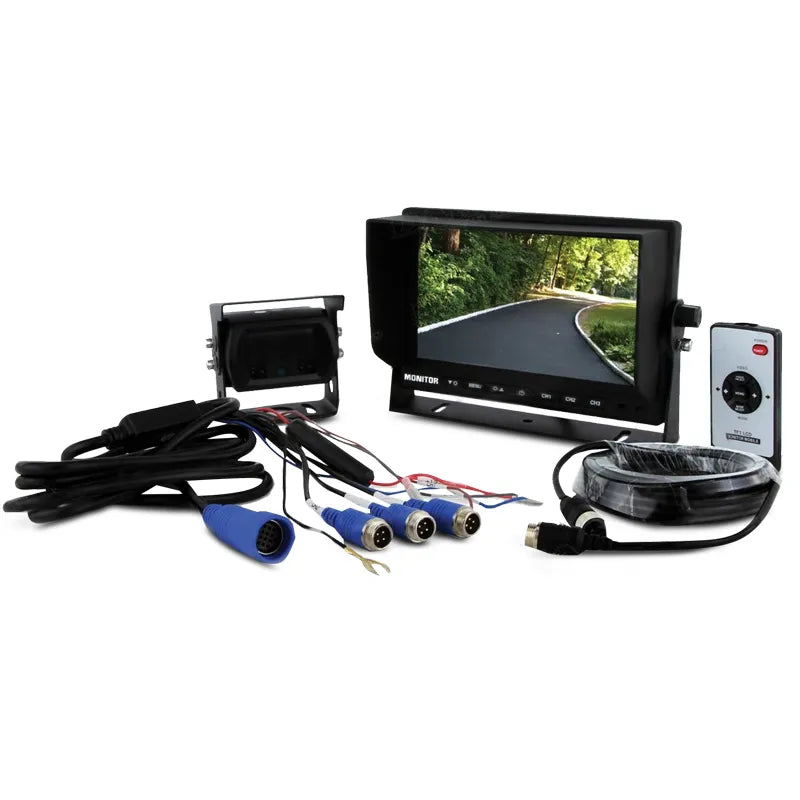

DNA RV70PK-AHD 7" Analog High Definition LCD Rearview Screen & CMOS Camera Pack

SKU: RV70PKAHD
Sale price
$404.96
Regular price
$449.95
You save
10%
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Ideal for Caravans & Truck Installations Where a Large Viewing Screen Required

LCD Rearview Screen & CCD Camera Pack
This high resolution 3 Channel TFT-LCD monitor is ideal for multiple camera applications for full screen viewing. Includes front panel touch buttons with a large removable sun visor and is ideal for Caravans and Truck installations where a large viewing screen required. AHD supports 720P, 960P and 1080P video resolutions.

Heavy Duty PAL CMOS Truck/Bus/Caravan Camera
This all metal waterproof construction CMOS camera is ideal for trucks or buses where heavy duty application is required. Operates on 12V or 24V vehicles and includes built in IR LEDs for excellent night visibility.

Screen:

  • Display: 7" TFT-LCD
  • Aspect Ratio: 16:9
  • Video System: (Auto) PAL & NTSC
  • Resolution: 1024 (RGB) x 600 Pixel
  • Camera Inputs: 3 HD with 3 Triggered Inputs for Each Camera
  • Supports: 720P @ 25/30, 720P @ 50/60, 1080P @ 25/30
  • Supplied With: 6 Metres 4 Pin to 4 Pin Extension Cable for Connection Between Screen & Camera
  • Dash: Mountable with U Shaped Bracket
  • Protection: Screen Sun Visor
  • Touch Front Panel Buttons: Illuminated
  • Connections: 4 Pin Water-Resistant Lockable Camera
  • Included: IR Remote
  • Image Options: UP/Down & Left/Right (Mirror)
  • Operating Temperature: 0°C /+60°C
  • Operating Voltage: 12V - 24V DC (+/- 10%)
  • Current Consumption: 5W
  • Size: 180mm W x 121mm H x 24mm D
  • Packaging: Display Box

Cabling Kit Contains:

  • 1 x 6M 4 Pin Extension Cable

Camera:

  • Image Processor: 1/3" Sony PAL CMOS
  • Viewing Angle: 140° Horizontal
  • Resolution: 1280x720
  • IR LEDS: 18 IR LED
  • Illumination: 0.1 LUX (Night Mode)
  • Operating Voltage: 12V
  • Included: Sun Visor
  • Material: Aluminium Alloy Shell
  • S/N Ratio: >48db
  • Waterproof Rating: IP68
  • Video Output: 1Vp-p 75 Ohm Composite
  • Supplied With: 0.6m 4 Pin Water Resistant Lockable Connector
  • Dimensions: 86.5mm W x 77mm H x 75mm D

This Kit Will Work with The Following Cables:

  • Woza Cable Kit: RVEW
  • Extension Cables: RVEW, RVE05, RVE07, RVE10, RVE15, RVE20

Important Information:

  • AHD Cameras Will Not Work On Non-AHD Screens
  • Non-AHD Cameras Will Not Work with AHD Screens
