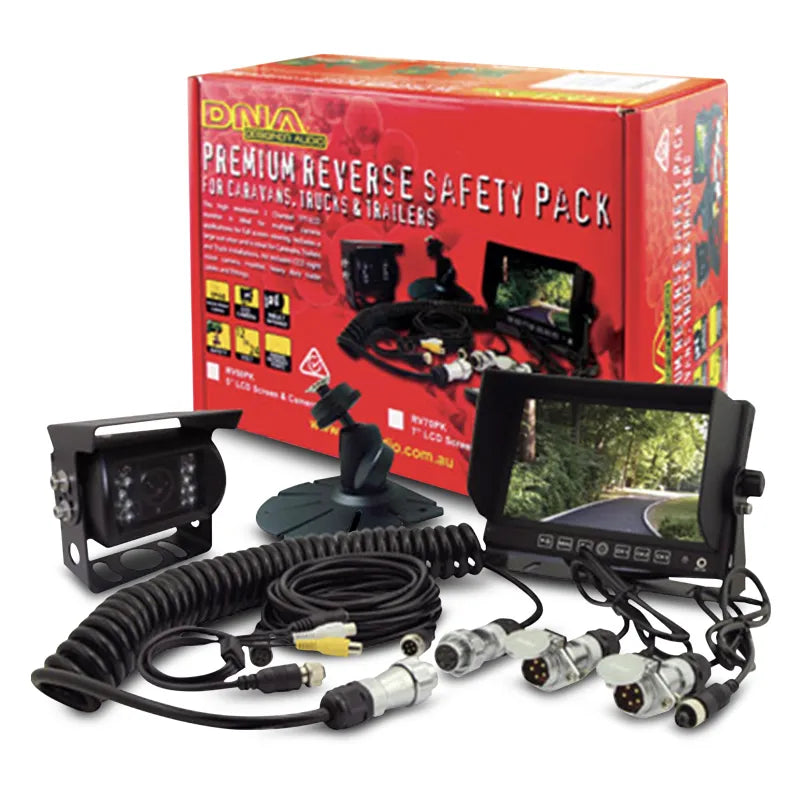

DNA RV70PK 7" 3-Channel LCD Rearview Screen & CCD Camera Pack

High Resolution 3CH TFT-LCD Monitor Is Ideal For Multiple Camera Applications For Full Screen Viewing

7" LCD Rearview Screen
3 Channel, Includes front panel touch buttons with a large removable sun visor and is ideal for Caravans and Truck installations where a large viewing screen required.

Features:

• Screen:
  • 7" TFT-LCD Display
  • 3 Camera Inputs With 3 Triggered Inputs For Each Camera.
  • 1 Camera AV Input On Front Panel (CH1)
  • Dash Mountable With Either U Shape Bracket Or Round Shape Bracket.
  • Screen Sun Visor
  • In-Built Speaker
  • Microphone Included
  • Illuminated Touch Front Panel Buttons.
  • 4 PIN Water-Resistant Lockable Camera Connections.
  • IR Remote Included
  • Supplied With 2 x L Brackets For Mounting 5 PIN Sockets To Vehicle.
• Camera:
  • Heavy Duty PAL CCD Truck/Bus/Caravan Camera
  • All Metal Waterproof Construction CCD Camera Is Ideal For Trucks/Buses Where Heavy Duty Application Is Required.
  • Operates On 12V Or 24V Vehicles & Includes Built-In IR LED's For Excellent Night Visibility.
  • ¼" Sharp PAL CCD Image Processor.
  • 120° Horizontal Viewing Angle.
  • 0 Lux Illumination (Night Mode)
  • Sun Visor Included
  • Waterproof Rating To IP68
  • Supplied With 0.6m 4 PIN Water Resistant Lockable Connector.

Specifications:

• Screen:
  • Aspect Ratio: 16:9
  • Video System: (AUTO) PAL & NTSC
  • Resolution: 800 (RGB) x 480 Pixel
  • Image Options: UP/Down & Left/Right (Mirror)
  • Operating Temperature: -20°C /+70°C
  • Operating Voltage: 12V - 24V DC (+/- 10%)
  • Current Consumption: 5W
  • Size: 180mm W x 121mm H x 23mm D
  • Packaging: Display Box
• Camera:
  • Material: Aluminium Alloy Shell
  • S/N ratio: >48db
  • Video Output: 1 VP-P 75 Ohm Composite
  • Horizontal Resolution: 420TV Line
  • Operating Voltage: 12V - 24V DC
  • IR LED's: 18 IR LED
  • Dimensions: 86.5mm W x 77mm H x 74.5mm D
  • Packaging: Display Box
