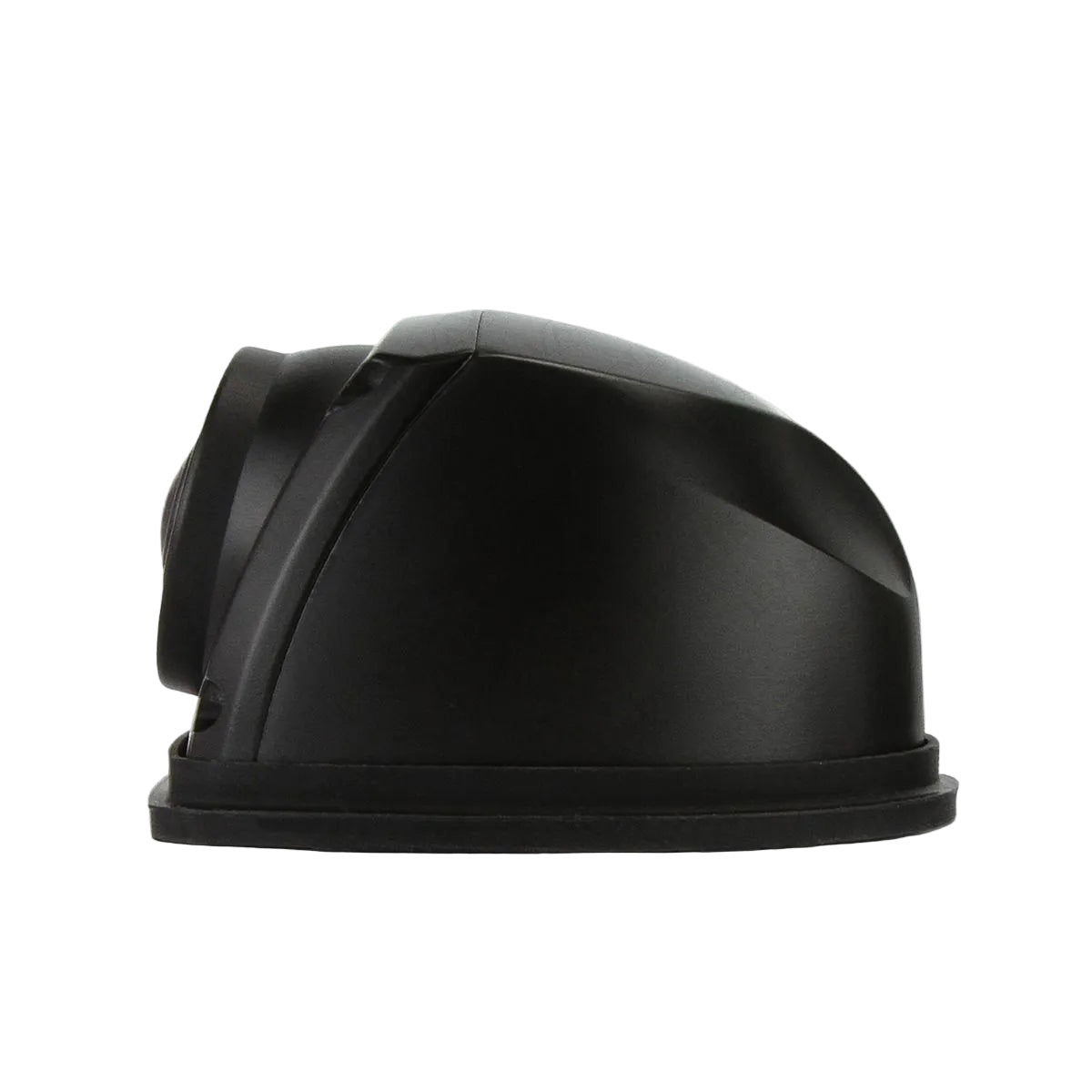

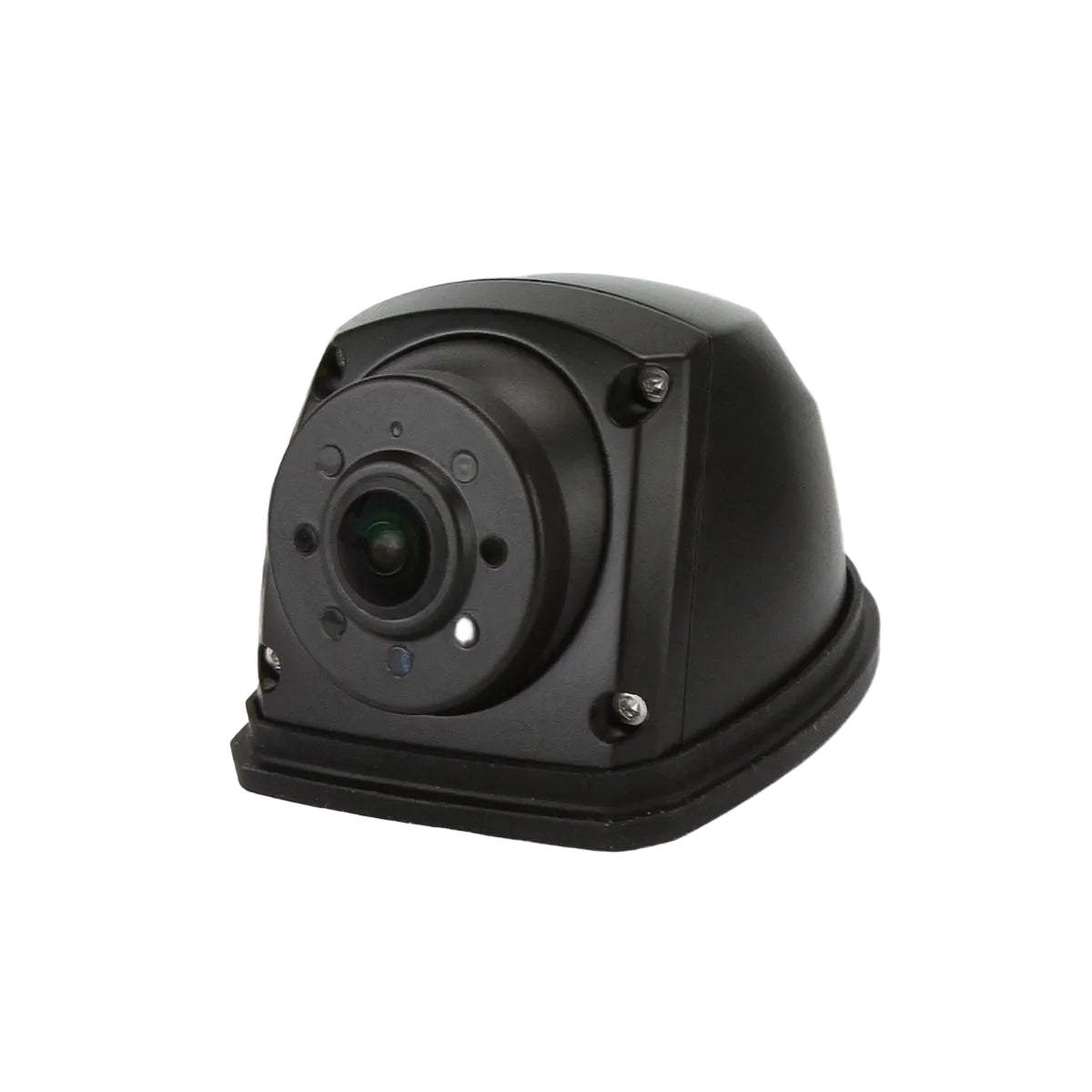

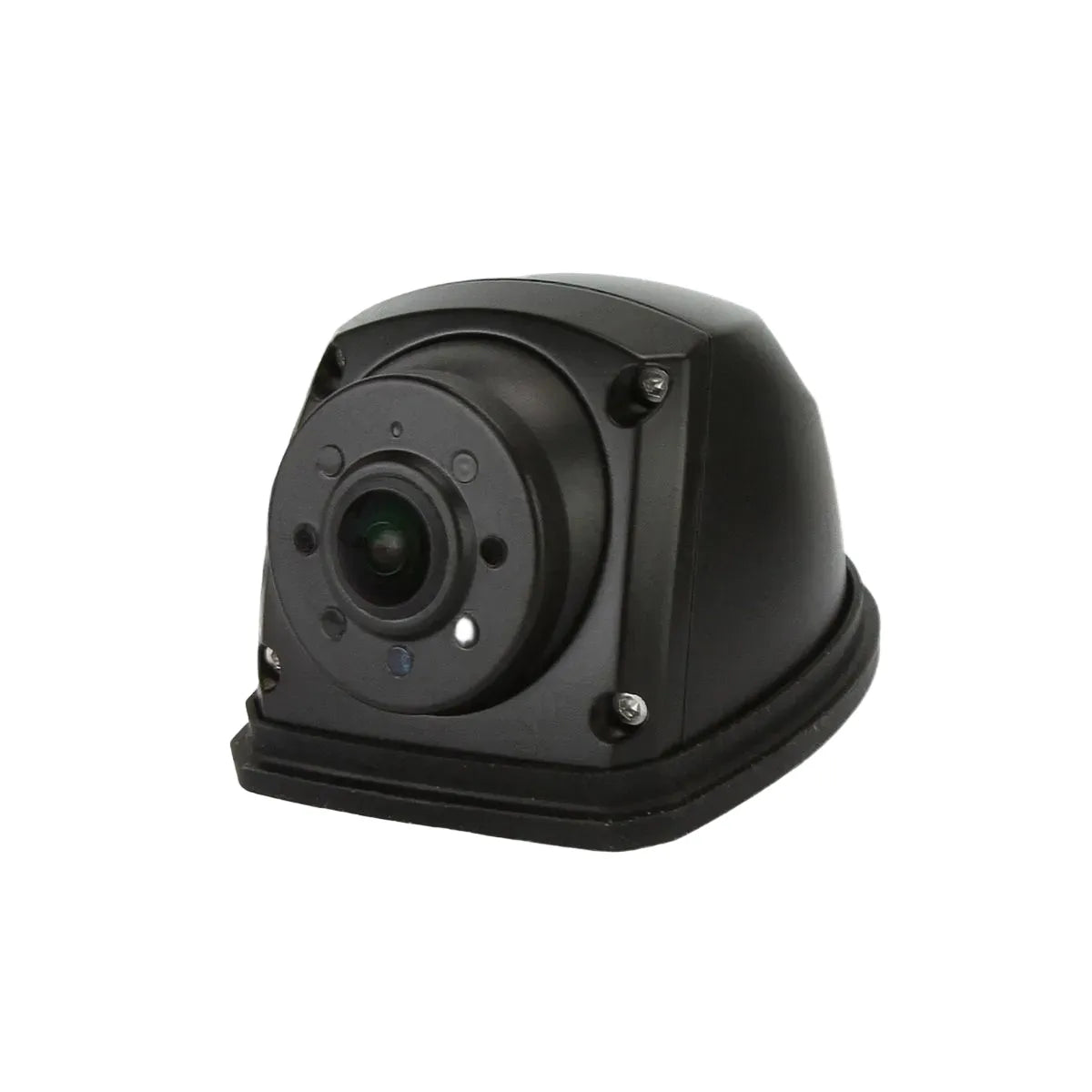

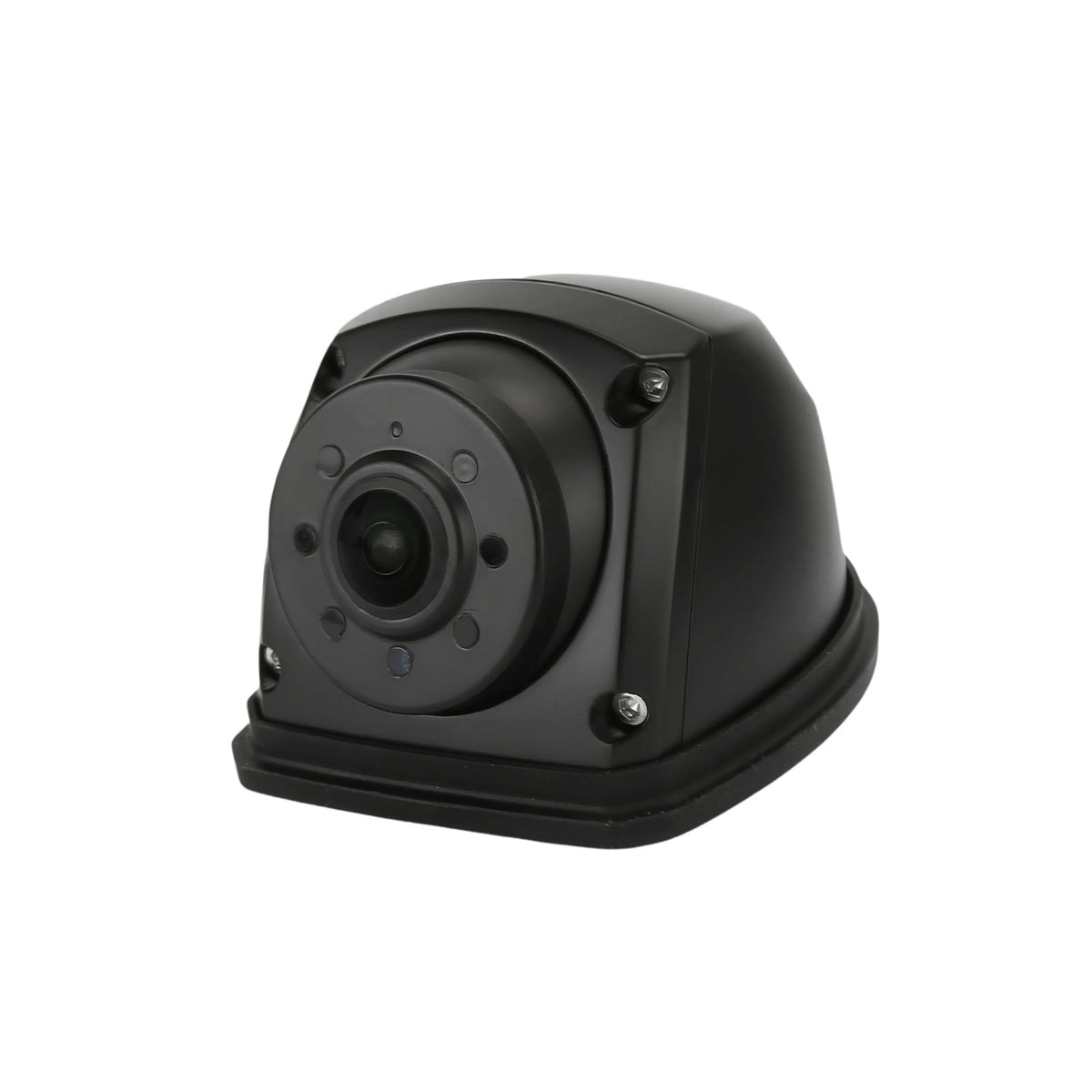

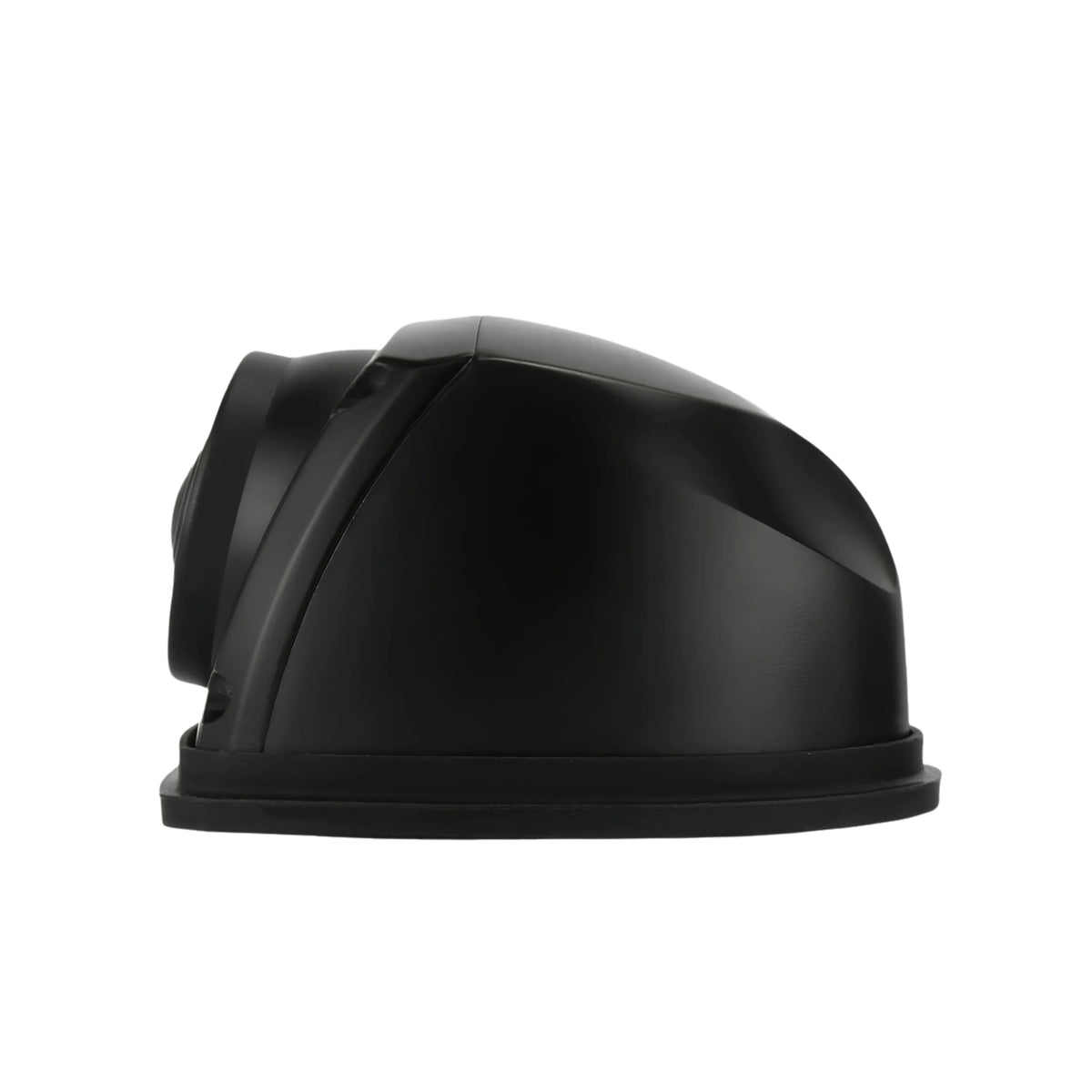

DNA RV107P-AHD 1080P AHD Side Mount Camera IP69K 150 Degree

DNA RV107P-AHD 1080P AHD Side Mount Camera IP69K

A 1080P AHD side mount camera with IP69K waterproof and dustproof rating, 150-degree diagonal viewing angle, 6 integrated IR LEDs for night vision, adjustable ball-joint bracket, and 4-pin waterproof connector for 12V and 24V vehicle systems, the DNA RV107P-AHD is designed for commercial, industrial, agricultural, and recreational vehicle applications.

Product Overview

The DNA RV107P-AHD is a 1080P Advanced High Definition (AHD) side mount camera designed for commercial, industrial, agricultural, and recreational vehicles. It delivers high-definition image clarity for improved situational awareness of blind spots and surrounding areas, with a 150-degree diagonal lens angle providing extensive coverage from the side-mounted position.

The adjustable side-mount bracket with ball-joint positioning allows flexible installation and precise camera alignment for the optimal viewing angle across a wide range of vehicle types and mounting locations. Six integrated infrared LEDs provide reliable night vision performance at a minimum illumination of 0.01 Lux. The IP69K waterproof and dustproof rating, PCB encapsulation for moisture and vibration protection, and a vibration rating of 5.9G ensure reliable operation in demanding outdoor and off-road environments.

Compatible with both 12V and 24V DC vehicle electrical systems, the RV107P-AHD connects via a 4-pin waterproof connector for stable signal and power transmission in all conditions. The PAL video signal system is compatible with PAL-format monitors and recording systems. The RV107P-AHD is backed by a 5-year warranty.

Features & Benefits

1080P AHD Resolution for High-Definition Image Clarity: The RV107P-AHD uses Advanced High Definition (AHD) technology at 1080P resolution, providing sharp and detailed footage for improved situational awareness compared to standard definition camera systems.

150-Degree Diagonal Viewing Angle: The wide 150-degree diagonal lens angle provides extensive coverage of blind spots and surrounding areas from the side-mounted camera position, suited to large commercial, agricultural, and recreational vehicles with significant blind spot areas.

Adjustable Ball-Joint Side Mount Bracket: The side-mount bracket features a ball-joint for flexible camera positioning and precise angle adjustment, allowing the optimal viewing angle to be set for the specific vehicle and mounting location.

IP69K Waterproof and Dustproof Rating: The IP69K rating provides the highest level of protection against dust ingress and high-pressure, high-temperature water jet exposure, making the RV107P-AHD suitable for vehicle wash-down and demanding outdoor conditions.

PCB Encapsulation for Moisture and Vibration Protection: The PCB is fully encapsulated to protect the camera's internal electronics from moisture ingress and vibration damage in off-road and high-vibration vehicle environments. The camera is rated to 5.9G vibration.

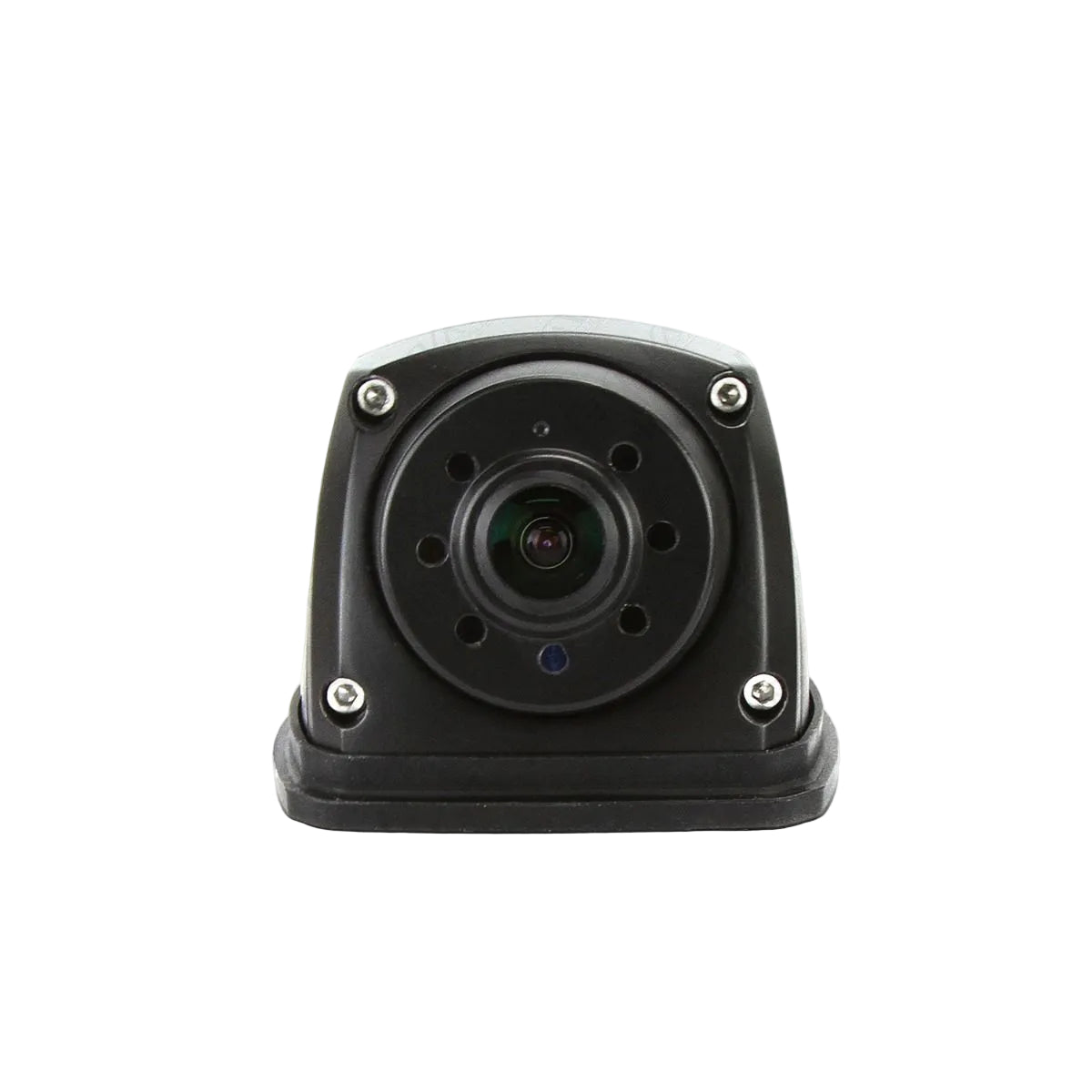

6 Integrated IR LEDs for Night Vision: Six integrated infrared LEDs provide reliable night vision performance at a minimum illumination of 0.01 Lux, enabling clear camera imagery in low-light and no-light conditions.

12V and 24V DC Compatibility: The RV107P-AHD operates on both 12V and 24V DC vehicle electrical systems, making it compatible with passenger vehicles, light commercial vehicles, and heavy commercial vehicles without requiring a voltage convertor.

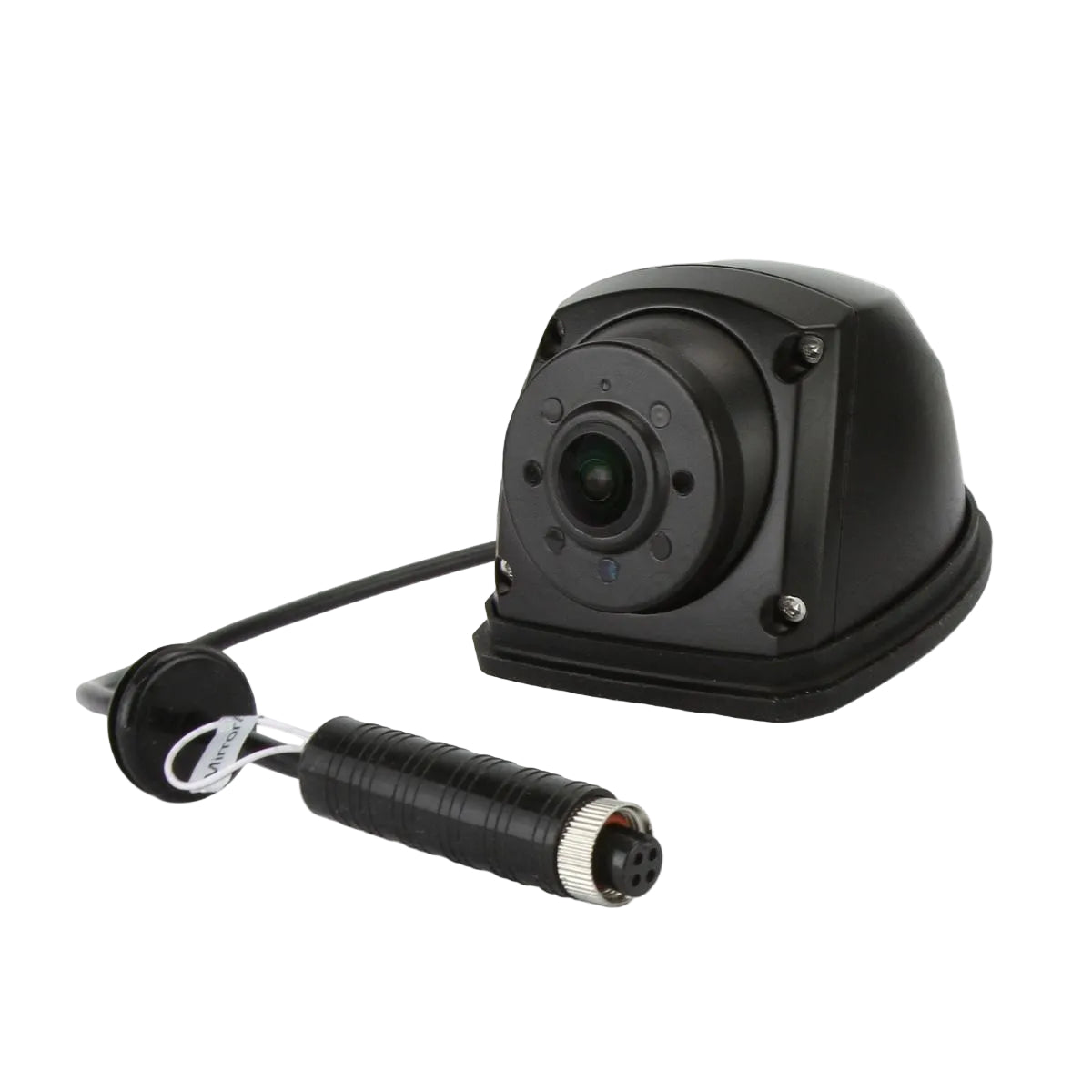

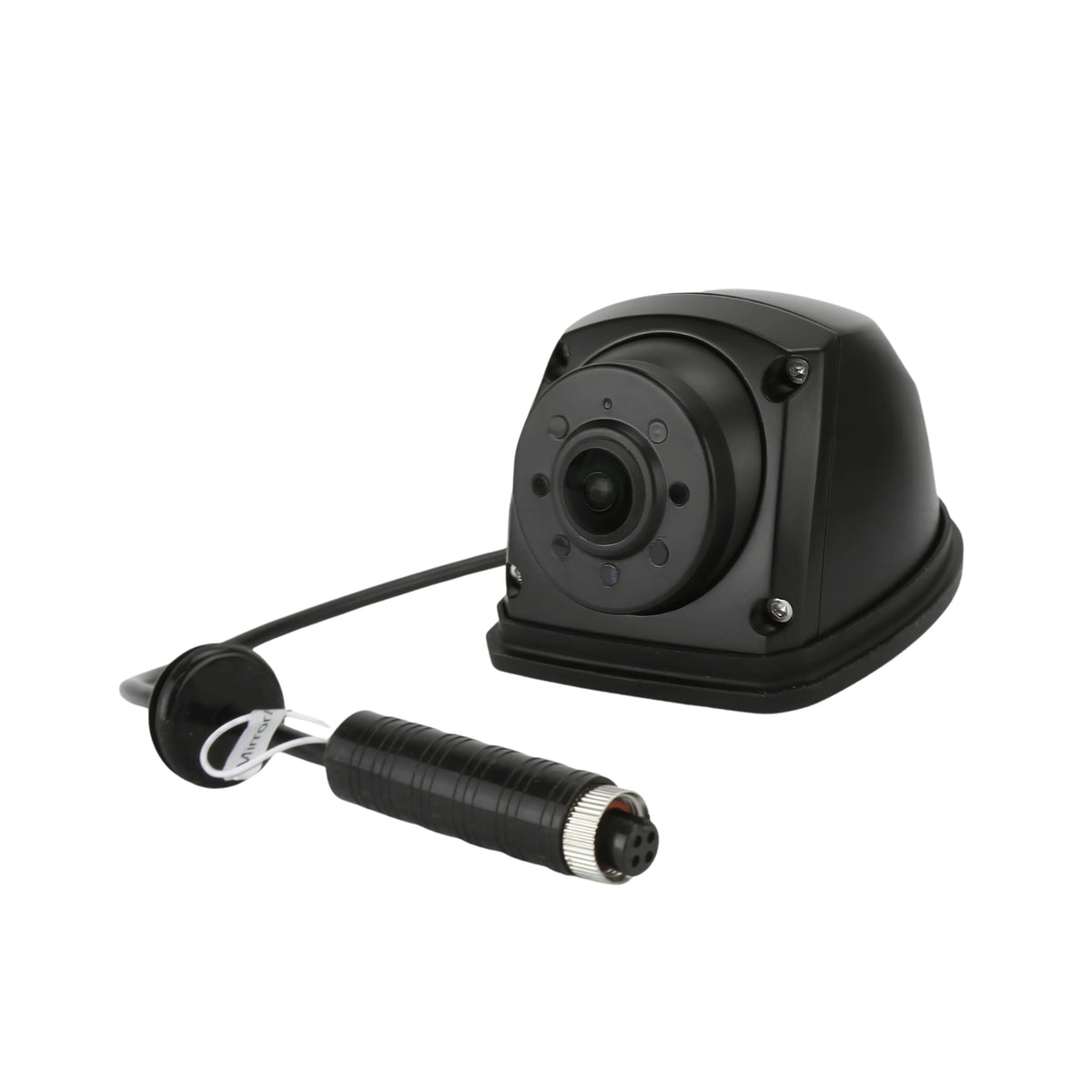

4-Pin Waterproof Connector: The 4-pin waterproof connector provides a secure and weather-resistant connection between the camera and the vehicle wiring harness, ensuring stable signal and power transmission in all operating conditions.

PAL Video Signal System: The RV107P-AHD outputs a PAL video signal, compatible with PAL-format monitors, mirror monitors, head units, and recording systems used in Australia.

5-Year Warranty: The RV107P-AHD is backed by an industry-leading 5-year warranty, reflecting the long-term reliability and performance engineered into this camera for demanding vehicle applications.

Technical Specs

Compatible With

The RV107P-AHD is compatible with PAL-format monitors, mirror monitors, head units, and recording systems with a compatible camera input. It operates on 12V and 24V DC vehicle electrical systems and connects via a 4-pin waterproof connector. Suited to commercial, industrial, agricultural, and recreational vehicle applications.

Frequently Asked Questions

Is the RV107P-AHD suitable for use on heavy commercial vehicles?

Yes. The RV107P-AHD is compatible with both 12V and 24V DC vehicle electrical systems and is designed for commercial, industrial, agricultural, and recreational vehicle applications. The IP69K rating and 5.9G vibration tolerance make it suited to heavy-duty environments.

What does the IP69K rating mean for the RV107P-AHD?

IP69K is the highest available ingress protection rating, providing full protection against dust and against high-pressure, high-temperature water jet exposure. This makes the RV107P-AHD suitable for vehicle wash-down and demanding outdoor operating conditions where other cameras may fail.

Does the RV107P-AHD provide night vision?

Yes. Six integrated infrared LEDs provide reliable night vision performance at a minimum illumination of 0.01 Lux, enabling clear camera imagery in low-light and no-light conditions.

What video signal format does the RV107P-AHD output?

The RV107P-AHD outputs a PAL video signal. Confirm that your monitor, head unit, or recording system accepts PAL AHD camera input before purchase.

What is the warranty period for the RV107P-AHD?

The RV107P-AHD is backed by a 5-year warranty.
