DNA RV103P Heavy Duty CCD Camera PAL IP69K Waterproof Night Vision

DNA RV103P | Heavy Duty Compact CCD Camera – PAL, IP69K Waterproof, IR Night Vision

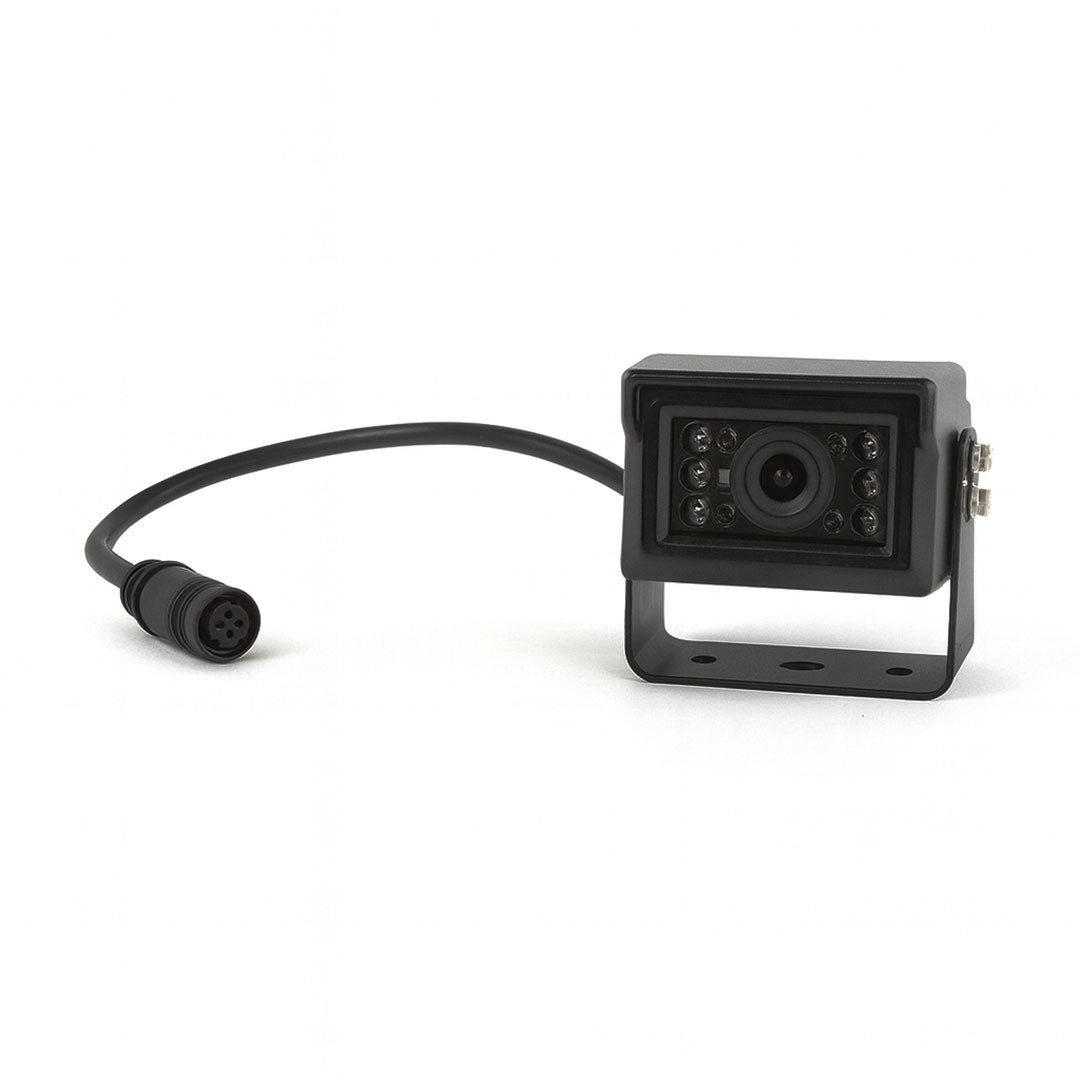

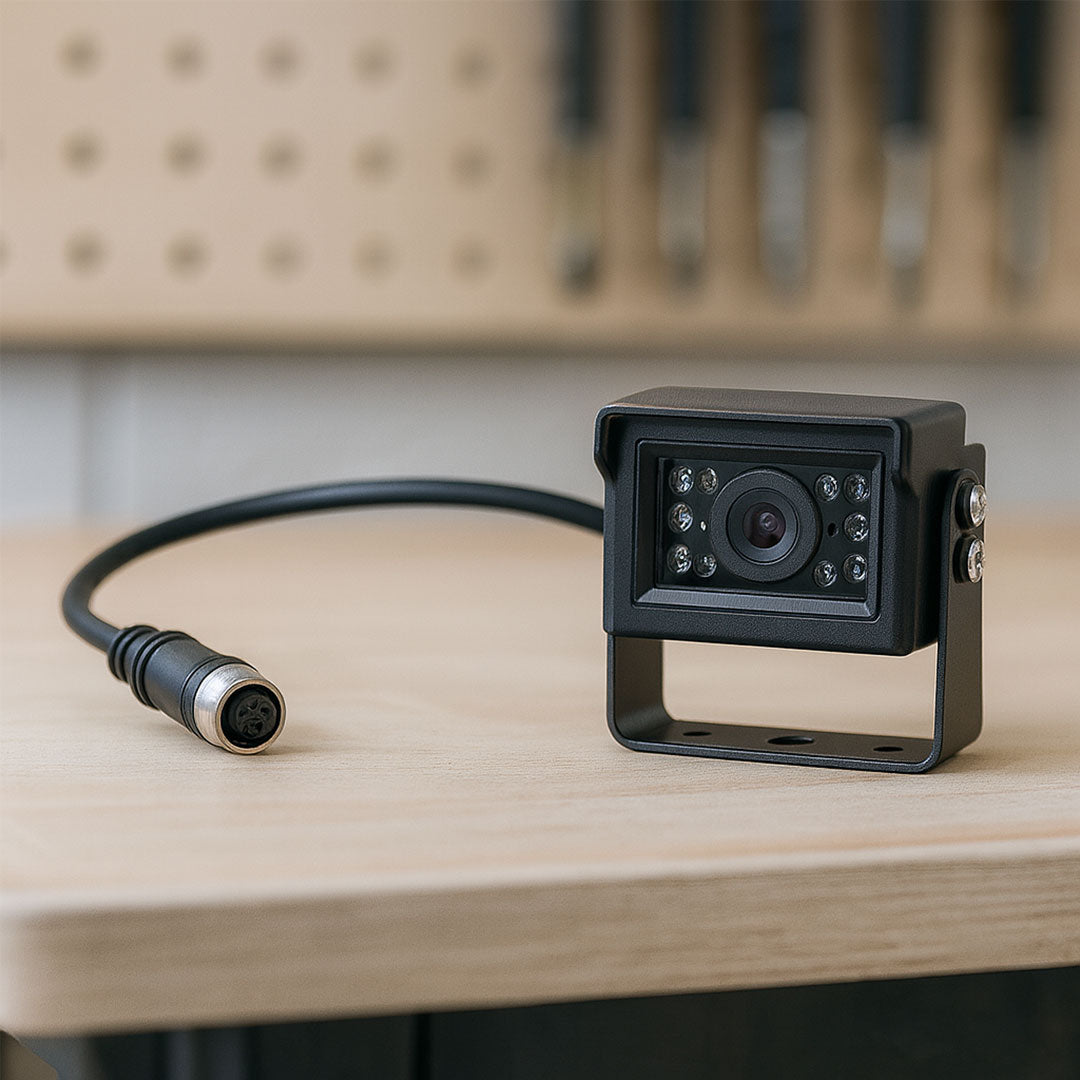

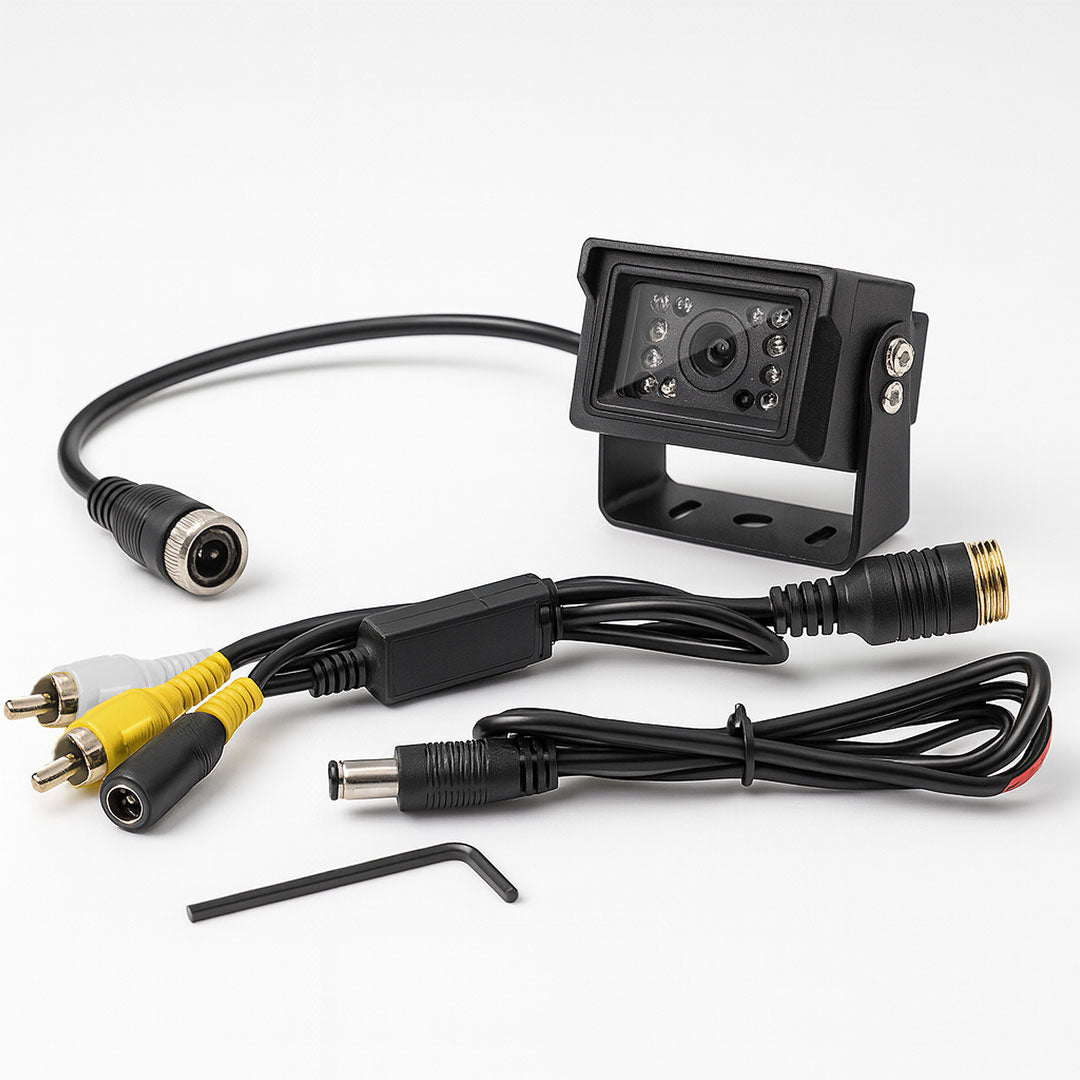

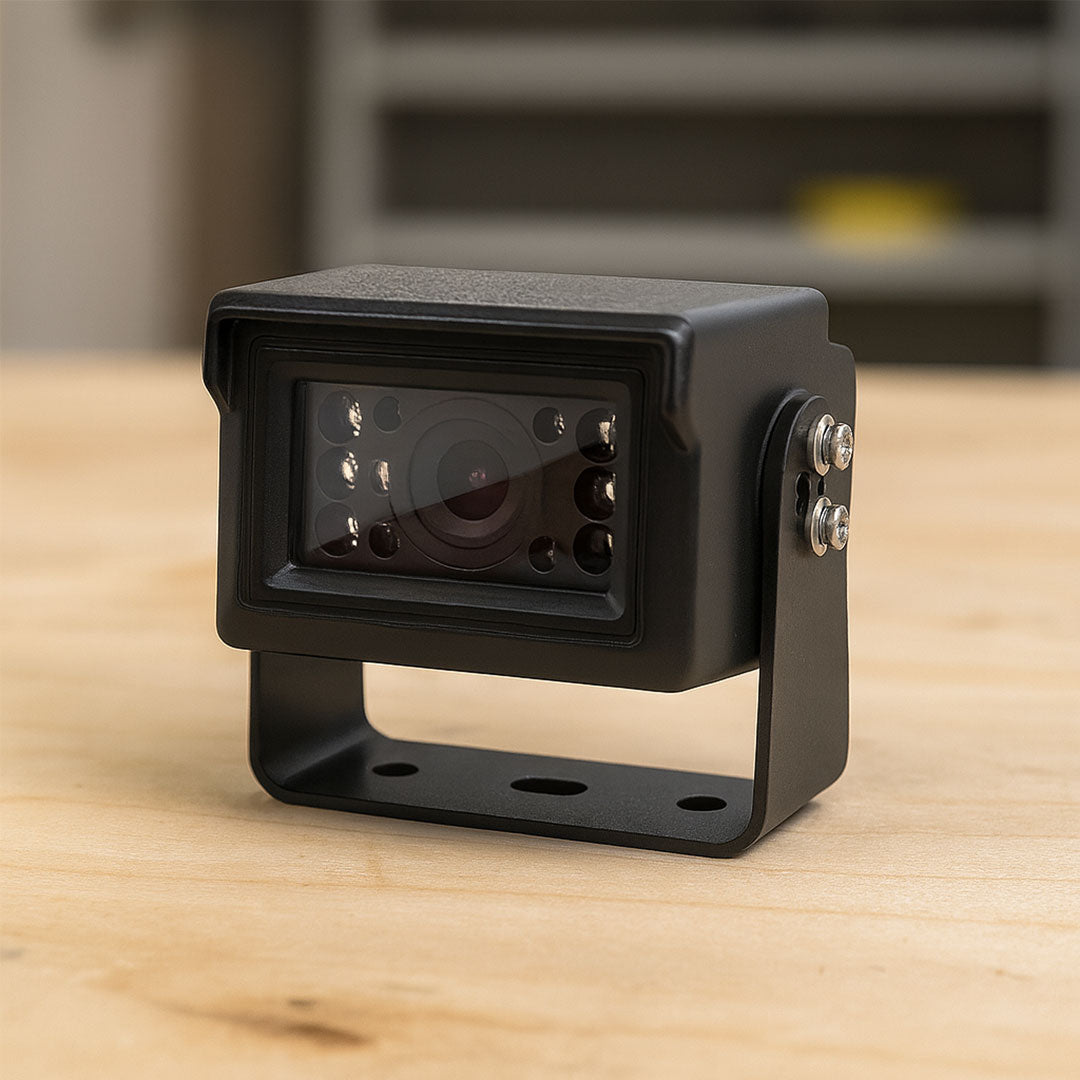

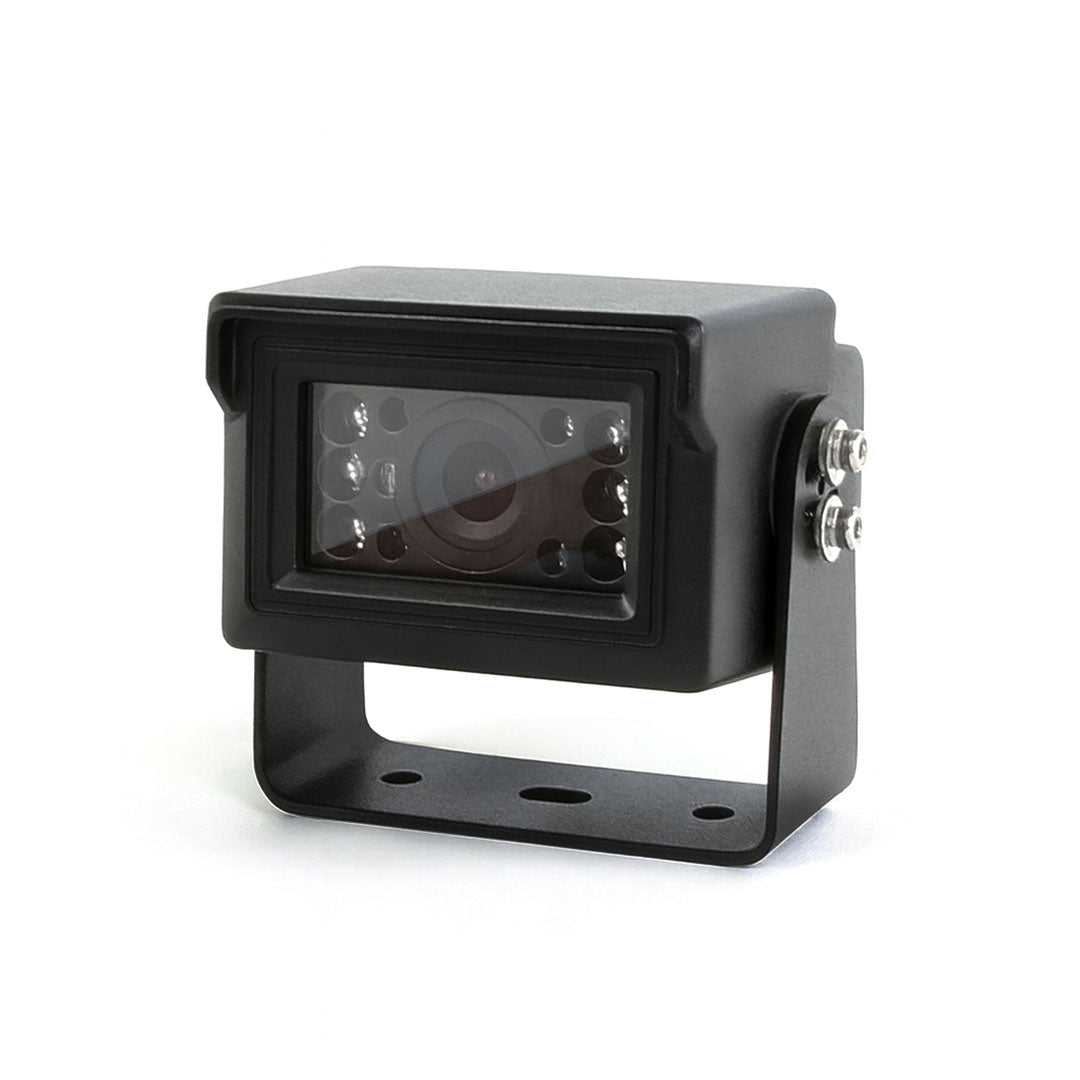

The DNA RV103P heavy duty CCD camera is built for the toughest commercial applications where reliability matters most. Featuring all-metal waterproof construction and advanced night vision capabilities, this compact camera delivers crystal-clear PAL video for trucks, buses, and heavy machinery. Perfect for fleet operators and commercial drivers who need dependable rear visibility in all conditions.

Key Features & Benefits:

• Heavy Duty Construction: All-metal aluminium alloy shell built for commercial vehicle punishment
• Superior Night Vision: 10 built-in IR LEDs provide excellent visibility in 0.05 LUX conditions
• IP69K Waterproof Rating: Ultimate protection against high-pressure washing and extreme weather
• Wide Coverage: 120° horizontal viewing angle captures full rear area
• Built-in Audio: Integrated microphone adds extra safety awareness
• Sun Visor Protection: Built-in visor prevents glare and protects lens
• Secure Connection: Water-resistant lockable 4-pin connector prevents disconnection
• Compact Design: Small footprint fits tight mounting spaces

Technical Specifications:

• Image Sensor: 1/3" Sharp PAL CCD
• Video Format: PAL
• Horizontal Resolution: 600 TV Lines
• Viewing Angle: 120° Horizontal
• IR LEDs: 10 Built-in LEDs
• Min. Illumination: 0.05 LUX (Night Mode)
• Operating Voltage: 12V DC
• S/N Ratio: >48dB
• Video Output: 1Vp-p 75Ω Composite
• Waterproof Rating: IP69K
• Material: Aluminium Alloy Shell

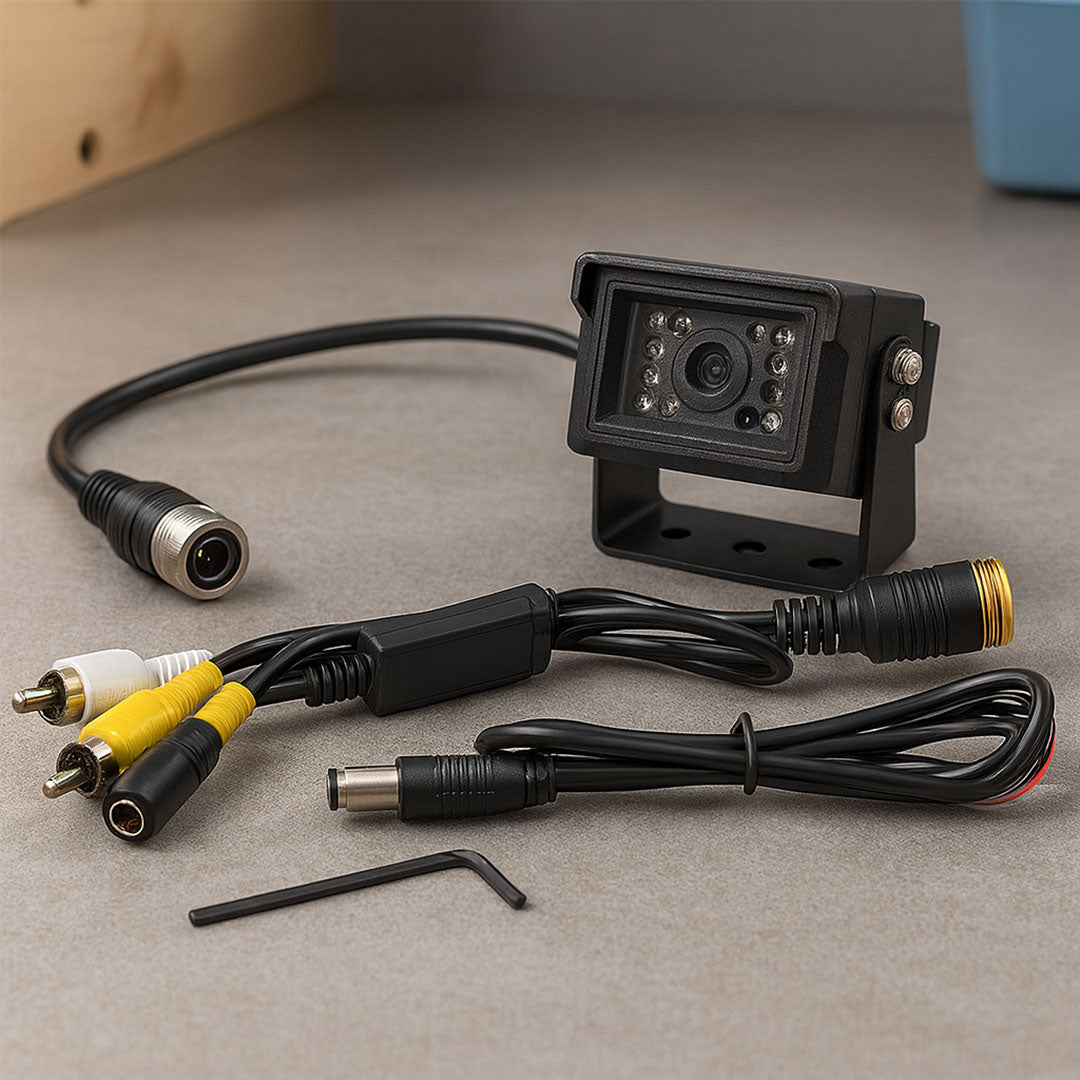

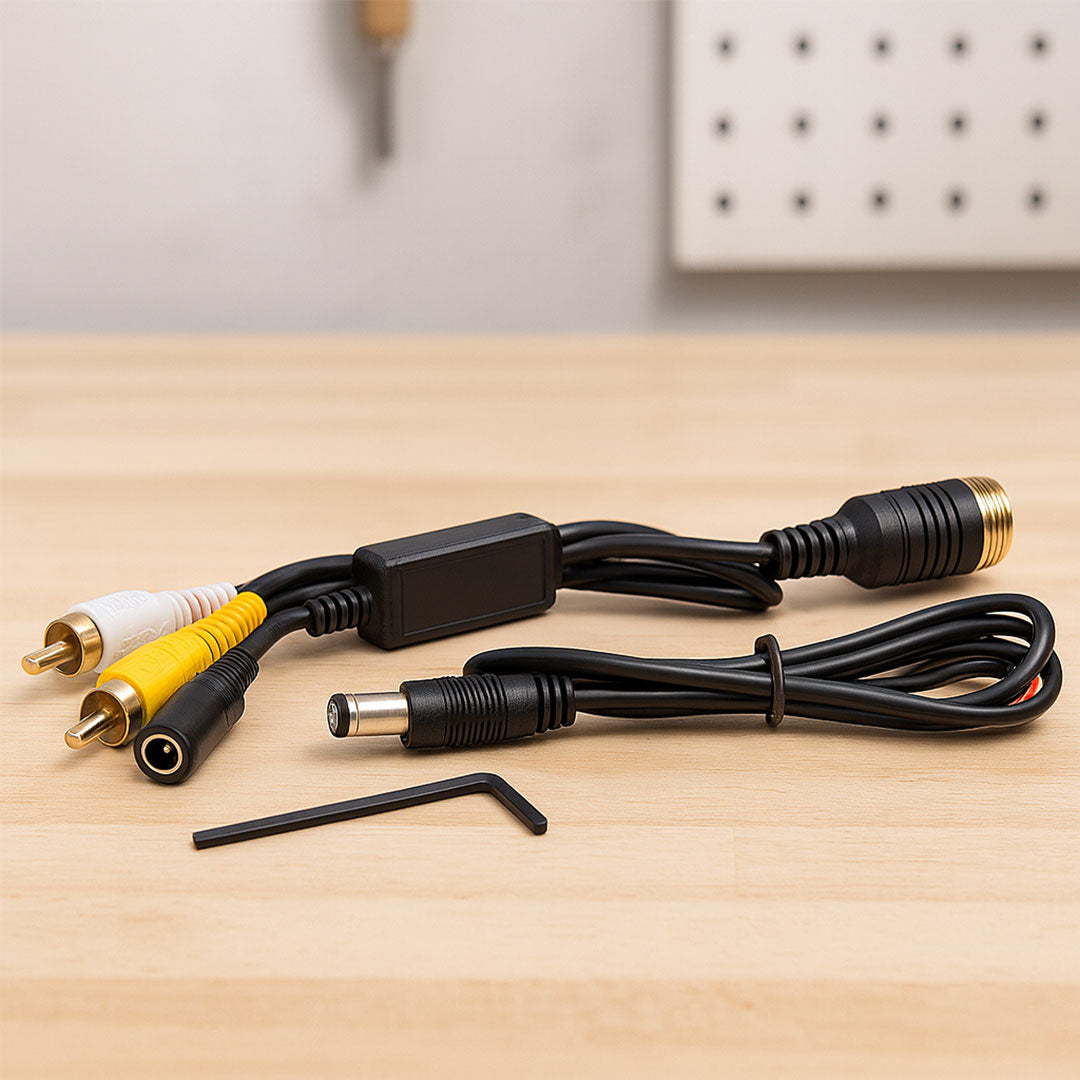

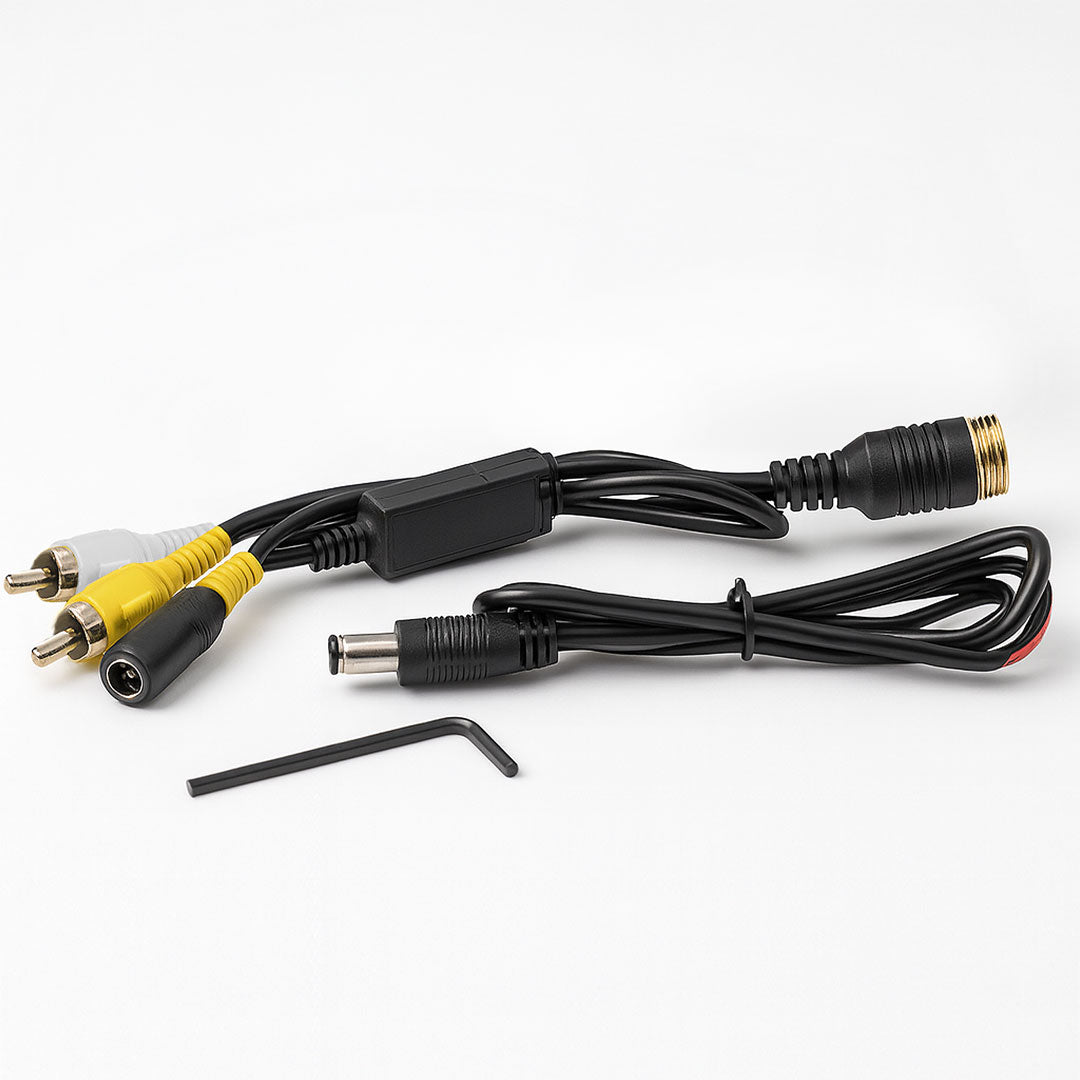

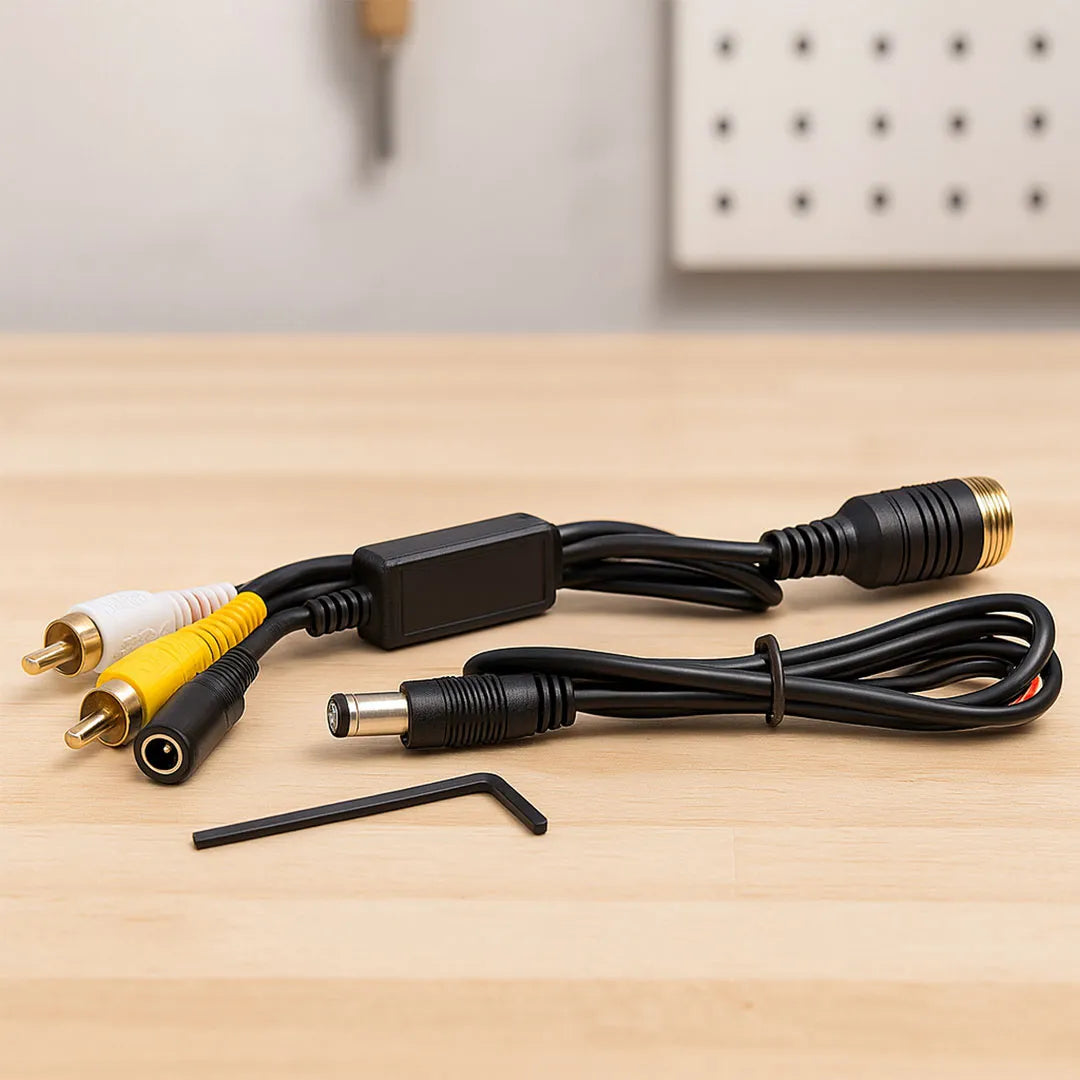

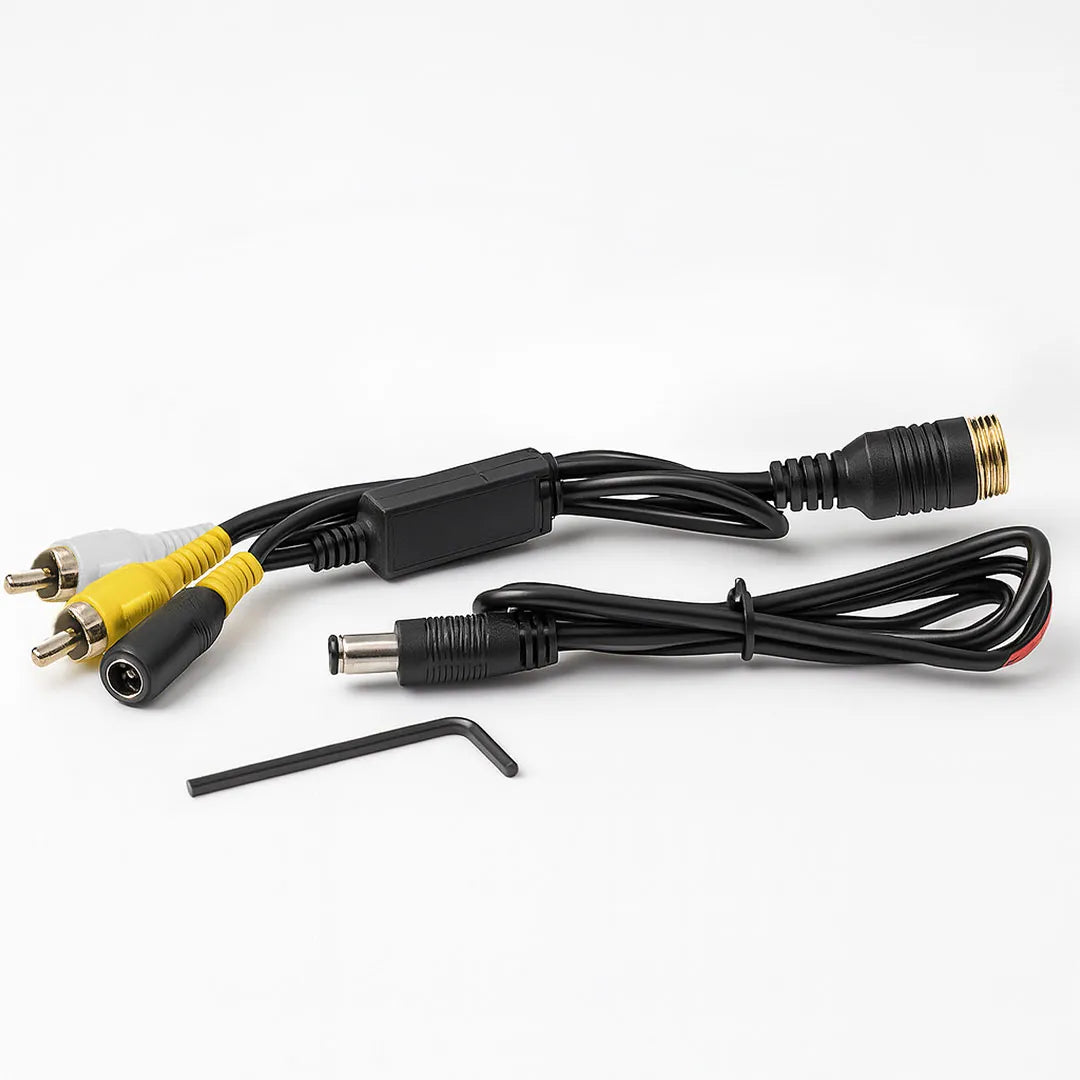

• Cable: 0.6m with 4-pin Water Resistant Lockable Connector

Dimensions:

• Camera Only: 55mm (W) x 40mm (H) x 49mm (D)
• Camera & Bracket: 68mm (W) x 57mm (H) x 49mm (D)
• Packaging: Retail Box

Ideal Applications:

• Commercial Trucks: Semi-trailers, delivery vehicles, freight trucks
• Buses: School buses, coach buses, public transport
• Heavy Machinery: Construction equipment, mining vehicles
• Fleet Vehicles: Any commercial application requiring reliable rear vision

When standard cameras won't cut it, the DNA RV103P delivers commercial-grade performance with the durability and features fleet operators demand. Built tough, performs reliably, day and night.
