Heavy-duty compact CCD/AHD hybrid truck, bus, and caravan camera with all-metal waterproof construction, selectable PAL/NTSC format, switchable CVBS/AHD modes, and built-in IR night vision for professional commercial vehicle installations.

Product Overview

The DNA RV103-HYB Heavy Duty Compact CCD Camera delivers professional-grade video surveillance for trucks, buses, and caravans with selectable PAL/NTSC format, switchable CVBS/AHD 1080P output, and mirror image options. This rugged CCD camera features all-metal aluminium alloy construction with IP68 waterproof rating, built-in IR LEDs for excellent night visibility, and integrated microphone for enhanced safety. The compact footprint design operates on both 12V and 24V vehicles with dual viewing angles (90° in CVBS mode, 110° in AHD mode), making it ideal for heavy-duty commercial applications requiring reliable performance in demanding conditions.

Key Features

• Selectable Video Formats - PAL/NTSC format selection (white wire), mirror image for front/rear installation (blue wire), and CVBS/AHD 1080P output switching (green wire) via wire-cut configuration
• Dual Output Modes - CVBS mode with 90° viewing angle (default) or AHD 1080P mode with 110° viewing angle for compatibility with different display systems
• Heavy-Duty Metal Construction - All-metal aluminium alloy shell with IP68 waterproof rating for extreme weather resistance and durability in commercial applications

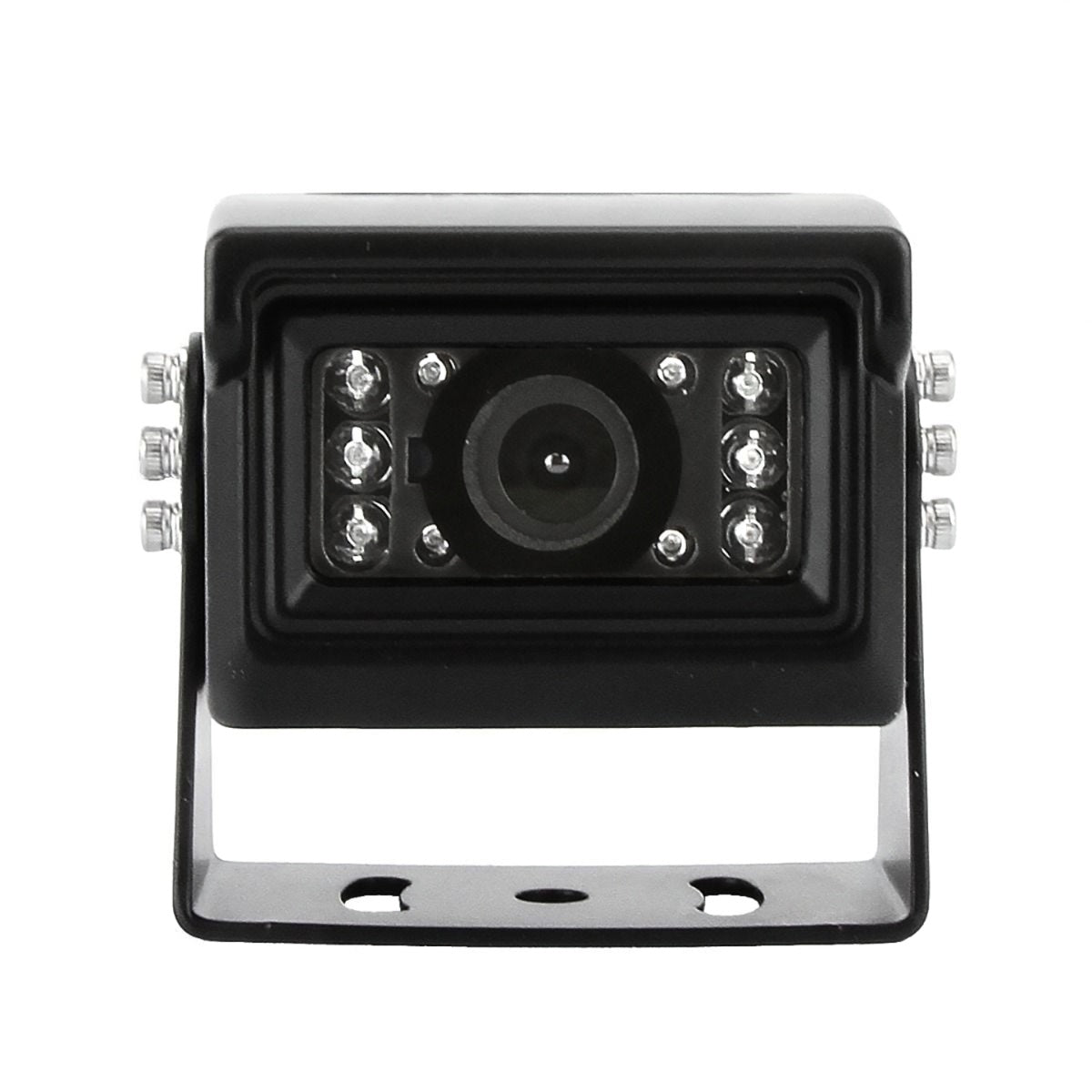

• Excellent Night Vision - 10 built-in IR LEDs provide 0 LUX illumination for clear night mode visibility in complete darkness
• Dual Voltage Compatibility - Operates on both 12V and 24V DC systems for compatibility with cars, trucks, buses, and commercial vehicles
• Integrated Audio and Sun Protection - Built-in microphone for audio monitoring and integrated sun visor casing for optimal viewing in bright conditions

Technical Specifications

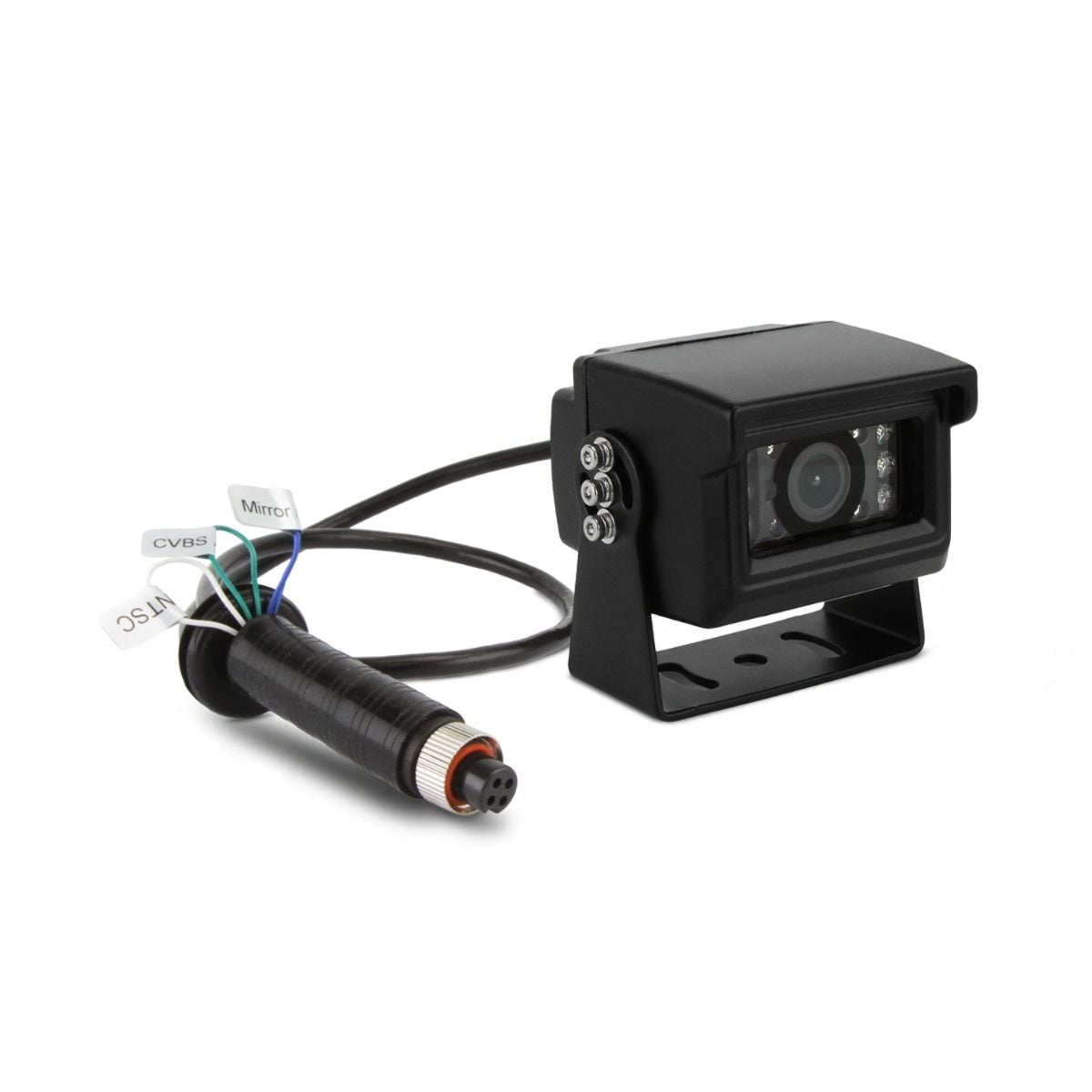

Selectable Configuration Features

PAL/NTSC Format (White Wire):

• Default: PAL format
• Cut white wire to change to NTSC format

Mirror Image (Blue Wire):

• Default: Rear camera installation (normal image)
• Cut blue wire to change image for front camera installation (mirrored)

CVBS/AHD Output (Green Wire):

• Default: CVBS format (90° viewing angle)
• Cut green wire to change to AHD 1080P format (110° viewing angle)

Applications

The DNA RV103-HYB is designed for heavy-duty commercial vehicle applications including truck reversing cameras, bus safety monitoring, caravan rear visibility, commercial fleet installations, and 4WD off-road applications requiring rugged CCD construction and reliable performance with flexible output options.

Frequently Asked Questions

Q: What is the difference between CVBS and AHD modes?

A: CVBS (default) provides 90° viewing angle for standard analog displays, while AHD 1080P mode provides 110° viewing angle with higher resolution for compatible AHD displays. Cut the green wire to switch from CVBS to AHD 1080P mode.

Q: Can this camera work on both 12V and 24V vehicles?

A: Yes, the RV103-HYB operates on both 12V and 24V DC systems, making it compatible with passenger vehicles, light commercial trucks, heavy-duty trucks, buses, and other commercial vehicles with either voltage system.

Q: How do I change between PAL and NTSC formats?

A: The camera defaults to PAL format. To change to NTSC format, simply cut the white wire. This allows compatibility with different regional video standards and display systems.

Q: Can I use this camera as a front-facing camera?

A: Yes, this camera can be used for front camera installations. Cut the blue wire to enable mirror image mode, which reverses the image orientation for proper front camera viewing.

Q: Does this camera work in complete darkness?

A: Yes, the camera features 10 built-in IR LEDs providing 0 LUX illumination, allowing clear night mode visibility in complete darkness without external lighting.
