DNA RV103-AHD - Heavy Duty Compact AHD Camera - PAL/NTSC

DNA RV103-AHD - Heavy Duty Compact AHD Camera - PAL/NTSC

Heavy-duty compact AHD truck, bus, and caravan camera with all-metal waterproof construction, selectable PAL/NTSC format, adjustable resolution, and built-in IR night vision for professional commercial vehicle installations.

Product Overview

The DNA RV103-AHD Heavy Duty Compact AHD Camera delivers professional-grade video surveillance for trucks, buses, and caravans with selectable PAL/NTSC format, AHD 1080P/720P resolution, and mirror image options. This rugged camera features all-metal aluminium alloy construction with IP68 waterproof rating, built-in IR LEDs for excellent night visibility, and integrated microphone for enhanced safety. The compact footprint design operates on both 12V and 24V vehicles, making it ideal for heavy-duty commercial applications requiring reliable performance in demanding conditions.

Key Features

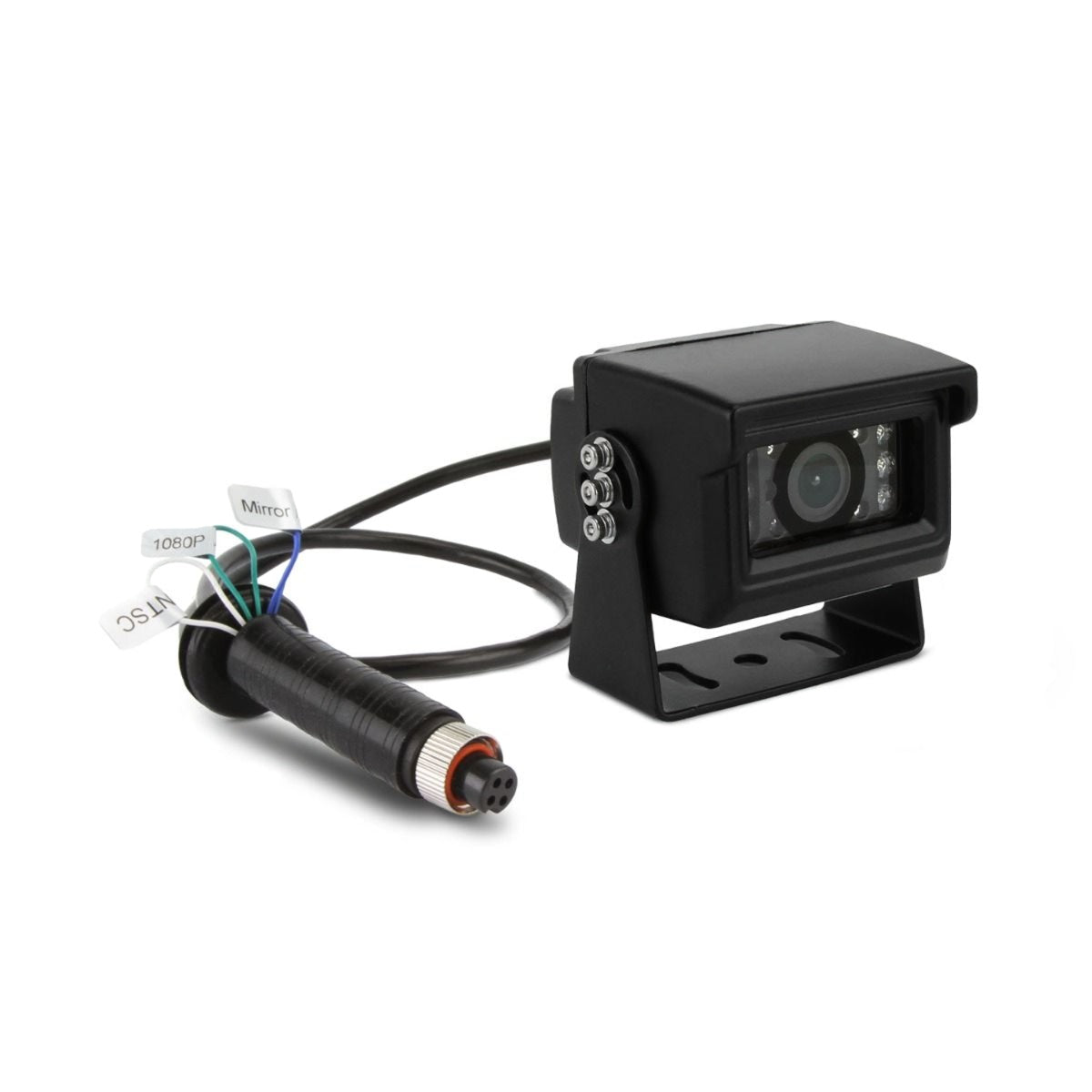

• Selectable Video Formats - PAL/NTSC format selection (white wire), mirror image for front/rear installation (blue wire), and AHD 1080P/720P resolution switching (green wire) via wire-cut configuration

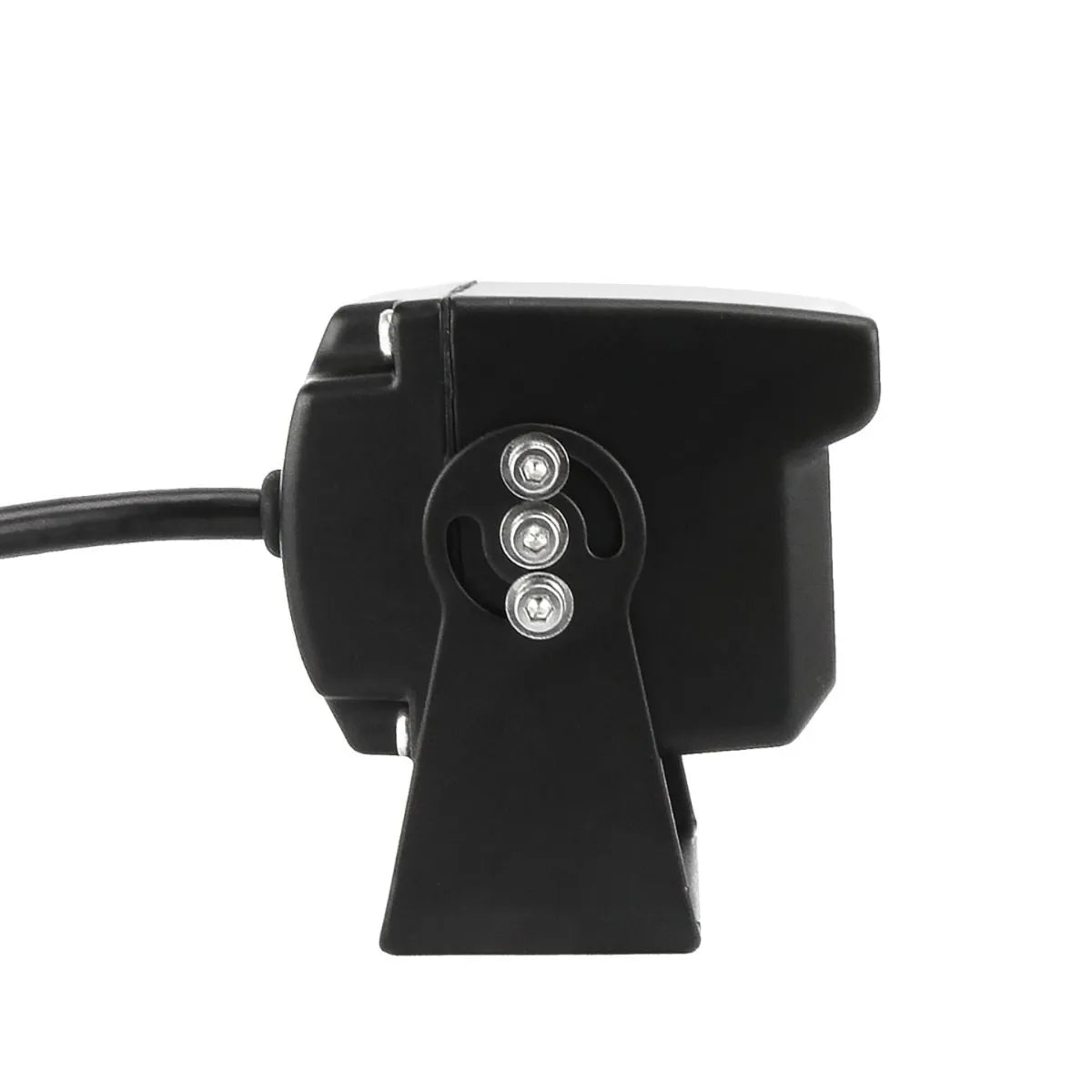

• Heavy-Duty Metal Construction - All-metal aluminium alloy shell with IP68 waterproof rating for extreme weather resistance and durability in commercial applications

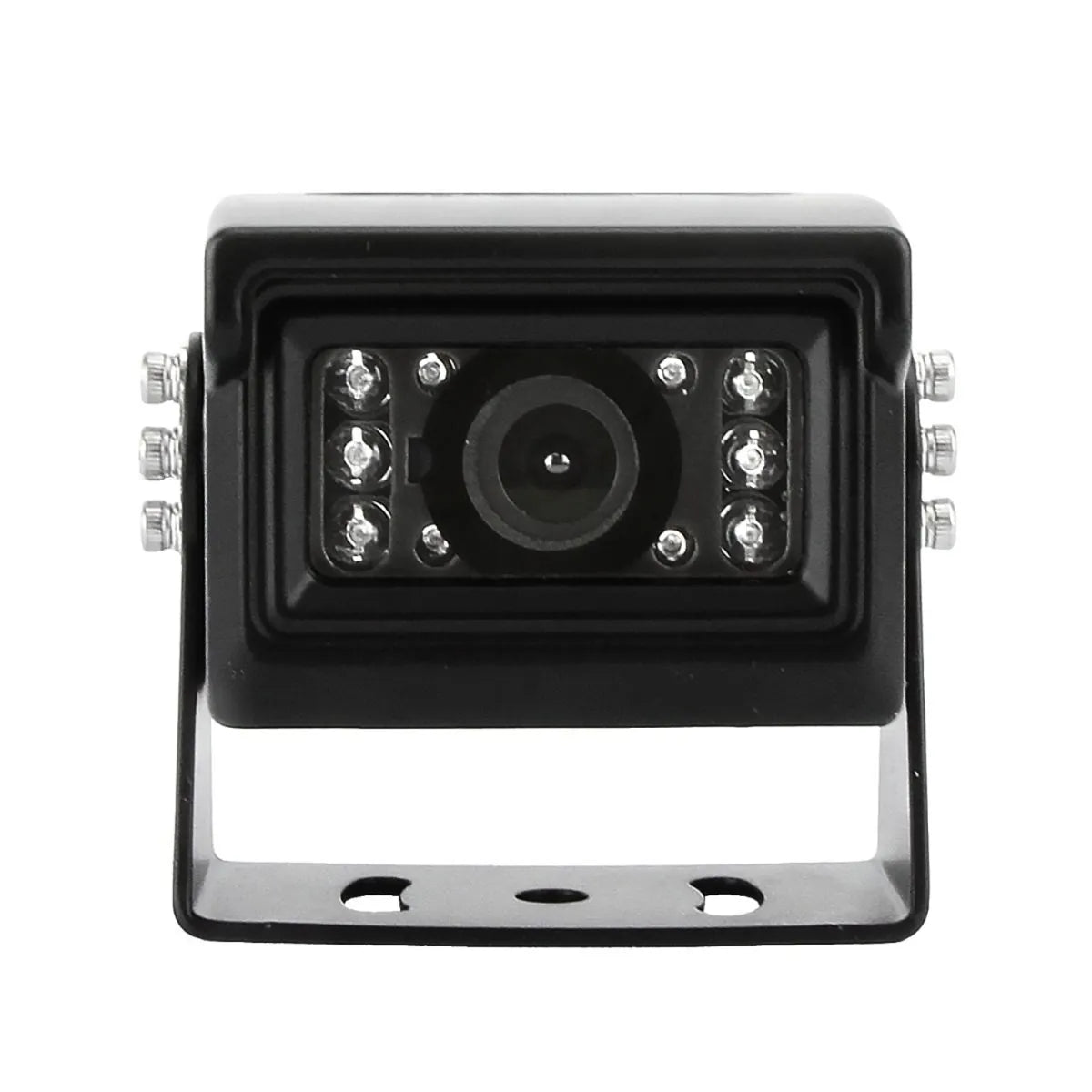

• Excellent Night Vision - 10 built-in IR LEDs provide 0 LUX illumination for clear night mode visibility in complete darkness
• Dual Voltage Compatibility - Operates on both 12V and 24V DC systems for compatibility with cars, trucks, buses, and commercial vehicles
• Integrated Audio and Sun Protection - Built-in microphone for audio monitoring and integrated sun visor casing for optimal viewing in bright conditions

Technical Specifications

Selectable Configuration Features

PAL/NTSC Format (White Wire):

• Default: PAL format
• Cut white wire to change to NTSC format

Mirror Image (Blue Wire):

• Default: Rear camera installation (normal image)
• Cut blue wire to change image for front camera installation (mirrored)

AHD Resolution (Green Wire):

• Default: AHD 1080P format
• Cut green wire to change to AHD 720P format

Applications

The DNA RV103-AHD is designed for heavy-duty commercial vehicle applications including truck reversing cameras, bus safety monitoring, caravan rear visibility, commercial fleet installations, and 4WD off-road applications requiring rugged construction and reliable performance.

Frequently Asked Questions

Q: Can this camera work on both 12V and 24V vehicles?

A: Yes, the RV103-AHD operates on both 12V and 24V DC systems, making it compatible with passenger vehicles, light commercial trucks, heavy-duty trucks, buses, and other commercial vehicles with either voltage system.

Q: How do I change between PAL and NTSC formats?

A: The camera defaults to PAL format. To change to NTSC format, simply cut the white wire. This allows compatibility with different regional video standards and display systems.

Q: Can I use this camera as a front-facing camera?

A: Yes, this camera can be used for front camera installations. Cut the blue wire to enable mirror image mode, which reverses the image orientation for proper front camera viewing.

Q: Does this camera work in complete darkness?

A: Yes, the camera features 10 built-in IR LEDs providing 0 LUX illumination, allowing clear night mode visibility in complete darkness without external lighting.

Q: Is this camera waterproof enough for outdoor installation?

A: Yes, the RV103-AHD has IP68 waterproof rating with all-metal aluminium alloy construction, providing complete protection against dust ingress and water immersion for reliable outdoor use in extreme weather conditions.
