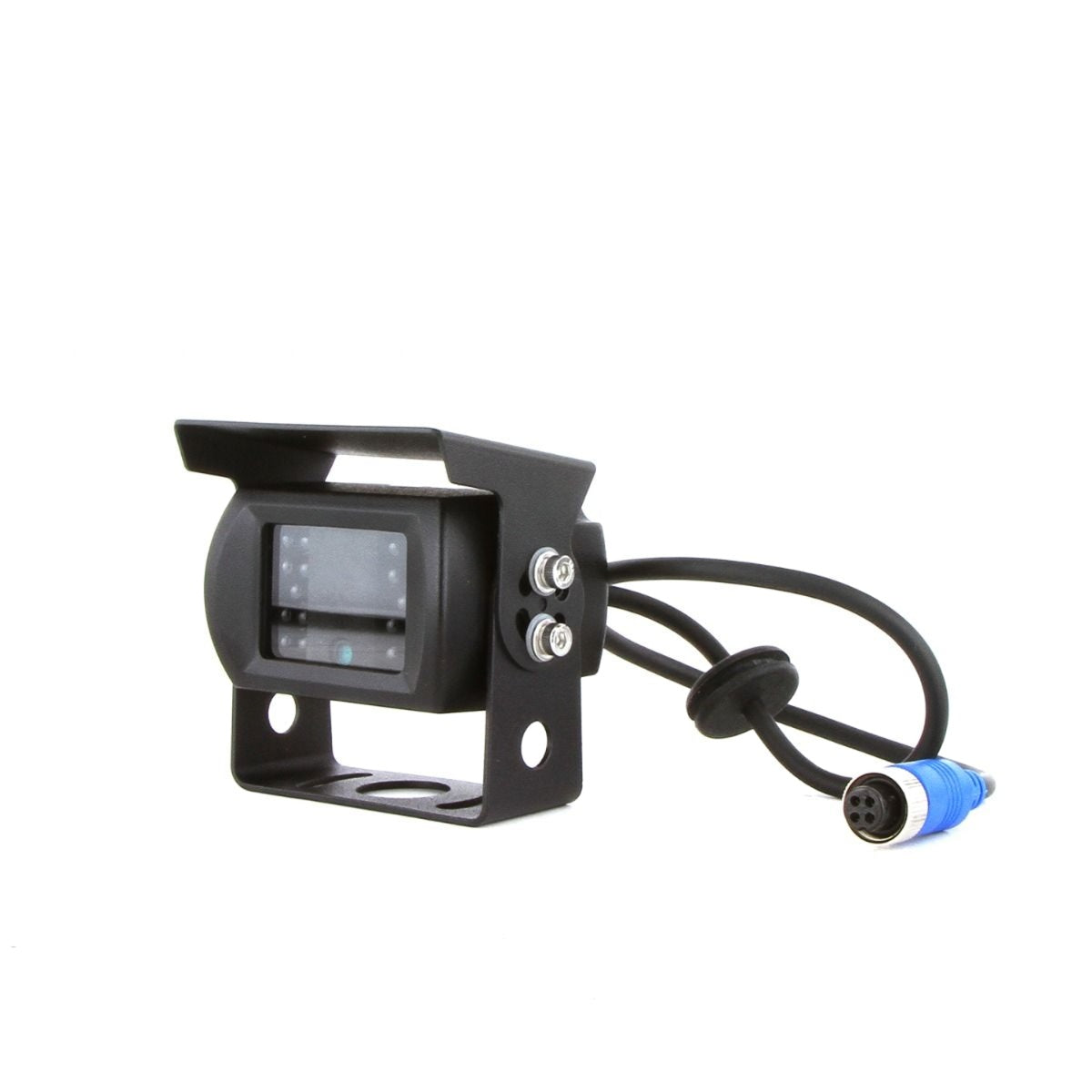

DNA RV100P-AHD camera with sun visor and lockable 4 pin lead
DNA RV100P-AHD camera with sun visor and lockable 4 pin lead
Click to open expanded view
DNA logo

DNA RV100P-AHD Heavy Duty AHD Reverse Camera, PAL

SKU: RV100PAHD
Price
$199.95
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
DNA RV100P-AHD camera with sun visor and lockable 4 pin lead

DNA RV100P-AHD Heavy Duty AHD Reverse Camera, PAL

$199.95

Product features

Quick answer

The DNA RV100P-AHD is the Heavy Duty AHD Reverse Camera, PAL. Cheap plastic cameras on trucks and plant gear tend to crack or fog after a season of pressure washing and corrugations.

The RV100P-AHD has an aluminium alloy shell rated IP68, a 1/3 inch Sony CMOS sensor and 720p AHD output. Its 18 infrared LEDs and 0.1 lux rating keep a picture on screen after dark, and DNA supplies a sun visor and a 0.6m lockable 4 pin lead.

Why this camera suits heavy vehicles

  • Aluminium alloy shell rated IP68
  • 1/3 inch Sony CMOS sensor, 720p AHD
  • 140 degree horizontal view
  • 18 infrared LEDs, 0.1 lux minimum
  • Built in microphone
  • Sun visor included

Specifications

Image Sensor 1/3" Sony PAL CMOS
Video System PAL (Australian standard)
Resolution 1280 x 720 pixels (HD 720p)
Viewing Angle 140° horizontal
IR LEDs 18 infrared LEDs
Night Illumination 0.1 LUX minimum
Operating Voltage 12V DC
Signal to Noise Ratio >48dB
Waterproof Rating IP68 (fully submersible)
Construction Aluminium alloy shell
Video Output 1V peak to peak 75Ω composite
Cable Length 0.6m with 4 pin waterproof connector

Fitment and compatibility

This is an AHD camera, so it needs an AHD capable monitor such as the DNA RV70PK-AHD. DNA lists the body at 86.5mm wide, 77mm high and 75mm deep, and RVE extension cables from 5m to 20m.

What is in the box

DNA lists a sun visor and a 0.6m 4 pin lockable connector lead with the camera.

Install notes

Choose the extension length before booking, because trucks and trailers often need 15m or 20m. Albion Park Rail on (02) 4257 2636 fits these on rigid trucks and machinery.

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

Also for your build:Reverse Cameras,DNA RV105P-AHD Heavy Duty AHD Camera

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

FAQ about the RV100P-AHD

What is the DNA RV100P-AHD?

It is the DNA Heavy Duty AHD Reverse Camera, PAL. Cheap plastic cameras on trucks and plant gear tend to crack or fog after a season of pressure washing and corrugations.

What are the main features of the RV100P-AHD?

Aluminium alloy shell rated IP68. 1/3 inch Sony CMOS sensor, 720p AHD. 140 degree horizontal view.

What warranty comes with the RV100P-AHD?

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.
