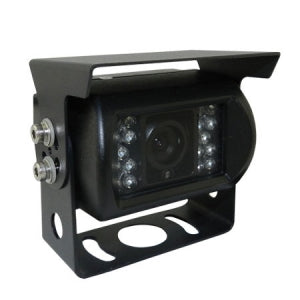

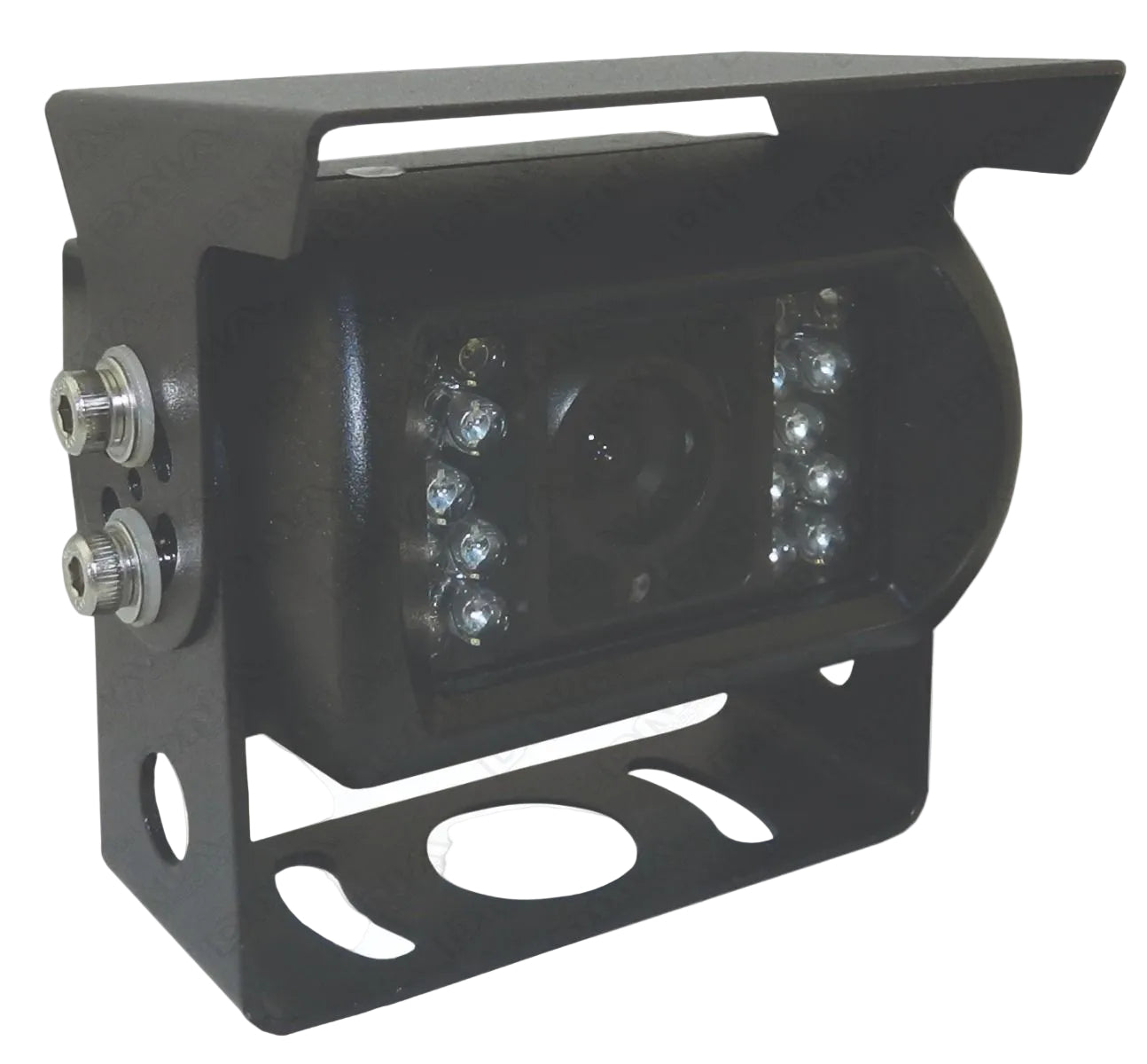

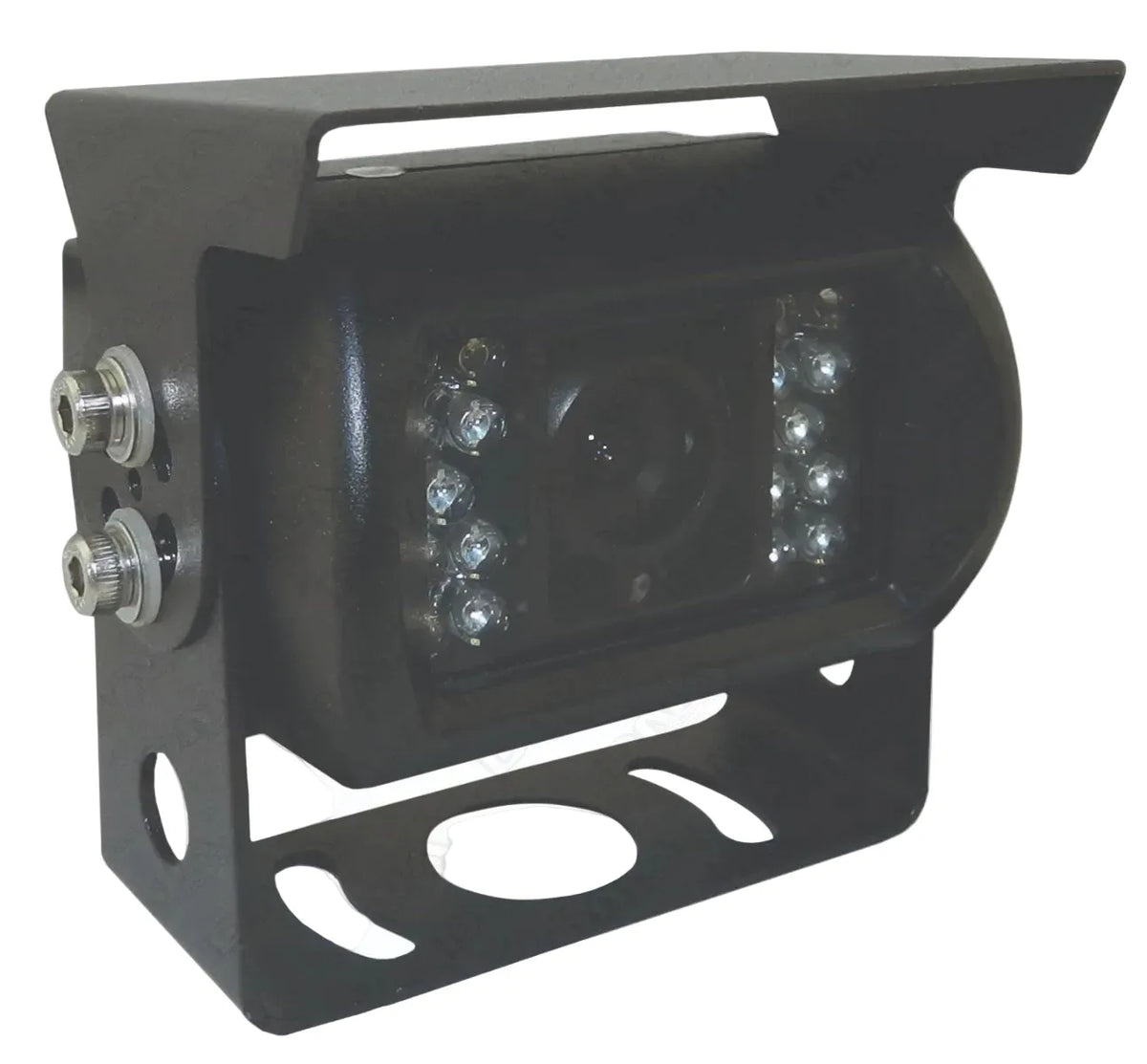

DNA RV100N 12V/24V Heavy Duty CCD Camera - NTSC

DNA RV100N 12V/24V Heavy Duty CCD Camera - NTSC

Professional-grade Sharp CCD camera built for heavy-duty commercial applications

The DNA RV100N 12V/24V Heavy Duty CCD Camera delivers reliable commercial-grade video monitoring with Sharp 1/4" CCD sensor technology designed specifically for trucks, buses, coaches, and heavy commercial vehicles. This all-metal aluminium alloy construction camera features IP68 waterproof rating, 18 IR LEDs for night vision, and built-in microphone for comprehensive safety monitoring. The 120° horizontal viewing angle provides excellent coverage for large commercial vehicles.

Engineered for NTSC video systems and compatible with 12V-24V commercial vehicle electrical systems, this camera operates reliably in harsh Australian conditions. Perfect for fleet operators, transport companies, and heavy vehicle applications requiring durable, professional rear vision systems that perform in extreme environments.

DNA RV100N Key Features & Benefits:

• Sharp CCD Technology: Professional 1/4" Sharp NTSC CCD sensor delivers reliable 420TV Line resolution
• Heavy-Duty Construction: Aluminium alloy shell with IP68 waterproof rating withstands harsh commercial environments
• Superior Night Vision: 18 IR LEDs provide excellent 0 LUX illumination for clear night-time visibility
• Built-in Audio: Integrated microphone adds audio monitoring for enhanced safety awareness
• Wide Voltage Range: 12V-24V operation suits cars, trucks, buses, and heavy commercial vehicles
• Professional Installation: 0.6m lockable 4-pin connector with sun visor for weather protection

Technical Specifications:

• Model: DNA RV100N
• SKU: RV100N
• Image Sensor: 1/4" Sharp NTSC CCD
• Video System: NTSC (North American standard)
• Horizontal Resolution: 420TV Line
• Viewing Angle: 120° horizontal
• IR LEDs: 18 infrared LEDs
• Night Illumination: 0 LUX minimum
• Operating Voltage: 12V - 24V DC
• Signal-to-Noise Ratio: >48dB
• Waterproof Rating: IP68 (fully submersible)
• Construction: Aluminium alloy shell
• Video Output: 1V p-p 75Ω composite
• Cable Length: 0.6m with 4-pin waterproof connector
• Dimensions: 86.5mm W x 77mm H x 74.5mm D
• Audio: Built-in microphone included
• Accessories: Sun visor included
• Packaging: Box with specifications

Installation Applications:

• Commercial Trucks: Semi-trailers, delivery trucks, and freight vehicles requiring reliable rear vision
• Buses & Coaches: Public transport and charter vehicles for passenger safety monitoring
• Heavy Machinery: Construction equipment, mining vehicles, and industrial applications
• Fleet Vehicles: Company vehicle fleets requiring professional-grade monitoring systems
• International Markets: NTSC-compatible systems for export or imported vehicles

Frequently Asked Questions

Will this work with my Australian monitor? This is NTSC format - ensure your monitor supports NTSC or consider the PAL version (RV105P-AHD).

Can I use this on 24V trucks? Yes, operates on both 12V and 24V electrical systems.

Is the microphone always recording? The microphone provides real-time audio to compatible monitors with audio input.

How do I extend the cable length? Compatible with standard 4-pin extension cables for commercial vehicle installations.

What's the difference between CCD and CMOS? CCD sensors typically offer better low-light performance and image stability for commercial use.
