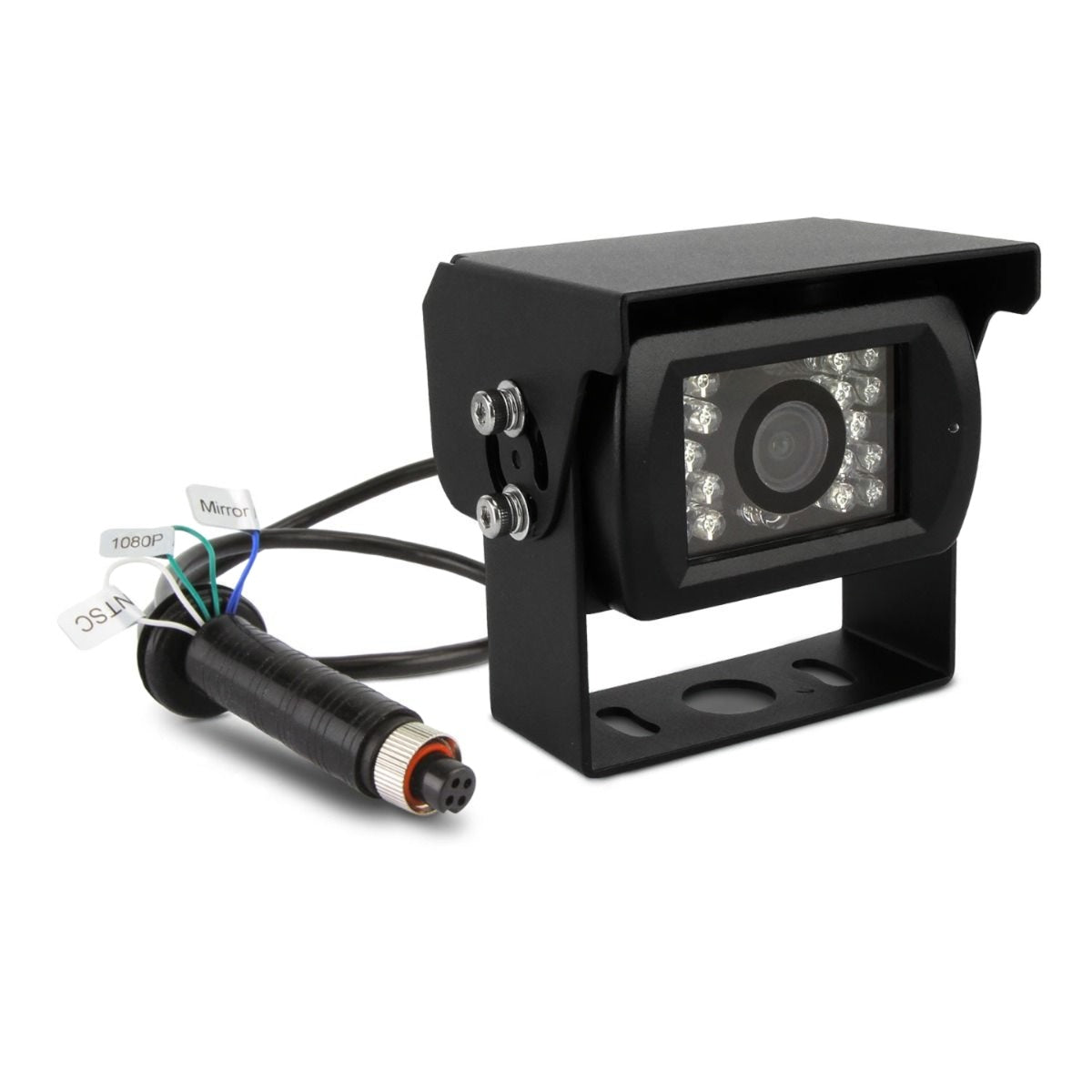

DNA RV100-AHD heavy-duty camera with metal body, sun visor, and IR LEDs.
DNA RV100-AHD heavy-duty camera with metal body, sun visor, and IR LEDs.

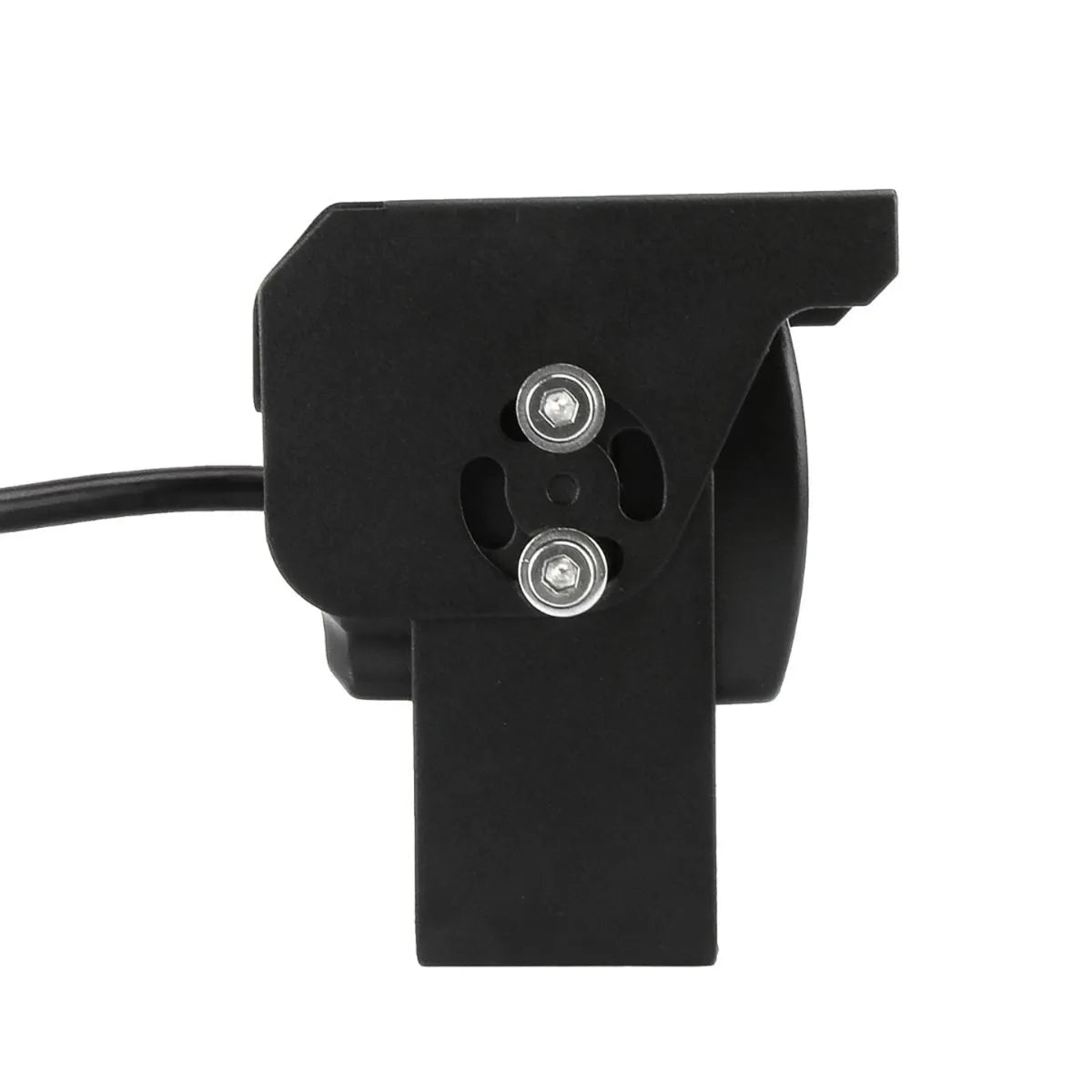

Side view of DNA RV100-AHD heavy-duty AHD camera with metal casing.
Side view of DNA RV100-AHD heavy-duty AHD camera with metal casing.

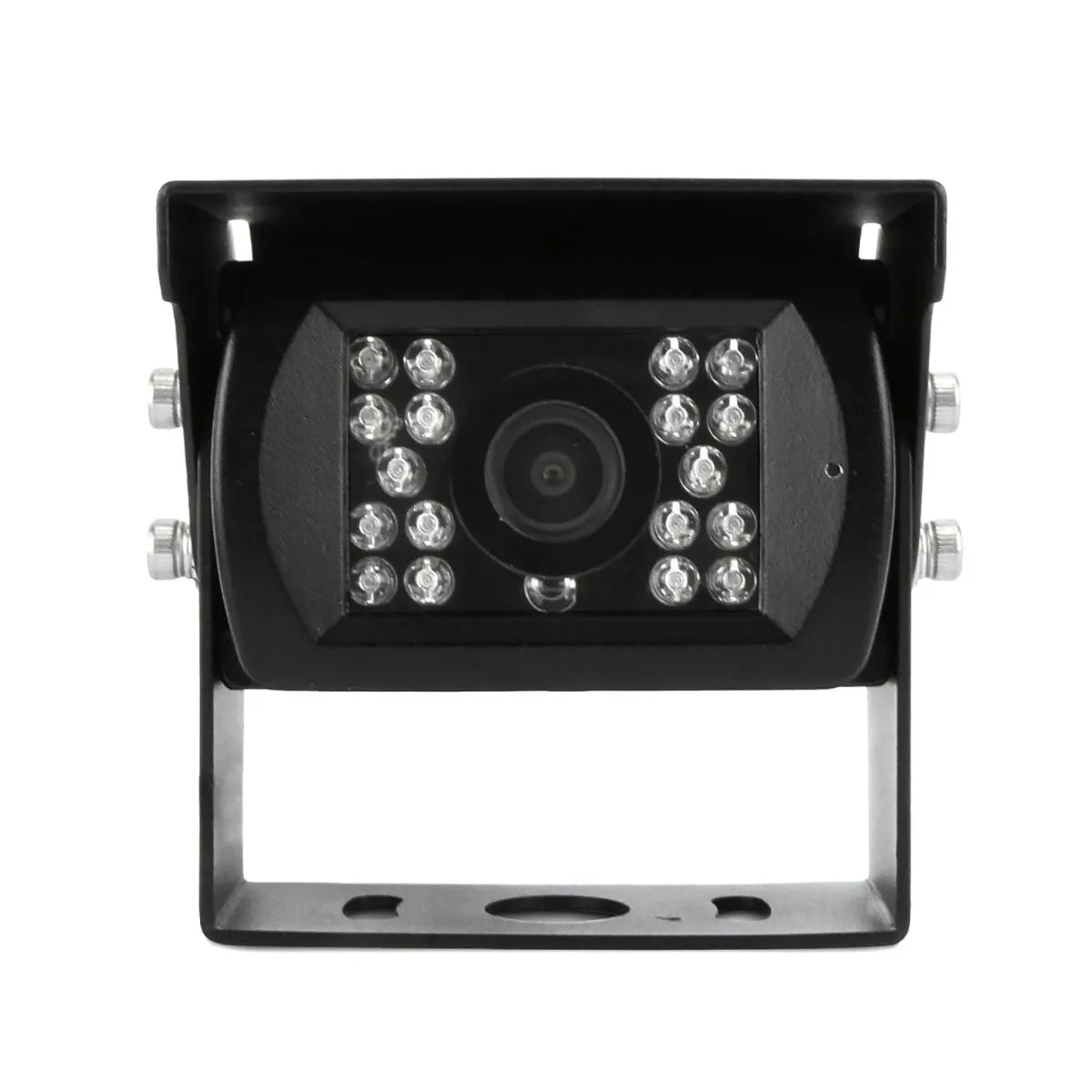

DNA RV100-AHD heavy-duty camera, black, front view, 18 IR LEDs, metal body.
DNA RV100-AHD heavy-duty camera, black, front view, 18 IR LEDs, metal body.

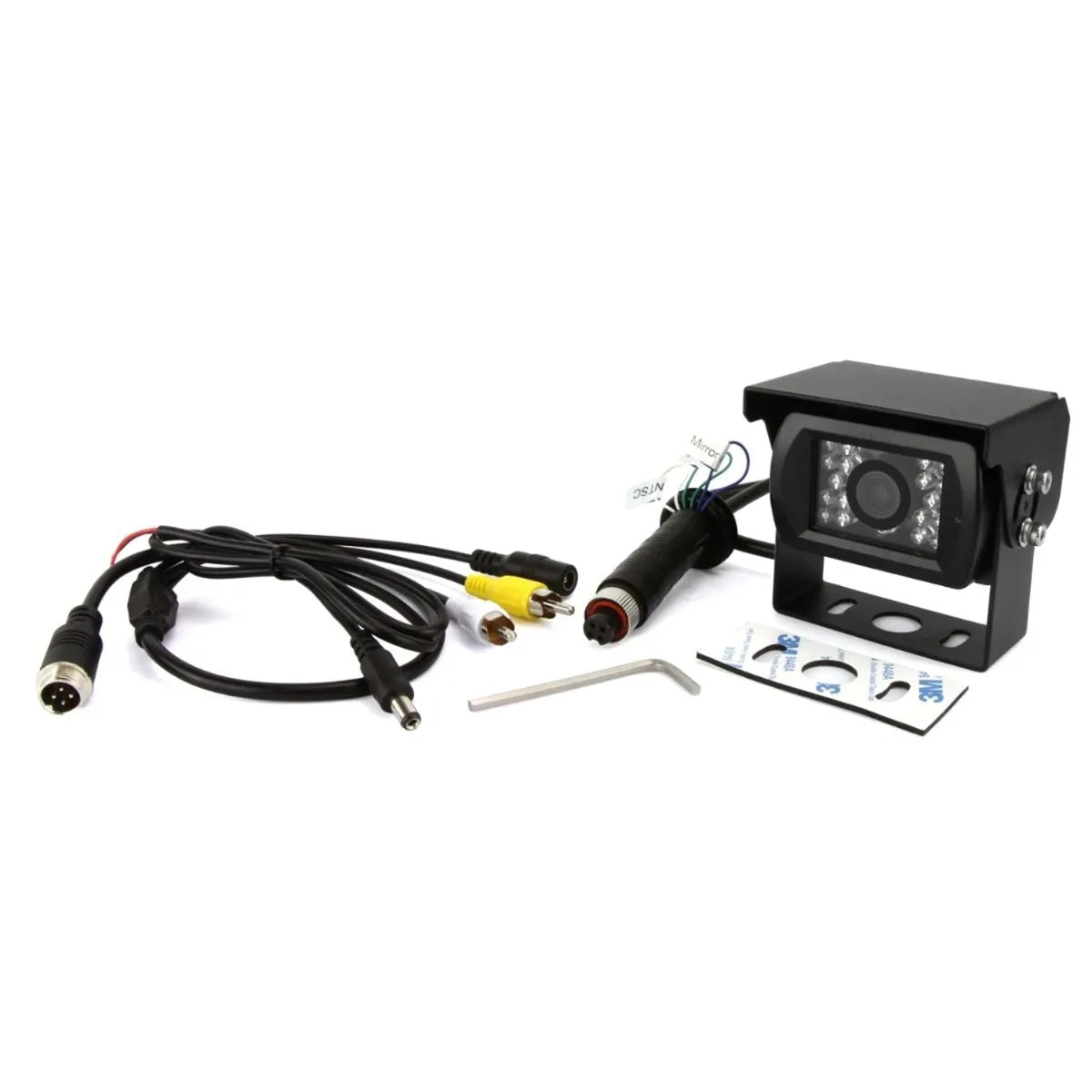

DNA RV100-AHD heavy-duty camera with cables, sun visor, and installation tools.
DNA RV100-AHD heavy-duty camera with cables, sun visor, and installation tools.
Click to open expanded view
DNA logo

DNA RV100-AHD - Heavy Duty AHD Camera - PAL/NTSC

SKU: RV100AHD
Sale price
$134.96
Regular price
$149.95
You save
10%
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

DNA RV100-AHD - Heavy Duty AHD Camera - PAL/NTSC

Heavy-duty AHD truck, bus, and caravan camera with all-metal waterproof construction, removable sun visor, selectable PAL/NTSC format, adjustable resolution, and enhanced 18 IR LED night vision for professional commercial vehicle installations.

Product Overview

The DNA RV100-AHD Heavy Duty AHD Camera delivers professional-grade video surveillance for trucks, buses, and caravans with selectable PAL/NTSC format, AHD 1080P/720P resolution, and mirror image options. This rugged camera features all-metal aluminium alloy construction with IP68 waterproof rating, enhanced 18 built-in IR LEDs for excellent night visibility, integrated microphone for enhanced safety, and removable sun visor for flexible installation. Operating on both 12V and 24V vehicles, this camera provides reliable performance in demanding commercial applications.

Key Features

  • Selectable Video Formats - PAL/NTSC format selection (white wire), mirror image for front/rear installation (blue wire), and AHD 1080P/720P resolution switching (green wire) via wire-cut configuration
  • Enhanced Night Vision - 18 built-in IR LEDs provide 0 LUX illumination for superior night mode visibility in complete darkness with extended range
  • Heavy-Duty Metal Construction - All-metal aluminium alloy shell with IP68 waterproof rating for extreme weather resistance and durability in commercial applications
  • Removable Sun Visor - Included detachable sun visor protects lens from direct sunlight and weather elements for optimal viewing in bright conditions
  • Dual Voltage Compatibility - Operates on both 12V and 24V DC systems for compatibility with cars, trucks, buses, and commercial vehicles
  • Integrated Audio - Built-in microphone for audio monitoring and enhanced safety during vehicle operations

Technical Specifications

Specification Details
Brand DNA
Model Heavy Duty AHD Camera
SKU RV100-AHD
Video Format PAL/NTSC Selectable (Default: PAL)
Resolution AHD 1080P/720P Selectable (Default: 1080P)
Horizontal Viewing Angle 110°
Horizontal Resolution 420 TV Line
IR LEDs 18 IR LEDs
Night Vision 0 LUX Illumination
Operating Voltage 12V or 24V DC
Material Aluminium Alloy Shell
Signal-to-Noise Ratio >48dB
Waterproof Rating IP68
Video Output 1Vp-p 75 Ohm Composite
Audio Microphone Included
Sun Protection Removable Sun Visor Included
Connector 0.6m 4-Pin Water Resistant Lockable
Dimensions (With Sunvisor) 76.5mm W x 77mm H x 64.5mm D
Dimensions (Without Sunvisor) 74mm W x 71mm H x 50mm D
Packaging White Box with DNA Sticker
Availability In Stock

Frequently Asked Questions

Q: Can this camera work on both 12V and 24V vehicles?

A: Yes, the RV100-AHD operates on both 12V and 24V DC systems, making it compatible with passenger vehicles, light commercial trucks, heavy-duty trucks, buses, and other commercial vehicles with either voltage system.

Q: How do I change between PAL and NTSC formats?

A: The camera defaults to PAL format. To change to NTSC format, simply cut the white wire. This allows compatibility with different regional video standards and display systems.

Q: Can I use this camera as a front-facing camera?

A: Yes, this camera can be used for front camera installations. Cut the blue wire to enable mirror image mode, which reverses the image orientation for proper front camera viewing.

Q: What is the advantage of 18 IR LEDs compared to fewer LEDs?

A: The 18 IR LEDs provide enhanced night vision with greater illumination range and coverage compared to cameras with fewer LEDs, ensuring clearer visibility in complete darkness for improved safety.

Q: Is the sun visor removable?

A: Yes, the sun visor is a separate included component that can be removed if not required for your installation. Dimensions are 76.5mm x 77mm x 64.5mm with sunvisor, or 74mm x 71mm x 50mm without sunvisor.
