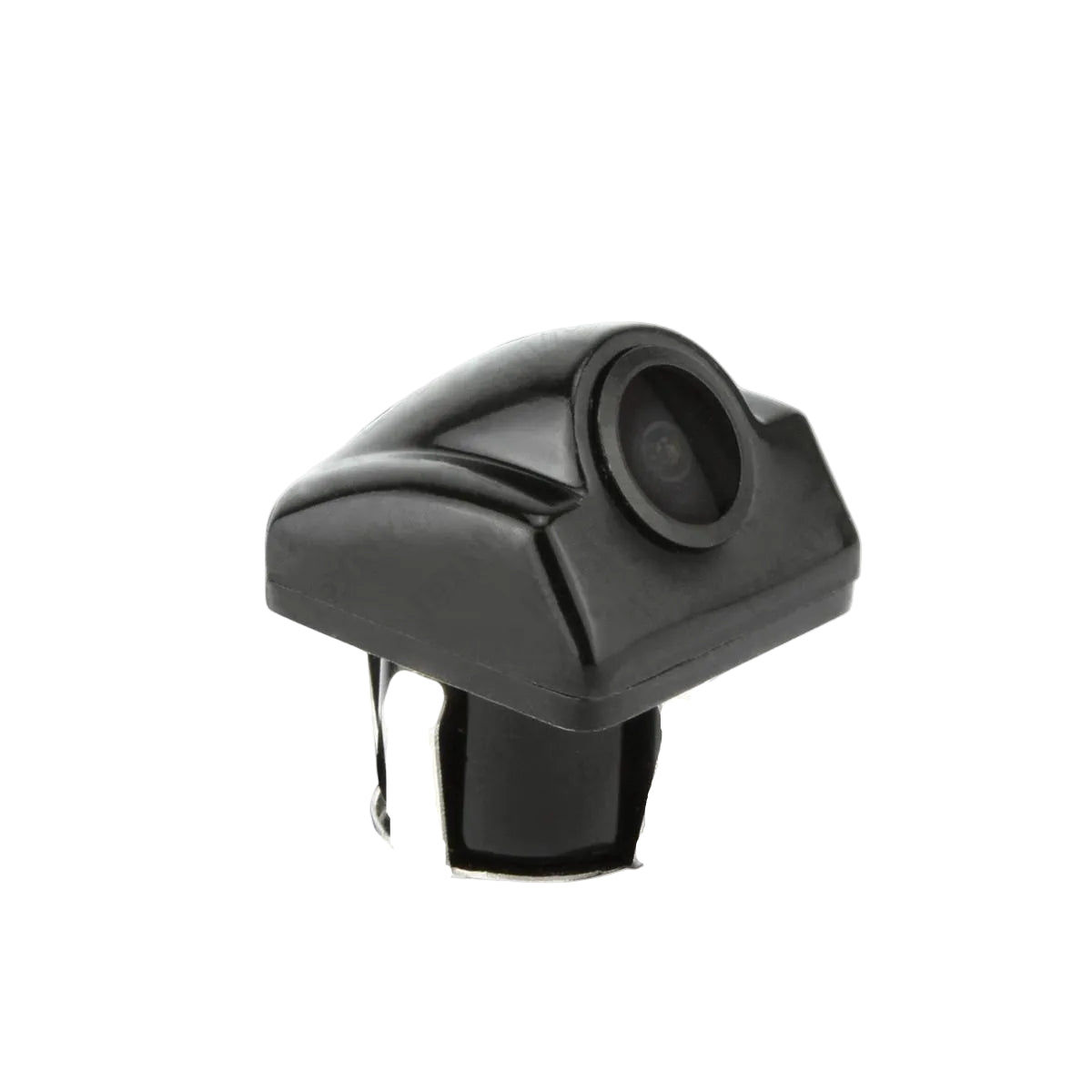

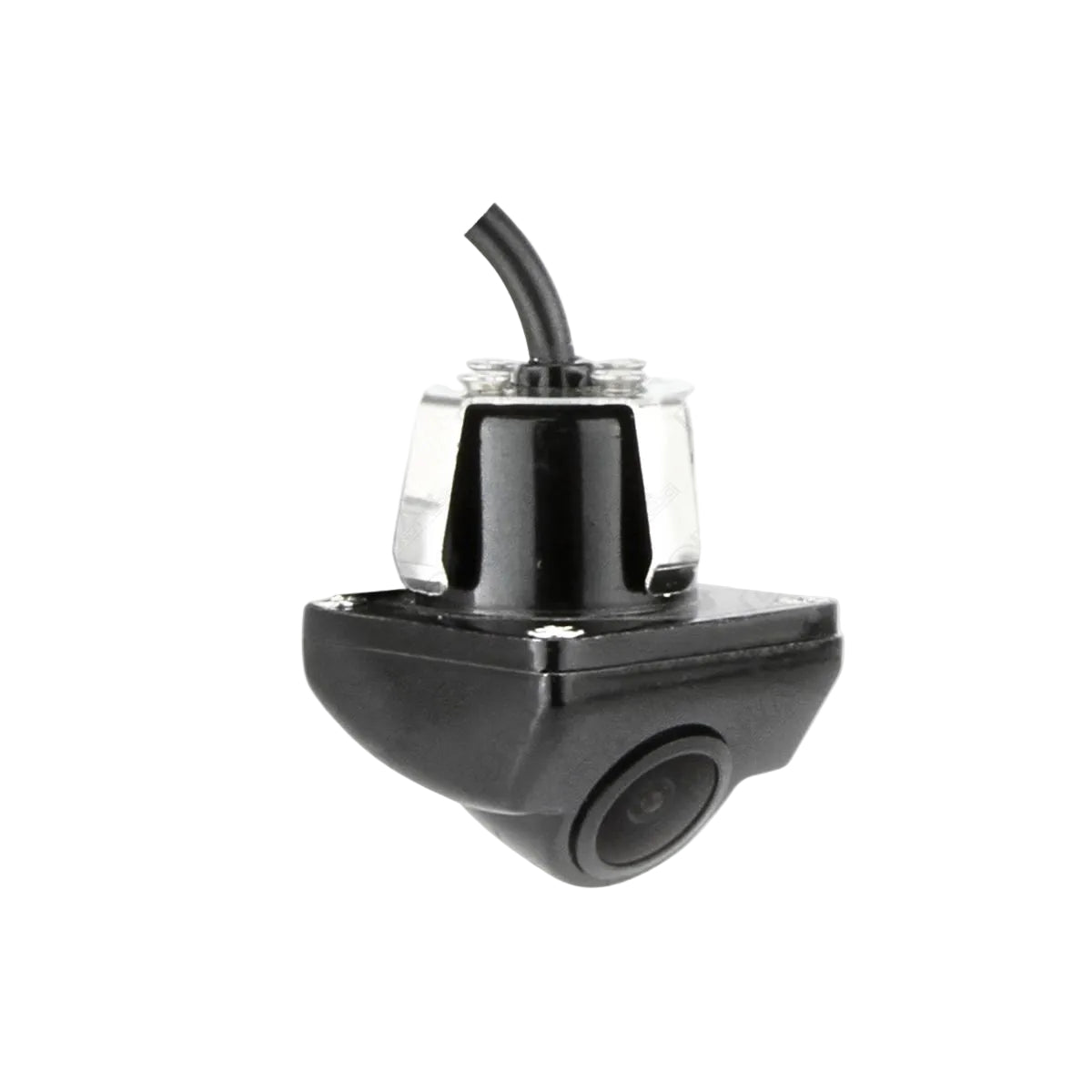

DNA RCSM170 CMOS Snap Mount Reverse Camera - PAL/NTSC

DNA RCSM170 CMOS Snap Mount Reverse Camera - PAL/NTSC

Compact CMOS Reverse Camera with Snap-In Mount & Selectable PAL/NTSC Format

The DNA RCSM170 CMOS Snap Mount Reverse Camera is engineered for applications where rear access is limited, making it ideal for tight installations. Featuring an innovative snap-in mounting system combined with heavy-duty 3M adhesive, this reverse camera offers a secure, stable fit without the need for rear-panel access. The tough zinc alloy housing ensures long-lasting durability in any environment.

With selectable PAL/NTSC video format, mirror/reverse image control, and optional parking guide lines, the RCSM170 is versatile enough for a wide range of vehicles, including sedans, SUVs, trucks, and caravans. Designed with an IP68 waterproof rating, it delivers dependable performance in all weather conditions.

DNA RCSM170 Key Features & Benefits:

• Snap-In Mounting System: Perfect for installations where rear panel access is restricted.
• Selectable PAL/NTSC Formats: Supports multiple video formats for greater compatibility.
• Low Profile Design: Compact 20mm hole size ensures a clean and neat installation.
• Optional Parking Guide Lines: Enable or disable visual parking assistance as needed.
• Durable Zinc Alloy Housing: Built for harsh automotive environments with enhanced protection.
• Waterproof IP68 Rating: Ensures reliability in rain, mud, and off-road conditions.
• High-Resolution CMOS Sensor: Produces sharp, clear, and detailed images.

Technical Specifications:

• Model: DNA RCSM170
• SKU: RCSM170
• Type: CMOS Snap Mount Reverse Camera
• Video System: PAL / NTSC (Selectable)
• Resolution: 976(H) × 592(V)
• Horizontal Resolution: 700 TVL
• Viewing Angle: 170° Wide Angle
• Image Sensor: CMOS
• Electronic Shutter: 1s - 1/10000(S)
• SNR: ≥45.0dB
• Minimum Illumination: 0.01 Lux
• Video Output: 1.0V ± 0.5Vp-p 75Ω
• Operating Voltage: DC 9V–15V ± 0.5V
• Power Consumption: 100mA ± 10%

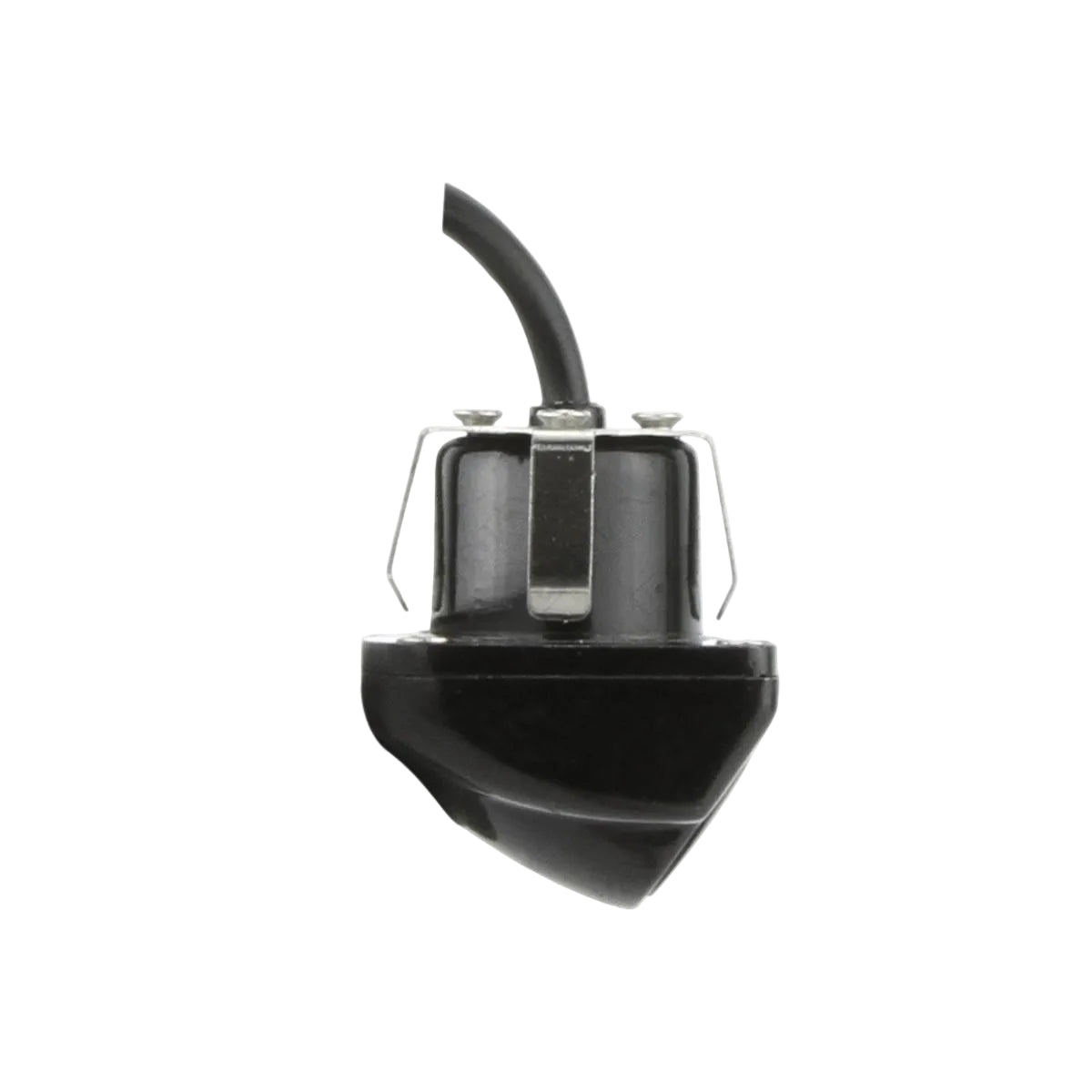

• Mounting Style: Snap Mount with Adhesive & Spring Clips
• Body Material: Zinc Alloy
• Hole Size: 22mm
• Camera Size: 26.5mm W × 34mm H × 28mm D
• Waterproof Rating: IP68
• Packaging: DNA Gift Box

Installation Applications:

• Passenger Vehicles: Compact cars, sedans, and hatchbacks for improved reversing visibility.
• 4WD & Off-Road Applications: Built tough for SUVs and off-road vehicles operating in harsh conditions.
• Commercial Installations: Ideal for vans, fleet vehicles, and trade vehicles.
• Caravans & Motorhomes: Perfect for enhancing rear visibility during towing or reversing.
• Custom Installs: Excellent choice where rear panel access is limited but reliability is essential.

Frequently Asked Questions

• Can I switch between PAL and NTSC formats?
  Yes, simply cut the purple wire to change from PAL to NTSC.
• Does this include parking guide lines?
  Yes, by default they are enabled. Cut the white wire to disable them.
• Is this camera waterproof?
  Absolutely, it’s IP68-rated for superior protection against water and dust.

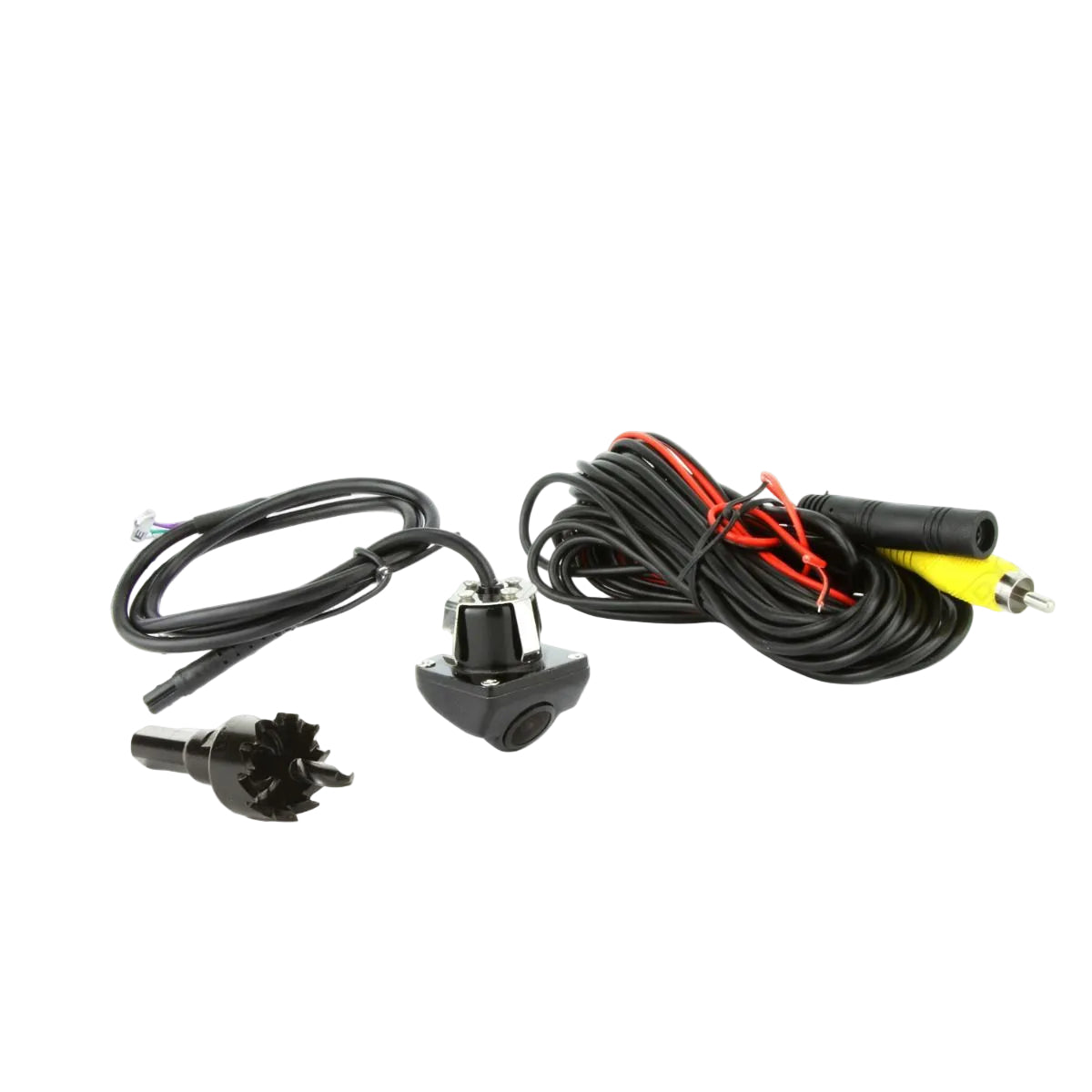

• Does the kit include a hole saw?
  Yes, a hole saw is provided for quick and easy installation.
• Will this work with any head unit?
  Yes, it works with most displays or DVR mirror systems with RCA video input.
