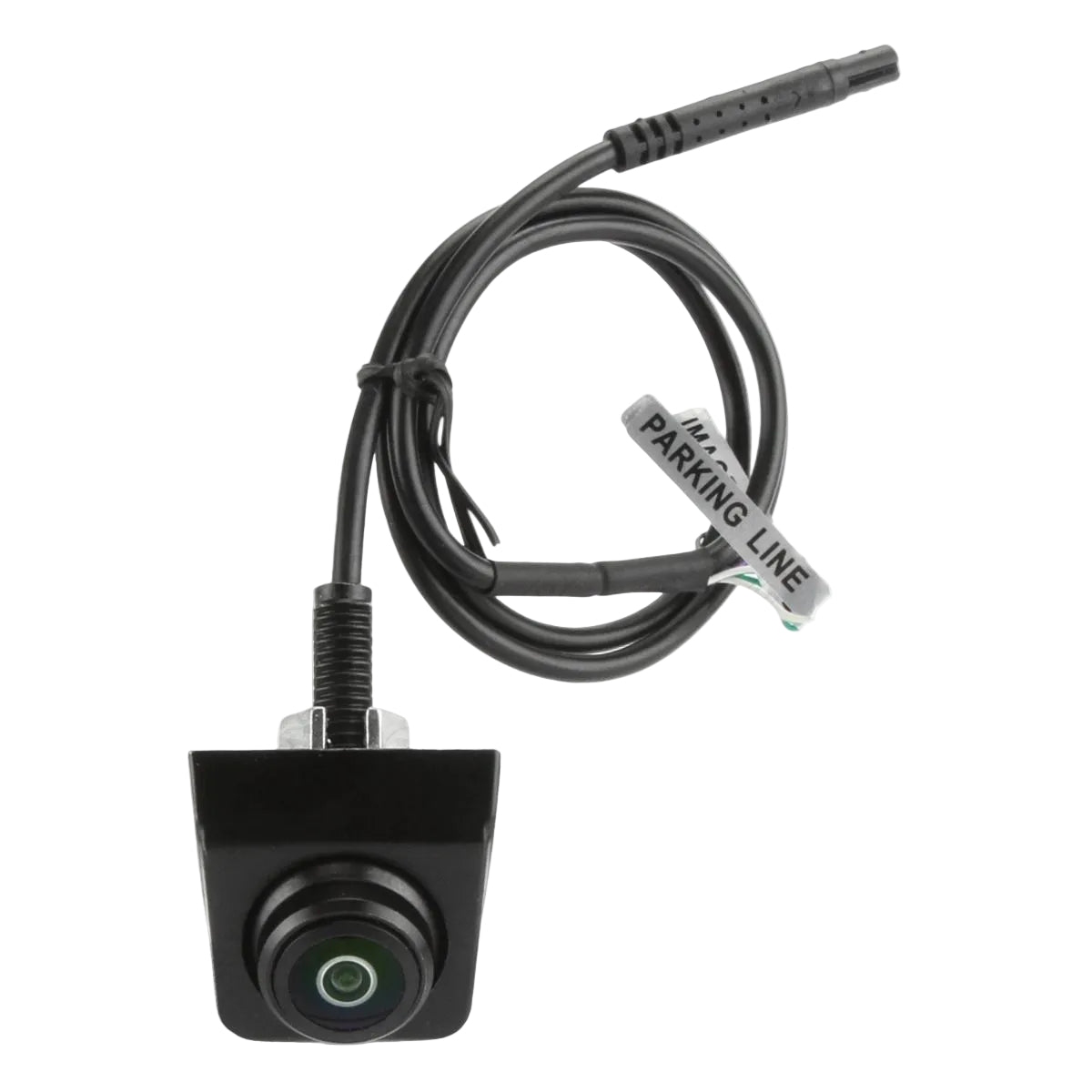

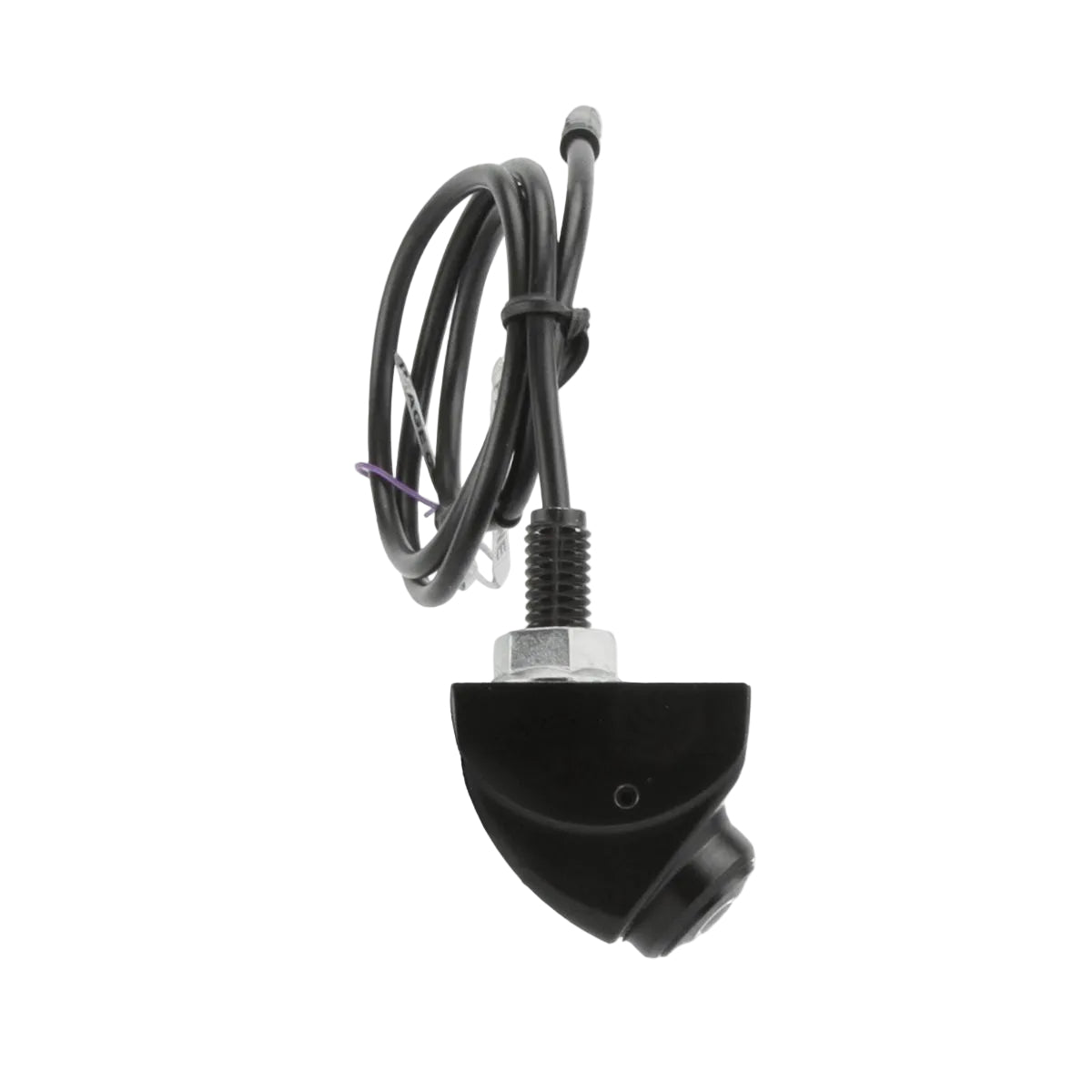

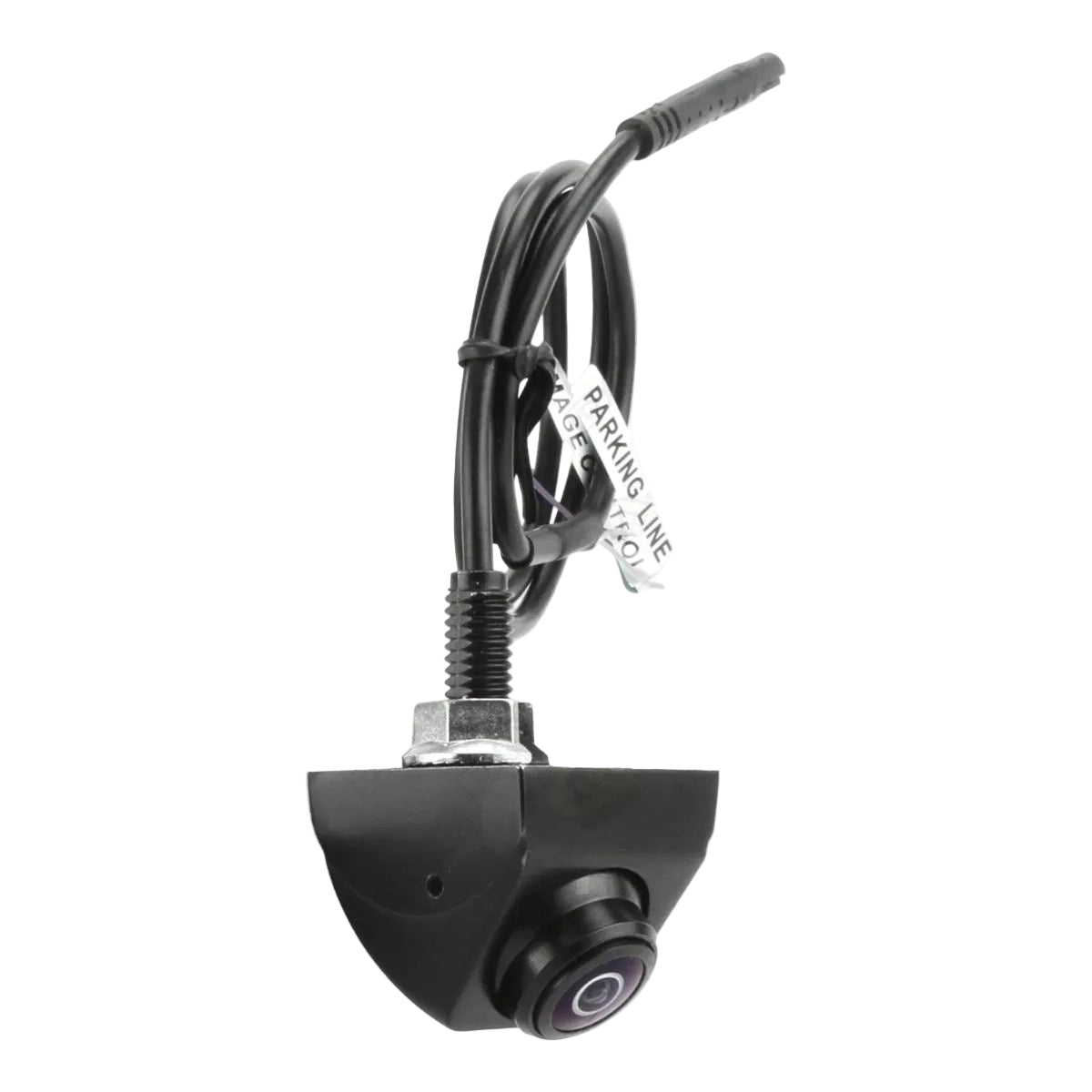

DNA RCS170A Stalk Mount Reverse Camera with Adjustable Lens

DNA RCS170A Stalk Mount Reverse Camera with Adjustable Lens

Professional OEM-grade reverse camera with flexible stalk mount and 170° wide view

The DNA RCS170A Stalk Mount Reverse Camera delivers professional-grade rear vision with adjustable positioning and OEM-quality construction. This premium camera features a flexible stalk mount design, zinc alloy housing, and IP68 waterproof rating making it ideal for cars, 4WDs, caravans, commercial vehicles, and marine applications. The 170° wide-angle lens with 700 TVL resolution provides crystal-clear rear vision with 48-degree adjustability in all directions.

Perfect for installers seeking a concealable, professional installation that requires only an 8mm mounting hole. The PAL/NTSC selectable system ensures compatibility with Australian and international video systems, while the 360-degree rotation capability allows precise customisation for any vehicle configuration.

DNA RCS170A Key Features & Benefits:

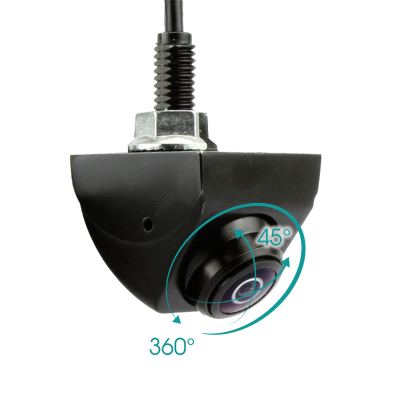

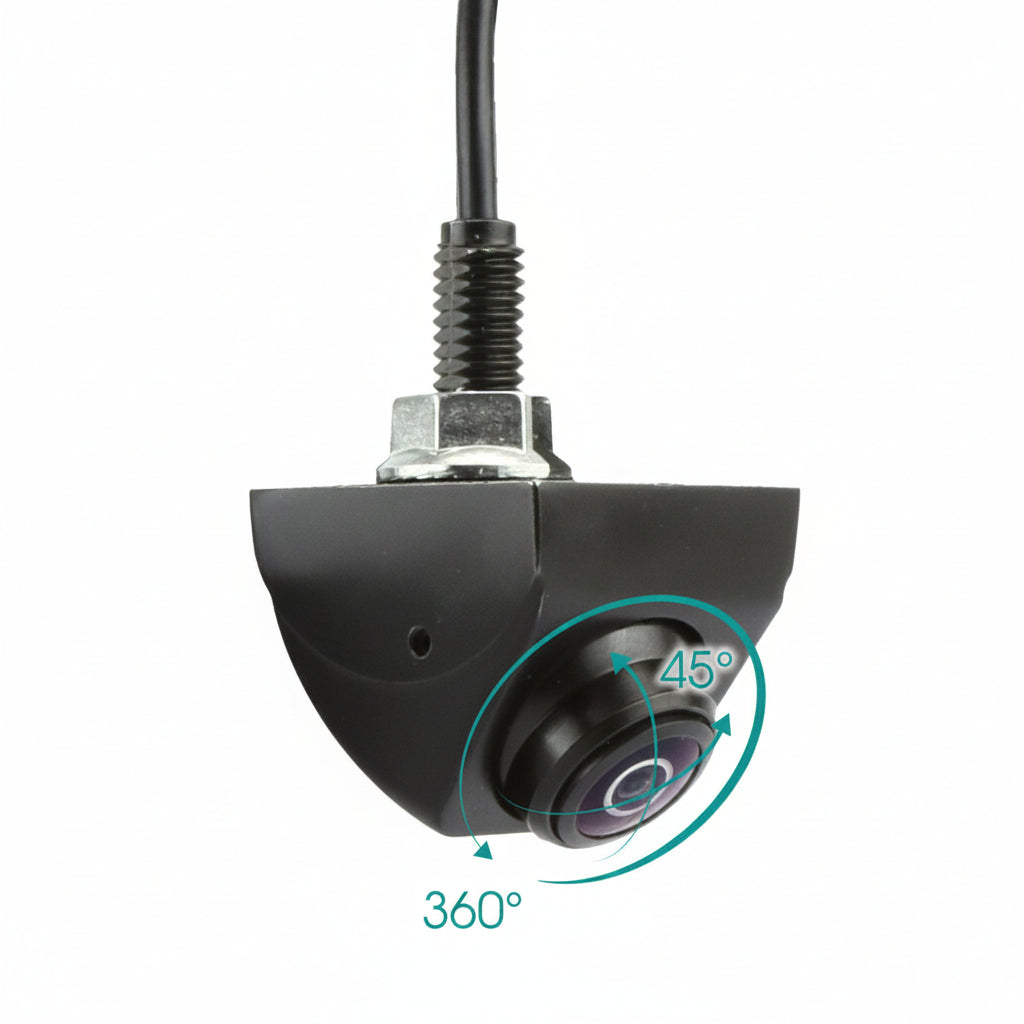

• Flexible Stalk Mount: Adjustable positioning with 48-degree movement up, down, left, or right for perfect viewing angles
• Professional Construction: Zinc alloy housing with IP68 waterproof rating withstands harsh Australian conditions
• Minimal Installation: Requires only 8mm hole with concealable wiring for clean, OEM-appearance installations
• High-Resolution Video: 700 TVL resolution with 170° ultra-wide view angle captures maximum rear visibility
• PAL/NTSC Compatible: Default PAL setting for Australia with simple wire-cut NTSC conversion option
• 360-Degree Rotation: Complete rotation capability plus image flip/mirror functions for any mounting scenario

Technical Specifications:

• Model: DNA RCS170A
• SKU: RCS170A
• Image Sensor: CMOS technology
• Video System: PAL/NTSC selectable (default PAL)
• Scanning Area: 4.8mm x 3.67mm
• Resolution: 976(H) x 592(V) pixels
• Horizontal Resolution: 700 TVL
• Electronic Shutter: 1s to 1/10000s variable
• Signal-to-Noise Ratio: ≥45.0dB
• Minimum Illumination: 0.01 Lux (excellent low-light performance)
• Video Output: 1.0V±0.5V p-p 75Ω
• View Angle: 170° ultra-wide
• Operating Voltage: DC 6V-15V±0.5V
• Power Consumption: 100mA±10%
• Waterproof Rating: IP68 (fully submersible)
• Camera Dimensions: 23mm W x 24mm H x 28mm D
• Required Hole Size: 8mm diameter

Installation Applications:

• Passenger Vehicles: Sedans, hatchbacks, and coupes requiring discrete reverse camera integration
• 4WD & Off-Road: Rugged applications where IP68 waterproofing and adjustability are essential
• Commercial Vehicles: Fleet installations requiring professional appearance and reliable performance
• Caravans & Motorhomes: RV applications where adjustable viewing angles compensate for varying load heights
• Marine Applications: Boat and yacht installations leveraging IP68 waterproof construction

Frequently Asked Questions

What size hole do I need to drill? Only an 8mm diameter hole is required for installation.

Can I adjust the camera angle after installation? Yes, the lens adjusts 48 degrees in all directions plus 360-degree rotation.

Will this work with my Australian head unit? Yes, default PAL setting works with all Australian video systems.

Is it waterproof enough for boat use? Yes, IP68 rating means it's fully waterproof and suitable for marine environments.

Can I flip the image if mounted upside down? Yes, the camera supports image flip and mirror functions for any mounting configuration.
