Product features
This Camera Is Ideal for OEM Applications, Where Wiring Is Concealed for A Neat and Professional Finish

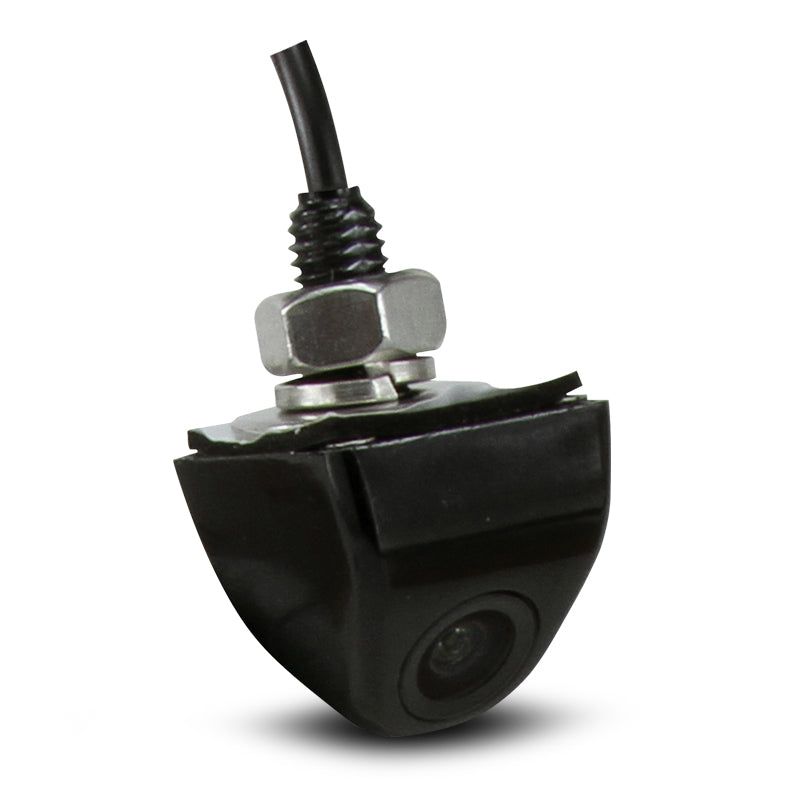

CMOS Reverse Camera Stalk Mount.
Model Strengths:
- OEM Solution
- Zinc Alloy Housing
- Only Requires 8mm Hole
- PAL / NTSC Selectable* (By default set to PAL. To select NTSC cut the wire)
- Mirror Image*
Features:
- Includes selectable options: PAL/NTSC video format and reverse mirror imaging.
- Camera also comes with a stalk mount and has a Waterproof IP68 rating.
Specifications:
- Image Sensor: CMOS
- Video System: PAL or NTSC (Selectable)
- Scanning area: 4.88mm*3.67mm
- Resolution: 733(H)*493(V)
- Horizontal Resolution: 600 TVL
- Electronic Shutter: 1s-1/10000(S)
- SNR: =45.0dB
- Min Illumination: 0.01Lux
- Video Output: 1.0V±0.5Vp-p 75O
- View Angle:170°
- Working Voltage: DC9V-15V±0.5V
- Consumption: 100mA±10%
- Waterproof Rating: IP68
- Camera Body Size: 25mm W x 24mm H x 28mm D
- Hole Size: 8mm Diameter
- Packaging: DNA Gift box with sleeve
