DNA RCP170 Push In Pivot Mount Reverse Camera, PAL/NTSC

SKU: RCP170
Price
$114.95
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Not on our shelf right now. We order this one in from our supplier.
Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
DNA RCP170 CMOS Push-In Pivot Mount Reverse Camera, PAL/NTSC

DNA RCP170 Push In Pivot Mount Reverse Camera, PAL/NTSC

$114.95

Product features

Quick answer

The DNA RCP170 is a zinc alloy reverse camera that pushes into a 22.5 mm hole for a clean factory look.

The DNA RCP170 is a zinc alloy reverse camera that pushes into a 22.5 mm hole for a clean factory look. The pivot lets you set the angle after fitting with a pin spanner.

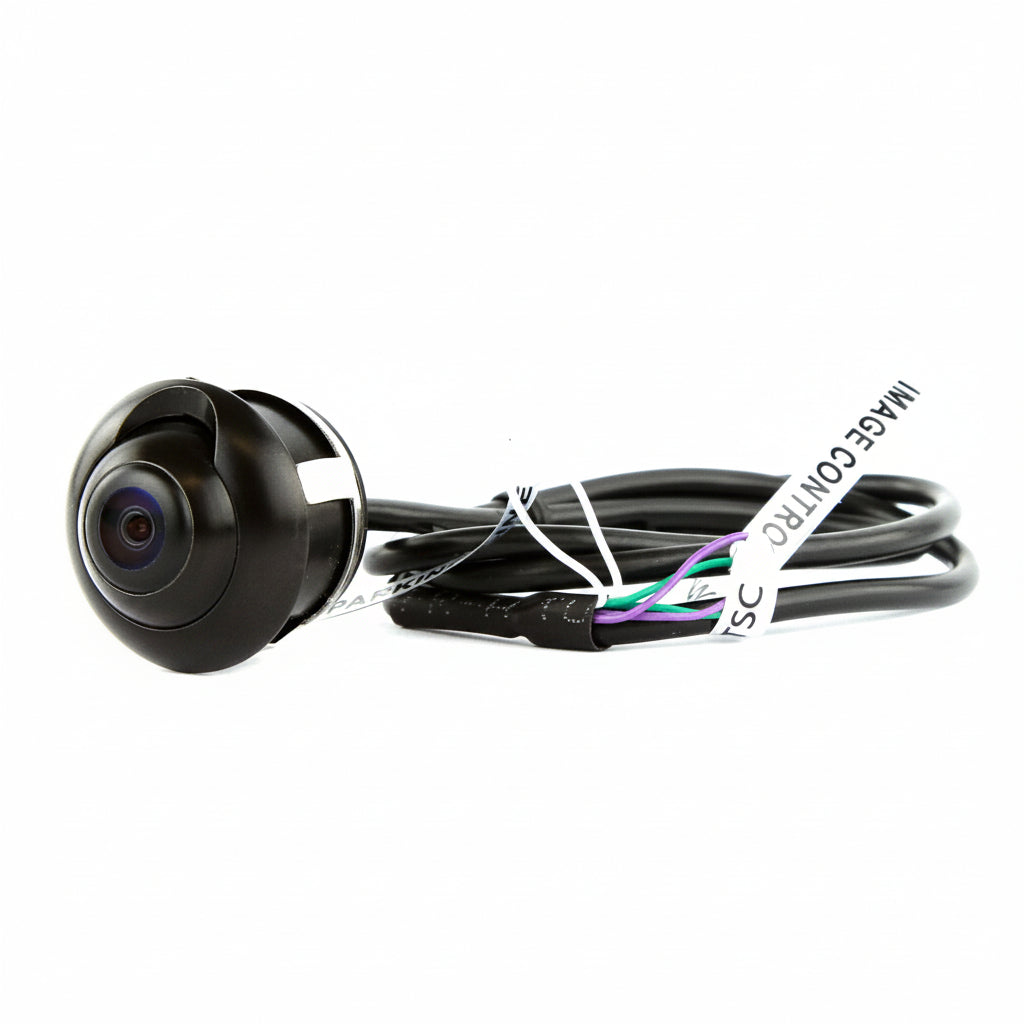

Cut the purple wire for NTSC, the green wire for front camera image and the white wire to turn the parking lines off.

Specifications

  • Sensor: CMOS
  • Video: PAL or NTSC, PAL by default
  • View angle: 170 degrees
  • Min illumination: 0.01 lux
  • Rating: IP68
  • Resolution: 976 x 592, 700 TVL
  • Voltage: 9 to 15 V DC
  • Camera size: 25 mm deep x 28 mm diameter
  • Mounting hole: 22.5 mm diameter
  • Housing: zinc alloy
  • Packaging: DNA gift box

FAQ

What is the DNA RCP170?

A push in pivot mount reverse camera.

Will it work with my screen?

It outputs a standard composite video signal, so it suits most aftermarket head units and monitors with a camera input.
