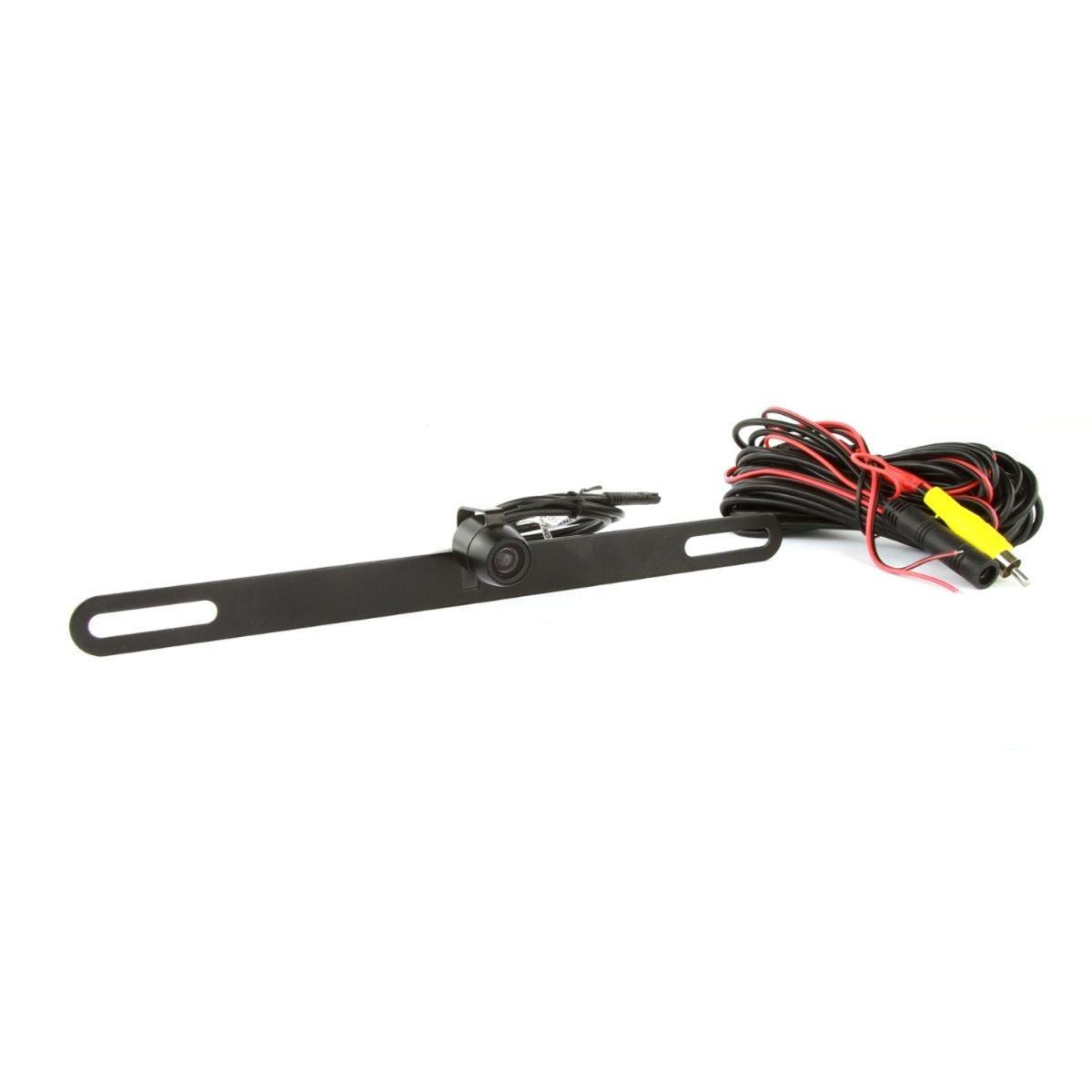

DNA RCN170 CMOS Number Plate Reverse Camera

DNA RCN170 CMOS Number Plate Reverse Camera

Universal miniature number plate camera with selectable PAL/NTSC and adjustable mounting system

The DNA RCN170 CMOS Number Plate Reverse Camera delivers professional rear vision monitoring in a compact design that mounts directly to vehicle number plates. This universal camera features zinc alloy housing, IP68 waterproof rating, and selectable PAL/NTSC compatibility with customizable parking guidelines and image control options. The 170° ultra-wide view angle provides comprehensive coverage while maintaining a discreet profile.

Designed for front or rear mounting applications, this camera suits vehicles where traditional mounting options are limited or where a clean, integrated appearance is desired. The adjustable number plate bracket accommodates various plate sizes while the selectable features ensure compatibility with different video systems and installation requirements.

DNA RCN170 Key Features & Benefits:

• Universal Number Plate Mounting: Fits standard Australian and international number plates with adjustable bracket system
• Zinc Alloy Construction: Durable metal housing withstands impacts and weather conditions better than plastic alternatives
• Selectable Video Format: PAL/NTSC compatibility via wire cutting ensures global system compatibility
• Customizable Features: Parking guidelines and image control selectable for front or rear camera applications
• Miniature Design: Compact profile maintains vehicle aesthetics while providing professional monitoring capability
• Wide Compatibility: 6V-15V operating range suits cars, motorcycles, and commercial vehicles

Technical Specifications:

• Model: DNA RCN170
• SKU: RCN170
• Image Sensor: CMOS (PC1058K)
• Video System: PAL/NTSC selectable (default PAL)
• Scanning Area: 4.88mm x 3.67mm
• Resolution: 976(H) x 592(V) pixels
• Horizontal Resolution: 700 TVL
• Electronic Shutter: 1s to 1/10000s variable
• Signal-to-Noise Ratio: ≥45.0dB
• Minimum Illumination: 0.01 LUX
• Video Output: 1.0V±0.5V p-p 75Ω
• View Angle: 170° ultra-wide
• Operating Voltage: DC 6V-15V±0.5V
• Power Consumption: 100mA±10%
• Waterproof Rating: IP68
• Camera Dimensions: 23mm L x 19mm diameter
• Bracket Dimensions: 247mm L x 18mm H x 35mm D
• Mounting: 2 x oval holes (37mm long) for adjustable plate mounting

Selectable Options:

• Video Format (Purple Wire): Default PAL setting - cut wire for NTSC compatibility
• Image Control (Green Wire): Default rear camera setup - cut wire for front camera installation
• Parking Guidelines (White Wire): Default parking lines enabled - cut wire to disable guidelines

Installation Applications:

• Standard Vehicles: Cars and SUVs where number plate mounting provides optimal camera positioning
• Commercial Vehicles: Fleet vehicles requiring discreet monitoring solutions
• Motorcycles: Bikes and scooters utilizing 6V electrical systems
• Recreational Vehicles: Caravans and motorhomes where traditional mounting is challenging
• International Applications: Vehicles requiring NTSC compatibility for export or imported systems

Frequently Asked Questions

Will this fit my Australian number plate? Yes, adjustable bracket accommodates plates with hole spacing from 165mm to 232mm.

Can I use this as a front camera? Yes, cut the green wire to configure image orientation for front camera installation.

Will it work on my motorcycle? Yes, 6V-15V operating range includes motorcycle electrical systems.

How do I change from PAL to NTSC? Cut the purple wire to switch from default PAL to NTSC format.

Can I turn off the parking guidelines? Yes, cut the white wire to disable the default parking line display.
