DNA RCH170 CMOS Reverse Camera With Butterfly Mount & Harness Kit Suit Toyota Hilux 2005 - ON

CMOS Reverse Camera With Butterfly Mount & Harness Kit

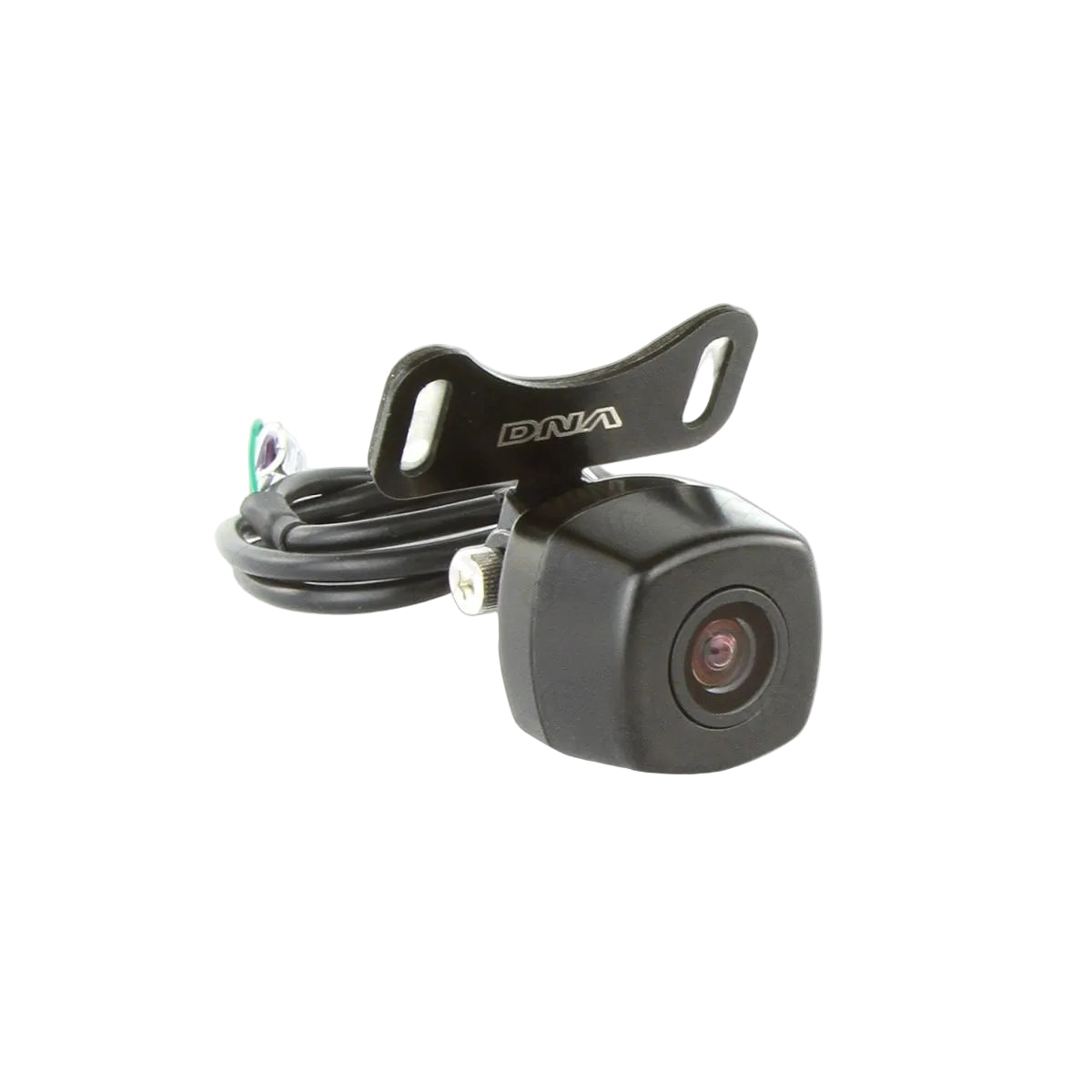

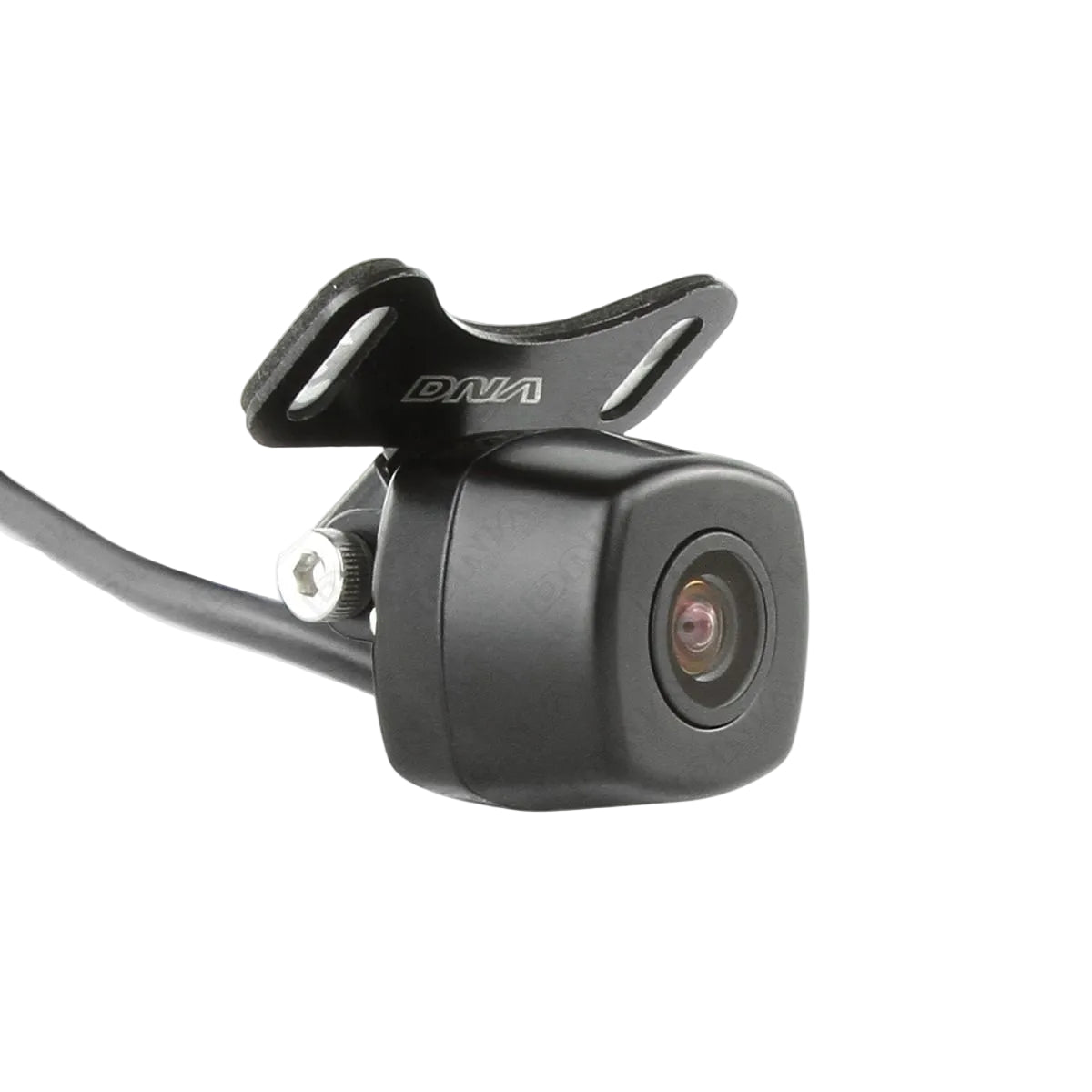

The DNA RCH170 CMOS Reverse Camera With Butterfly Mount and Harness Kit will suit Toyota Hilux vehicles from June 2005 - onward. Updated Design - As of December 2022 this kit now includes a 4-pin adaptor harness for use with Toyota Hilux vehicles dated 2005 to early 2020.

Suits:

• Toyota Hilux June 2020 - ON

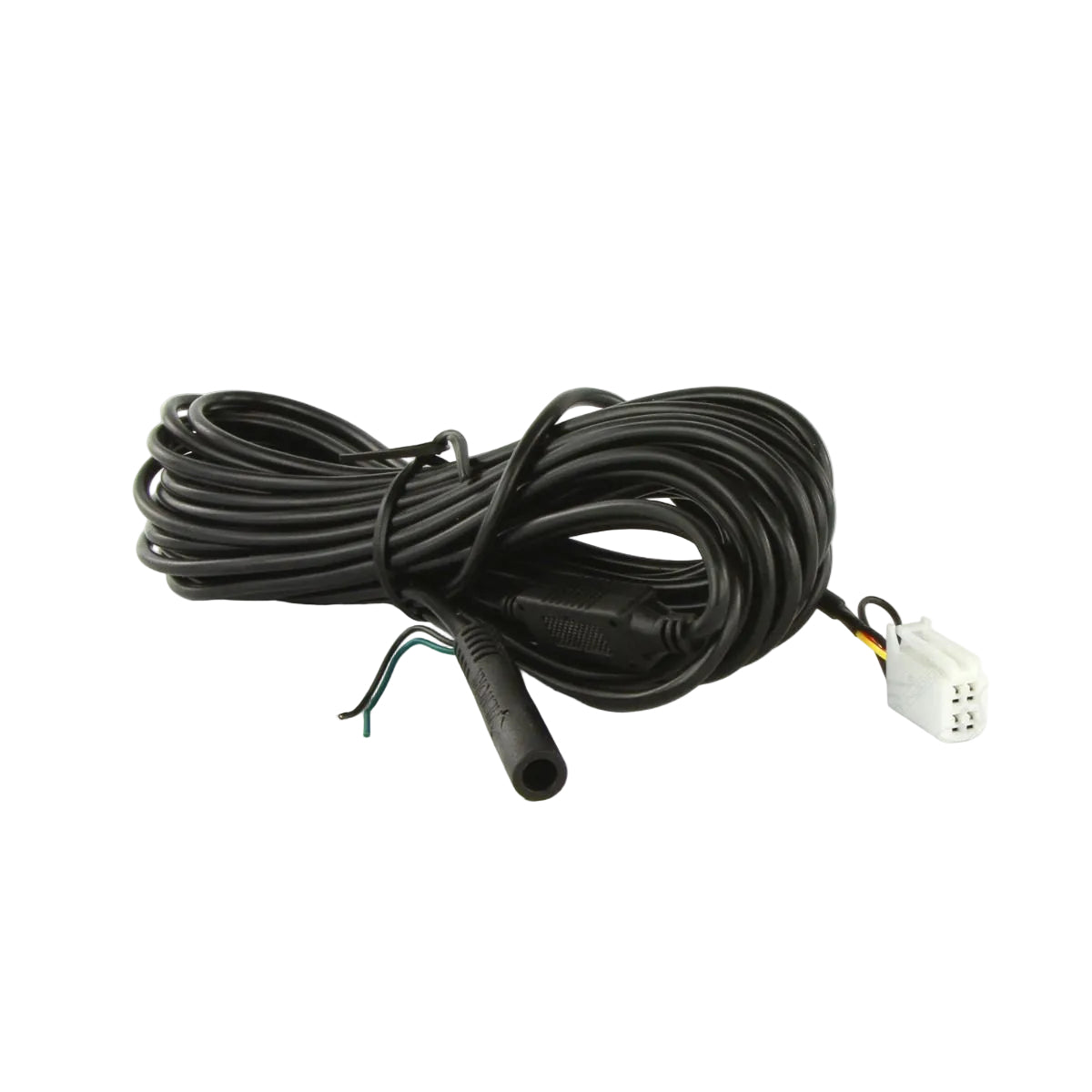

  Use the main harness and connect to the camera extension cable.
  Plugs into the passenger side footwell.
• Toyota Hilux June 2014 - 2020 Early (January - May 2020)

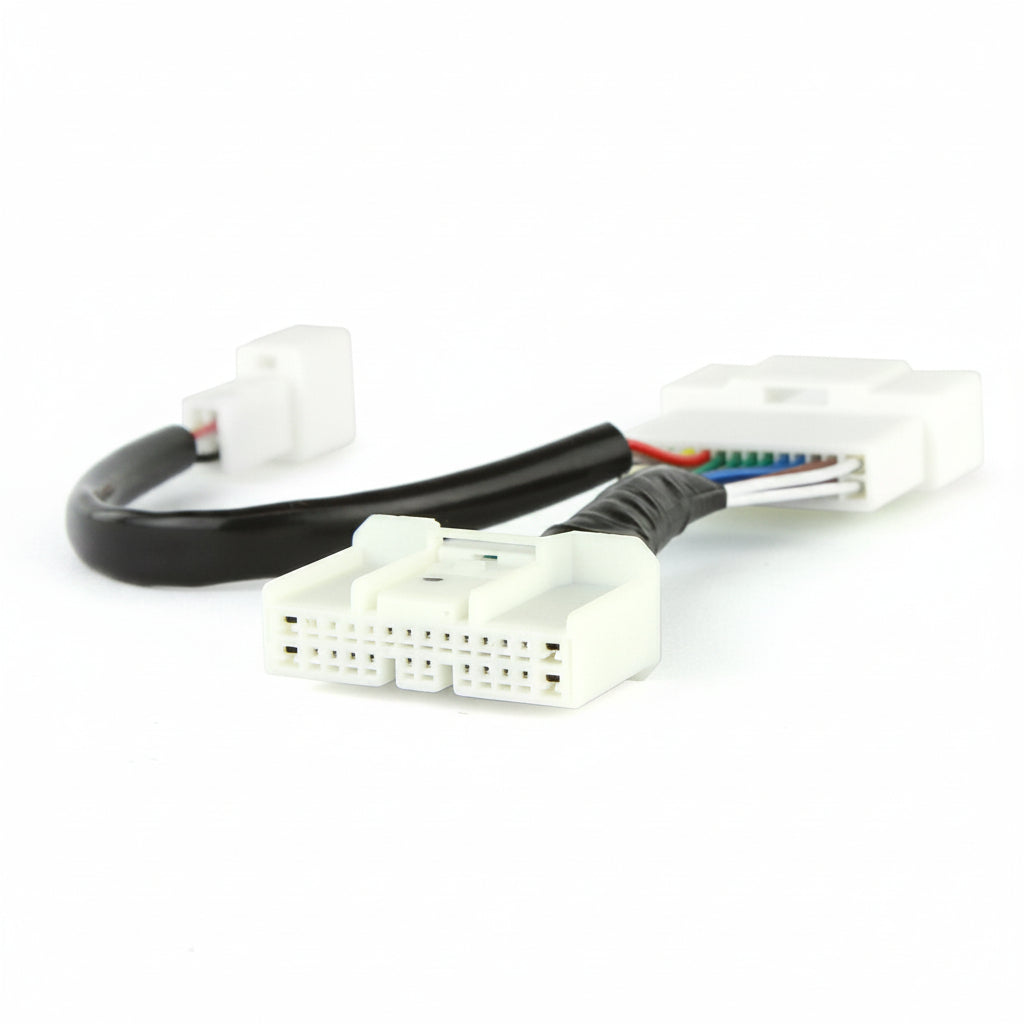

  Use the main harness with 4 4-pin adaptor harnesses and connect to the camera extension cable.
  Plugs into the passenger side footwell.
• Toyota Hilux June 2005 - 2013

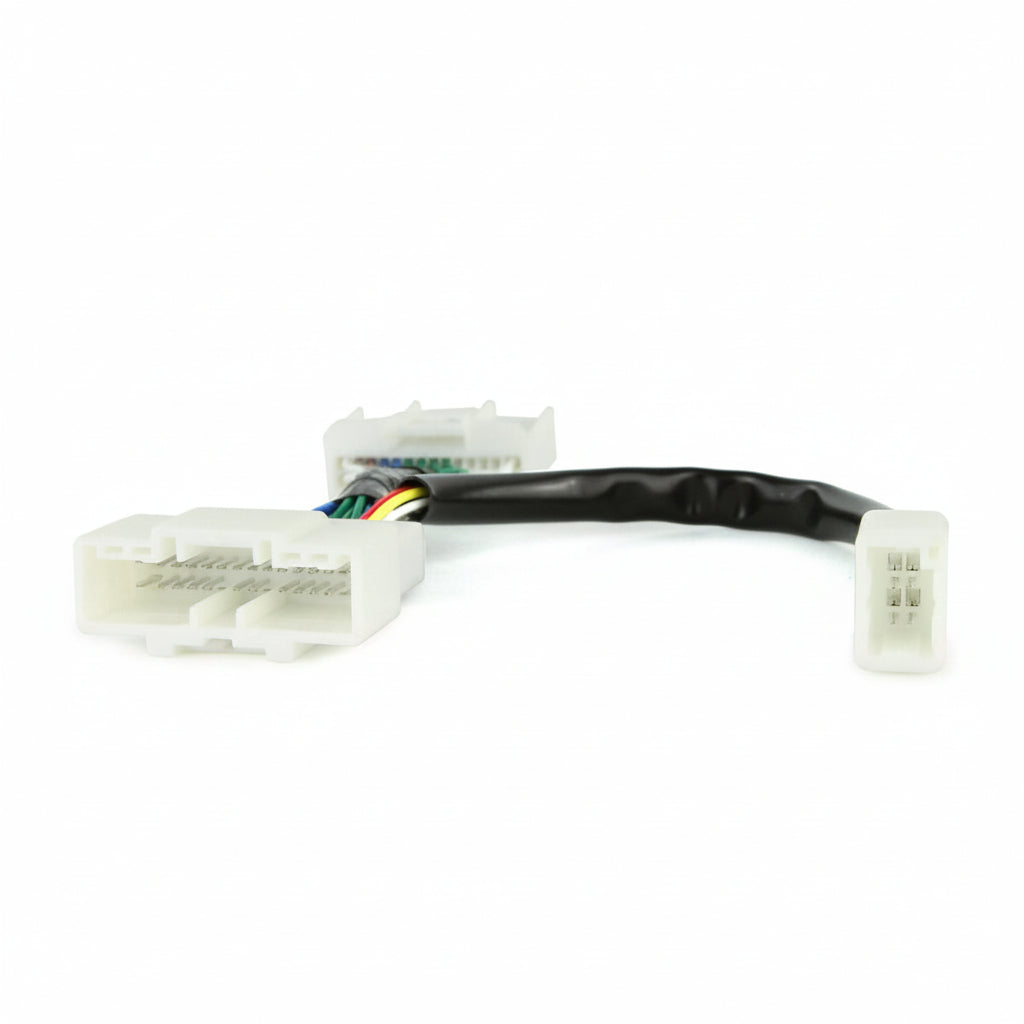

  Use a 4-pin adaptor harness and connect to the camera extension cable.

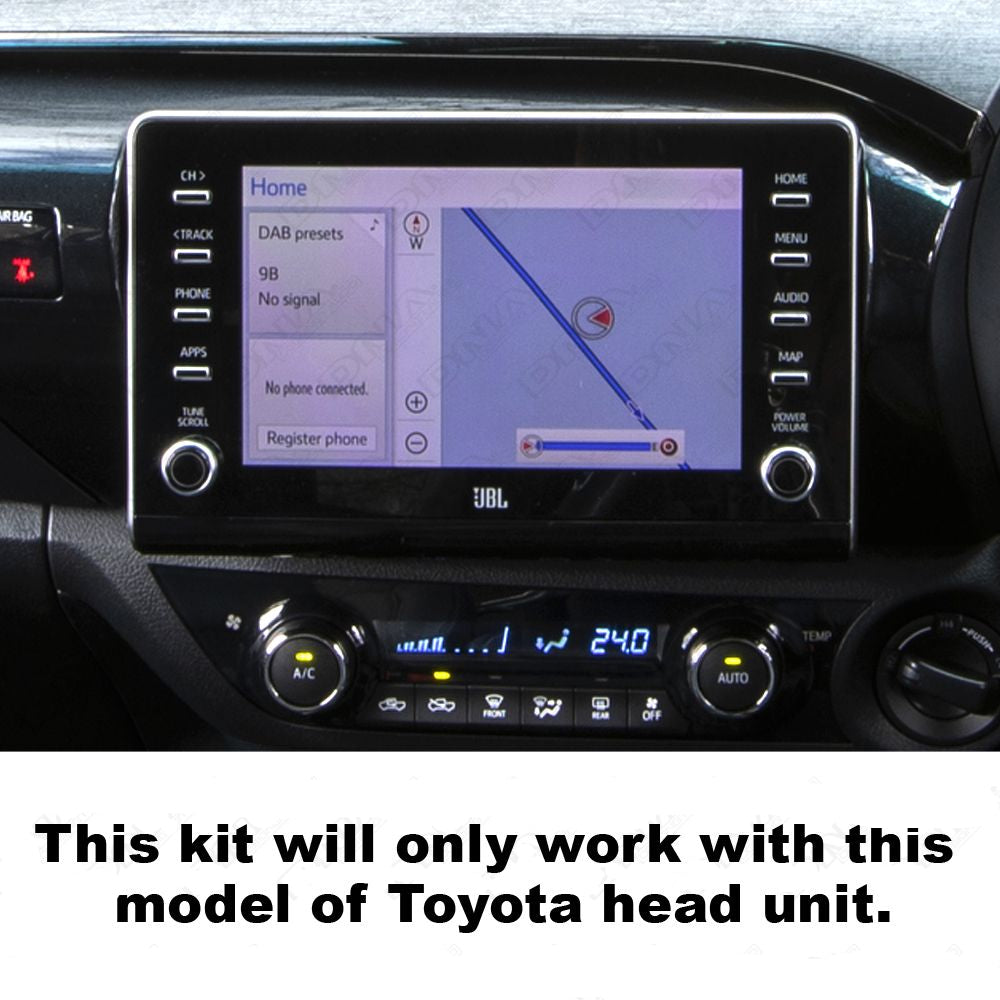

  Plugs into the back of the OEM Toyota head unit that has the 4-pin camera input socket.

Installation:

1. This reverse camera and harness kit is designed for plug-and-play DIY installation in Toyota Hilux vehicles without the need to cut or solder any wires.
2. It allows easy installation and integration of a reverse camera to the OEM factory Toyota Hilux screen.
3. The camera is then simply mounted in the factory location or under the tray.
4. Refer to the included instruction manual for installation instructions for your year-range Toyota Hilux vehicle.

Camera Strengths:

• Heavy-Duty Robust Design
• Zinc Alloy Housing
• PAL / NTSC Selectable* (By Default Set to PAL. to Select NTSC Cut the Wire)
• Parking Guide Lines*
• Mirror Image*
• Plug-N'-Play DIY Installation With Harness

Features:

• Includes selectable options: PAL/NTSC video format, parking guide lines and reverse mirror imaging.
• The camera also includes a butterfly mount and has a Waterproof IP68 rating.
• Ideal for 4WD and or trade vehicles that get knocked about where a tough camera is needed.
• Plug-and-play DIY installation with harness

Selectable Features:

• PAL/NTSC format (Purple Wire): By default is set to NTSC format for Toyota OEM head units.
• Image Control (Green Wire): By default is set for rear camera installation. (Cut the wire to change the image for front camera installation)
• Parking Line (White Wire): By default is set to show parking lines. (Cut the wire to turn off)

Specifications:

• Image Sensor: CMOS
• Video System: PAL/NTSC (Selectable)
• Scanning Area: 4.88mm * 3.67mm
• Resolution: 976 (H) * 592 (V)
• Horizontal Resolution: 700 TVL
• Electronic Shutter: 1s-1/10000(S)
• SNR: =45.0dB
• Min Illumination: 0.01Lux
• Video Output: 1.0V±0.5Vp-p 75O
• View Angle: 170°
• Working Voltage: DC6V - 15V±0.5V
• Consumption: 100mA±10%
• Waterproof Rating: IP68
• Camera Body Size: 28mm (W) x 22mm (H) x 22mm (D)
• Butterfly Base Size: 44mm (L) x 18mm (W)
• Packaging: DNA Gift Box With Sleeve
• Weight: 0.39kg

Vehicle Compatibility:

• Toyota Hilux June 2020 - ON
• Toyota Hilux June 2014 - 2020 Early (January - May 2020)
• Toyota Hilux June 2005 - 2013

Please Note: Also available is just the video retention harness only: VRTY20 (Replaces RCH160)
