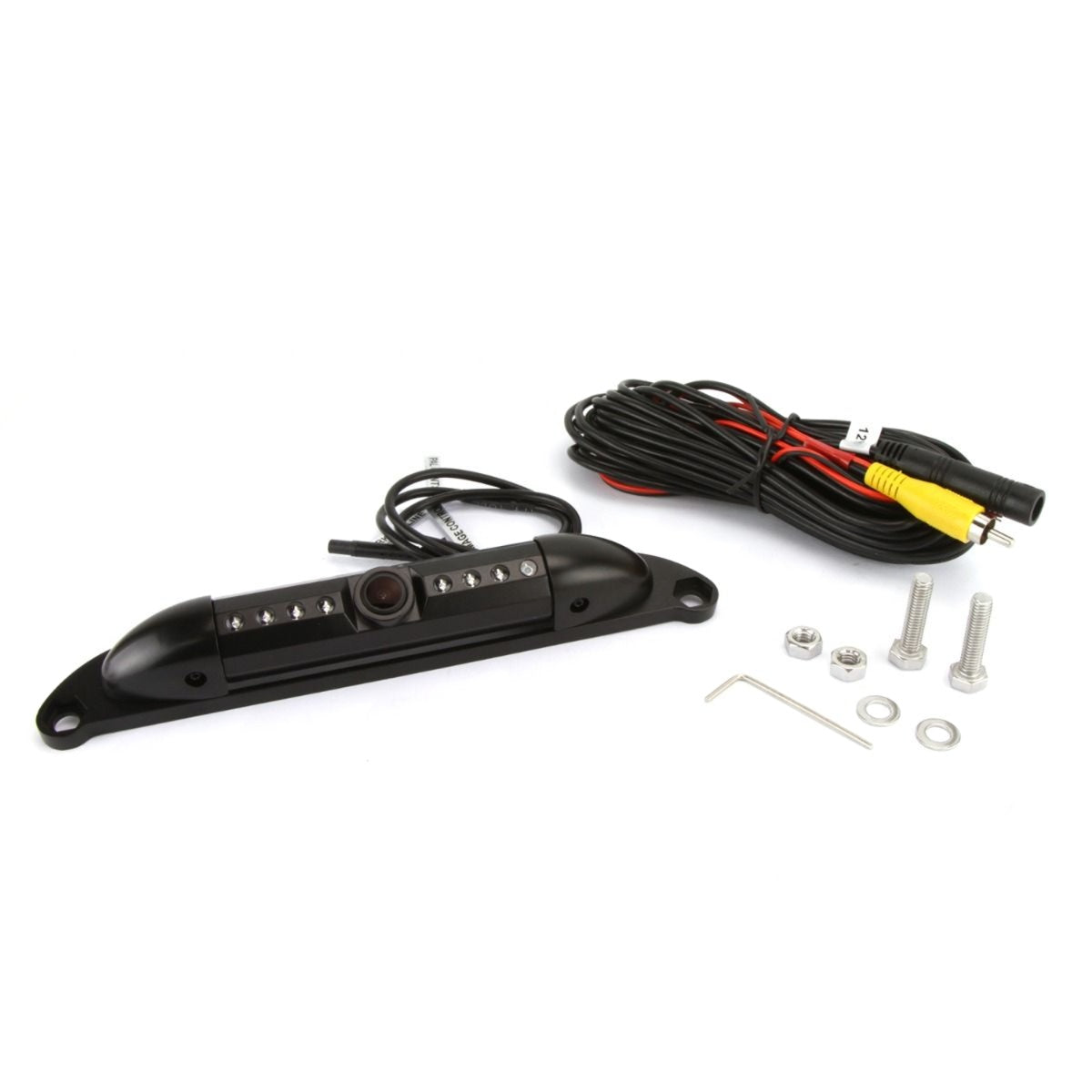

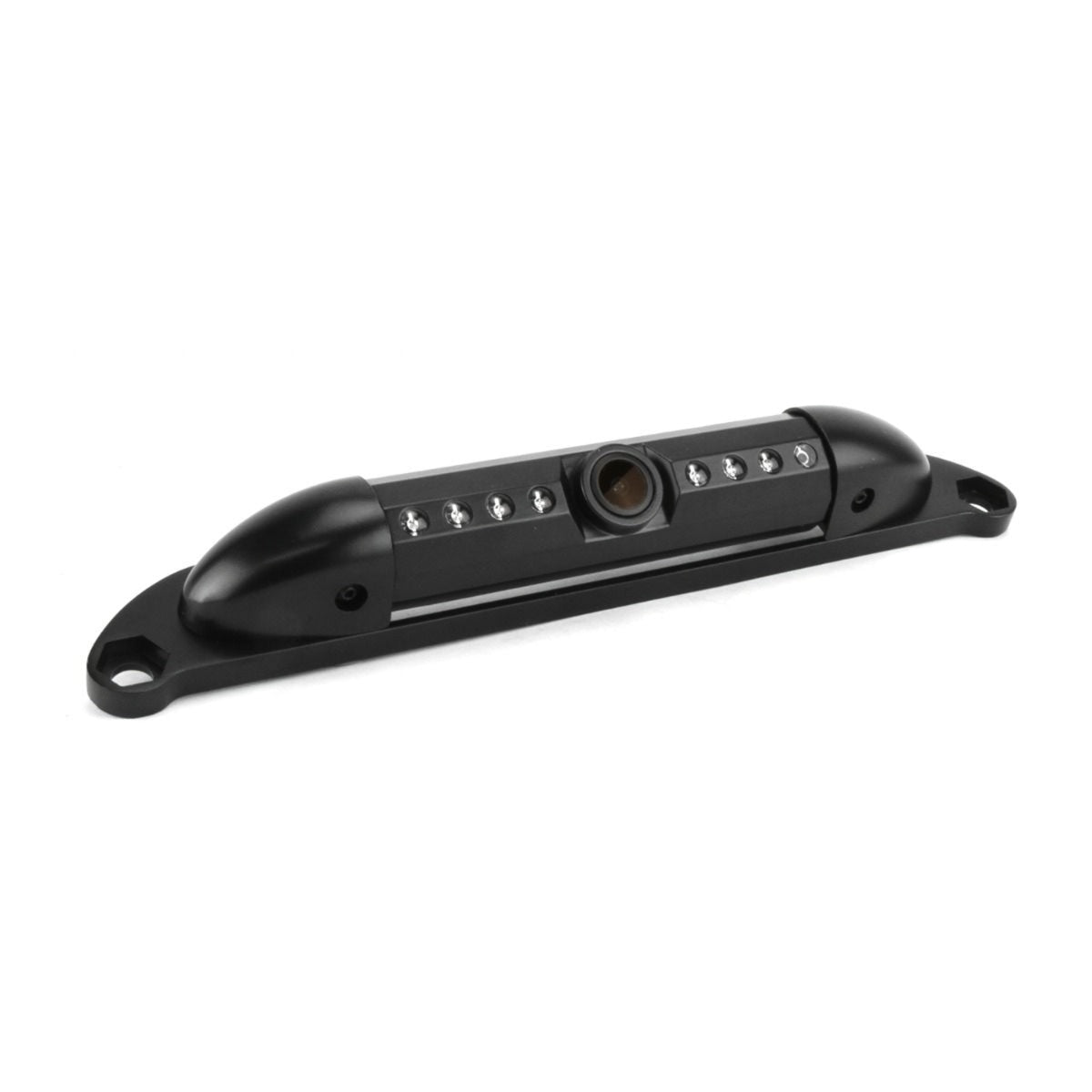

DNA RCC170 CMOS Reverse Cabin Camera

DNA RCC170 CMOS Reverse Cabin Camera

Compact cabin monitoring camera with tiltable lens and IR night vision for ute applications

The DNA RCC170 CMOS Reverse Cabin Camera provides versatile monitoring capability designed specifically for ute cabin applications and general vehicle surveillance. This compact camera features zinc alloy housing, tiltable lens for precise angle adjustment, and IR LEDs for excellent night vision performance. The 170° ultra-wide view angle ensures comprehensive coverage whether used for cabin monitoring or reverse camera applications.

Engineered with selectable PAL/NTSC compatibility and customizable features including parking guidelines and image control, this camera adapts to various installation requirements. The IP68 waterproof rating and 6V-15V operating range make it suitable for diverse vehicle applications where reliable monitoring is essential.

DNA RCC170 Key Features & Benefits:

• Tiltable Lens Design: Precise angle adjustment capability allows optimal positioning for cabin or reverse monitoring
• IR Night Vision: Built-in infrared LEDs provide excellent 0.01 LUX performance for clear night-time monitoring
• Zinc Alloy Construction: Durable metal housing withstands impacts and environmental conditions
• Selectable Video Format: PAL/NTSC compatibility via wire cutting ensures global system compatibility
• Customizable Features: Parking guidelines and image control selectable for various installation scenarios
• Wide Voltage Range: 6V-15V operation suits cars, motorcycles, and commercial vehicle applications

Technical Specifications:

• Model: DNA RCC170
• SKU: RCC170
• Image Sensor: CMOS technology
• Video System: PAL/NTSC selectable (default PAL)
• Scanning Area: 4.88mm x 3.67mm
• Resolution: 976(H) x 592(V) pixels
• Horizontal Resolution: 700 TVL
• Electronic Shutter: 1s to 1/10000s variable
• Signal-to-Noise Ratio: ≥45.0dB
• Minimum Illumination: 0.01 LUX
• Video Output: 1.0V±0.5V p-p 75Ω
• View Angle: 170° ultra-wide
• Operating Voltage: DC 6V-15V±0.5V
• Power Consumption: 100mA±10%
• Waterproof Rating: IP68
• Special Features: Tiltable lens, IR LEDs
• Packaging: DNA gift box with sticker

Selectable Options:

• Video Format (Purple Wire): Default PAL setting - cut wire for NTSC compatibility
• Image Control (Green Wire): Default rear camera setup - cut wire for front camera installation
• Parking Guidelines (White Wire): Default parking lines enabled - cut wire to disable guidelines

Installation Applications:

• Ute Cabin Monitoring: Interior surveillance for work vehicles and trade applications
• Reverse Camera Applications: Standard rear vision monitoring with adjustable lens positioning
• Commercial Vehicle Security: Interior monitoring for fleet vehicles and transport applications
• Recreational Vehicle Monitoring: Caravan and motorhome interior surveillance systems
• Multi-Purpose Surveillance: Versatile camera for various monitoring requirements

Frequently Asked Questions

What makes this suitable for cabin monitoring? Tiltable lens allows precise positioning for interior coverage, while compact size fits discreetly in cabin spaces.

Can I use this as a standard reverse camera? Yes, selectable features and wide viewing angle make it suitable for both cabin and reverse applications.

Will it work on motorcycle electrical systems? Yes, 6V-15V operating range includes motorcycle and scooter electrical systems.

How do I adjust the camera angle? The tiltable lens mechanism allows manual adjustment for optimal viewing angle positioning.

Can I turn off the parking guidelines for cabin use? Yes, cut the white wire to disable parking lines when using for cabin monitoring.
