Product features

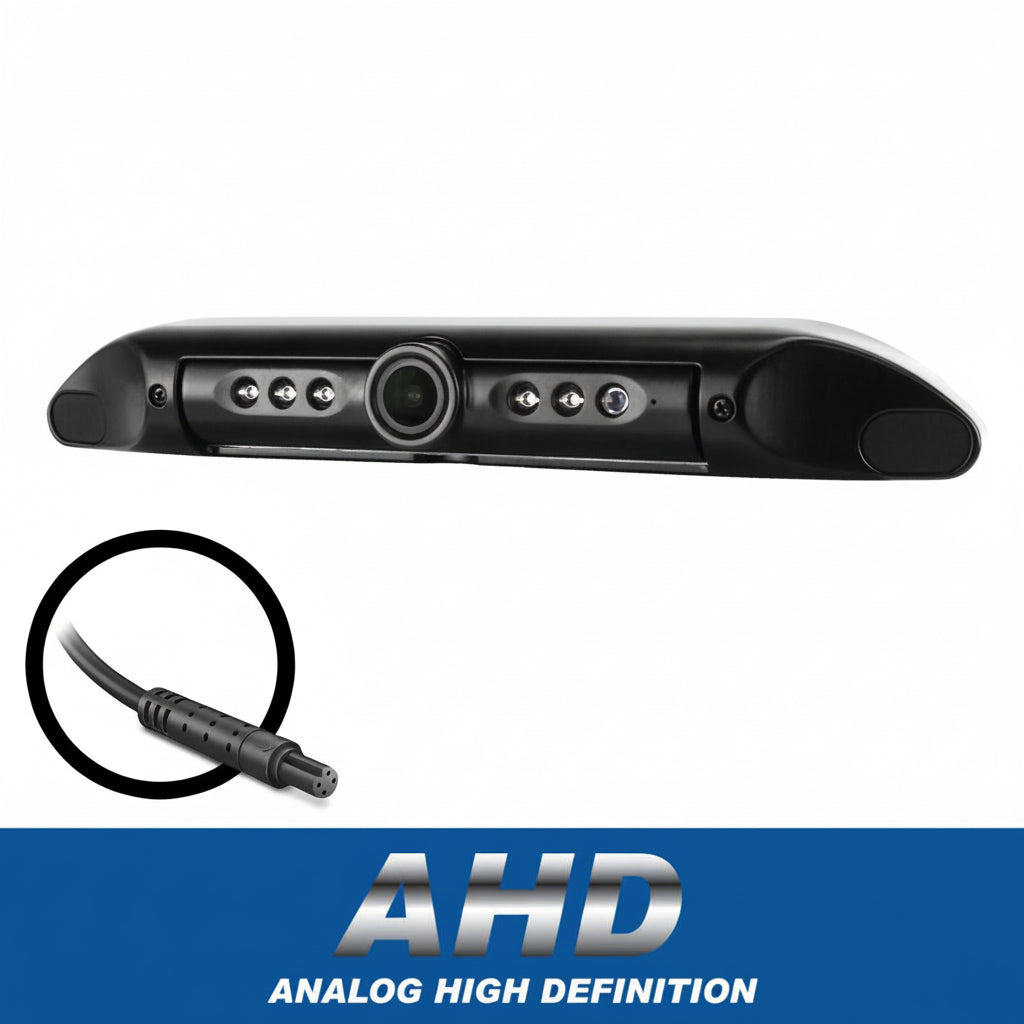

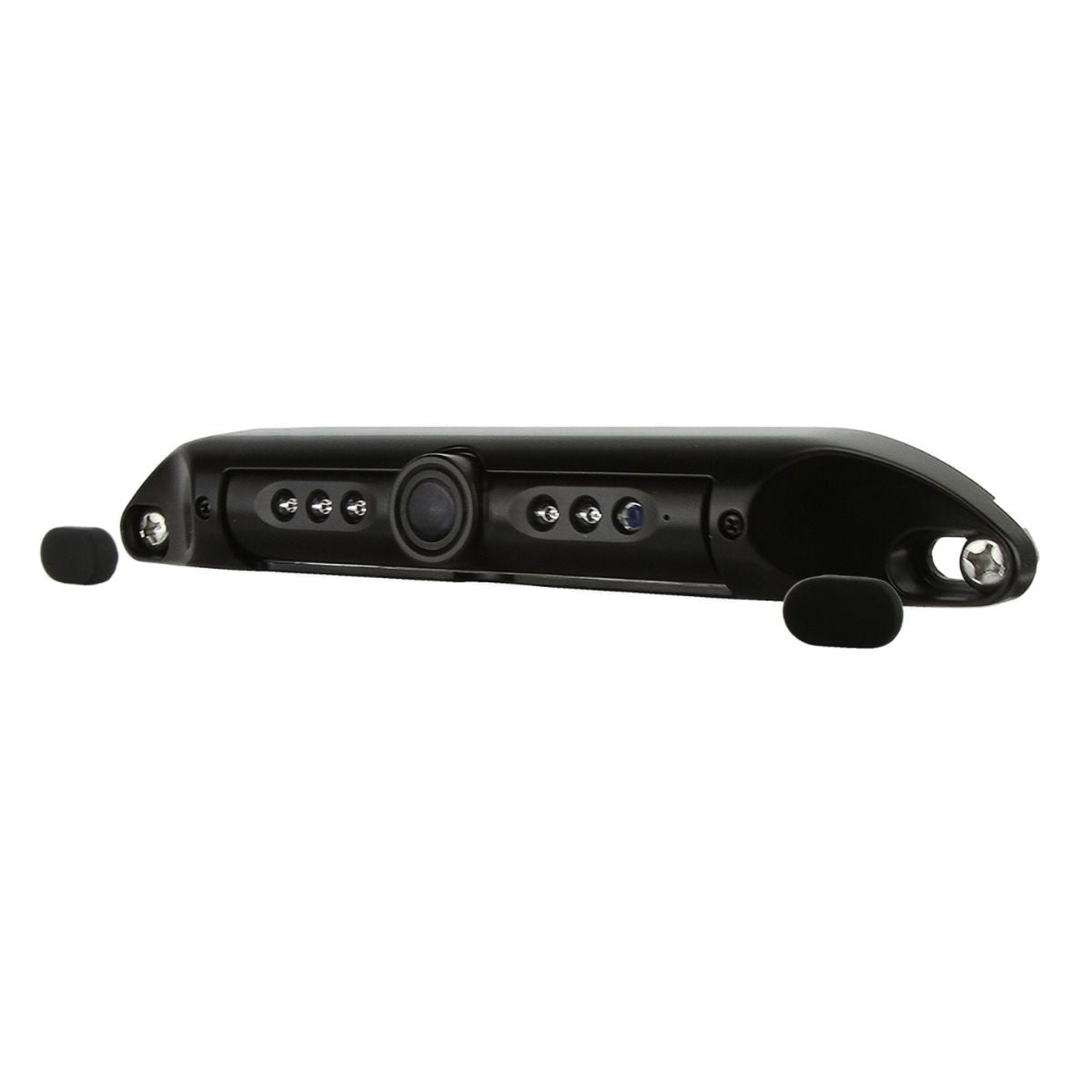

DNA RCC170-AHD AHD Reverse Cabin and Canopy Camera 170 Degree View IP68 Zinc Alloy Housing 7 IR LEDs Tiltable Lens with Selectable PAL/NTSC Parking Lines and Mirror Image

The DNA RCC170-AHD is a compact AHD reverse camera for ute cabin and canopy applications. 170-degree wide-angle view, 7 IR LEDs for night vision, and a tiltable lens for precise angle adjustment. Zinc alloy housing rated IP68. PAL/NTSC video format, parking guide lines, and mirror image are all selectable via wire cut. Includes number plate mounting bracket.

Product overview

The RCC170-AHD is designed for ute cabin and canopy installations, providing a compact rear or front-mount camera solution where a standard licence plate camera is not practical. The 170-degree view angle and tiltable lens allow the camera to be aimed with precision after mounting. Seven IR LEDs deliver low-light and night vision capability down to 0.01 Lux minimum illumination.

Selectable features are controlled by wire cutting rather than a physical switch. By default the camera is configured for rear installation with parking guide lines displayed. Cutting the green wire changes the image orientation for front camera installation. Cutting the white wire disables parking guide lines. PAL is the default video format; cutting the designated wire selects NTSC.

The zinc alloy body measures 198.5mm long by 28mm high by 26mm wide, suited to tight mounting spaces in ute canopies and cabin walls. Operating voltage is 6V to 15V DC, compatible with 12V vehicle electrical systems.

Features and benefits

AHD image sensor, 170-degree view angle: Wide field of view suited to cabin, canopy, and rear mounting positions.

7 IR LEDs with 0.01 Lux minimum illumination: Effective night vision and low-light performance.

Tiltable lens: Precise angle adjustment after mounting without repositioning the camera body.

Zinc alloy housing, IP68 rated: Durable metal construction with full waterproof ingress protection.

Selectable PAL/NTSC video format: PAL by default; NTSC selected by cutting wire.

Selectable parking guide lines: Enabled by default; disabled by cutting the white wire.

Selectable mirror image: Rear camera mode by default; front camera mode selected by cutting the green wire.

Number plate mounting bracket included: Allows number plate-style installation in addition to body mounting.

Rear or front mounting: Suitable for both reverse and forward-facing applications.

Technical specs

Specification Detail
SKU RCC170-AHD
Brand DNA
Type AHD reverse/cabin camera
Image Sensor AHD
Scanning Area 4.88mm x 3.67mm
Resolution 976(H) x 592(V)
Electronic Shutter 1s to 1/10000s
SNR 45.0dB or above
Minimum Illumination 0.01 Lux
Video Output 1.0V ±0.5Vp-p, 75 ohm
View Angle 170 degrees
IR LEDs 7
Working Voltage 6V to 15V DC ±0.5V
Current Consumption 100mA ±10%
Waterproof Rating IP68
Housing Material Zinc alloy
Camera Body Size 198.5mm (L) x 28mm (H) x 26mm (W)
Video Format PAL (default) or NTSC (cut wire to select)
Parking Guide Lines On by default (cut white wire to disable)
Mirror Image Rear mode by default (cut green wire for front mode)
Includes Camera, number plate mounting bracket

Frequently asked questions

What vehicles is the RCC170-AHD suited to? The RCC170-AHD is a universal camera suited to any vehicle requiring a cabin or canopy-mounted rear or front camera. It is particularly suited to utes with canopy or tub-mounted camera requirements where a standard number plate camera position is not practical.

How do I change the camera from rear to front mode? By default the camera is configured for rear installation with a mirrored image. Cutting the green wire changes the image orientation for front camera installation.

Can I turn off the parking guide lines? Yes. Parking guide lines are enabled by default. Cutting the white wire disables them.

What is the difference between PAL and NTSC, and how do I switch? PAL and NTSC are video format standards. PAL is the standard used in Australia. PAL is selected by default. Cutting the designated wire selects NTSC. If your head unit is Australian-specification, PAL is the correct setting and no modification is needed.

What does IP68 mean for this camera? IP68 is the highest common waterproof ingress protection rating, indicating the camera is fully dustproof and protected against continuous water immersion. This suits rear-of-vehicle and canopy mounting positions exposed to rain, wash-down, and road spray.
