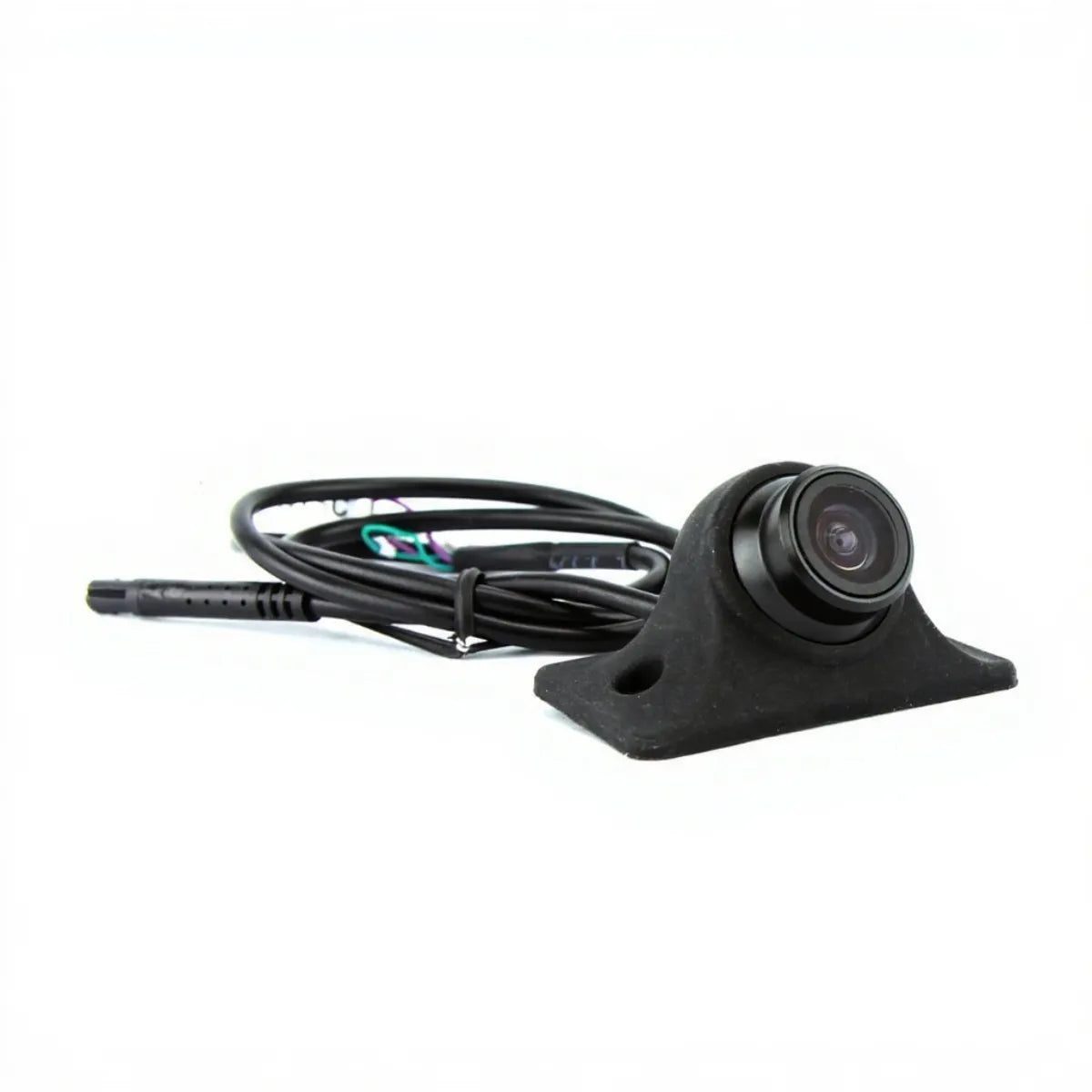

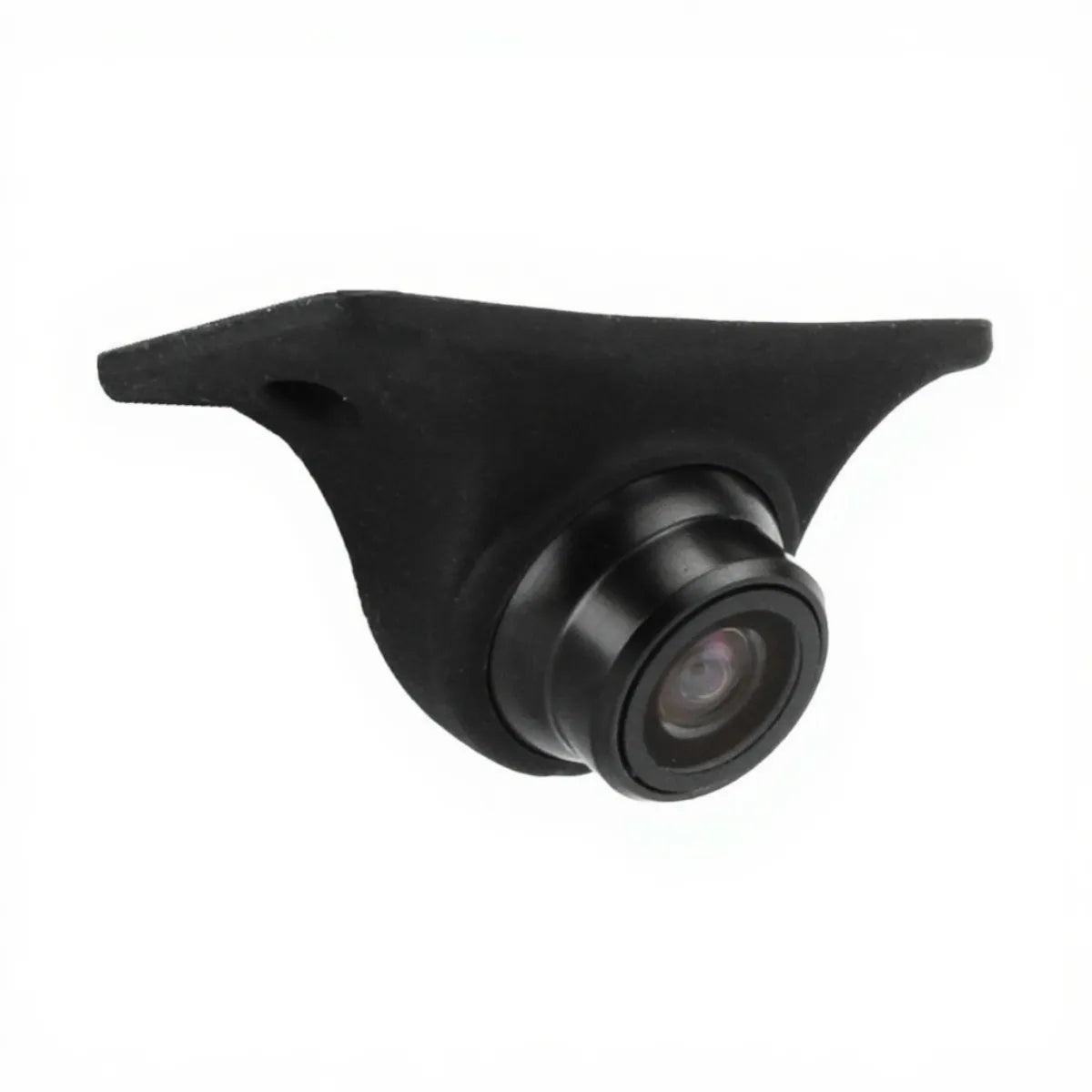

DNA RCBS170 CMOS Reverse Rubber Mount Blind Spot Camera

DNA RCBS170 CMOS Reverse Rubber Mount Blind Spot Camera

High-definition CMOS blind spot camera with rubber mount for safer driving and reversing

The DNA RCBS170 CMOS Reverse Rubber Mount Blind Spot Camera is engineered to provide superior visibility and enhanced safety when driving and reversing. Designed to mount under the side mirror, this heavy-duty camera offers a 170° wide-angle view of blind spots, making it perfect for cars, trucks, SUVs, RVs, and 4WDs.

Built with a robust zinc alloy housing and featuring an IP68 waterproof rating, this camera delivers exceptional durability in all weather conditions. With selectable PAL/NTSC formats, parking guide lines, and mirror image settings, it's a versatile solution suitable for professional installations and custom vehicle setups.

DNA RCBS170 Key Features & Benefits:

• Wide-Angle Blind Spot Coverage: 170° viewing angle to eliminate blind spots for safer driving and reversing.
• Under-Mirror Mount Design: Perfectly designed for side-mirror installation on cars, trucks, and RVs.
• Heavy-Duty Construction: Zinc alloy housing provides maximum protection against knocks and impacts.
• Selectable Video Formats: Switch easily between PAL and NTSC formats to suit your system requirements.
• Parking Guide Lines & Mirror Image: Optional assist lines and image flip functionality for flexible configurations.
• All-Weather Durability: IP68 waterproof rating ensures performance even in extreme conditions.

Technical Specifications:

• Model: DNA RCBS170
• SKU: RCBS170
• Type: CMOS Blind Spot Reverse Camera
• Image Sensor: CMOS
• Video System: PAL / NTSC (Selectable)
• Resolution: 976(H) × 592(V)
• Horizontal Resolution: 700 TVL
• View Angle: 170°
• Min Illumination: 0.01 Lux
• Electronic Shutter: 1s – 1/10000(S)
• SNR: ≥45dB
• Video Output: 1.0V±0.5Vp-p 75Ω
• Operating Voltage: DC 6V – 15V
• Power Consumption: 100mA ±10%
• Waterproof Rating: IP68
• Scanning Area: 4.88mm × 3.67mm
• Camera Size: 28mm (W) × 22mm (H) × 22mm (D)
• Butterfly Base Size: 44mm (L) × 18mm (W)
• Housing Material: Zinc Alloy
• Packaging: Poly Bag
• Brand: DNA

Selectable Features:

• PAL/NTSC Format (Purple wire) – Default: PAL. Cut wire to switch to NTSC.
• Image Control (Green wire) – Default: Rear installation. Cut wire to change for front camera use.
• Parking Guide Lines (White wire) – Default: Enabled. Cut wire to disable guidelines.

Compatible With:

• Car reversing camera systems
• Blind spot detection setups
• In-dash head units with RCA inputs
• 4WD and off-road monitoring systems
• Caravans, trucks, and RV safety installations
• Parking assist monitoring solutions

Installation Applications:

• Blind Spot Monitoring: Mounted under side mirrors to enhance visibility of vehicle blind spots.
• Reversing Camera Integration: Easily integrates with aftermarket or OEM head units.
• 4WD & Off-Road Setups: Built tough for demanding off-road and trade environments.
• Truck & RV Applications: Ideal for long vehicles requiring better situational awareness.
• Custom Safety Solutions: Perfect for vehicles needing professional-grade monitoring upgrades.

For drivers, installers, and 4WD enthusiasts looking for professional-grade blind spot monitoring, the DNA RCBS170 CMOS Reverse Rubber Mount Blind Spot Camera delivers reliable performance, rugged durability, and superior visibility in all driving conditions.

Frequently Asked Questions

• Where is this camera mounted?
  It’s designed to mount under the side mirrors to improve blind spot visibility.
• Does this camera support reversing guidelines?
  Yes, parking assist lines are selectable and can be enabled or disabled.
• Can I switch between PAL and NTSC formats?
  Yes, cut the purple wire to toggle between formats.
• Is this camera waterproof?
  Yes, it has an IP68 waterproof rating suitable for extreme weather conditions.
• Can I use this for front or rear camera setups?
  Yes, you can configure the image orientation via the green control wire.
