DNA RCB100 CMOS Reverse Camera Butterfly Mount PAL 170 Degree

DNA RCB100 CMOS Reverse Camera Butterfly Mount PAL 170 Degree

A miniature universal CMOS reverse camera with butterfly mount from DNA, the RCB100 delivers PAL video output with 480 TVL resolution, 170-degree view angle, parking guidelines, minimum illumination of 0.01 lux, a 6-metre video cable, and 1-metre power cable, suited to multipurpose vehicle reverse camera installations.

Product Overview

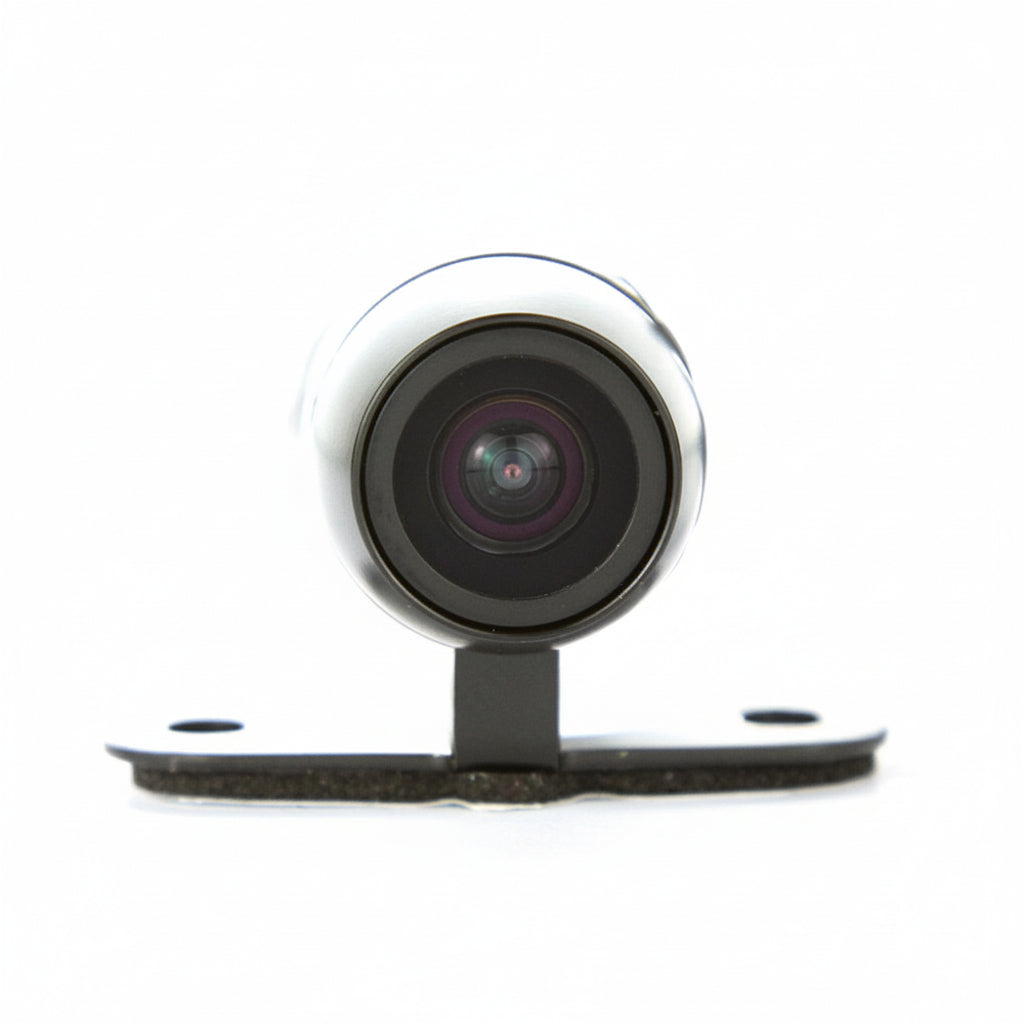

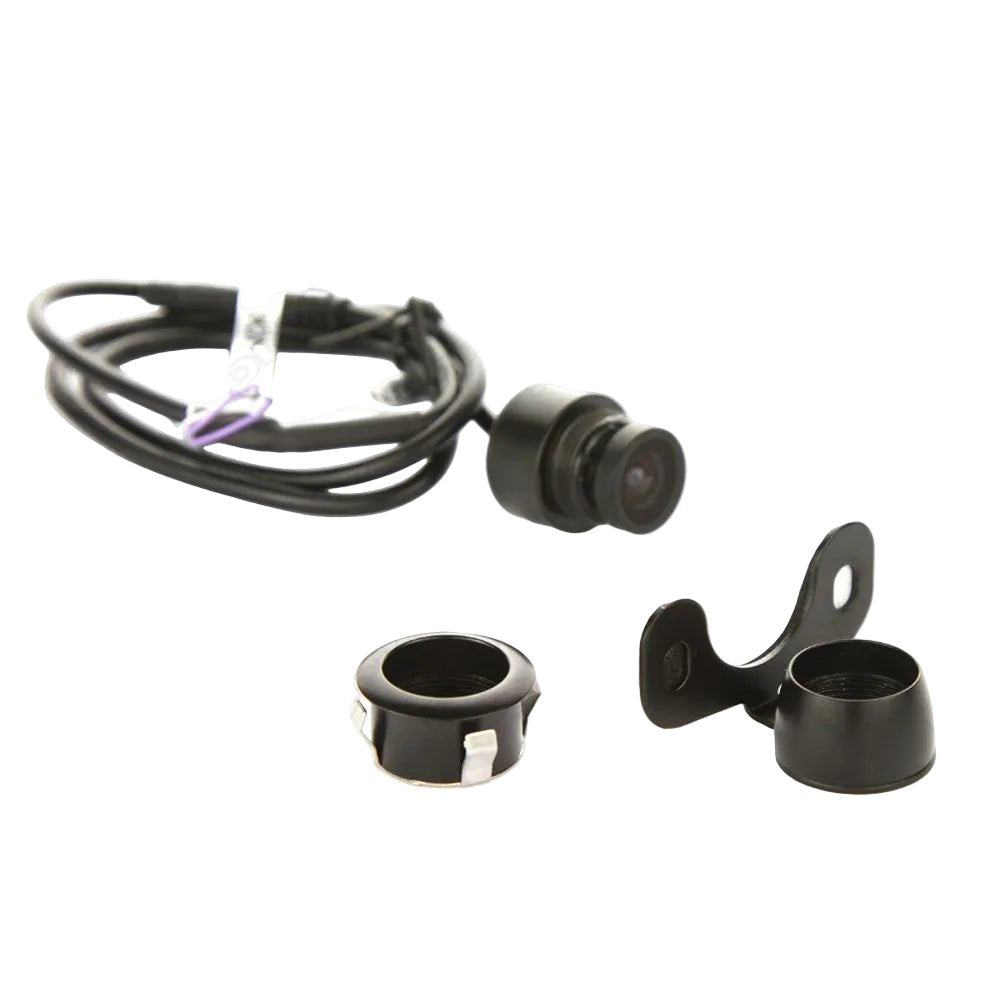

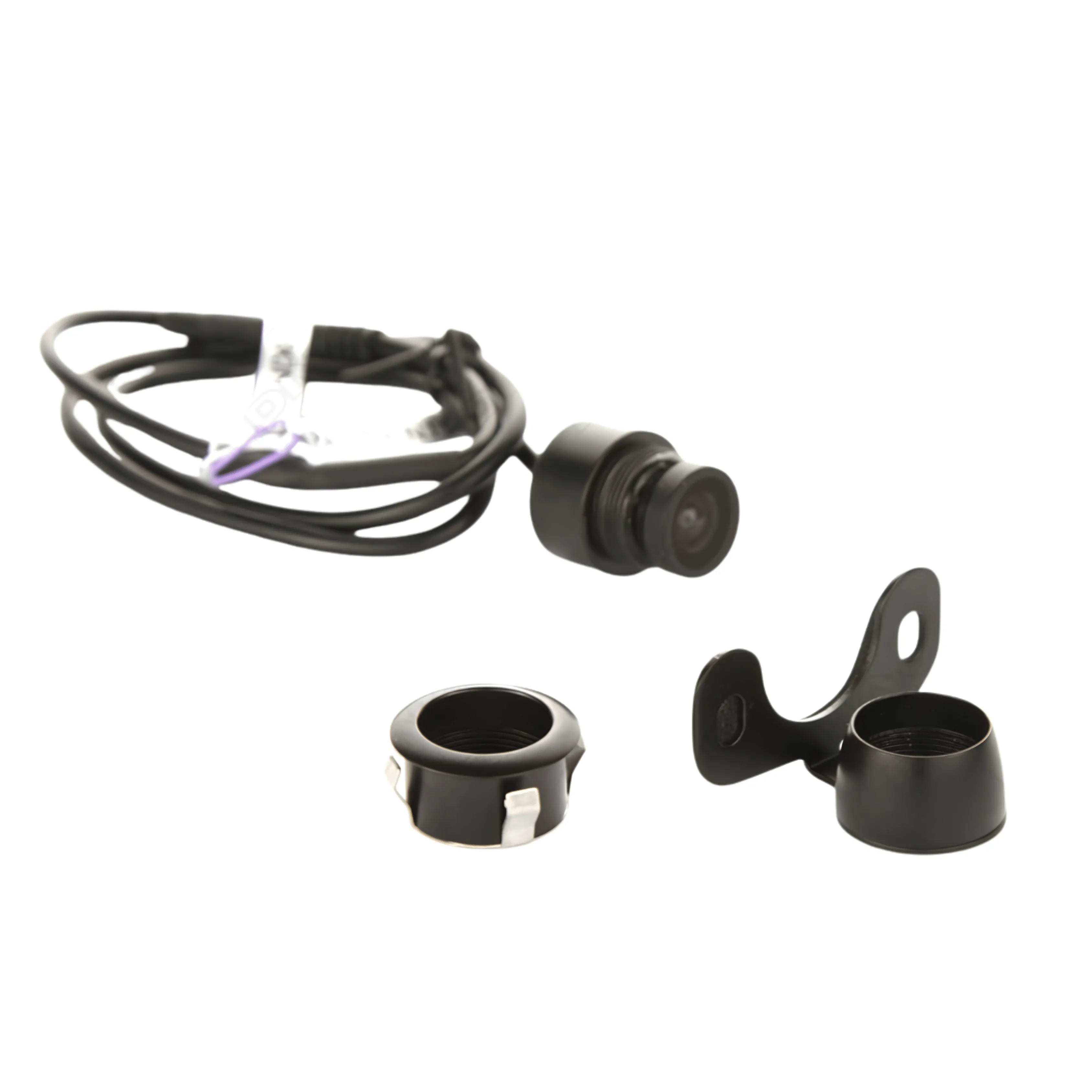

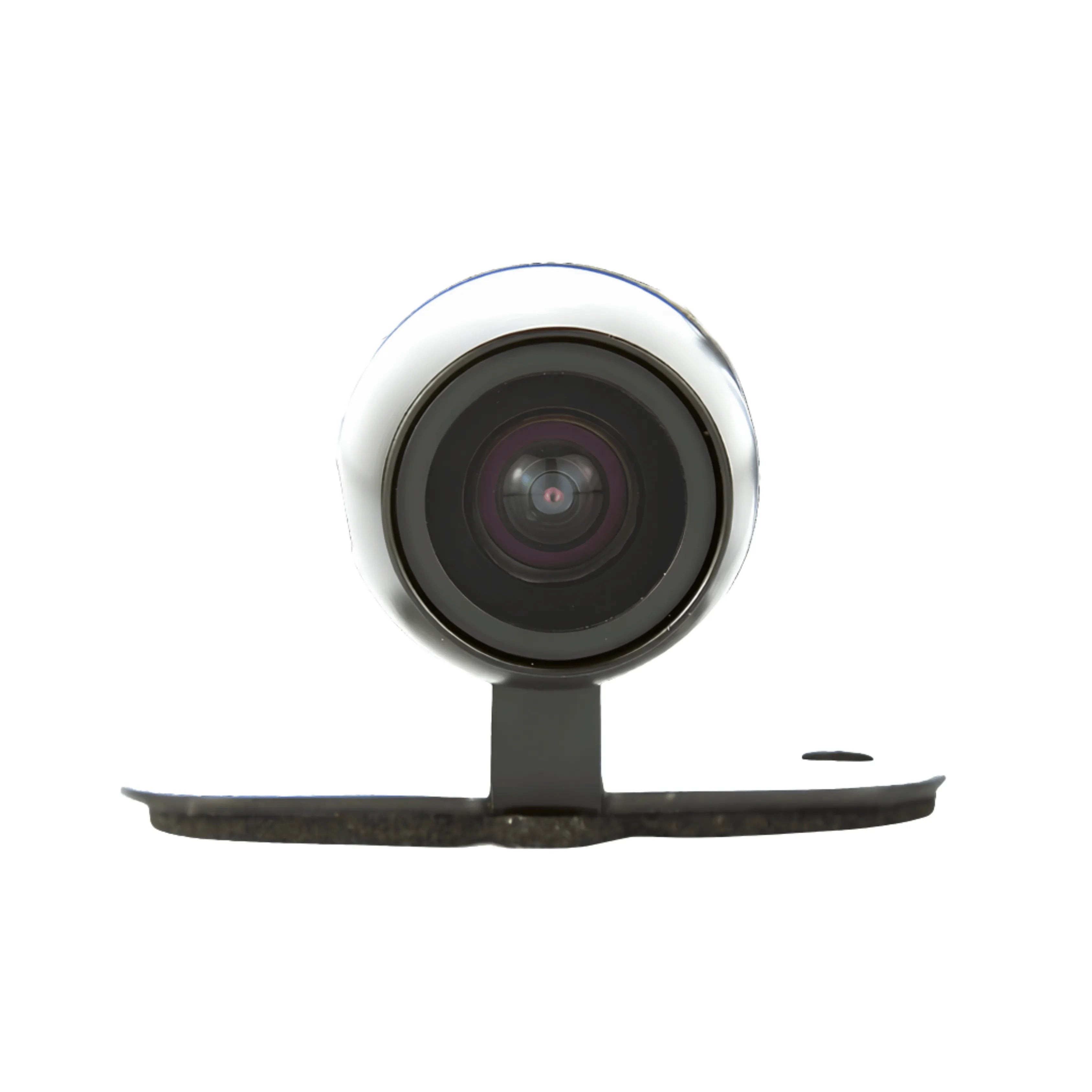

The DNA RCB100 is a miniature butterfly mount CMOS reverse camera designed as a truly universal solution for multipurpose vehicle reverse camera installations. The CMOS image sensor delivers PAL video output at 682 x 504 pixel resolution with 480 TVL horizontal resolution and a 170-degree wide view angle, providing extensive coverage of the area behind the vehicle. Parking guidelines are integrated into the video output for visual parking assistance. Minimum illumination of 0.01 lux enables effective low-light and night-time reversing visibility. The electronic shutter operates from 1s to 1/10000s for clear image capture across a wide range of lighting conditions. Supplied with a 6-metre video cable, 1-metre power cable, and 2 mounting screws. Operating voltage is DC 6V-12V ±0.5V. Packaged in a white box with instruction sheet.

Features & Benefits

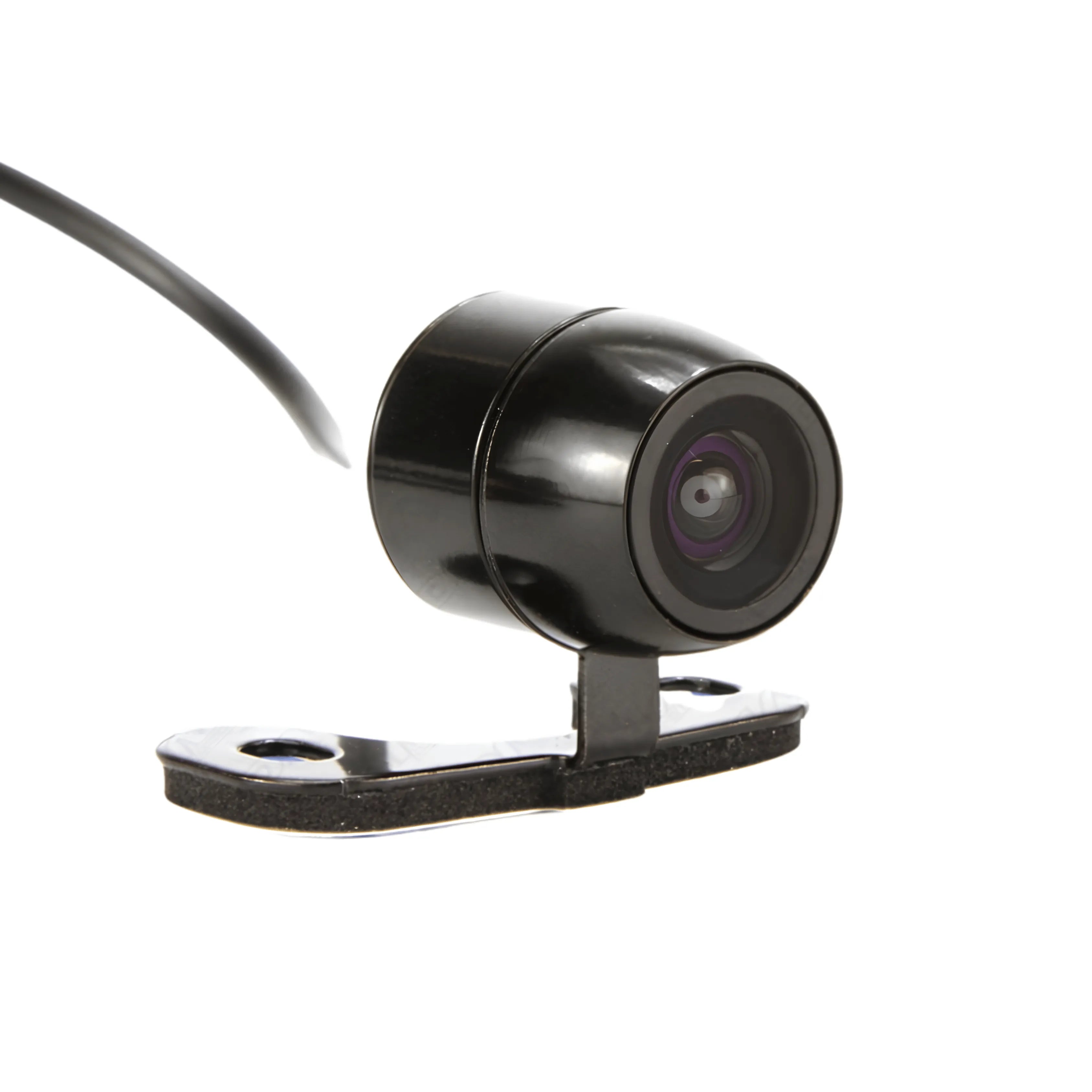

Miniature Butterfly Mount - Universal Vehicle Fitment: The compact butterfly mount design provides a truly universal mounting solution suited to a wide range of vehicle types and mounting positions including number plate surrounds, tailgates, and body panels.

170-Degree Wide View Angle: The 170-degree view angle provides extensive coverage of the area directly behind the vehicle, minimising blind spots during reversing manoeuvres.

CMOS Image Sensor - PAL Video Output: The CMOS image sensor delivers PAL video output compatible with PAL-format monitors, mirror monitors, and aftermarket head units with reverse camera input commonly used in Australia.

480 TVL Horizontal Resolution: The 480 TVL horizontal resolution provides clear and detailed reverse camera imagery for effective parking assistance.

Integrated Parking Guidelines: Parking guidelines are integrated directly into the camera video output, providing visual guidance lines on the monitor or head unit display without requiring additional configuration.

Minimum Illumination 0.01 Lux: The 0.01 lux minimum illumination rating enables effective camera imagery in very low-light and near-dark conditions, providing useful reverse visibility at night and in poorly lit areas.

Electronic Shutter 1s to 1/10000s: The wide electronic shutter range from 1 second to 1/10000 second automatically adapts to varying lighting conditions for consistent image quality across different reversing environments.

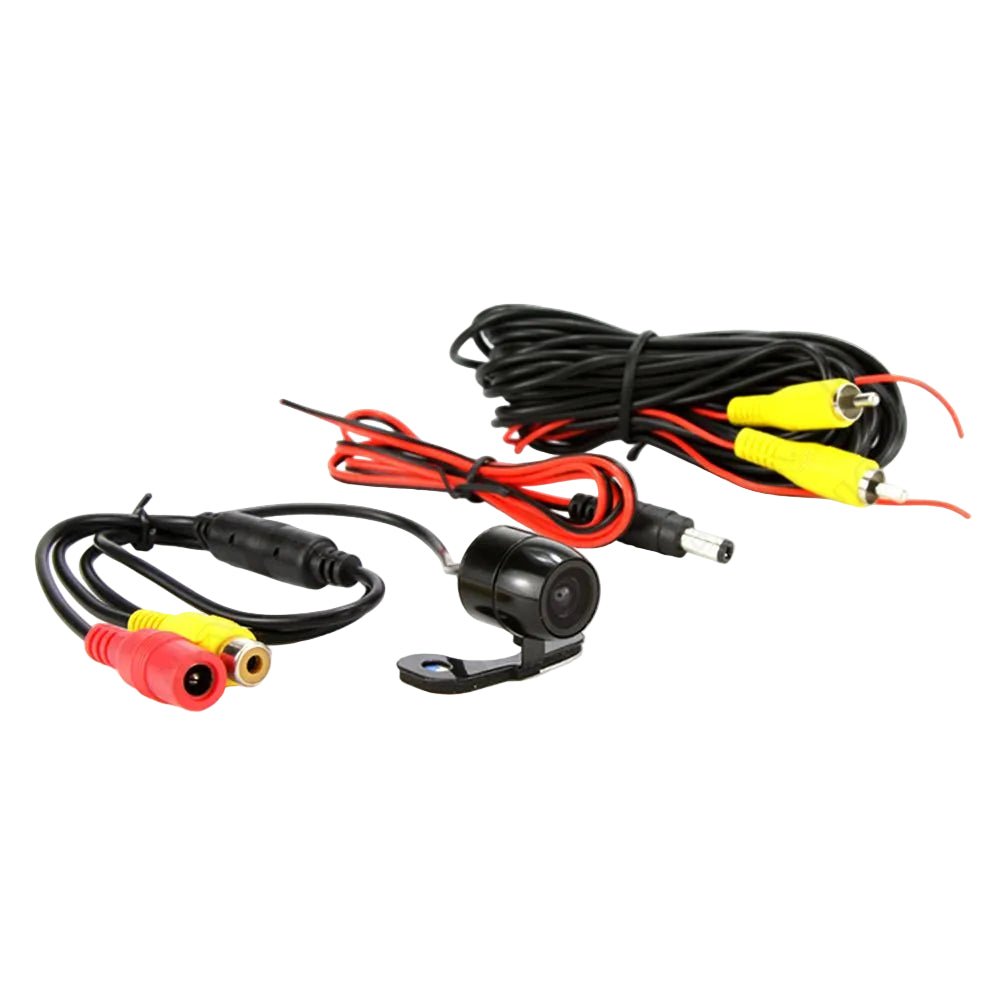

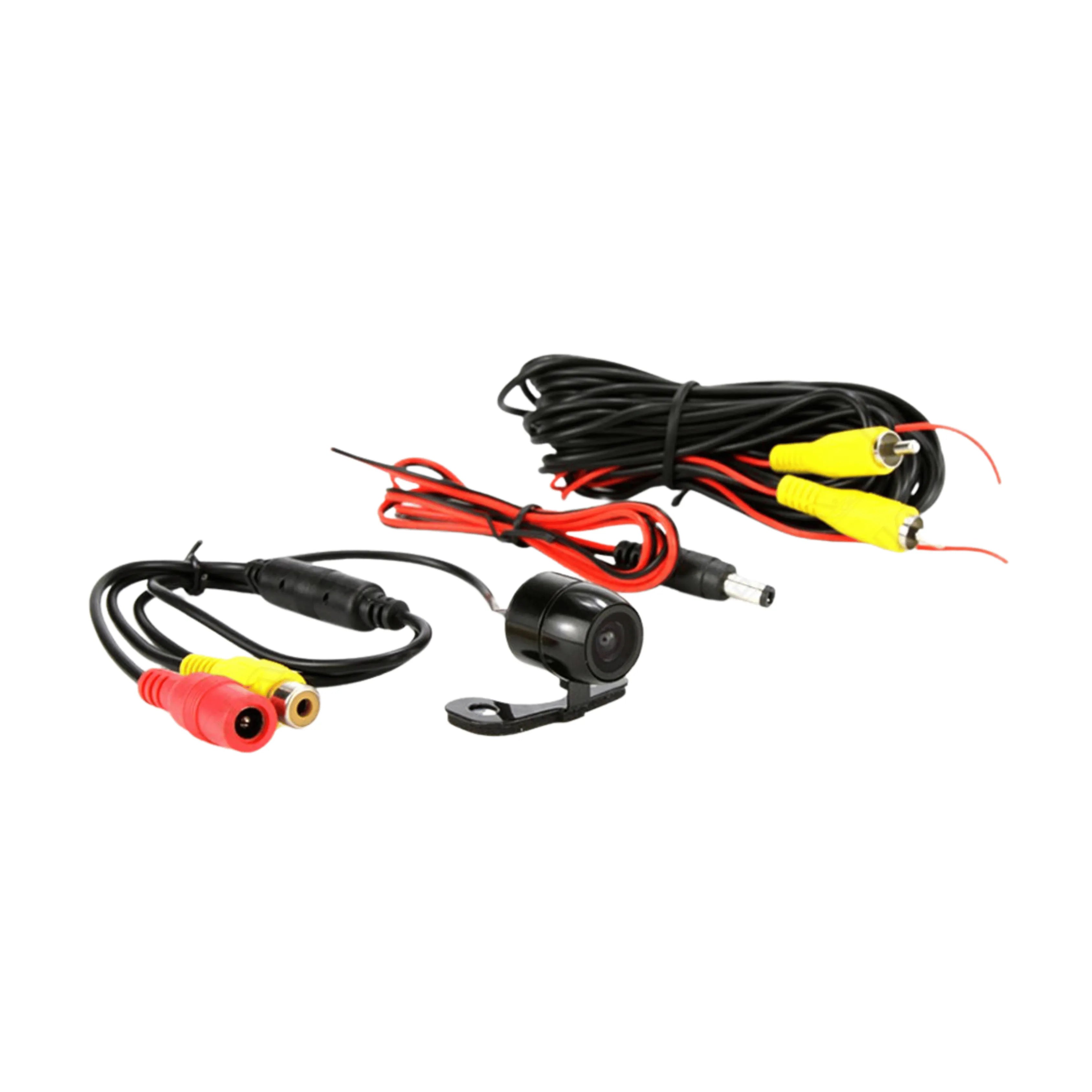

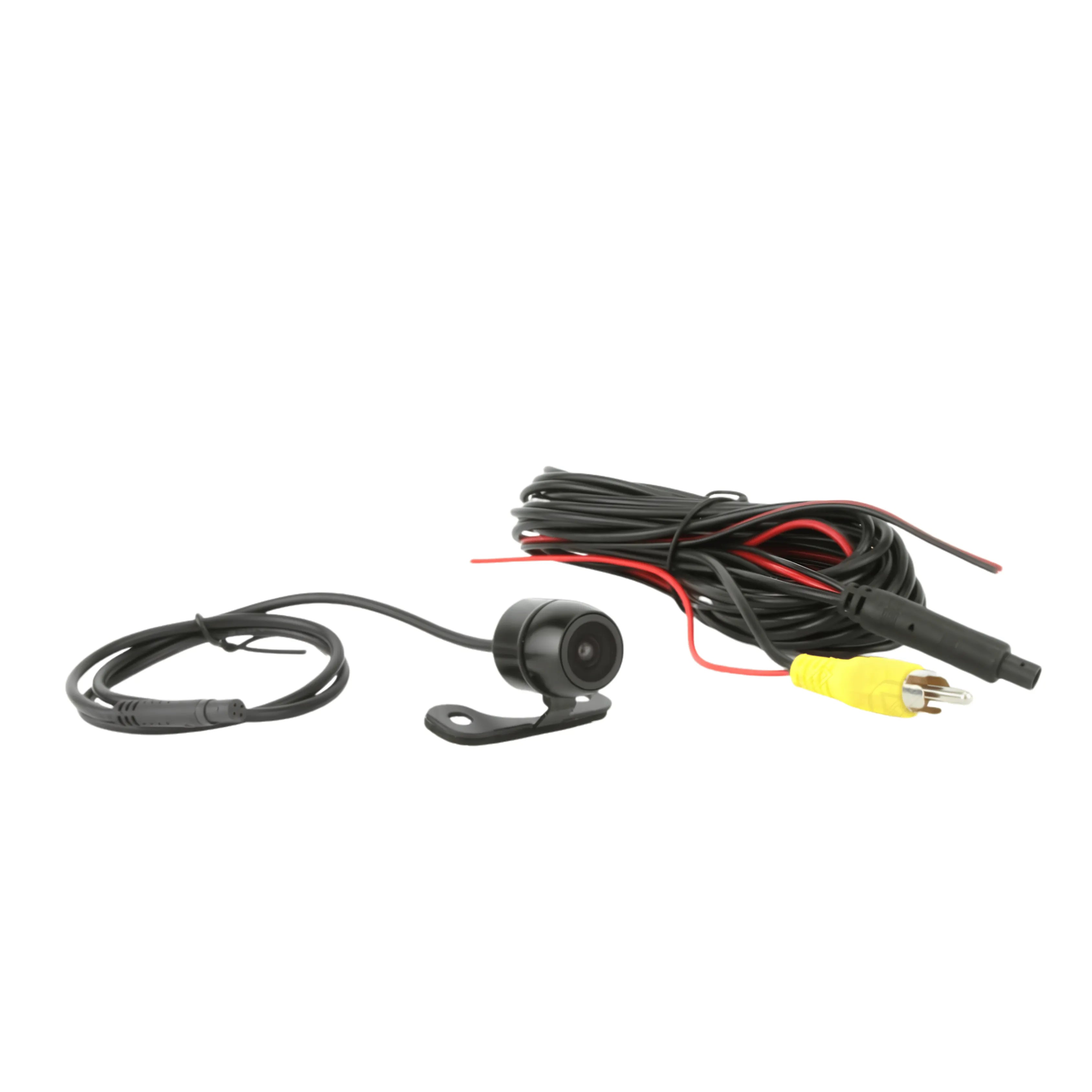

6-Metre Video Cable and 1-Metre Power Cable: The 6-metre video cable provides sufficient reach from the camera mounting position at the rear of the vehicle to the head unit or monitor location in most passenger vehicles. The 1-metre power cable connects to the reverse trigger or power source.

2 Mounting Screws Included: Two mounting screws are included for securing the butterfly mount camera to the vehicle.

Technical Specs

Compatible With

The RCB100 is compatible with PAL-format monitors, mirror monitors, and aftermarket head units with a reverse camera input. Operating voltage is DC 6V-12V ±0.5V. Confirm the camera input type and voltage requirements of your specific head unit or monitor before purchase.

Frequently Asked Questions

Does the RCB100 include parking guidelines?

Yes. Parking guidelines are integrated into the camera video output and are displayed on the connected monitor or head unit screen without requiring additional configuration.

What video format does the RCB100 output?

The RCB100 outputs a PAL video signal, compatible with PAL-format monitors, mirror monitors, and aftermarket head units with reverse camera input commonly used in Australia.

How long is the video cable on the RCB100?

The RCB100 includes a 6-metre video cable, providing sufficient reach from the camera at the rear of the vehicle to the head unit or monitor location in most passenger vehicles.

What is the view angle of the RCB100?

The RCB100 has a 170-degree view angle, providing extensive coverage of the area directly behind the vehicle and minimising blind spots during reversing.

What is the operating voltage of the RCB100?

The RCB100 operates on DC 6V-12V ±0.5V. Confirm the voltage available at the camera mounting location in your specific vehicle before installation.
