DNA PA100W Universal Round Mount USB-C PD 100W + QC USB-A 36W Vehicle Charger

100W USB-C + 36W USB-A. Round Panel Mount. Laptop-Capable Vehicle Charging.

Product Overview

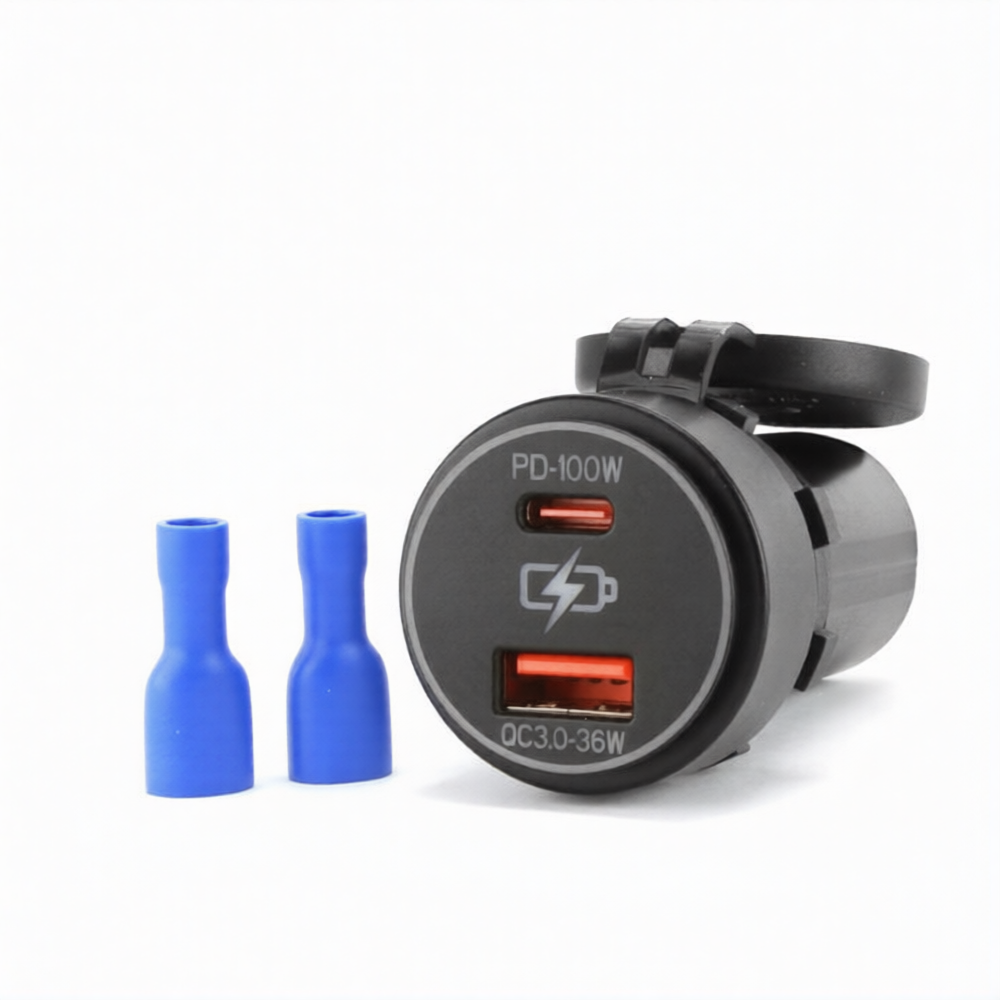

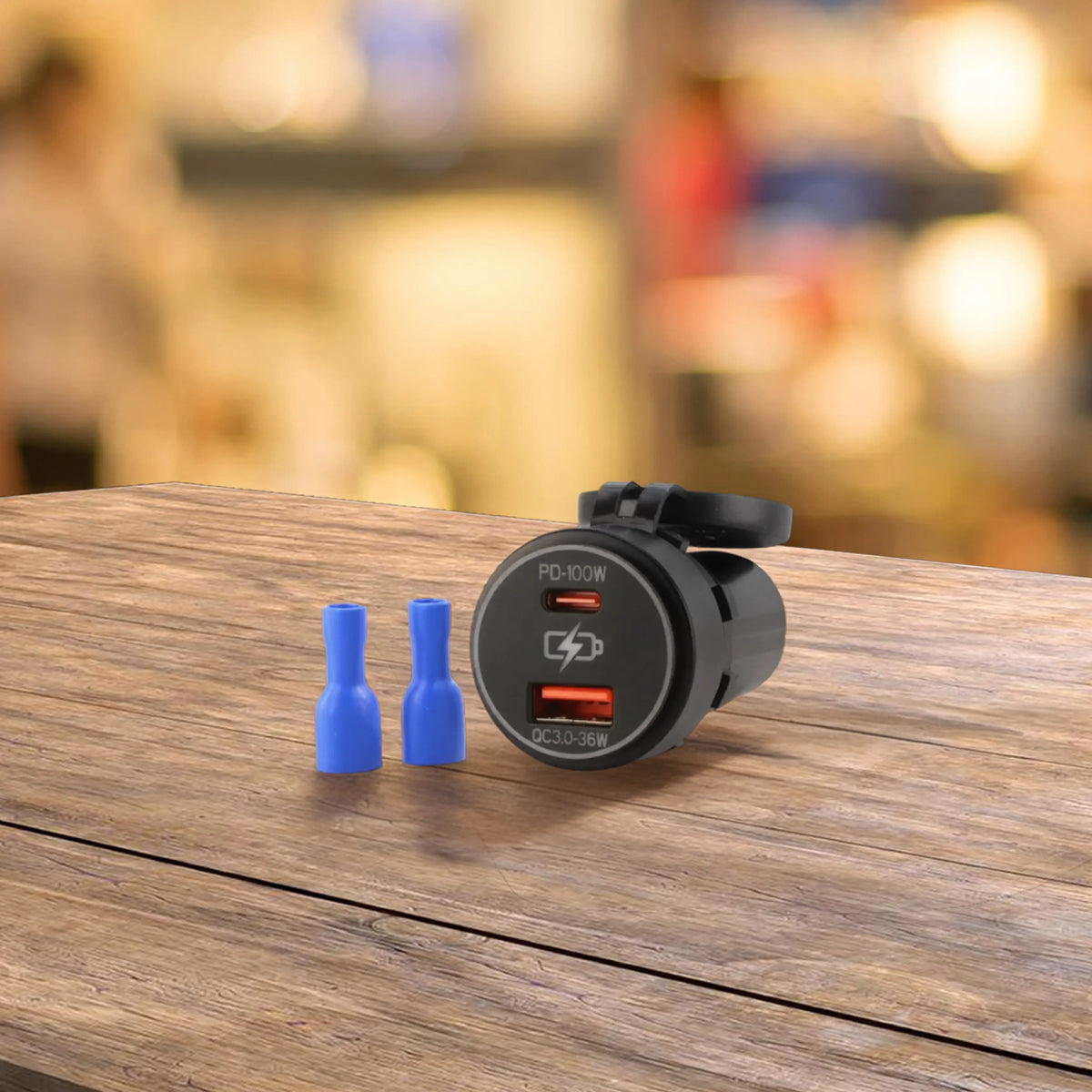

The PA100W is a universal round panel-mount vehicle charger combining a USB-C Power Delivery port at 100 watts and a USB-A Quick Charge port at 36 watts both running simultaneously from a 12V or 24V DC circuit. At 100W USB-C PD output, this charger delivers enough power to fast-charge a laptop, tablet, or any USB-C device rated up to 100W, including 20V 5A devices, directly from your vehicle's electrical system.

The round mount design installs into a 29.2mm hole with a threaded locking nut for a secure, rattle-free fit in any dash panel, console, or custom build. A dust cover is included to protect the ports when not in use. Mounting depth is 59.9mm with a total depth from face to terminal of 78.2mm confirm clearance behind your mounting surface before installation. Designed for 4WDs, utes, vans, caravans, and any 12V or 24V vehicle where high-power USB charging is needed in a clean, panel-flush installation.

Key Specifications

• SKU: PA100W
• Input Voltage: 12–24V DC
• USB-C Output: PD 100W — 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A
• USB-A Output: QC 36W — 5V/3A, 9V/3A, 12V/3A
• Maximum USB-C Output: 100W (20V at 5A)
• Maximum USB-A Output: 36W (12V at 3A)
• Mount Style: Universal round panel mount
• Mounting Hole Size: 29.2mm diameter
• Mounting Depth: 59.9mm
• Total Depth (face to terminal): 78.2mm
• Locking Nut: Yes — threaded
• Dust Cover: Yes — included
• Compatible Vehicles: Universal — any 12V or 24V DC vehicle

Features & Benefits

• 100W USB-C PD — laptop-capable charging — At 20V 5A output, the USB-C port delivers true 100W Power Delivery — enough to charge a MacBook, Dell, HP, Lenovo, or any USB-C laptop at near-full speed from your vehicle. No more waiting for a hotel room or office outlet on the road — plug in your laptop on a long run through the outback and arrive with a charged machine.
• 36W USB-A Quick Charge — fast charge a second device simultaneously — The USB-A port supports Qualcomm Quick Charge profiles at 5V/3A, 9V/3A, and 12V/3A — fast-charging a smartphone, tablet, or USB-A accessory at the same time as the USB-C port is running at full 100W. Both ports operate independently.
• Universal round mount — fits any 29.2mm panel hole — The round mount design with threaded locking nut secures cleanly into any 29.2mm hole in a dash panel, centre console, armrest, or custom fabrication. No proprietary brackets, no adhesive mounts — drill a hole, drop it in, thread the nut from behind. Suits factory-drilled blanks in compatible vehicles or custom installs in caravans, 4WDs, utes, and vans.
• 12V and 24V compatible — works in any vehicle — From a standard 12V passenger car or 4WD through to a 24V truck, bus, or caravan setup, the PA100W accepts the full 12–24V DC input range without an adapter or voltage converter. One charger, any vehicle.

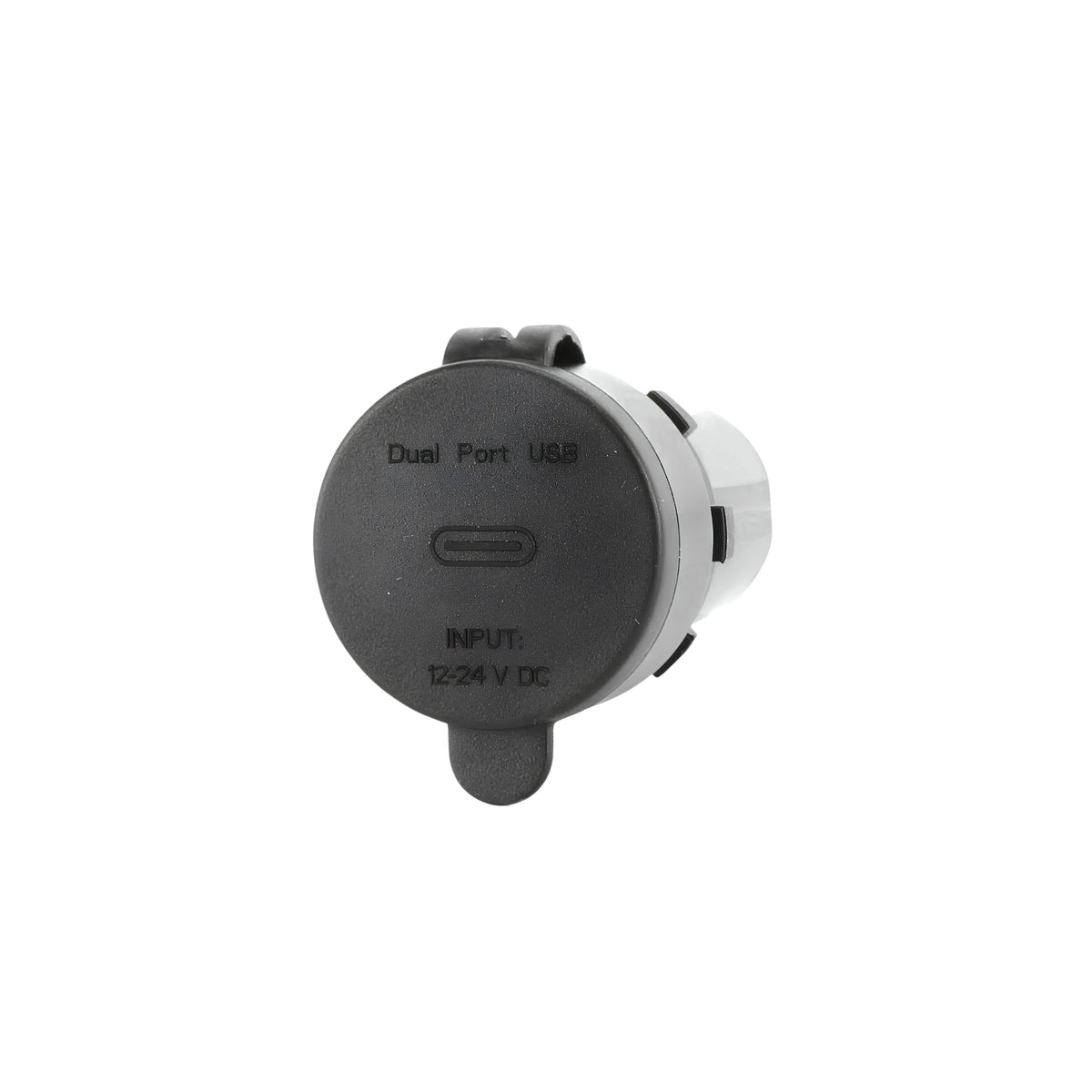

• Dust cover included — port protection when not in use — The included dust cover protects both ports from dust, moisture, and debris when the charger is not in use — important in off-road and dusty conditions where uncovered ports can fill with red dirt on a corrugated track.
• Threaded locking nut — secure, rattle-free fit — The threaded locking nut pulls the charger body tight against the mounting panel for a secure, rattle-free installation. No loosening over corrugations, no movement under vibration.

Technical Specs

Compatible With / Goes Well With

Vehicles (universal — any 12V or 24V DC):

• 4WDs, utes, SUVs, and wagons
• Caravans and campervans
• Trucks and vans (12V and 24V)
• Boats and marine vessels
• Custom console and dash panel builds

Devices:

• USB-C laptops (MacBook, Dell, HP, Lenovo, ASUS, and others rated up to 100W)
• USB-C tablets and iPads
• USB-C smartphones
• USB-A smartphones, tablets, and accessories (QC compatible)
• Any USB-PD or USB-QC compatible device within rated output

Goes Well With:

• Panel-mount switch blanks and 29.2mm accessories
• Dual battery systems (12V or 24V)
• Vehicle-specific console and dash installation kits

Frequently Asked Questions

Can this charger power a laptop at full speed from my car?

Yes — at 20V 5A (100W) USB-C PD output, the PA100W delivers enough power to charge most USB-C laptops at or near their maximum charge rate from any 12V or 24V vehicle circuit.

Can I charge two devices at the same time?

Yes. The USB-C and USB-A ports operate simultaneously — charge a laptop or tablet on USB-C while fast-charging a smartphone on USB-A QC at the same time.

What size hole do I need to mount this charger?

The PA100W requires a 29.2mm diameter mounting hole. Mounting depth behind the panel is 59.9mm, with a total depth from face to terminal of 78.2mm — confirm clearance behind your mounting surface before drilling.

Does this charger work in both 12V and 24V vehicles?

Yes. The PA100W accepts 12–24V DC input, making it compatible with standard 12V passenger vehicles, 4WDs, and caravans as well as 24V trucks, vans, and buses without any adapter or modification.

Is a dust cover included?

Yes — a dust cover is included in the box to protect both USB ports when not in use, keeping out dust, moisture, and debris during off-road driving or storage.
