DNA MIDI010-6 6-Way Modular AMI Midi Fuse Holder 400A
Click to open expanded view
DNA logo

DNA MIDI010-6 6-Way Modular AMI Midi Fuse Holder 400A

SKU: MIDI0106
Price
$109.95
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

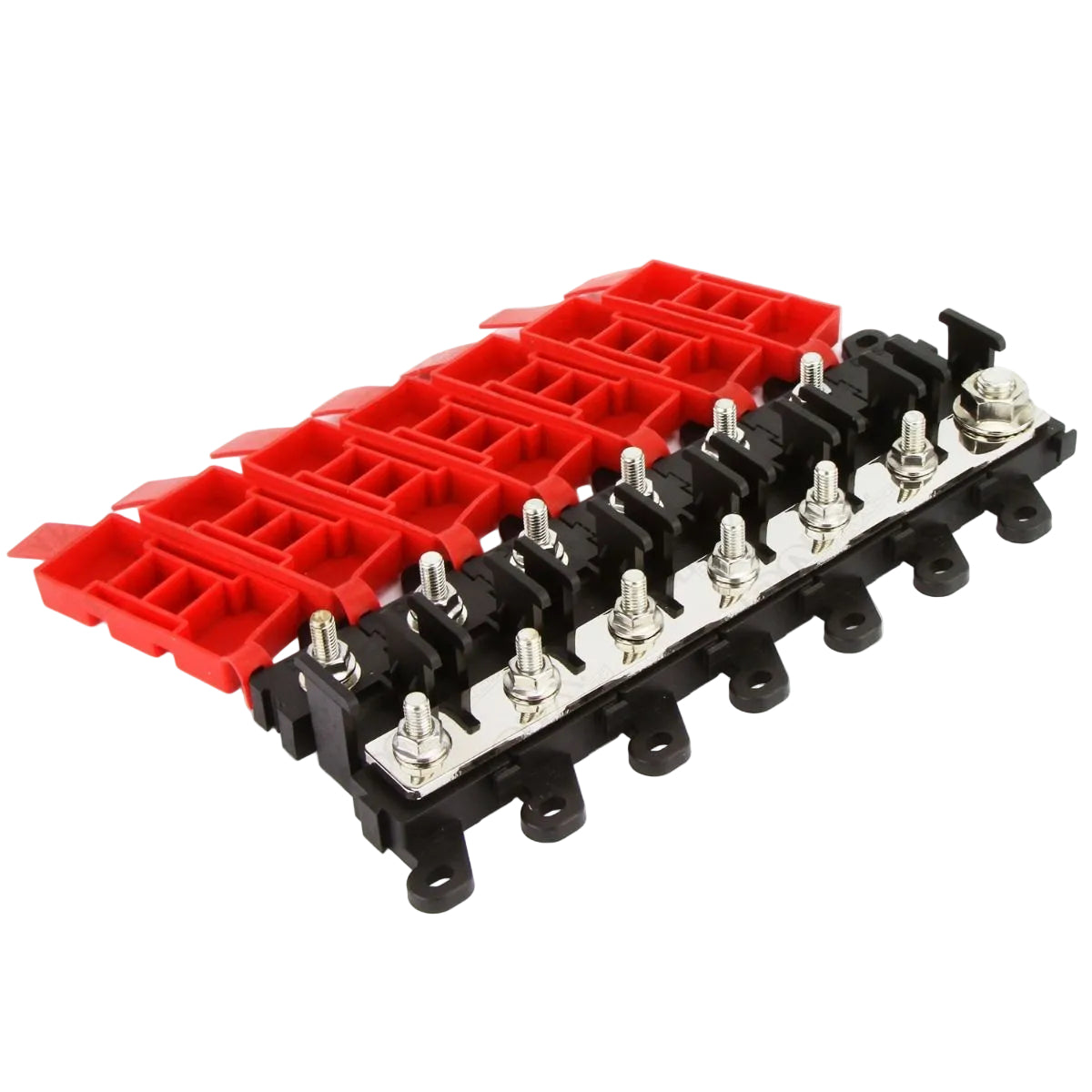

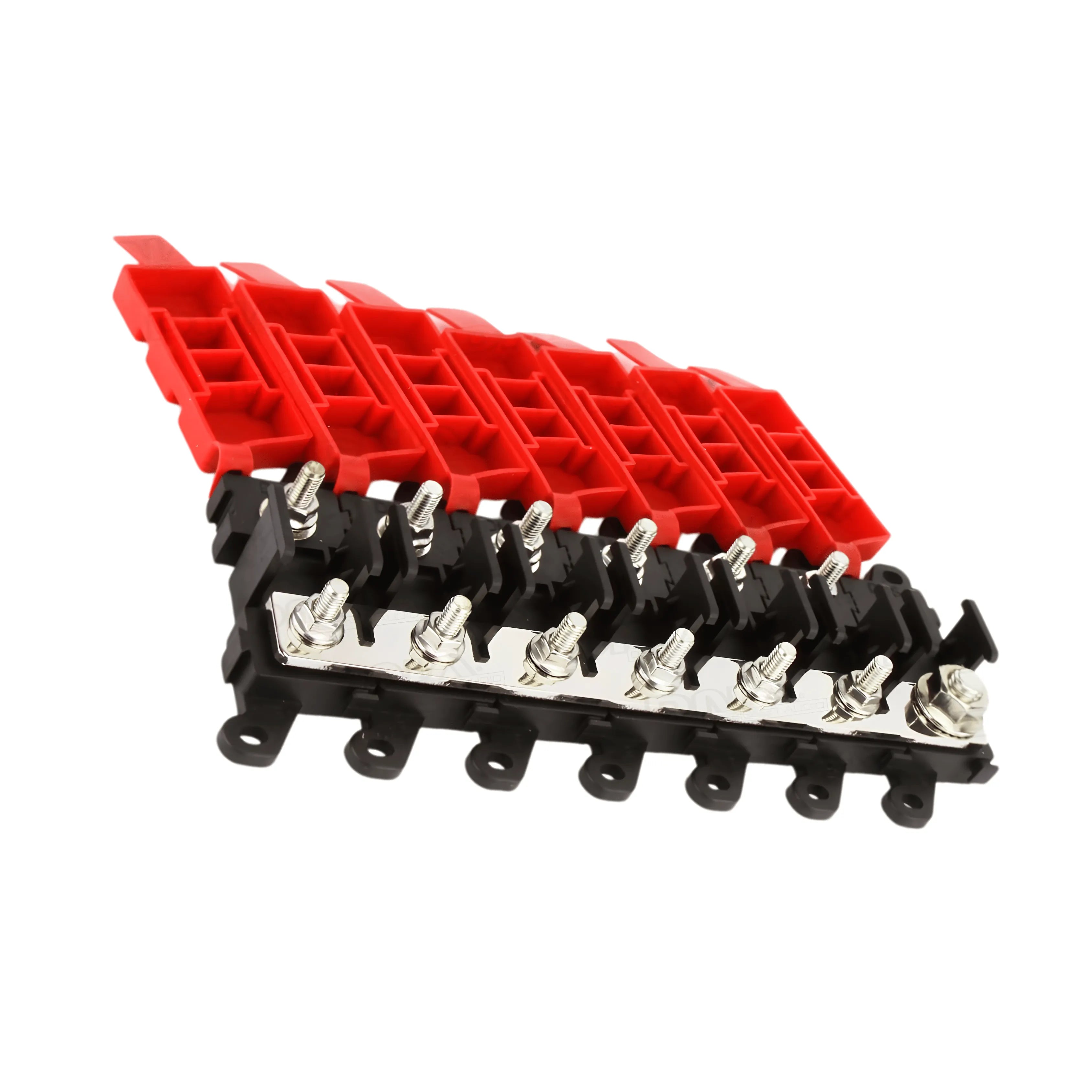

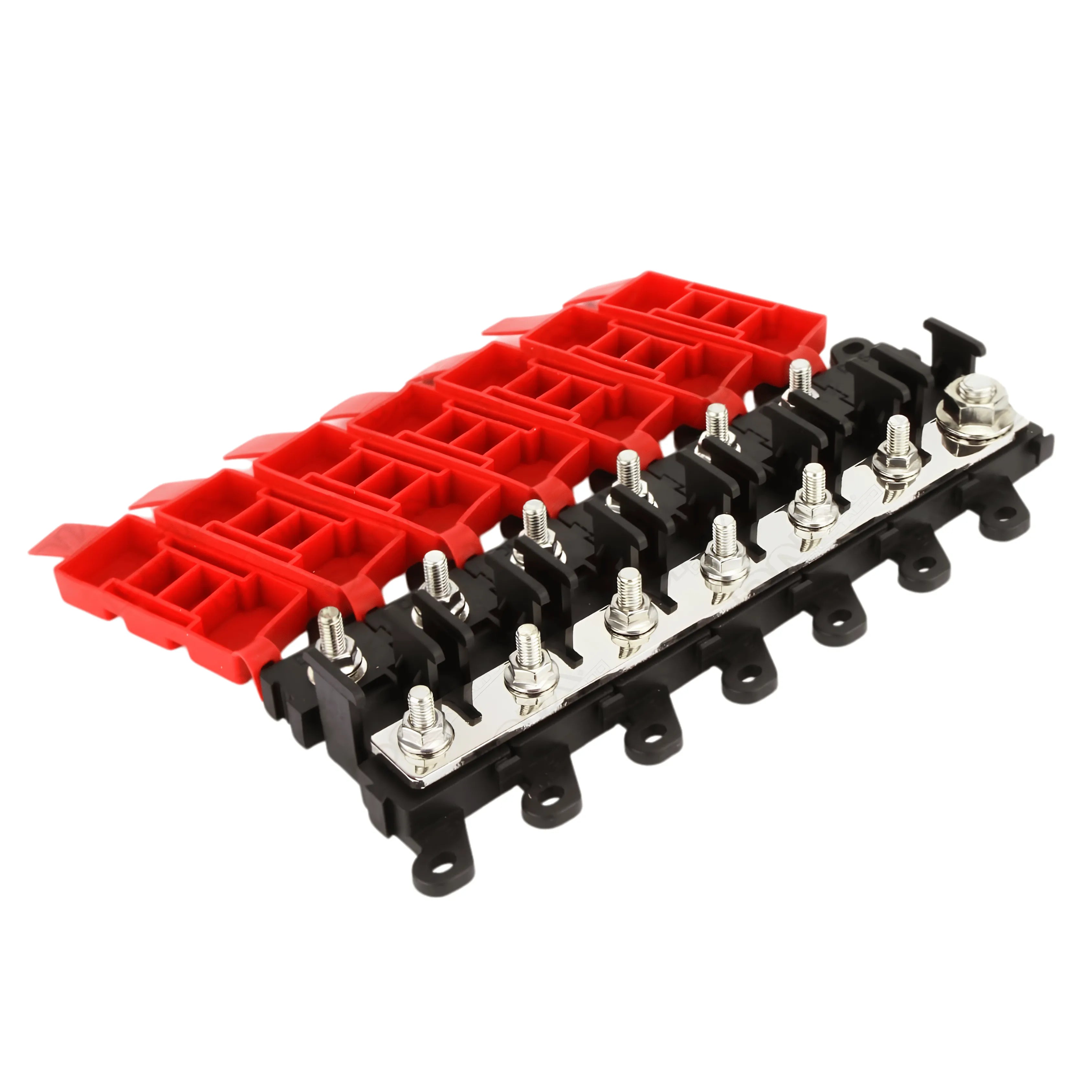

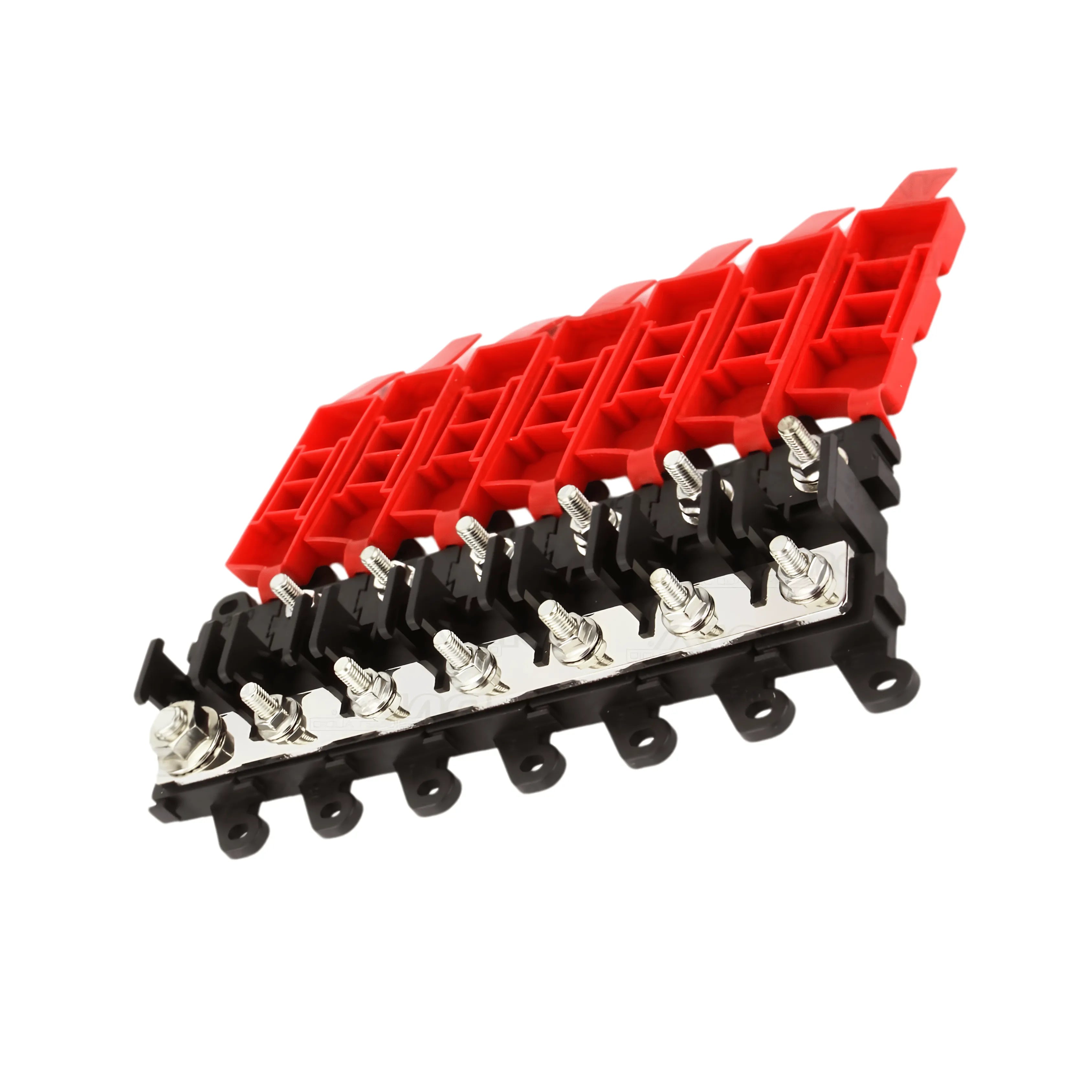

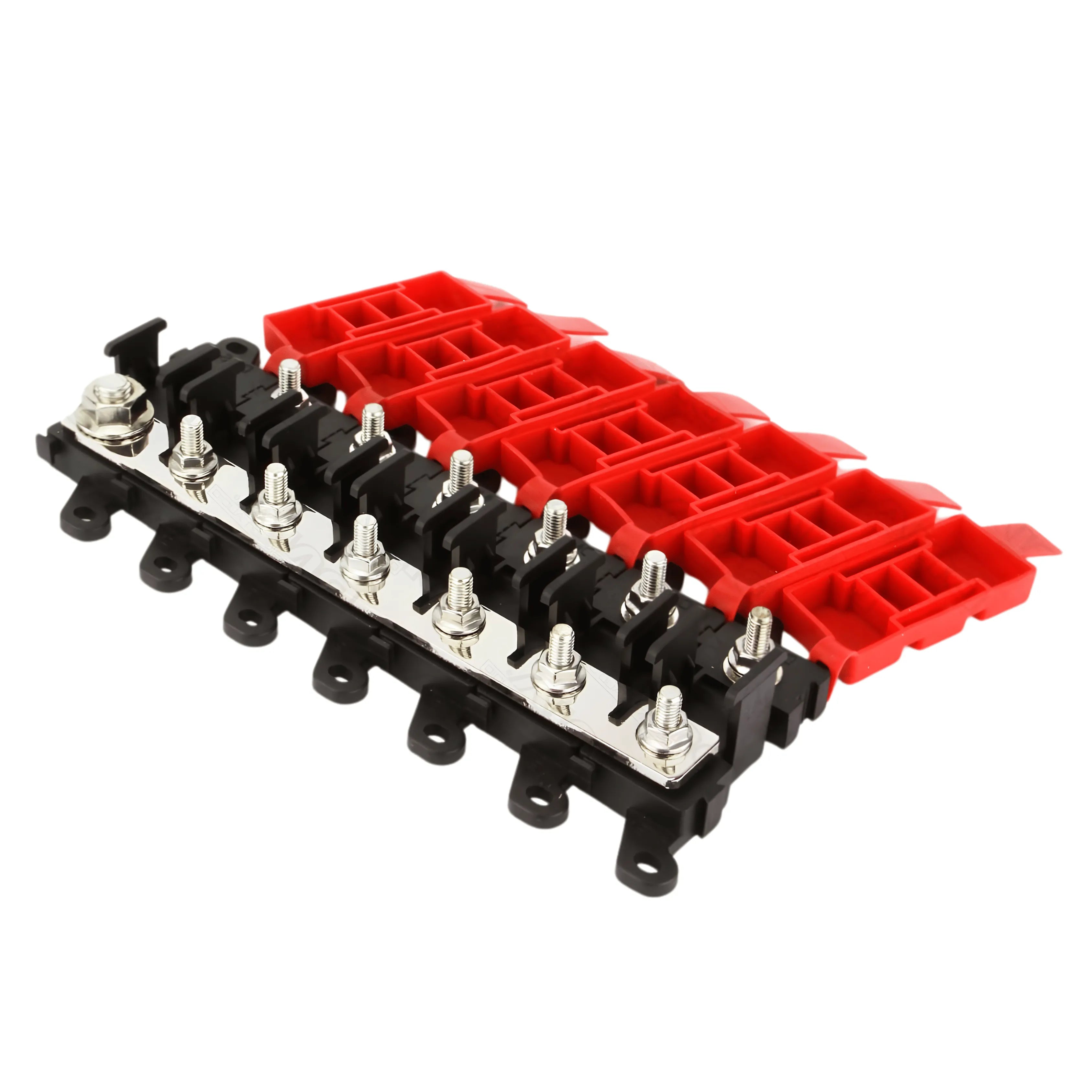

DNA MIDI010-6 6-Way Modular AMI and Midi Fuse Holder 400A

A complete 6-way modular AMI and Midi fuse holder pack for high-current DC systems, the DNA MIDI010-6 includes one input module, six AMI/Midi fuse holders, and a 7-hole busbar, rated at 200A per fuse holder and 400A total system capacity, suited to automotive, marine, caravan, and off-grid applications.

Product Overview

The DNA MIDI010-6 is a complete 6-way modular AMI/Midi fuse holder pack designed for high-current DC power distribution in automotive, marine, caravan, and off-grid applications. The pack is supplied pre-configured with one MIDI010-N input module, six MIDI010 AMI/Midi fuse holders, and one MIDIBB07 7-hole busbar, providing a compact, secure, and expandable power distribution solution ready for installation.

Each fuse holder is rated at 200A and the total system capacity is 400A at up to 24V DC. The M8 input stud and M5 fuse studs accommodate high-current cable terminations, and the high-temperature thermoplastic housing operates across -40°C to +85°C. The unit is surface mounted via bolt-down fixing. Fuses are sold separately. Individual modular components are also available separately, including the MIDI010 fuse holder, MIDI010-N input module, and modular packs from 1-way to 5-way configurations.

Features & Benefits

Complete 6-Way Modular Power Distribution Pack: The MIDI010-6 includes all components required for a complete 6-way AMI/Midi fuse holder installation in a single purchase, including the input module, six fuse holders, and the 7-hole busbar, pre-configured and ready to install.

200A Per Fuse Holder - 400A Total System Capacity: Each MIDI010 fuse holder is rated at 200A, with the total system capacity of the MIDI010-6 configuration at 400A, supporting high-current DC distribution requirements in demanding automotive, marine, and off-grid applications.

AMI and Midi Fuse Compatibility: The MIDI010-6 accepts AMI and Midi format fuses, which are widely used in high-current automotive, marine, and off-grid electrical systems. Fuses are sold separately.

M8 Input Stud and M5 Fuse Studs: The M8 input stud accommodates heavy-gauge power cable terminations at the input, and M5 fuse studs provide secure connections at each fuse position for reliable high-current distribution.

High-Temperature Thermoplastic Housing: The housing is manufactured from high-temperature thermoplastic, operating reliably across a -40°C to +85°C temperature range suited to underbonnet, marine, and off-grid environments.

Surface Mount Bolt-Down Fixing: The MIDI010-6 is secured via bolt-down surface mounting, providing a stable and vibration-resistant installation on panels, chassis, and enclosures.

Modular and Expandable Design: The MIDI010-6 uses a modular system that can be expanded or reconfigured using individual MIDI010 fuse holders, MIDI010-N input modules, and compatible busbars available separately. Modular configurations from 1-way to 6-way are available.

Wide Application Compatibility: The MIDI010-6 is suited to automotive, marine, caravan, and off-grid DC electrical system applications up to 24V DC.

Technical Specs

Specification Detail
SKU MIDI010-6
Brand DNA
Fuse Type AMI and Midi
Maximum Voltage 24V DC
Maximum Current per Fuse Holder 200A
Total System Capacity 400A
Input Stud M8
Fuse Studs M5
Housing Material High-Temperature Thermoplastic
Mounting Surface Mount, Bolt-Down
Operating Temperature -40°C to +85°C
Included Components 1 x MIDI010-N Input Module, 6 x MIDI010 Fuse Holders, 1 x MIDIBB07 7-Hole Busbar
Fuses Sold Separately

What's in the Box

  • 1 x MIDI010-N Input Module
  • 6 x MIDI010 AMI/Midi Fuse Holders
  • 1 x MIDIBB07 7-Hole Busbar

Compatible With

The MIDI010-6 is suited to automotive, marine, caravan, and off-grid DC electrical system applications up to 24V DC. Accepts AMI and Midi format fuses (sold separately). Individual components and alternative modular configurations are available separately: MIDI010 fuse holder, MIDI010-N input module, MIDI010-1 single-way, MIDI010-2 two-way, MIDI010-3 three-way, MIDI010-4 four-way, and MIDI010-5 five-way modular packs.

Frequently Asked Questions

Are fuses included with the MIDI010-6?

No. The MIDI010-6 includes the input module, six fuse holders, and the 7-hole busbar. AMI and Midi format fuses must be purchased separately. Select the appropriate current rating for each circuit based on the load requirements.

What is the maximum current capacity of the MIDI010-6?

Each MIDI010 fuse holder is rated at 200A and the total system capacity of the MIDI010-6 configuration is 400A at up to 24V DC.

Can the MIDI010-6 be expanded beyond 6 ways?

The MIDI010 system uses modular components that can be configured and expanded. Additional MIDI010 fuse holders and compatible busbars are available separately. Confirm the electrical ratings of the expanded configuration against your system requirements before installation.

What fuse types does the MIDI010-6 accept?

The MIDI010-6 accepts AMI and Midi format fuses, which are sold separately. Confirm the current rating required for each circuit before selecting fuses.

Is the MIDI010-6 suitable for marine installations?

Yes. The high-temperature thermoplastic housing and M8/M5 stud terminals are suited to marine applications. The operating temperature range of -40°C to +85°C and bolt-down surface mounting provide reliable performance in marine and outdoor environments.
