DNA DDC003 110mm High Double DIN Cradle with Plastic Surround

110mm Double DIN Cradle Fitting Frame with Black Plastic Trim Ring Surround

The DNA DDC003 used to surround a double DIN head unit so it can be mounted and locked into place within the vehicles dash. For use where a fascia panel is designed to accept a 110mm high cradle.

Product Specifications:

• Cradle Size:
• Internal Dimensions: 174mm x 97mm H
• External Dimensions: 188mm W x 118mm H
• Compatibility: JVC
• Packaging: White Gift Box With DNA Sticker.
• Trim Ring Size:
• Internal Dimensions: 180mm W x 100mm H
• External Dimensions: 182mm W x 103 mm H
• Mounting Cage Dimensions: 186mm W x 117mm H
• Double DIN Fitting Frame: 180mm Across x 100mm High x 100mm Deep

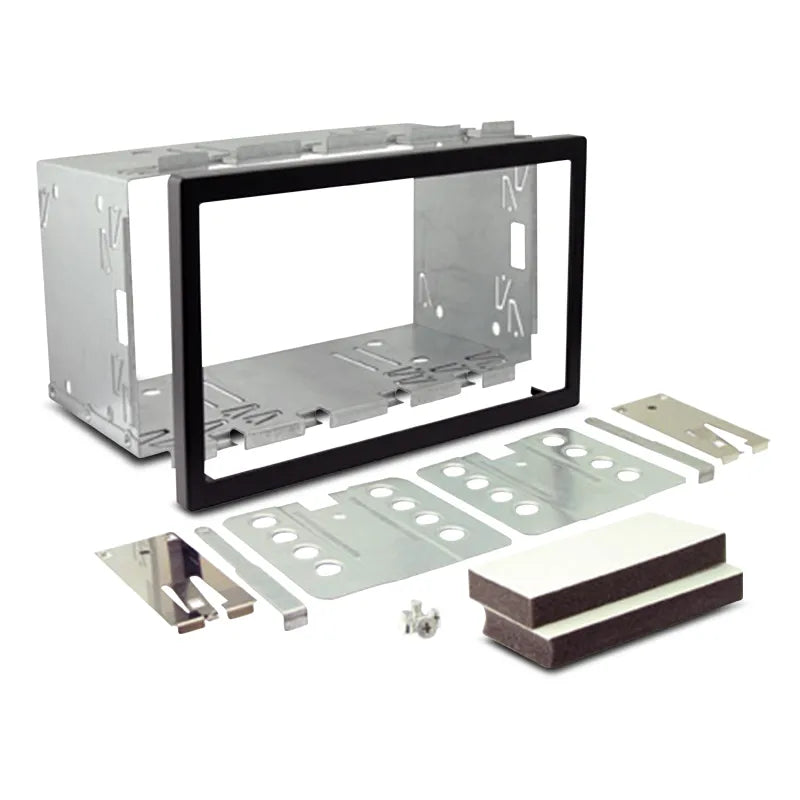

What's In The Box:

• Double DIN Fitting Frame
• 1 x Black Plastic Trim Ring Surround For Finishing the Installation Neatly & Professionally.
• Left & Right Plates That Screw To The Head Unit & Then Lock Into The Double DIN Fitting Frame.
• 2 x Brackets Used For Clamping The Plates. These Brackets Allow For The Head Unit To Be Moved Backwards & Forwards In The Cradle To Move It Into a Position Where It Is Flush With The Dash Of The Vehicle.
• Keys For Easy Removal Of The Head Unit From The Double DIN Fitting Frame.
• 4 x ISO Screws For Fastening The Left & Right Plates To The Sides Of The Head Unit.
• 2 x Foam Pads.
