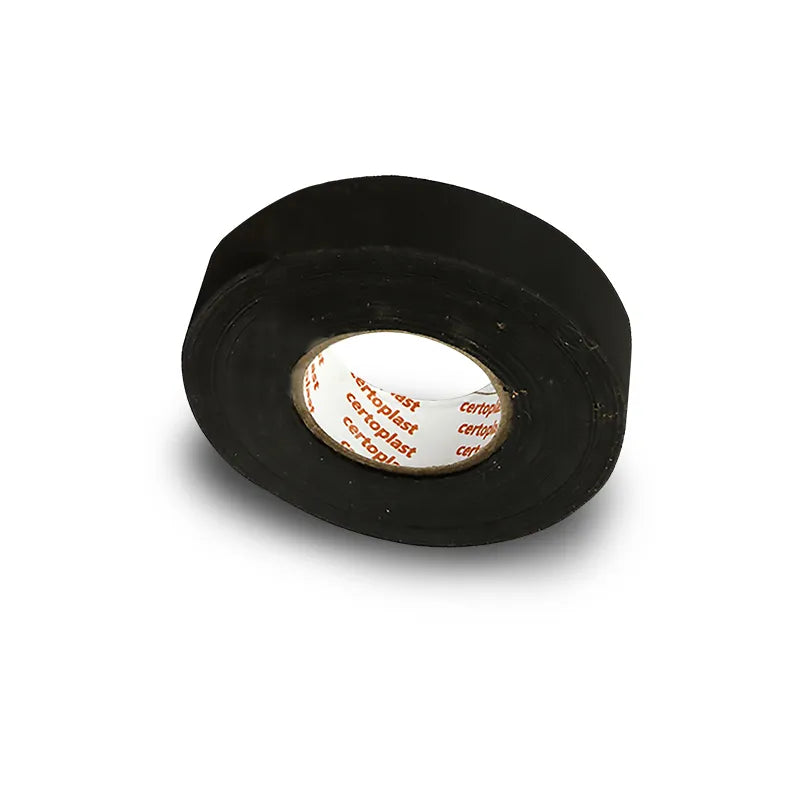

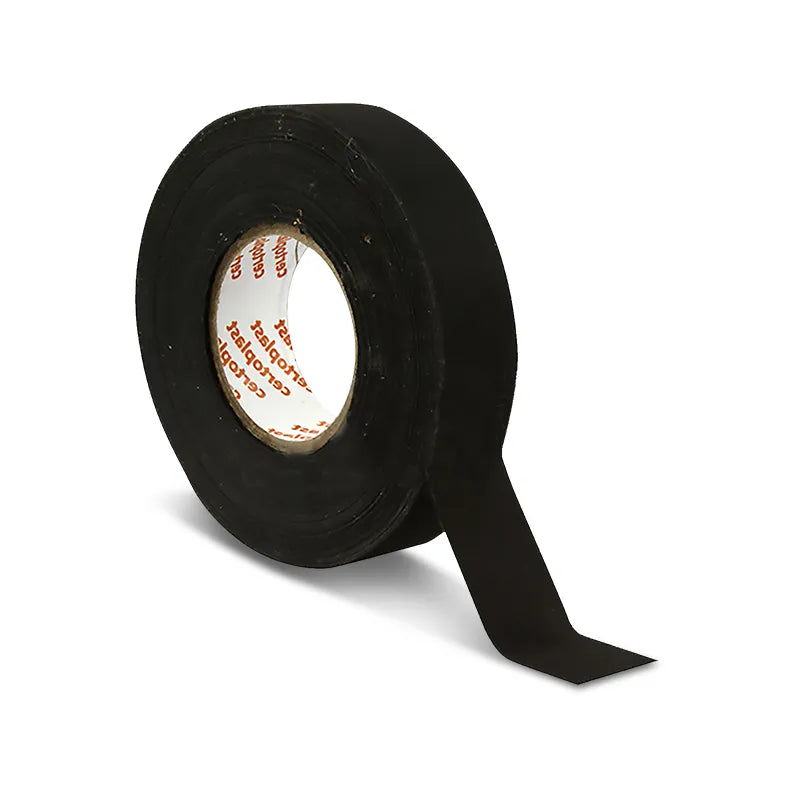

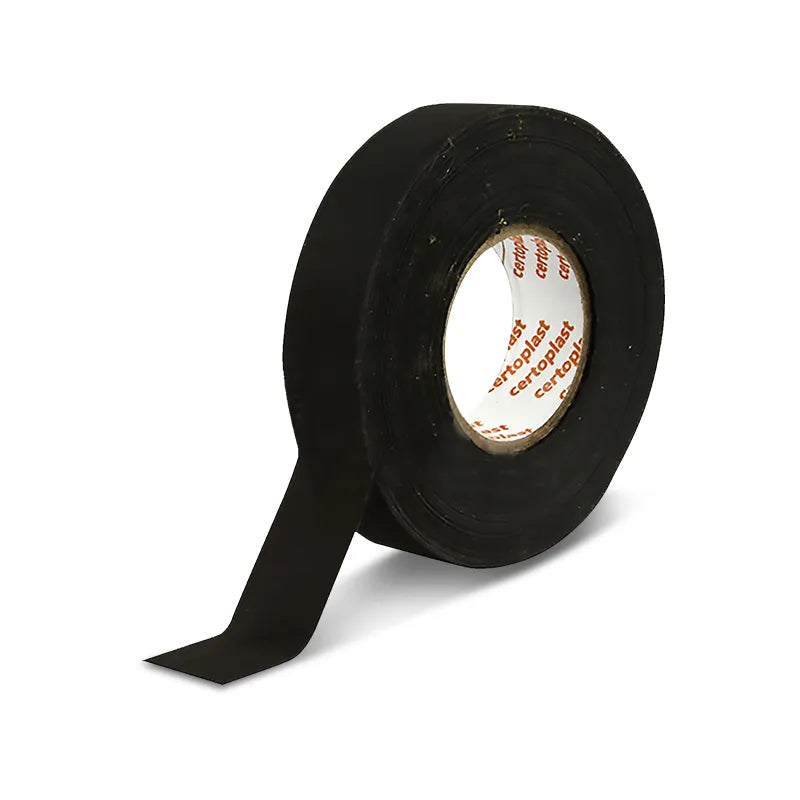

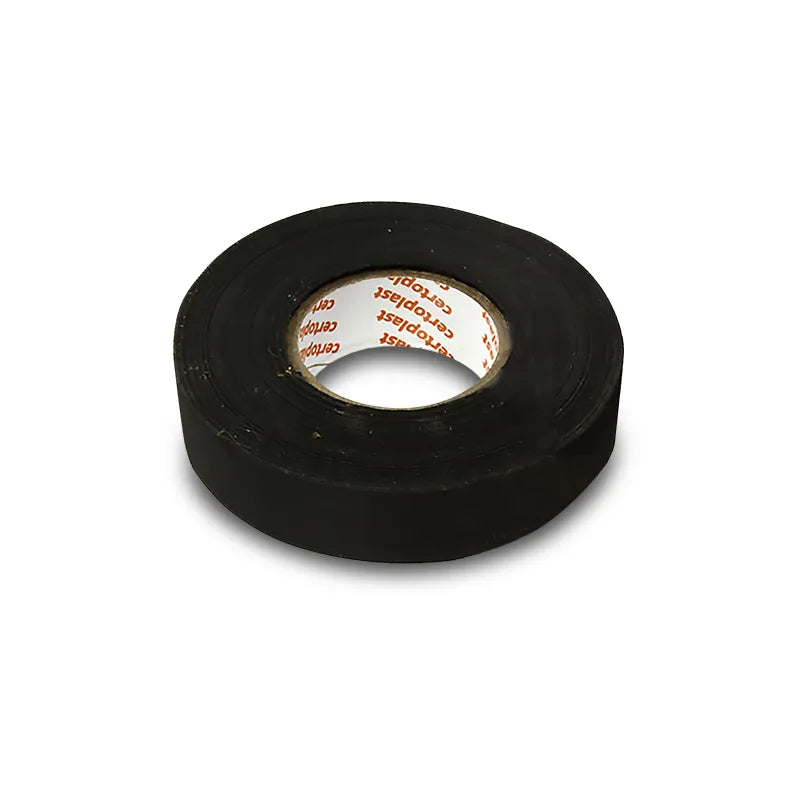

DNA CERT514 Certoplast 514 Fabric Tape 25 Metres

Designed to Work with Fabric Tape

High-quality polyester fabric tape with an especially smooth polished surface, in combination with a strong, rubber-based adhesive. Certoplast 514 is specially designed for cable harnessing in the automotive industry. Using the specially designed smooth polished tape surface, a soil-repellent and permanently flexible cable harness is obtained which, compared to many other tape materials, is very well protected against external mechanical stress (e.g. sharp edges). Due to its high-temperature stability, its extremely robust backing, and its good media resistance, Certoplast 514 can also be used in the engine compartment.

Features:

• High adhesive force
• Free of critical substances (halogens, softeners, etc)
• Stable against rotting
• Non-abrasive
• Flexible and easy to handle
• High mechanical stability in machine processing
• Temperature stability 3000 h / +125°C(short term 150°C)
• Resistant against diesel, oil, fuel, etc.
• Flame resistance corresponds to VW TL1010, FMVSS 302, UL 510, DBL 5307, and BMW GS 95008-3
• Colour: Black
• Roll Size: 19mm x 25mtr x 0.17mm
• Pack Size: 1 Roll
• Packaging: Roll

Specifications:

• Backing: Smooth polished polyester fabric
• Adhesive: Rubber-based
• Thickness: 0.17 +/- 0.03mm
• Tensile Strength: >= 80.0 N/cm
• Elongation: >= 10%
• Adhesion to steel: >= 2.0 N/cm
• Adhesion to backing: >= 2.0 N/cm
• Temperature range: -40°C / + 125°C (3000h)
• Short range: Short term 150°C (500h)
