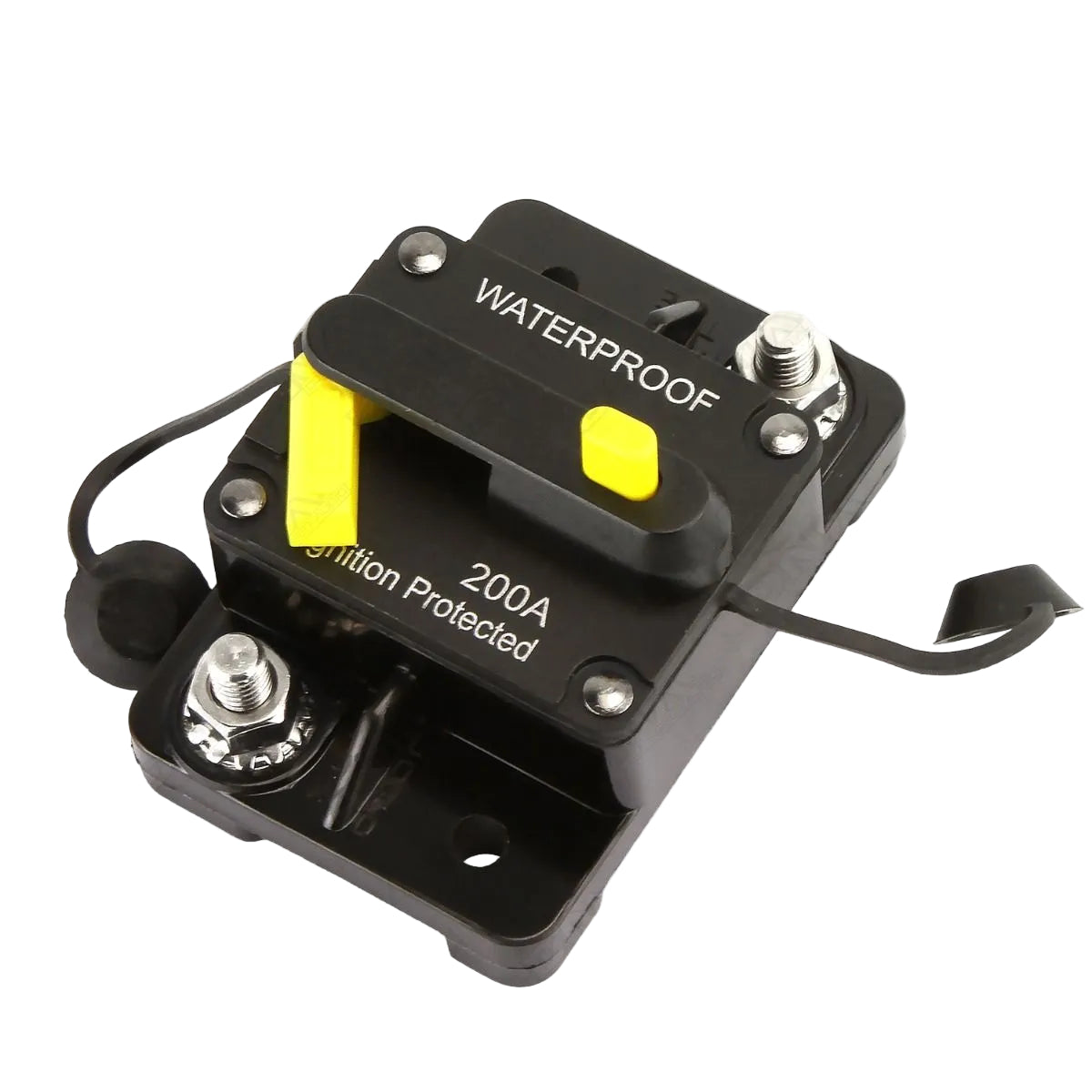

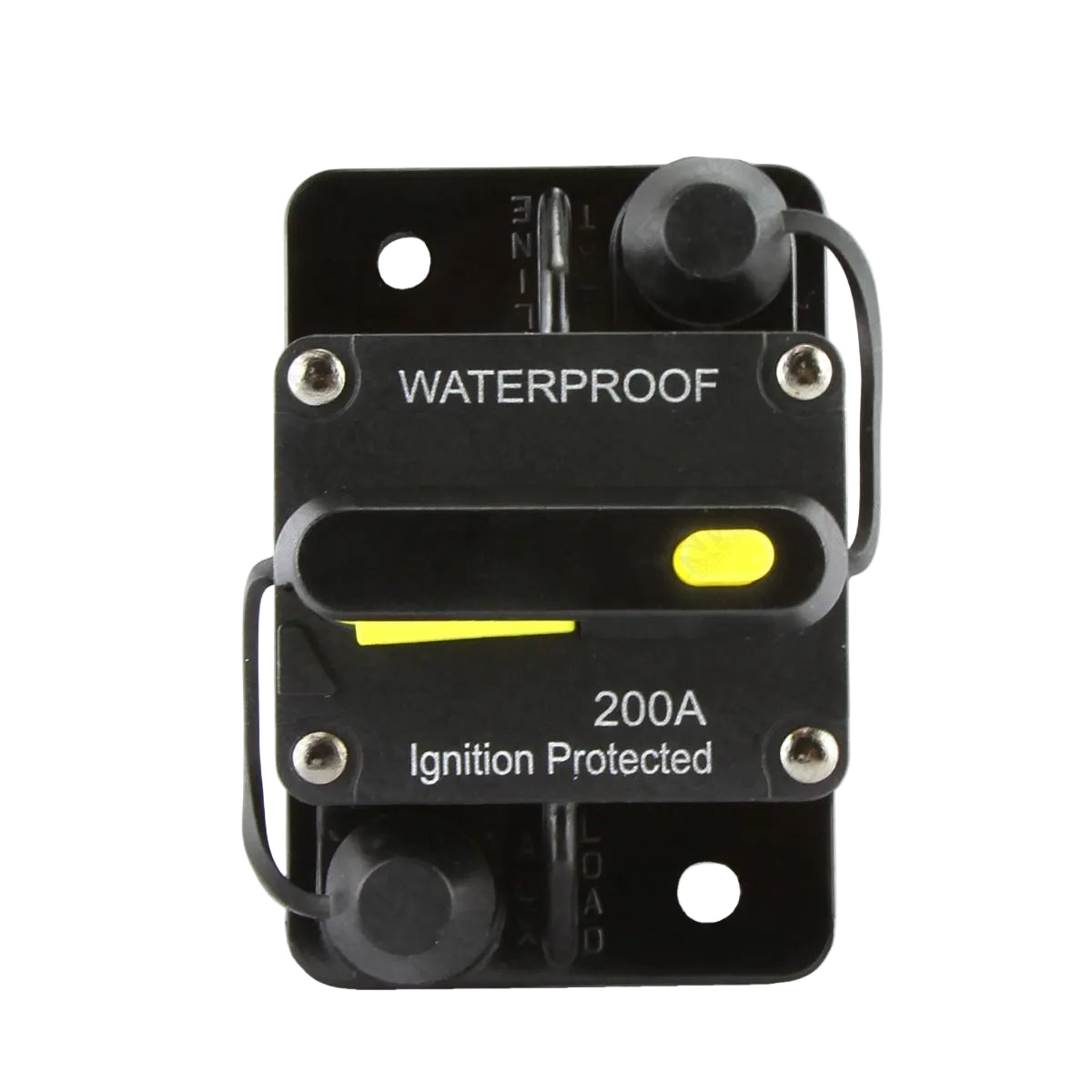

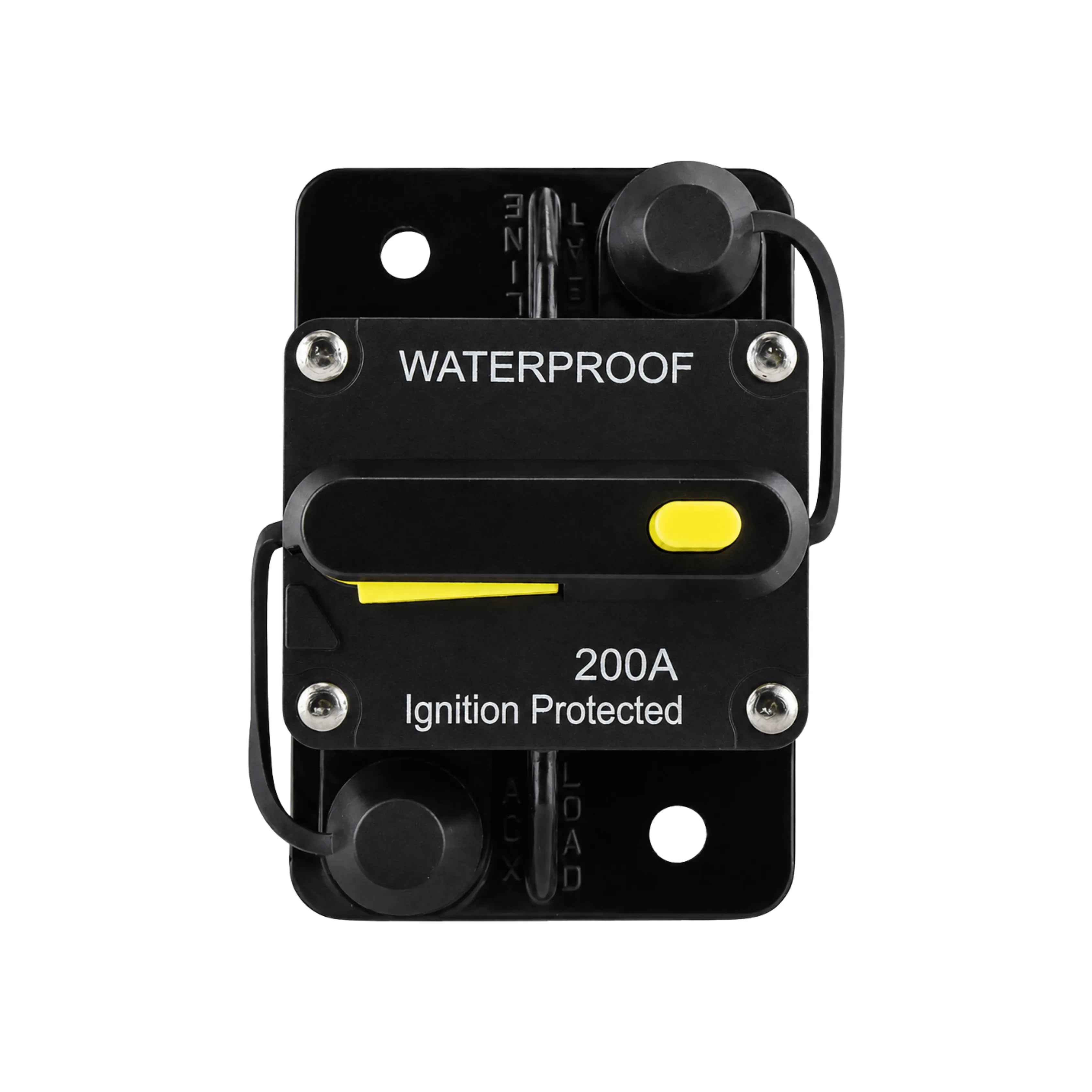

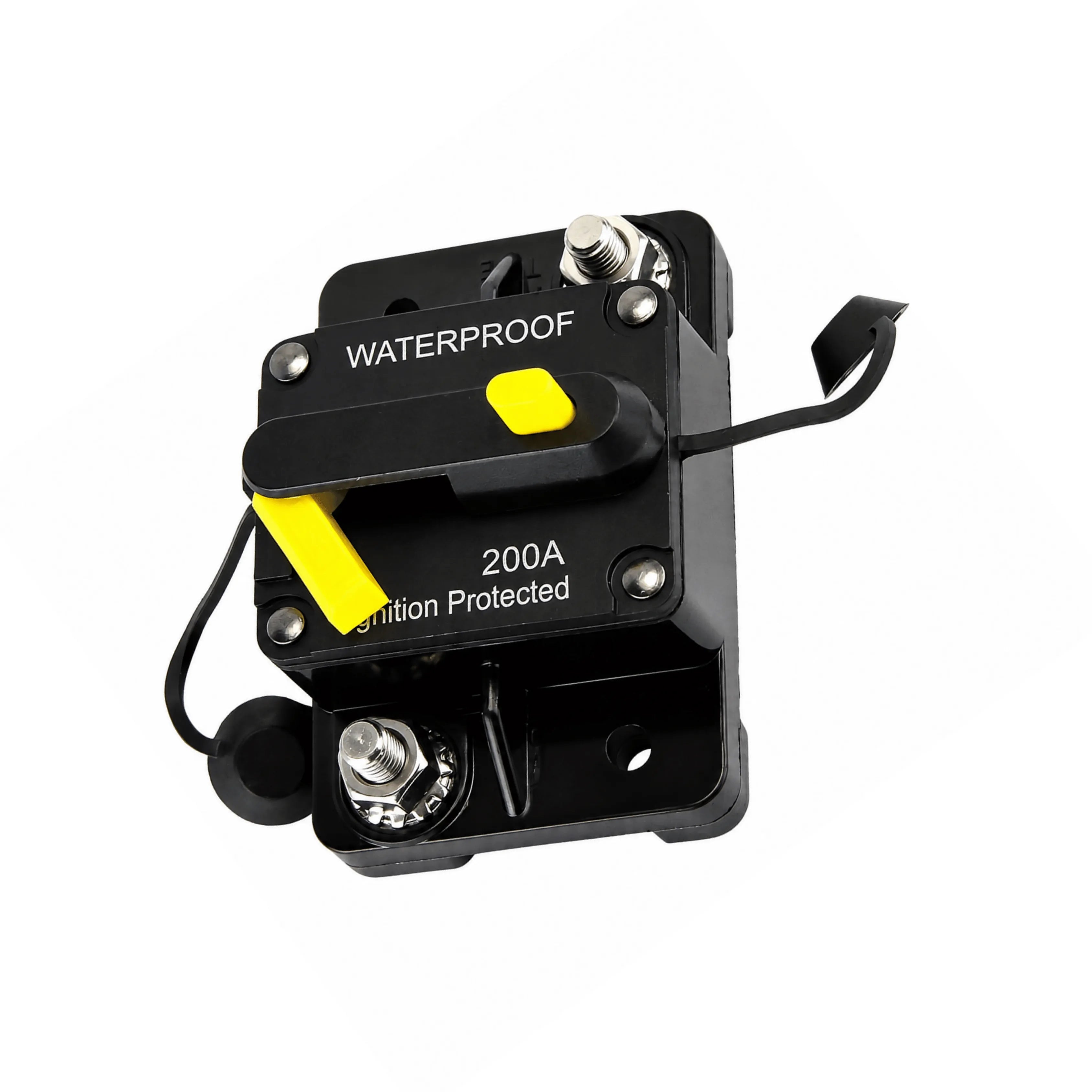

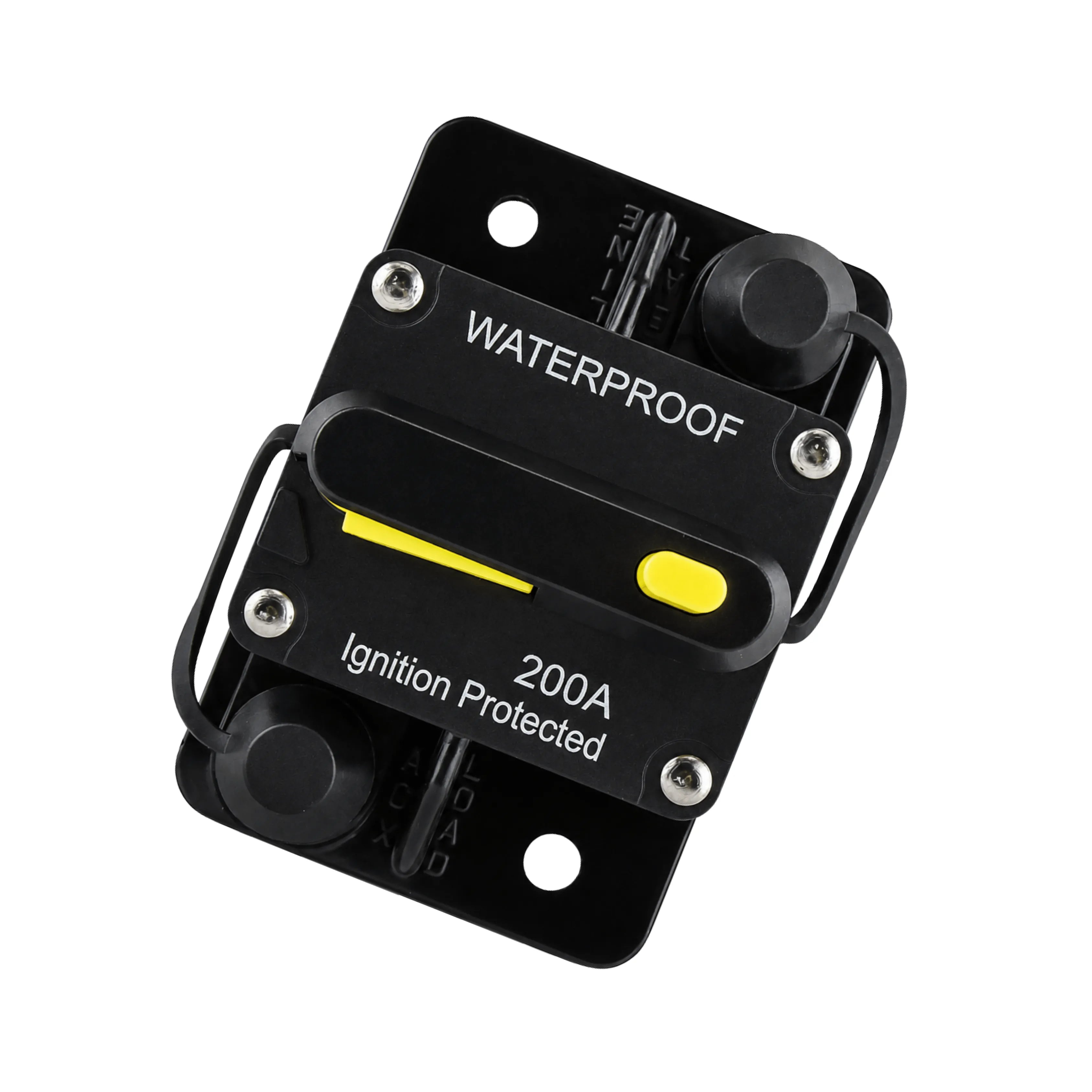

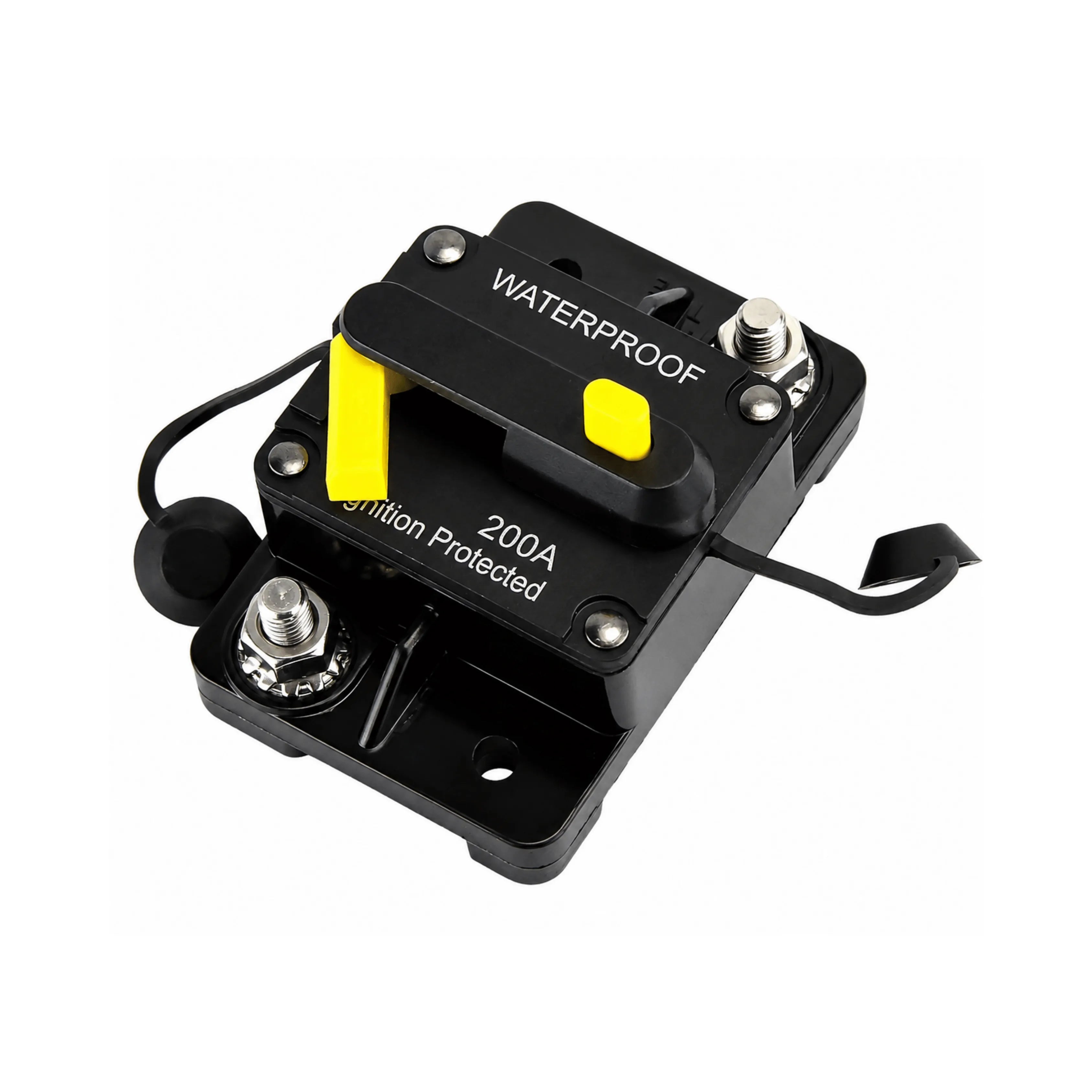

DNA CBM200Y 200A Manual Reset Circuit Breaker 12-48V DC IP67
DNA CBM200Y 200A Manual Reset Circuit Breaker 12-48V DC IP67
Click to open expanded view
DNA logo

DNA CBM200Y 200A Manual Reset Circuit Breaker 12-48V DC IP67

SKU: CBM200Y
Price
$45.95
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

DNA CBM200Y 200A Manual Reset Circuit Breaker 12-48V DC IP67 Waterproof

A 200A manual reset circuit breaker from DNA, the CBM200Y operates across 12-48V DC with IP67 waterproof protection, ignition-safe design (no spark or heat during use), and 6mm studs for termination with 8-6 or 22-6 lugs, suited to automotive, marine, caravan, and 4WD electrical system protection applications requiring higher current capacity.

Product Overview

The DNA CBM200Y is a 200A manual reset circuit breaker for use in 12V, 24V, and 48V DC electrical systems including vehicles, caravans, marine installations, and dual battery setups where higher current draw requires a 200A protection rating. Sharing the same IP67 waterproof and ignition-protected specification as the CBM150Y, the CBM200Y suits exposed installation positions in engine bays, under-vehicle locations, and marine environments. The 6mm studs accept 8-6 or 22-6 crimp lugs. Manual reset operation allows the breaker to be reset by hand after a trip event without replacement.

Features & Benefits

200A Rating - 12-48V DC Operation: Rated at 200A across 12V, 24V, and 48V DC, providing higher current capacity protection for demanding electrical installations including large amplifier systems, winches, high-draw dual battery setups, and commercial vehicle sub-circuits.

Manual Reset - Reusable Protection: Manual reset allows the breaker to be reset by hand after a trip event, providing reusable circuit protection without requiring replacement.

IP67 Waterproof - Engine Bay and Marine Ready: IP67 rated for full dust protection and temporary water immersion for installation in engine bays, exposed exterior locations, and marine environments.

Ignition Protected - No Spark or Heat During Use: No sparking or heat generation during operation for safe installation near fuel systems and in confined environments.

6mm Studs - Compatible with 8-6 and 22-6 Lugs: The 6mm stud terminals accept 8-6 or 22-6 crimp lugs for a clean, secure, and vibration-resistant wiring termination.

Technical Specs

Specification Detail
SKU CBM200Y
Brand DNA
Type Manual Reset Circuit Breaker
Rating 200A
Operating Voltage 12-48V DC
IP Rating IP67
Ignition Protected Yes (No Spark or Heat)
Stud Size 6mm
Compatible Lugs 8-6 or 22-6 Crimp Lugs
Reset Type Manual

Compatible With

The CBM200Y is compatible with 12V, 24V, and 48V DC electrical systems. The 6mm studs accept 8-6 or 22-6 crimp lugs. For installations requiring 150A protection, refer to the DNA CBM150Y. Confirm the required amperage rating and system voltage against your specific electrical installation before purchase.

Frequently Asked Questions

What is the difference between the CBM200Y and the CBM150Y?

Both are DNA manual reset circuit breakers with the same IP67, ignition-protected, 12-48V DC, and 6mm stud specification. The CBM200Y is rated at 200A for higher current draw applications. The CBM150Y is rated at 150A for standard installations. Choose based on the maximum continuous current draw of the circuit being protected.

Is the CBM200Y suitable for marine installation?

Yes. The IP67 waterproof rating and ignition-protected design make the CBM200Y suitable for marine installation in exposed positions.

Does the CBM200Y need to be replaced after a trip event?

No. The manual reset design allows the breaker to be reset by hand after a trip event and reused.

What lug size is compatible with the CBM200Y studs?

The 6mm studs are compatible with 8-6 or 22-6 crimp lugs.
