DNA CBM150Y 150A Manual Reset Circuit Breaker 12-48V DC IP67

SKU: CBM150Y
Price
$45.95
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

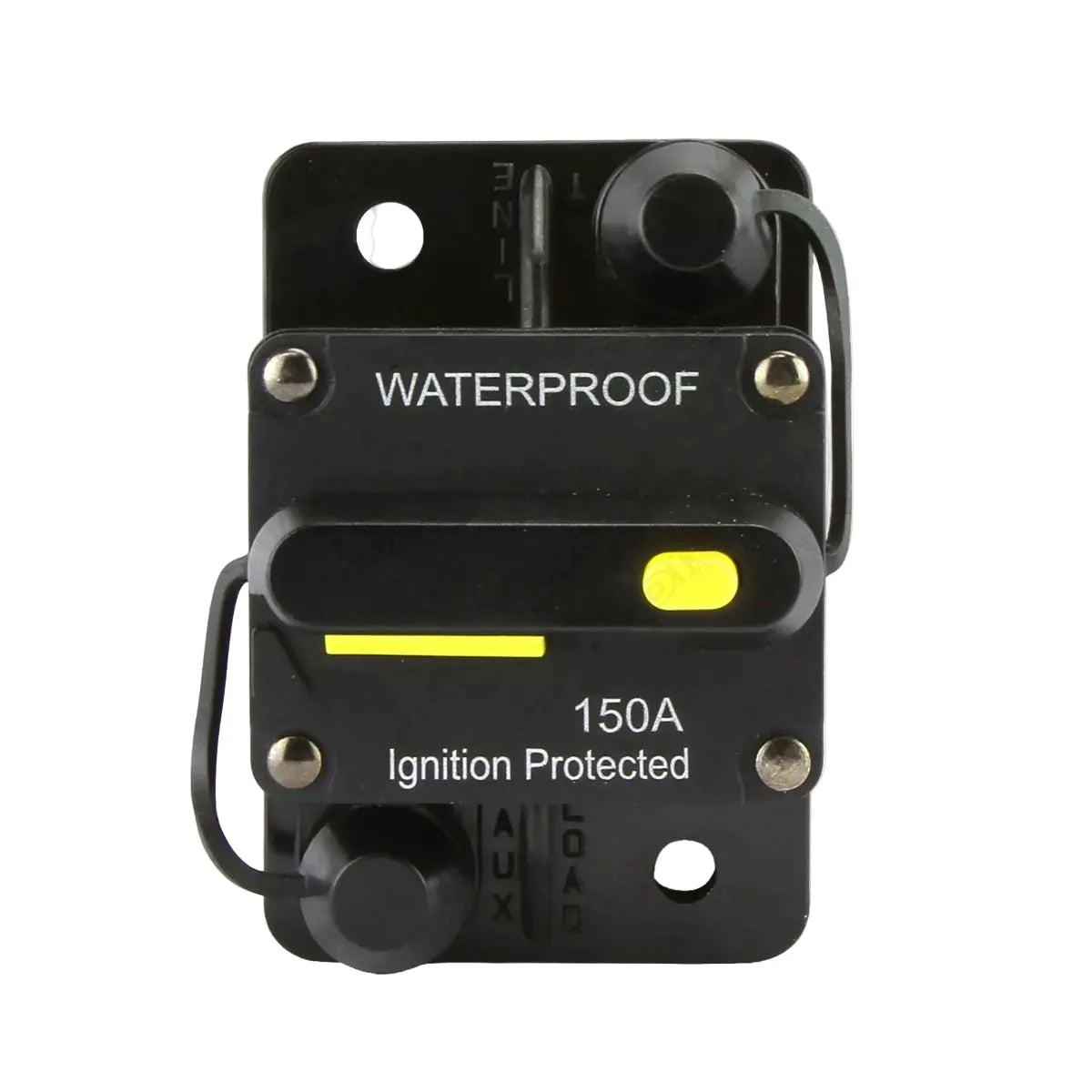

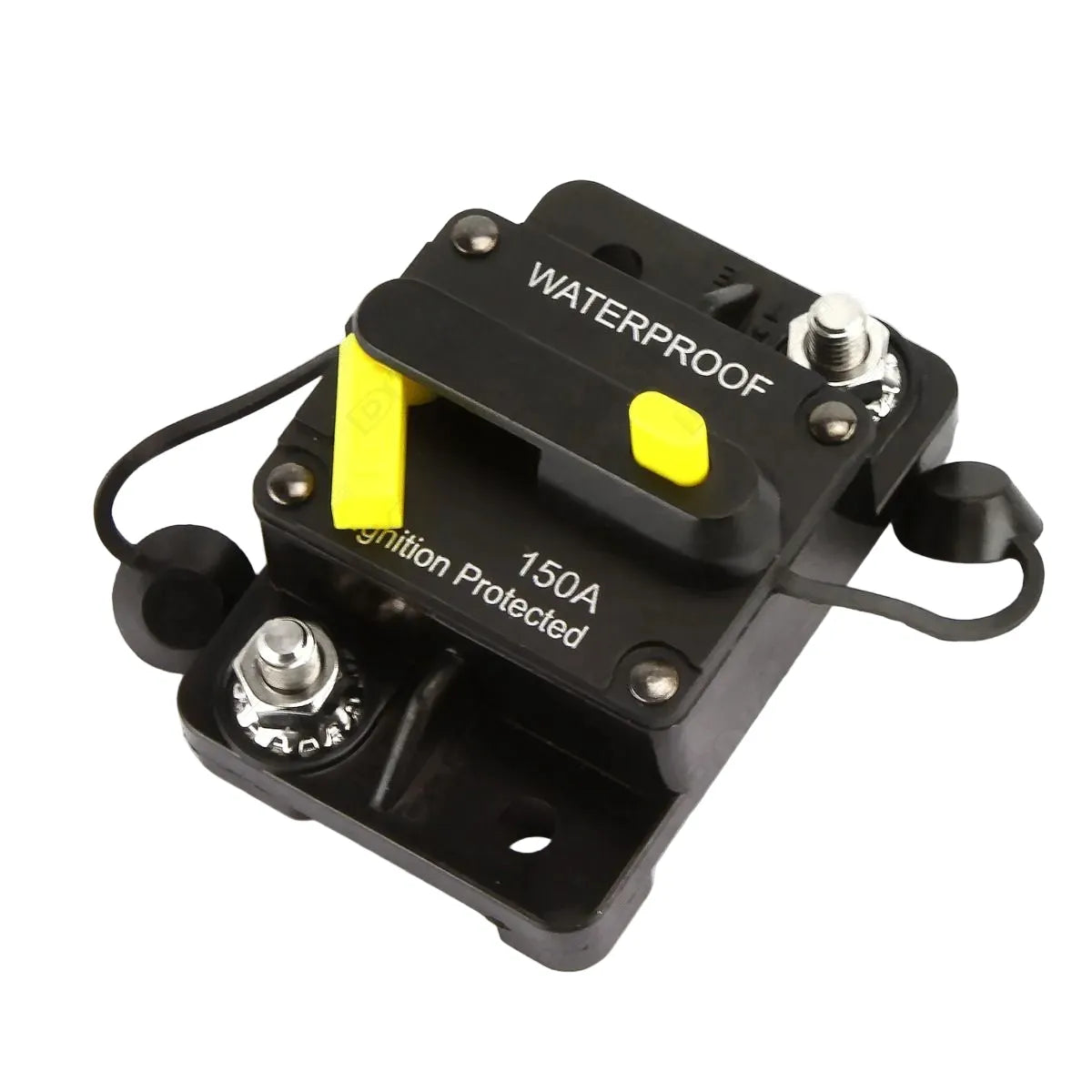

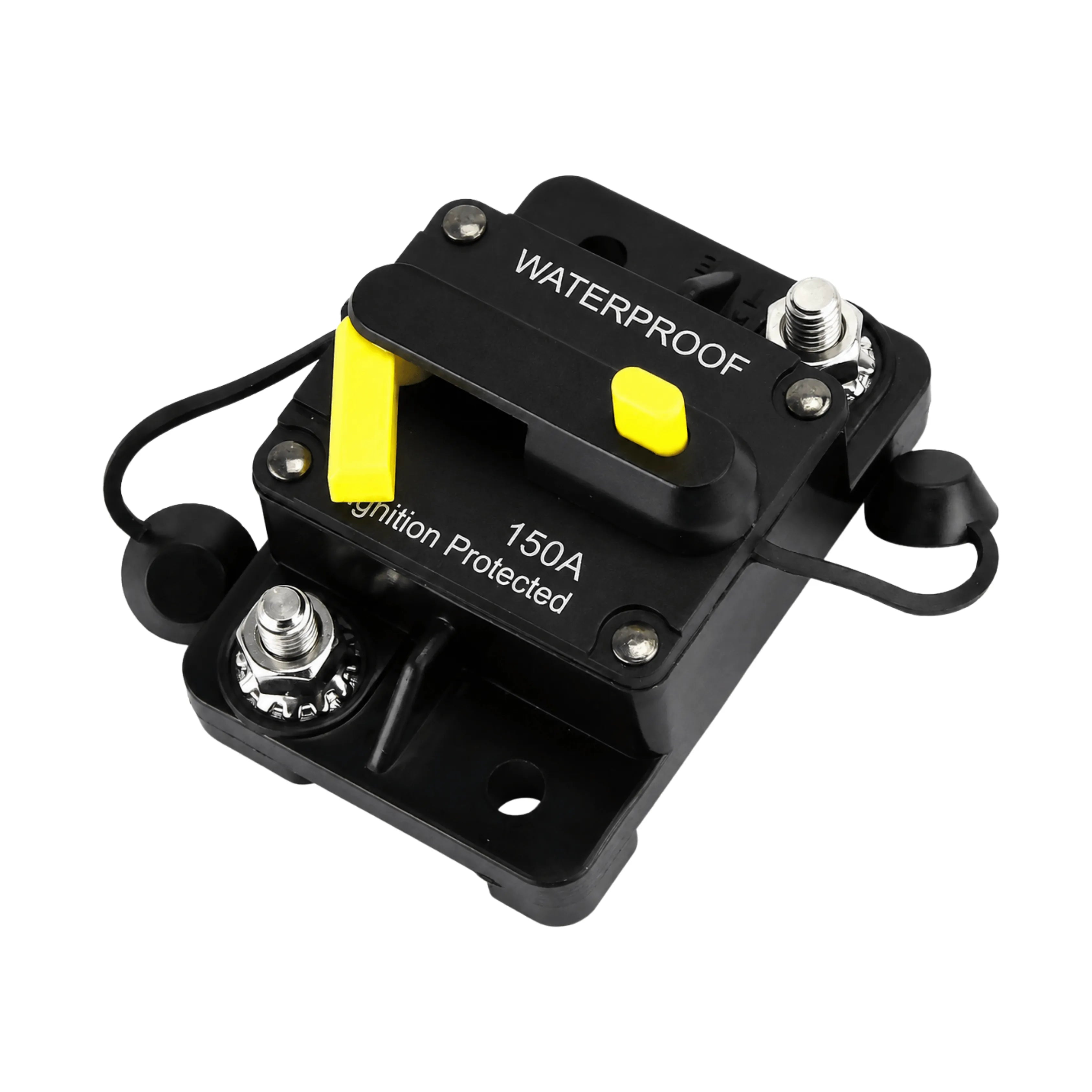

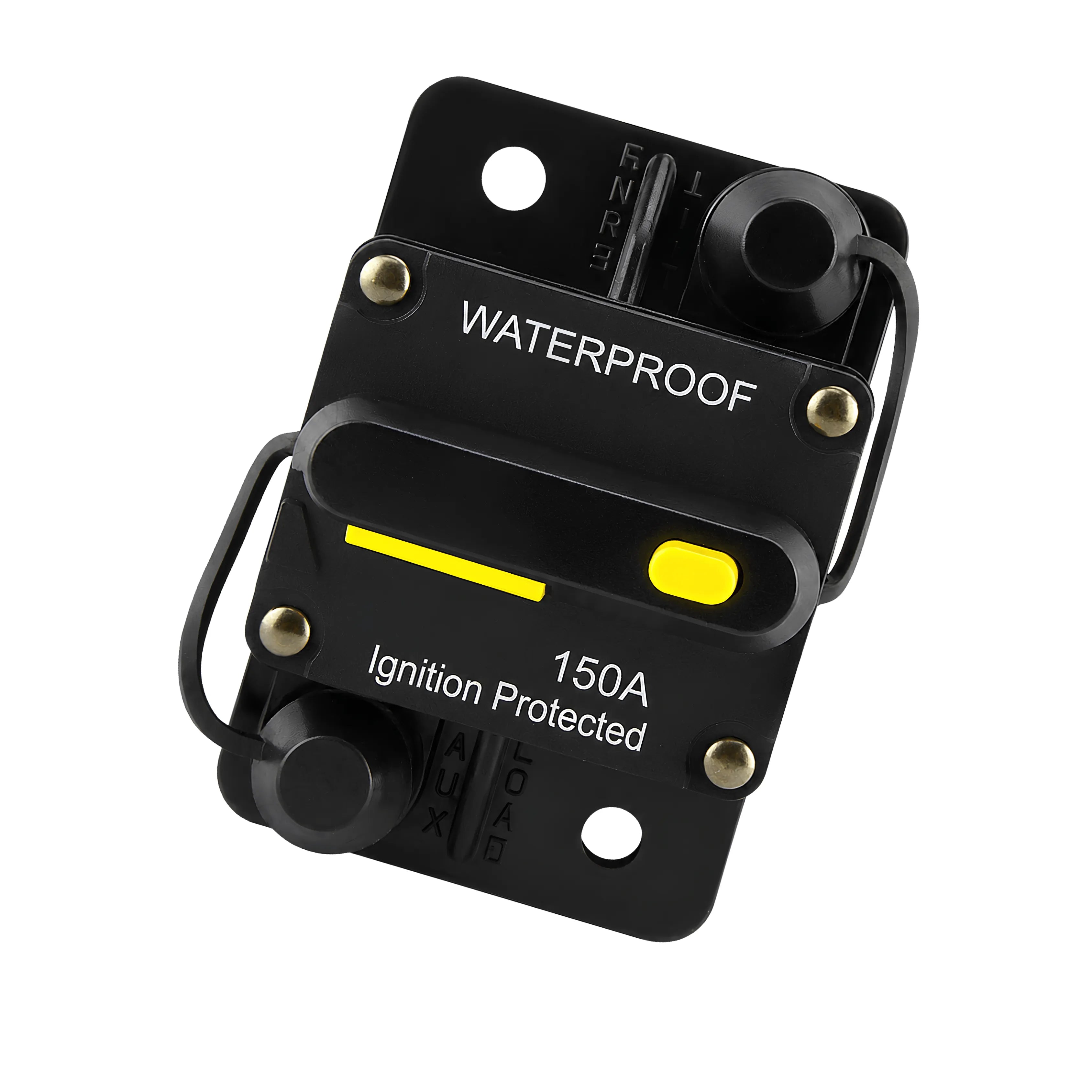

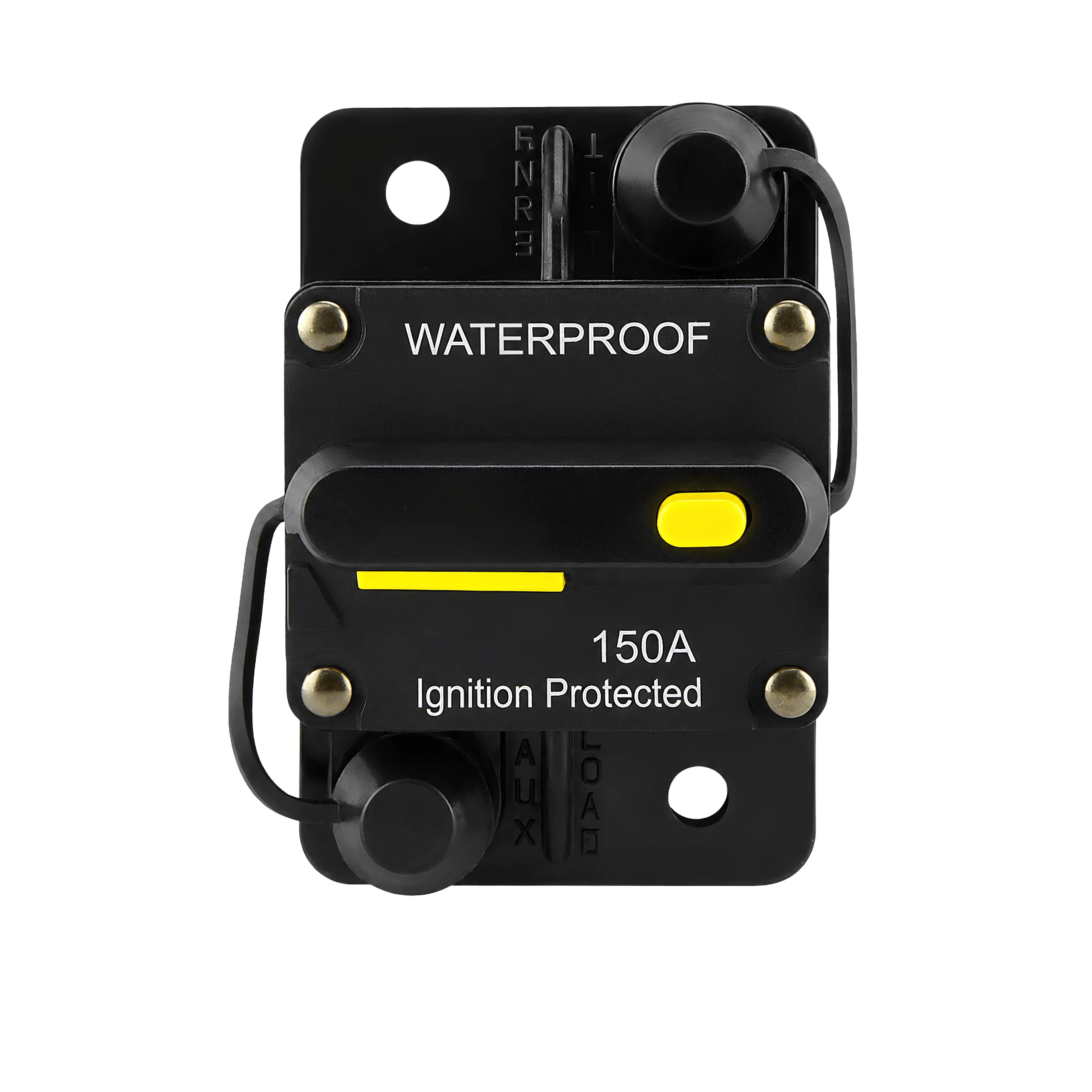

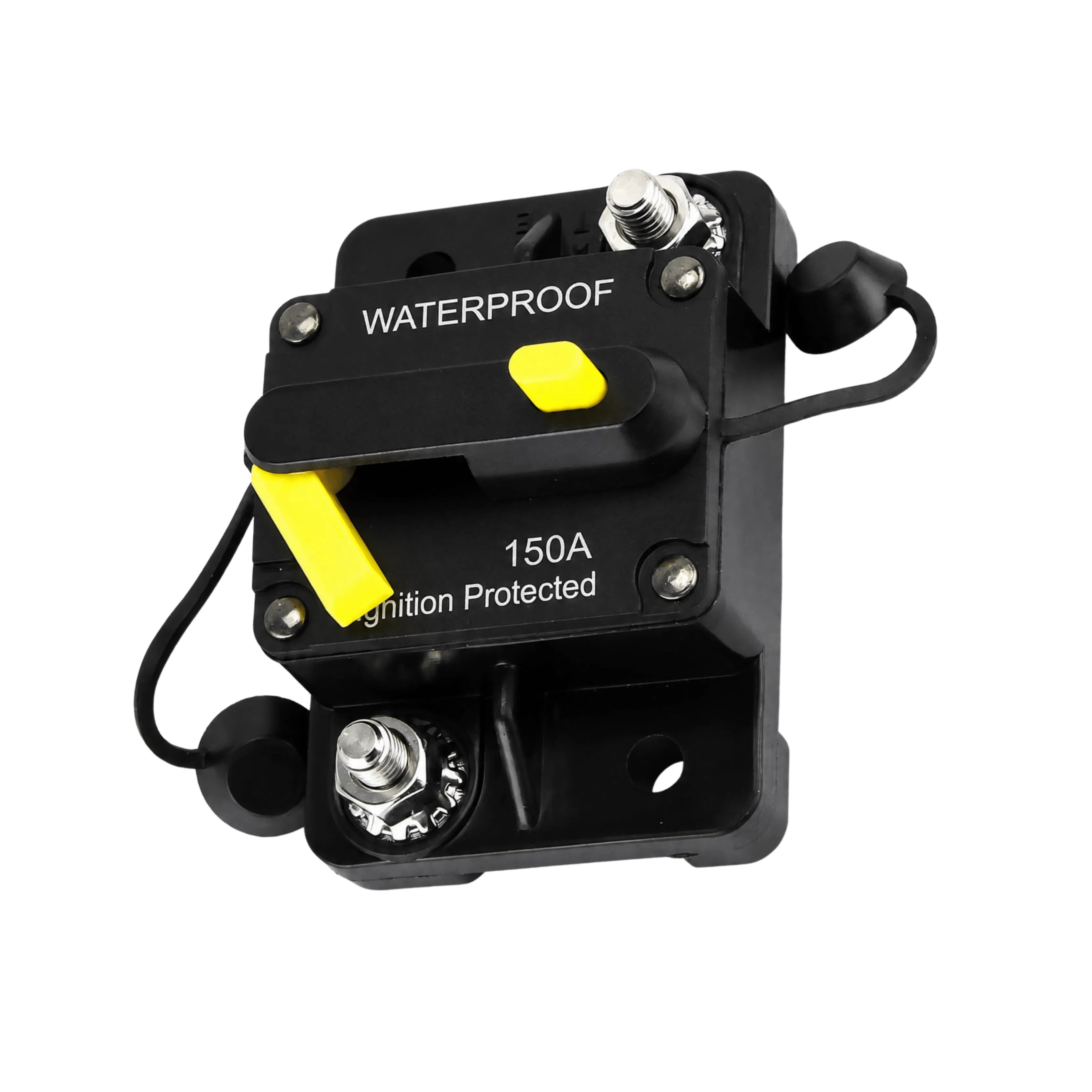

DNA CBM150Y 150A Manual Reset Circuit Breaker 12-48V DC IP67 Waterproof

A 150A manual reset circuit breaker from DNA, the CBM150Y operates across 12-48V DC with IP67 waterproof protection, ignition-safe design (no spark or heat during use), and 6mm studs for termination with 8-6 or 22-6 lugs, suited to automotive, marine, caravan, and 4WD electrical system protection applications.

Product Overview

The DNA CBM150Y is a 150A manual reset circuit breaker designed for use in 12V, 24V, and 48V DC electrical systems including vehicles, caravans, marine installations, and dual battery setups. The IP67 waterproof rating confirms full protection against dust and temporary immersion, making it suited to exposed installation positions in engine bays, under-vehicle locations, and marine environments. The ignition-protected design ensures no sparking or heat generation during operation, a critical safety requirement for installation near fuel systems and in confined spaces. The 6mm studs are compatible with 8-6 or 22-6 crimp lugs for a clean and secure wiring termination.

Manual reset operation allows the circuit breaker to be reset by hand after a trip event rather than requiring replacement, providing a reusable protection solution for main power feed and sub-circuit protection in complex 12-48V DC electrical builds.

Features & Benefits

150A Rating - 12-48V DC Operation: Rated at 150A across 12V, 24V, and 48V DC systems, covering passenger vehicles, commercial vehicles, caravans, 4WDs, and marine applications with a single circuit breaker unit.

Manual Reset - Reusable Protection: Manual reset operation allows the breaker to be reset by hand after a trip event, providing reusable circuit protection without requiring replacement after each fault.

IP67 Waterproof - Engine Bay and Marine Ready: IP67 rated for full dust protection and temporary water immersion, enabling installation in engine bays, exposed exterior locations, and marine environments without additional waterproofing.

Ignition Protected - No Spark or Heat During Use: The ignition-protected design produces no sparking or heat during operation, meeting safety requirements for installation near fuel systems and in confined or flammable environments.

6mm Studs - Compatible with 8-6 and 22-6 Lugs: The 6mm stud terminals accept standard 8-6 or 22-6 crimp lugs for a clean, secure, and vibration-resistant wiring termination.

Technical Specs

Specification Detail
SKU CBM150Y
Brand DNA
Type Manual Reset Circuit Breaker
Rating 150A
Operating Voltage 12-48V DC
IP Rating IP67
Ignition Protected Yes (No Spark or Heat)
Stud Size 6mm
Compatible Lugs 8-6 or 22-6 Crimp Lugs
Reset Type Manual

Compatible With

The CBM150Y is compatible with 12V, 24V, and 48V DC electrical systems. The 6mm studs accept 8-6 or 22-6 crimp lugs for termination. Confirm the required amperage rating and system voltage against your specific electrical installation before purchase.

Frequently Asked Questions

Is the CBM150Y suitable for marine installation?

Yes. The IP67 waterproof rating and ignition-protected design make the CBM150Y suitable for marine installation in exposed positions.

Does the CBM150Y need to be replaced after a trip event?

No. The manual reset design allows the breaker to be reset by hand after a trip event and reused without replacement.

What lug size is compatible with the CBM150Y studs?

The 6mm studs are compatible with 8-6 or 22-6 crimp lugs for termination.

Is the CBM150Y suitable for 24V and 48V systems?

Yes. The CBM150Y operates across 12-48V DC, covering 12V, 24V, and 48V electrical systems.
