DNA AXDG200 Shark Fin Antenna DAB+ AM FM and GPS All-in-One

A sleek low-profile shark fin all-in-one antenna combining DAB+ digital radio, AM/FM radio, and GPS reception in a single aerodynamic housing, the DNA AXDG200 provides 5-metre cables with SMB female connectors for DAB+ and GPS and a Motorola male connector for AM/FM, with 20dB DAB gain, 28dB GPS gain, and roof mount installation.

Product Overview

The DNA AXDG200 is a compact all-in-one shark fin antenna integrating DAB+ digital radio, AM/FM radio, and GPS functionality into a single low-profile housing. The aerodynamic shark fin design reduces wind resistance and provides a modern factory-style finish suited to virtually any vehicle. DAB+ covers 170-240MHz and 1452-1492MHz with 20±3dB gain; AM/FM covers 520-1710kHz and 87.5-108MHz with AM gain of 2±5dB and FM gain of 15±2dB; GPS covers 1575.42±1.023MHz with 28±3dB gain. Each of the four cable outputs is 5 metres in length. DAB+ and GPS use SMB female connectors and AM/FM uses a Motorola male connector. A separate 5-metre power cable is also provided. The unit measures 118mm long by 76mm wide by 62mm high and mounts to the vehicle roof via a 14.5 x 14.5mm square or 18.8mm diameter cutout.

Features & Benefits

All-in-One DAB+, AM/FM, and GPS in a Single Housing: The AXDG200 combines DAB+ digital radio, AM/FM radio, and GPS reception into a single compact shark fin housing, eliminating the need for multiple external antennas and providing a clean, factory-style vehicle appearance.

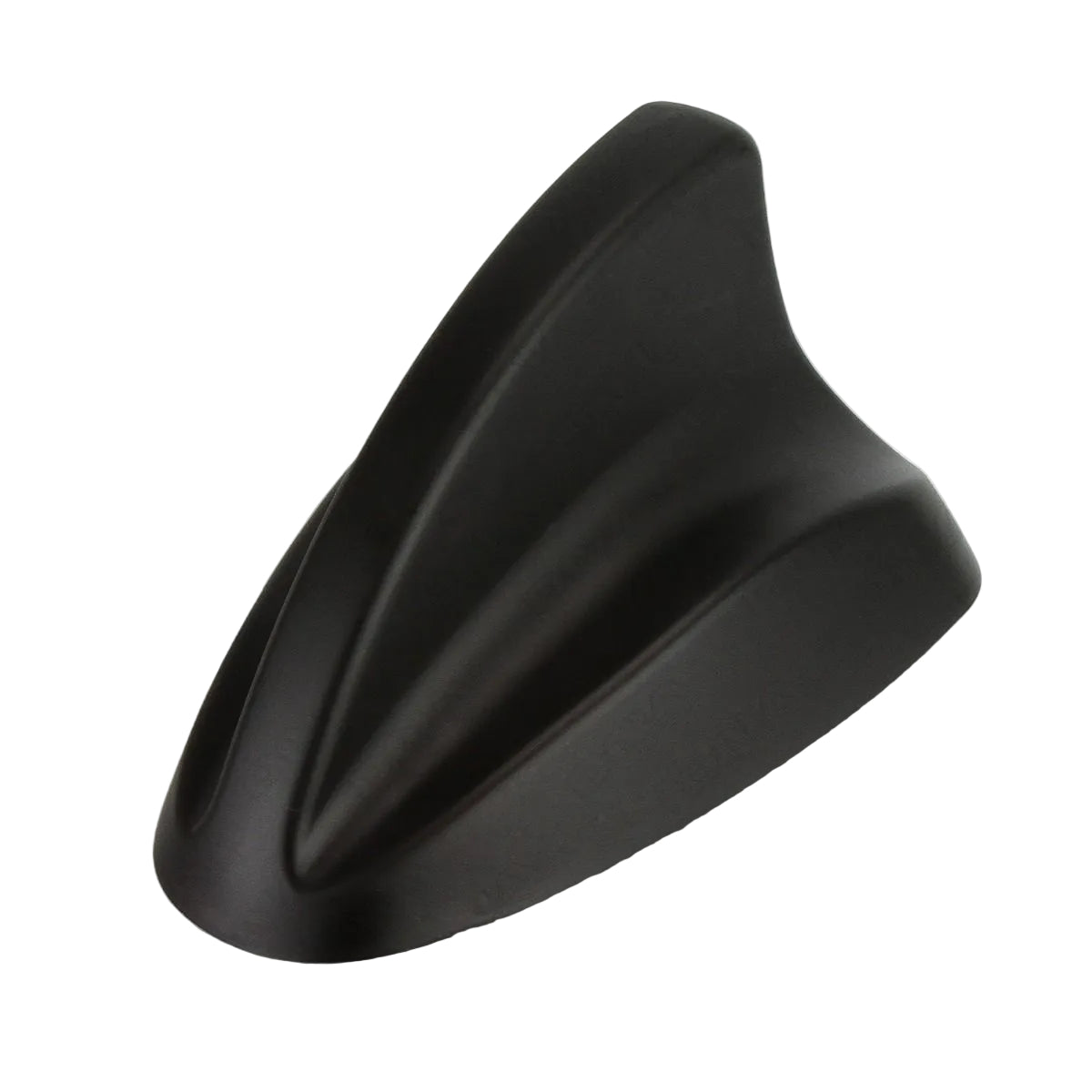

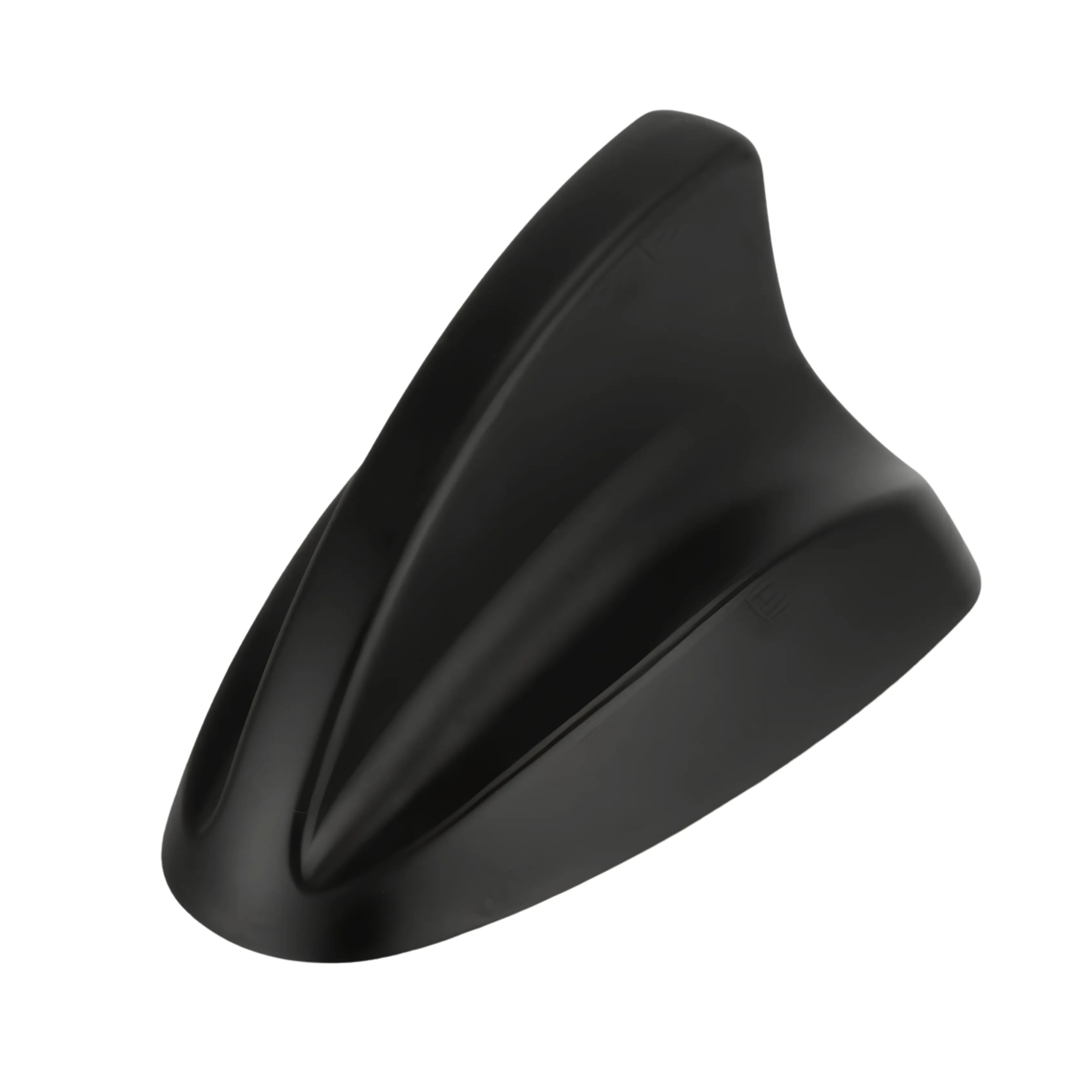

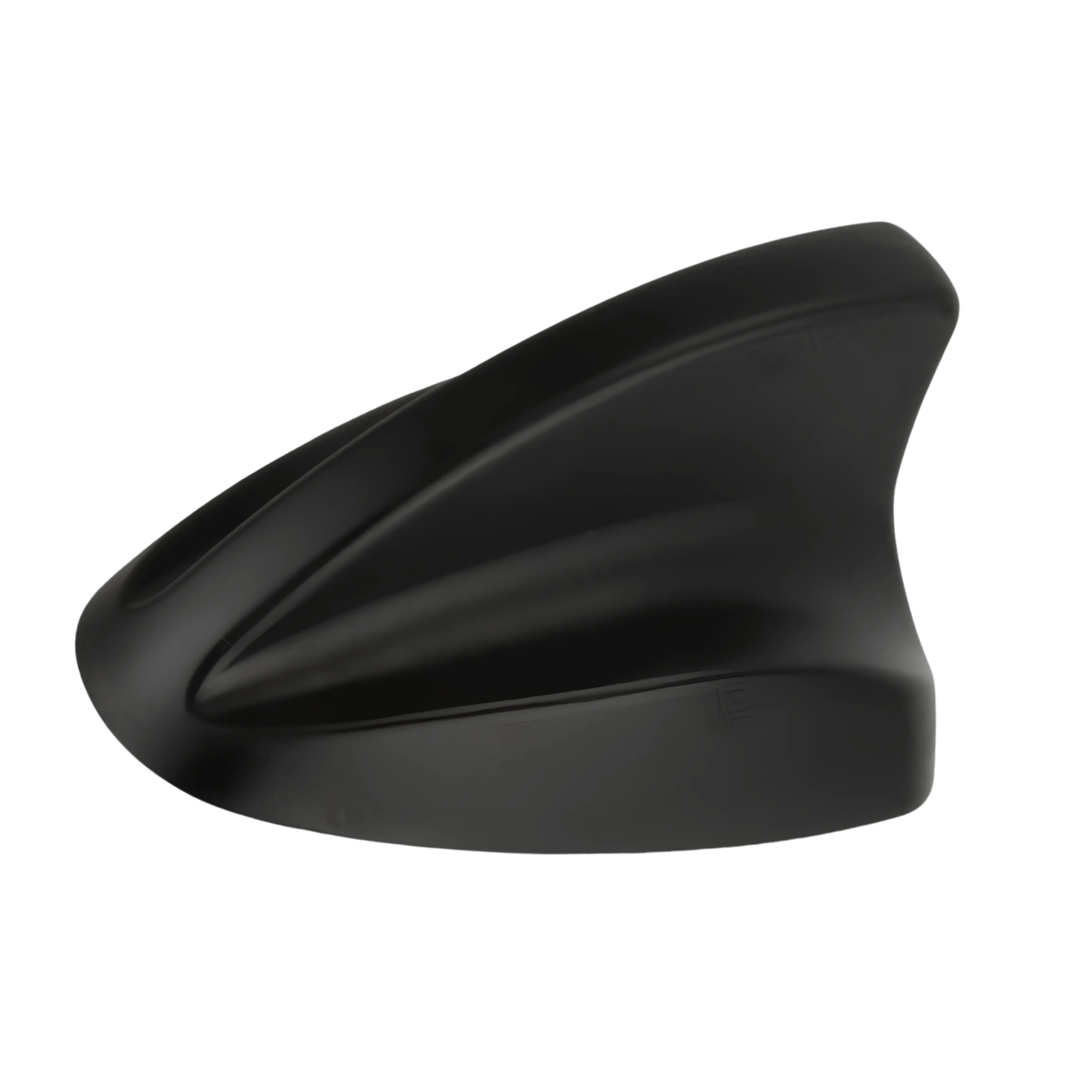

Aerodynamic Shark Fin Design: The shark fin profile reduces wind resistance and aerodynamic noise compared to traditional whip-style antennas, while providing a modern low-profile appearance that complements the styling of virtually any vehicle.

DAB+ Digital Radio Reception (170-240MHz and 1452-1492MHz): The AXDG200 supports the full DAB+ frequency range used in Australia with 20±3dB gain, providing reliable digital radio reception for compatible head units as DAB+ coverage continues to expand.

AM/FM Radio Reception with Active Amplification: AM/FM coverage spans 520-1710kHz and 87.5-108MHz with active amplification of 2±5dB AM and 15±2dB FM, maintaining or improving AM/FM reception compared to standard passive antennas.

GPS Reception (1575.42MHz): The integrated GPS antenna provides 28±3dB gain at the standard GPS L1 frequency of 1575.42MHz, suited to aftermarket navigation head units and GPS-enabled devices.

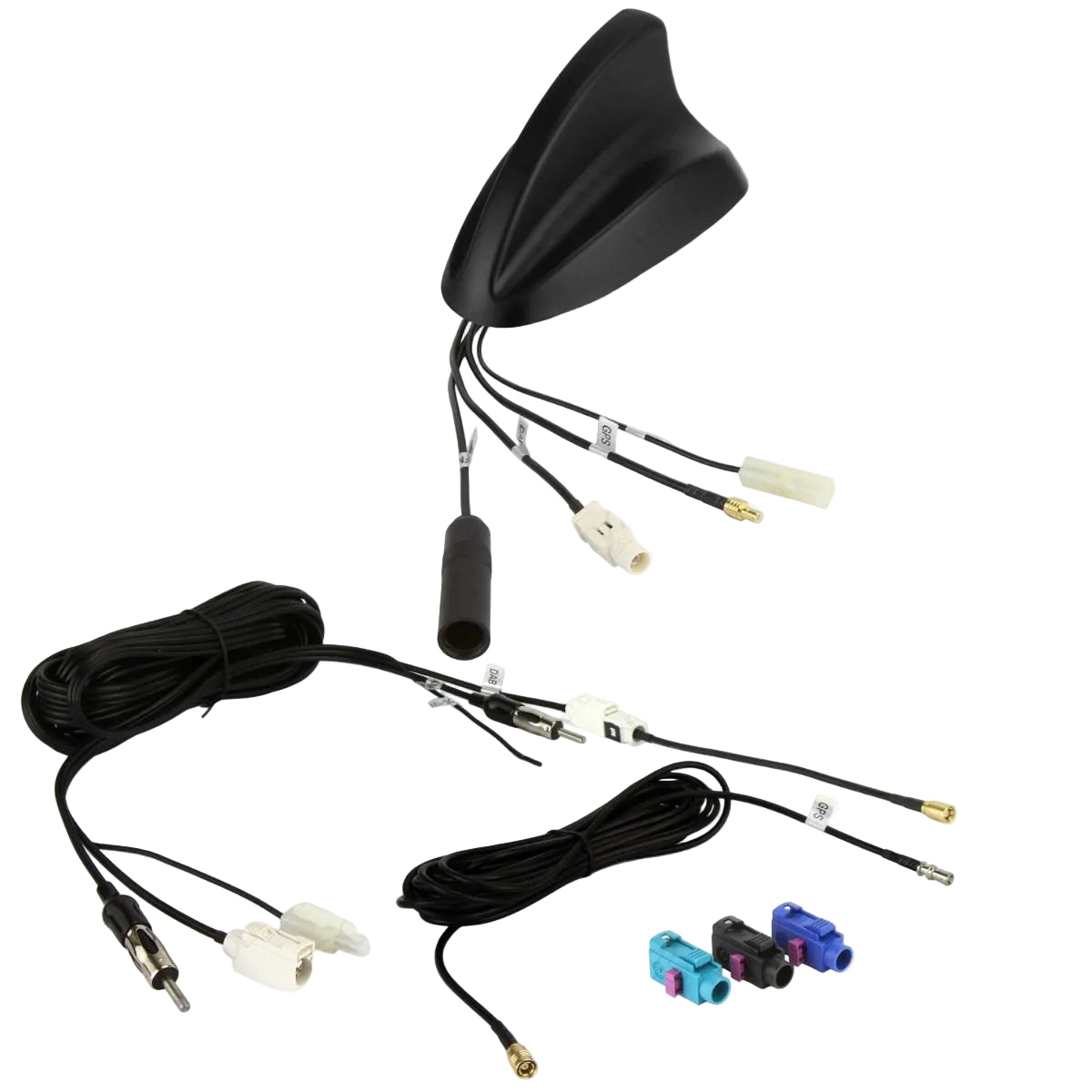

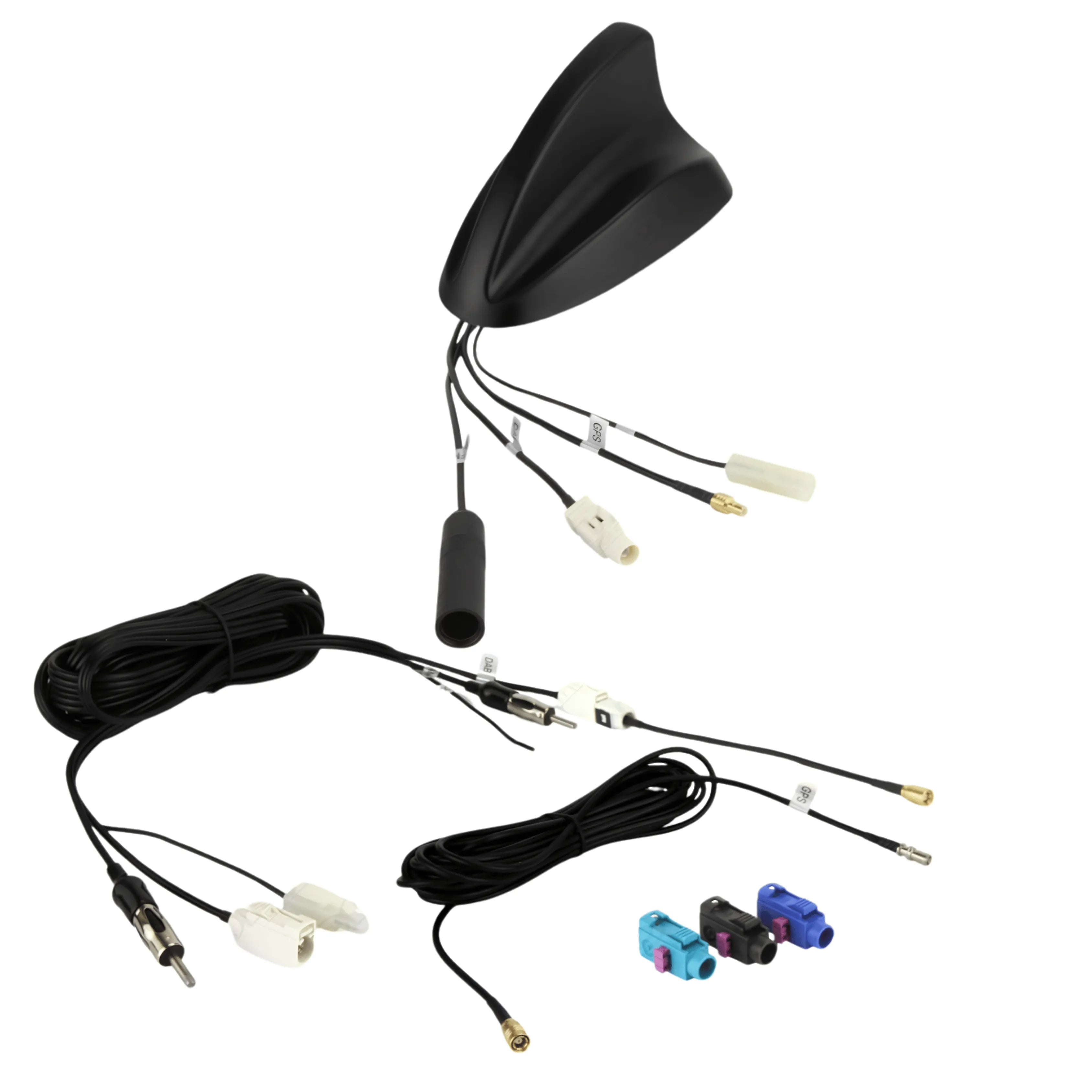

5-Metre Cable Lengths on All Outputs: All four cable outputs (DAB+, GPS, AM/FM, and power) are 5 metres in length, providing sufficient reach for routing from the roof mounting point to the head unit or GPS device in most passenger vehicles.

SMB Female Connectors for DAB+ and GPS: The DAB+ and GPS outputs use SMB female connectors, compatible with the majority of aftermarket head units and GPS devices with DAB+ and GPS antenna inputs.

Motorola Male Connector for AM/FM: The AM/FM output uses a standard Motorola male connector, compatible with the vast majority of aftermarket head units with a standard DIN antenna input.

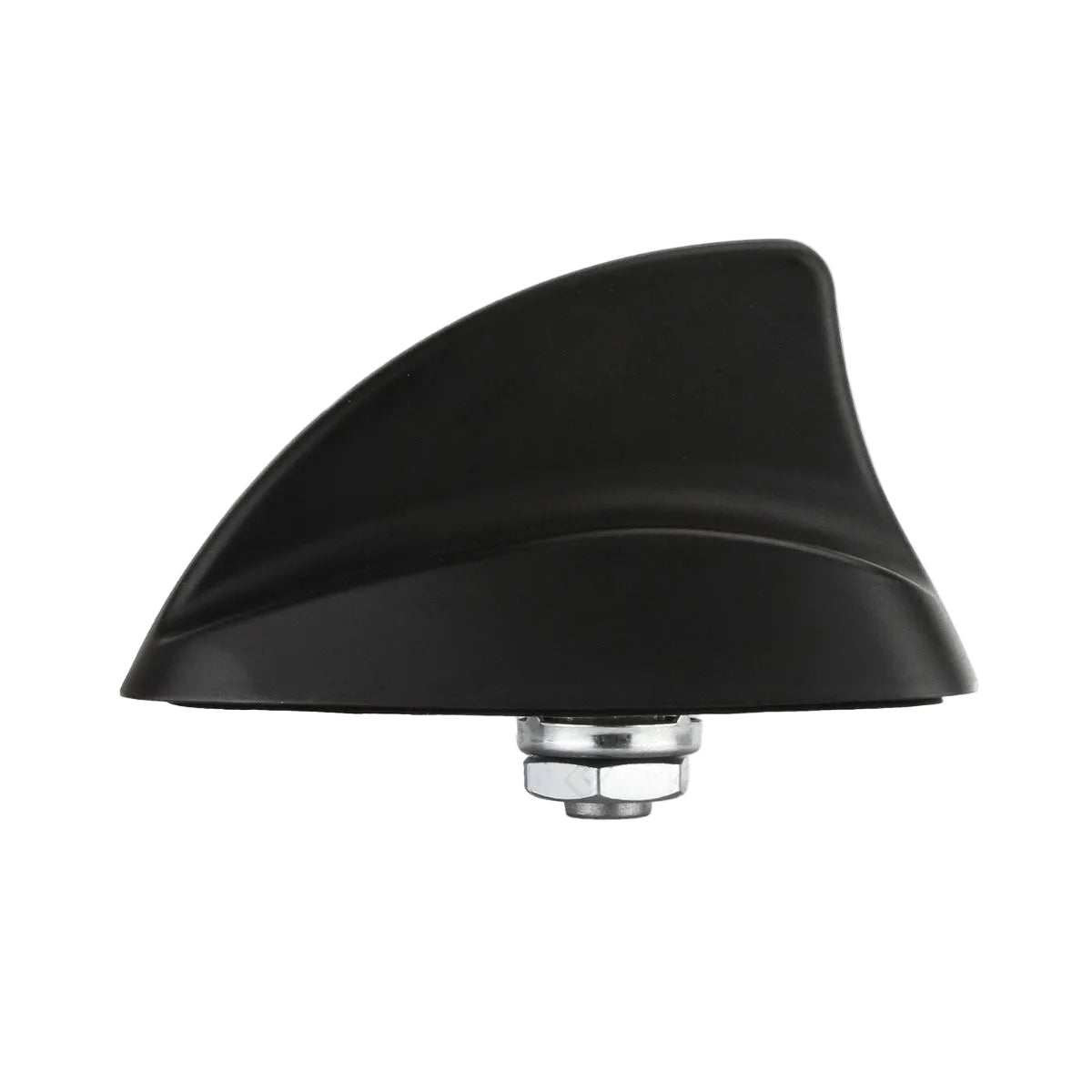

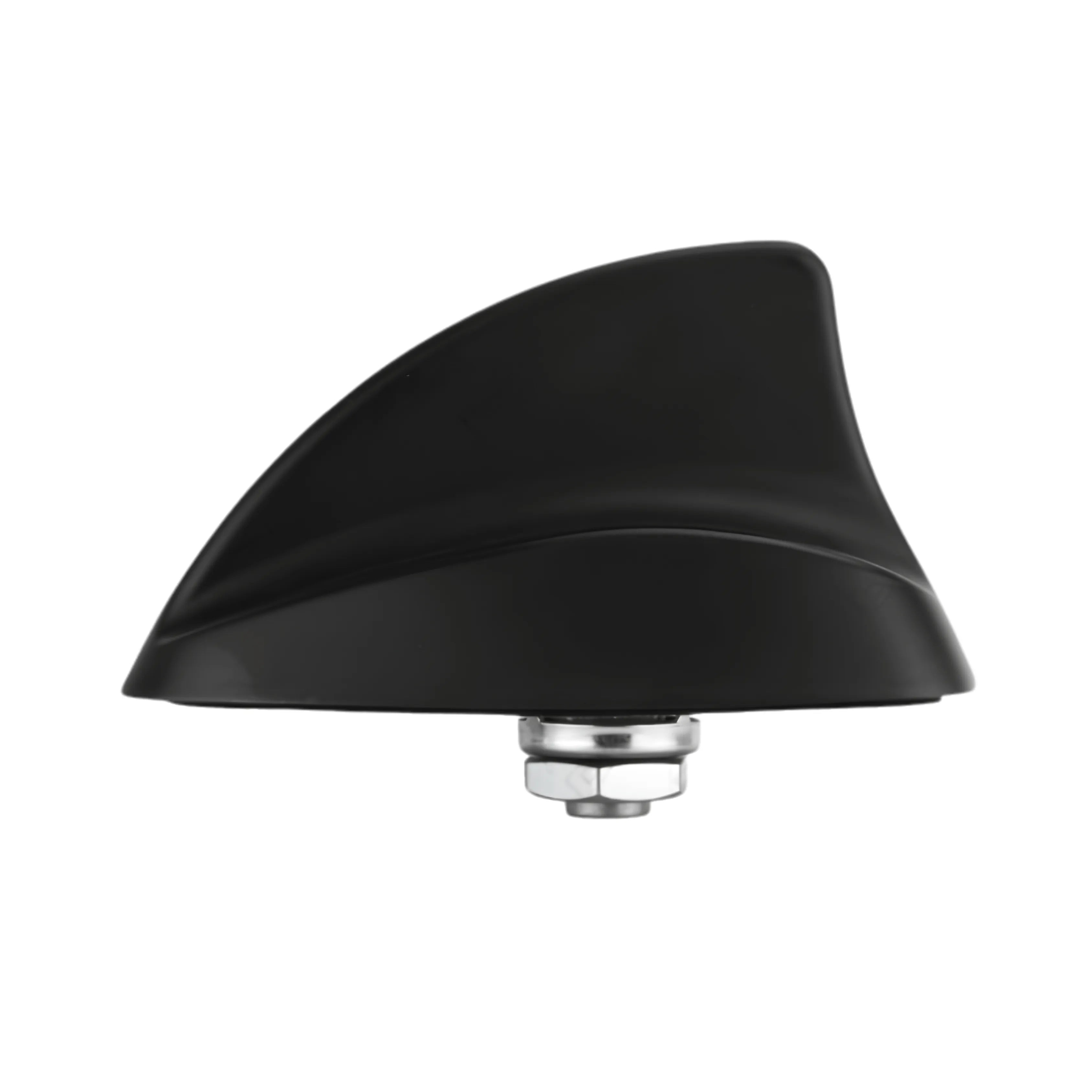

Low-Profile Roof Mount: The AXDG200 mounts to the vehicle roof via a 14.5 x 14.5mm square or 18.8mm diameter hole, providing a permanent and weatherproof installation.

Technical Specs

Specification Detail
SKU AXDG200
Brand DNA
Antenna Type Shark Fin All-in-One
Functions DAB+, AM/FM, GPS
DAB+ Frequency 170-240MHz, 1452-1492MHz
AM/FM Frequency 520-1710kHz, 87.5-108MHz
GPS Frequency 1575.42 ± 1.023MHz
DAB+ Gain 20 ± 3dB
AM Gain 2 ± 5dB
FM Gain 15 ± 2dB
GPS Gain 28 ± 3dB
DAB+ Cable Length 5 metres
GPS Cable Length 5 metres
AM/FM Cable Length 5 metres
Power Cable Length 5 metres
DAB+ Connector SMB Female
GPS Connector SMB Female
AM/FM Connector Motorola Male
Dimensions 118mm L x 76mm W x 62mm H
Roof Mount Cutout 14.5 x 14.5mm (square) or 18.8mm diameter

Compatible With

The AXDG200 is compatible with aftermarket head units and GPS devices with DAB+ (SMB female), GPS (SMB female), and AM/FM (Motorola/DIN) antenna inputs. The 5-metre cable lengths suit most passenger vehicle roof-to-head-unit routing distances. Confirm the antenna connector types required by your specific head unit and GPS device before purchase.

Frequently Asked Questions

Does the AXDG200 support DAB+ digital radio in Australia?

Yes. The AXDG200 covers the full DAB+ frequency bands used in Australia (170-240MHz and 1452-1492MHz) with 20±3dB gain, providing reliable digital radio reception for compatible aftermarket head units.

What connectors does the AXDG200 use?

The AXDG200 has SMB female connectors for DAB+ and GPS outputs, and a standard Motorola male connector for the AM/FM output. Confirm the connector types required by your specific head unit and GPS device before purchase.

Does the AXDG200 replace the factory antenna?

Yes. The AXDG200 is designed to replace the factory antenna with a single all-in-one unit that covers DAB+, AM/FM, and GPS. The AM/FM Motorola male connector connects directly to the aftermarket head unit's standard antenna input.

What size hole is required to mount the AXDG200?

The AXDG200 requires a 14.5 x 14.5mm square or 18.8mm diameter hole in the vehicle roof for installation. Confirm the mounting requirements against your vehicle's roof panel before installation.

How long are the cables on the AXDG200?

All four cable outputs (DAB+, GPS, AM/FM, and power) are 5 metres in length, providing sufficient reach for routing from the roof mounting point to the head unit or GPS device in most passenger vehicles.
