DNA AVR010DP 10 AMP Dual Output 24-12V DC Converter

SKU: AVR010DP
Sale price
$78
Regular price
$99.95
You save
22%
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Product features

Genuine Voltage Converters

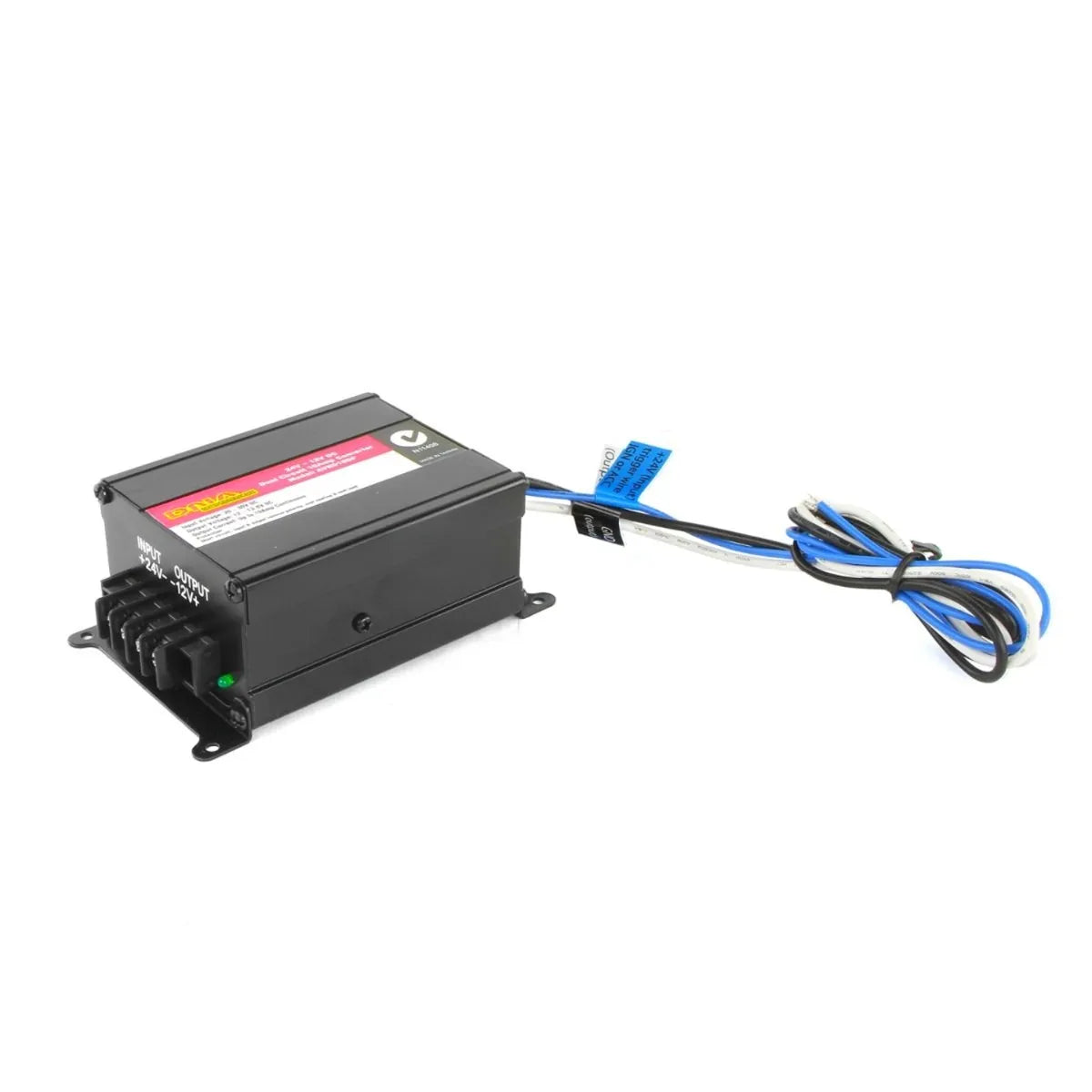

The DNA AVR010DP is a 10 AMP Dual Output 24 Volt DC To 12 Volt DC Voltage Reducer With Dual Outputs.

DNA AVR010DP Features:

  • Fitted With 2 Independent 12v DC Outputs
  • Using the Terminals on the Side of the Case for Output 1
  • Using the 3 Wires for Output 2
  • 12V DC Positive Output (Red)
  • Negative Output (Black)
  • 24V DC Trigger Wire For Activating The Circuit (Blue)

DNA AVR010DP Specifications:

  • Input DC Voltage Range: DC20~30V DC
  • Output Voltage Range: 12V~13.8V
  • Continuous Power: 10 AMPS
  • Peak Power: 15 AMPS
  • No Load Current Draw: 20mA
  • Max. Power Efficiency: >90%
  • Cooling: Air Convection
  • Input Polarity Reverse: Diode Protection
  • Output Polarity Reverse: Circuit Protection
  • Over Heating: Circuit Protection
  • Over Load: Circuit Protection
  • Output Short: Circuit Protection
  • Fuse: 15 AMPS
  • Dimension (LxWxH): 90 x 73 x 45mm
  • Weight: 330g
  • Packaging: Sliding Blister & Card With Hang Hole
