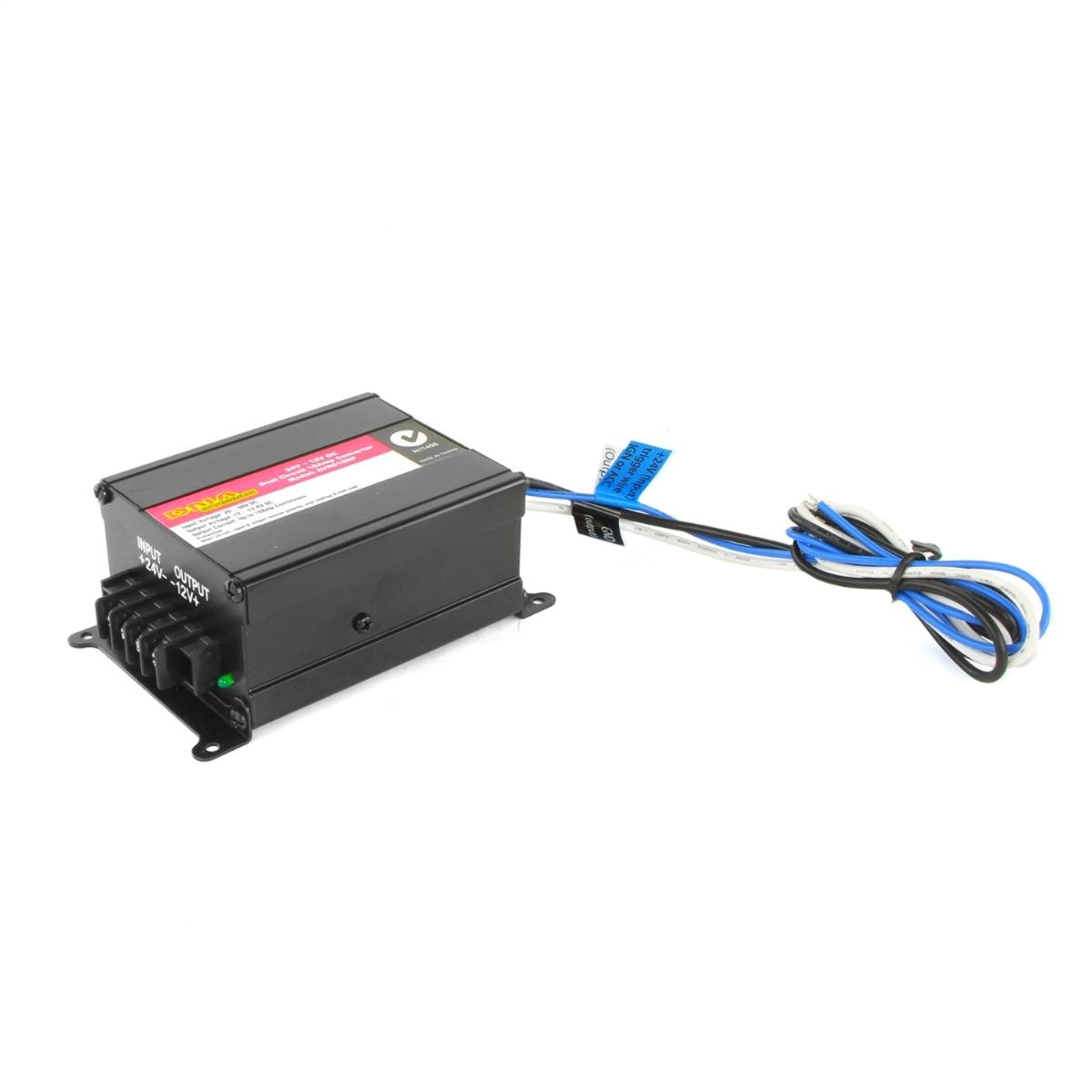

DNA AVR010DP converter with side terminals and wiring tails
DNA AVR010DP converter with side terminals and wiring tails
Click to open expanded view
DNA logo

DNA AVR010DP 10 Amp Dual Output 24V to 12V DC Converter

SKU: AVR010DP
Price
$99.95
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
DNA AVR010DP converter with side terminals and wiring tails

DNA AVR010DP 10 Amp Dual Output 24V to 12V DC Converter

$99.95

Product features

Quick answer

The DNA AVR010DP is the 10 Amp Dual Output 24V to 12V DC Converter. Tapping a 12V radio or fridge off one battery in a 24V truck unbalances the batteries and can cook the accessory.

The AVR010DP steps 20 to 30V DC down to 12 to 13.8V at 10 amps continuous and 15 amps peak. It has two independent outputs, one on the side terminals and one on the wire tails, plus a 24V trigger wire so it only switches on with the ignition.

How the outputs are arranged

  • Two independent 12V DC outputs
  • Output 1 on the side terminals
  • Output 2 on three wires: 12V positive, negative and 24V trigger
  • Reverse polarity and overheating protection
  • Air convection cooling, no fan

Specifications

Input DC Voltage Range DC20 to 30V DC
Output Voltage Range 12V to 13.8V
Continuous Power 10 AMPS
Peak Power 15 AMPS
No Load Current Draw 20mA
Max. Power Efficiency >90%
Cooling Air Convection
Input Polarity Reverse Diode Protection
Output Polarity Reverse Circuit Protection
Over Heating Circuit Protection
Fuse 15 AMPS
Dimension (LxWxH) 90 x 73 x 45mm

Fitment and compatibility

It suits 24V trucks, buses and machinery that need to run 12V accessories. Check the total draw of your gear stays under 10 amps continuous.

What is in the box

DNA does not publish a box list for this converter, so check the packet contents with us first.

Install notes

Mount it somewhere dry with airflow, as it cools by convection. Book it in at South Nowra on (02) 4423 5254 and we will wire it with the right fusing.

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

Warranty

FAQ about the AVR010DP

What is the DNA AVR010DP?

It is the DNA 10 Amp Dual Output 24V to 12V DC Converter. Tapping a 12V radio or fridge off one battery in a 24V truck unbalances the batteries and can cook the accessory.

What are the main features of the AVR010DP?

Two independent 12V DC outputs. Output 1 on the side terminals. Output 2 on three wires: 12V positive, negative and 24V trigger.

What warranty comes with the AVR010DP?

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.
