DNA ACD8 Single DIN CD/MP3 Player with Bluetooth, SD, USB and AUX Inputs

SKU: ACD8
Sale price
$116.95
Regular price
$129.95
You save
10%
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

DNA Single DIN CD and MP3 Player with AM/FM Tuner, Bluetooth, SD, USB and AUX Inputs

This DNA single DIN head unit combines CD and MP3 playback with Bluetooth audio streaming and hands-free calling, an AM/FM PLL tuner, SD card, USB and dual AUX inputs in a standard single DIN form factor. Output is rated at 4 x 25W maximum, and the unit features a detachable face with a blue negative LCD display. Mounting dimensions are 50mm (H) x 178mm (W) x 158mm (D).

Product overview

The DNA single DIN CD/MP3 player covers a broad range of audio sources in a compact, installation-friendly package. CD compatibility covers CD, CD-R, CD-RW, MP3 and WMA discs with ID3 tag support, backed by 5-second electronic shock protection for audio CDs and 38-second protection for MP3 CDs. USB and SD card playback both support MP3 and WMA formats up to 8GB, with the USB port accessed from the front of the unit and the SD slot accessed from behind the detachable face.

Bluetooth covers both A2DP audio streaming from a compatible mobile phone and fully integrated hands-free calling, with a built-in microphone in the head unit face. The unit automatically mutes audio playback on an incoming call and returns to playback once the call ends. Dual AUX inputs a front 3.5mm socket and rear RCA inputs allow additional sources to be connected permanently or on the fly. The AM/FM tuner provides 30 station presets across 18 FM and 12 AM positions, and the unit includes a 21-button remote control.

Features and benefits

CD and MP3 playback with electronic shock protection: Plays CD, CD-R, CD-RW, MP3 and WMA discs with ID3 tag support. Fitted with 5-second ESP for audio CDs and 38-second ESP for MP3 CDs, reducing skip during vibration.

Bluetooth A2DP audio streaming: Streams music wirelessly from a Bluetooth A2DP compatible mobile phone. Check your phone's specifications to confirm A2DP support before relying on this feature.

Bluetooth hands-free calling: Fully integrated hands-free with a built-in microphone in the head unit face. Automatically mutes audio on incoming calls and resumes playback when the call ends.

Front USB input: USB port on the front of the unit plays MP3 and WMA formats from flash drives up to 8GB. Fitted with a rubber protection cover.

SD card input: SD card slot accessed from behind the detachable face. Plays MP3 and WMA formats from SD cards up to 8GB.

Front 3.5mm AUX input: Front-mounted 3.5mm stereo socket for connecting portable devices with a headphone or line output.

Rear RCA AUX input: Rear RCA input sockets allow a permanent AUX source such as a TV or DVD player to be connected for audio playback through the head unit.

AM/FM PLL tuner with 30 presets: Phase-locked loop electronic tune radio with 18 FM and 12 AM presets. Includes AS/PS, local/DX, band button and seek tune up/down.

Detachable face with blue LCD display: Negative LCD display with blue backlit buttons and a detachable face for security.

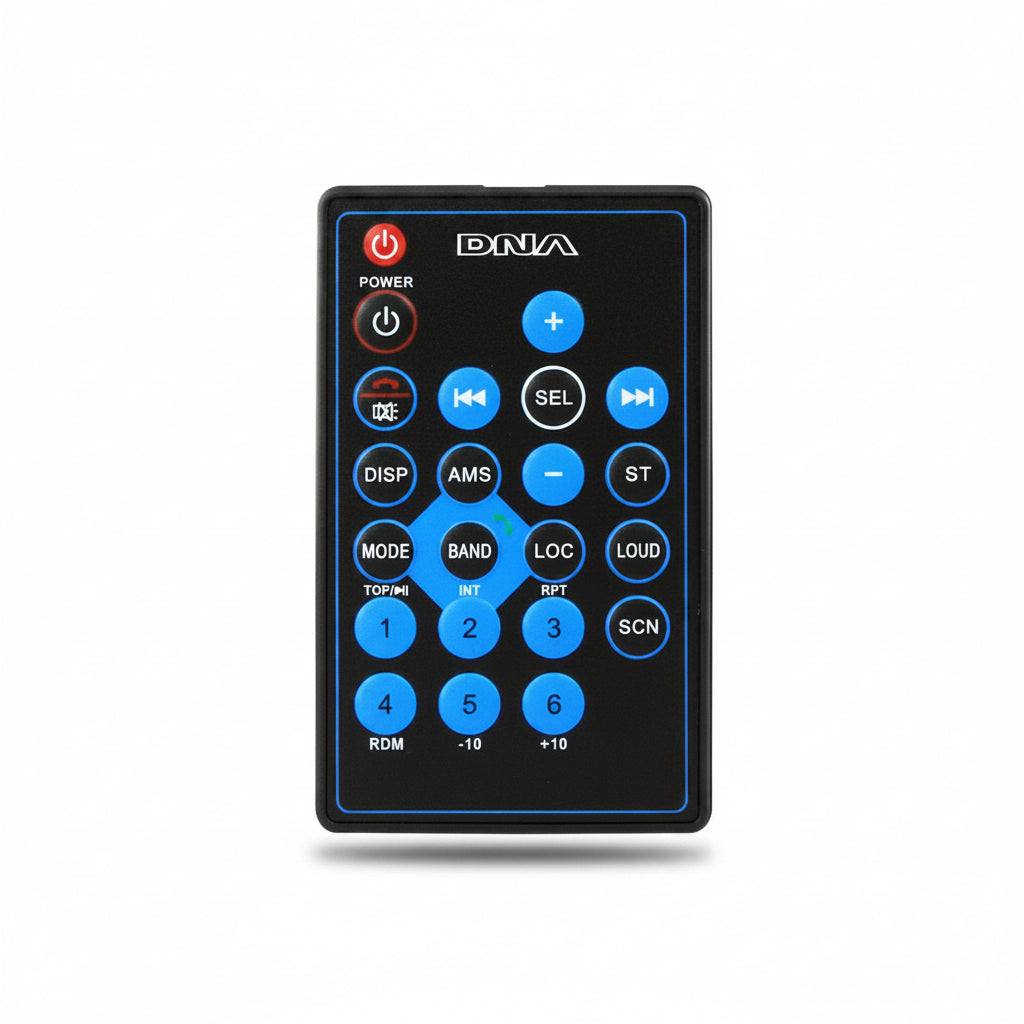

21-button remote control included: A 21-button remote control is supplied in the box for hands-free operation.

What's in the box

  • DNA single DIN CD/MP3 head unit
  • Detachable face
  • 21-button remote control
  • Male harness plug to male ISO connector with 2 female ISO plugs to bare ends (30cm)
  • DNA gift box packaging

Technical specs

Specification Detail
SKU ACD8
Brand DNA
Type Single DIN
Max Power Output 100W (4 x 25W)
CD Compatibility CD, CD-R, CD-RW, MP3, WMA
ESP Protection 5 sec (audio CD), 38 sec (MP3 CD)
Bluetooth A2DP audio streaming, hands-free calling
USB Front-mounted, MP3/WMA, up to 8GB
SD Card Behind detachable face, MP3/WMA, up to 8GB
AUX Input (Front) 3.5mm stereo socket
AUX Input (Rear) RCA input sockets
RCA Line Output 2 x RCA at 1.4V
Tuner AM/FM PLL ETR
Station Presets 30 (18 FM, 12 AM)
Display Negative LCD, blue backlight
Face Colour Black with grey buttons and black volume knob
Remote Control 21-button remote included
Mounting Dimensions 50mm (H) x 178mm (W) x 158mm (D)
Sold As Single unit

Frequently asked questions

Does this head unit support Bluetooth hands-free calling? Yes. The unit has a fully integrated Bluetooth hands-free system with a built-in microphone in the head unit face. It automatically detects incoming calls, mutes audio playback, and returns to playback once the call ends. Bluetooth hands-free availability depends on your mobile phone supporting this feature check your phone's specifications to confirm.

What audio formats does the USB and SD card playback support? Both the USB and SD card inputs support MP3 and WMA audio formats with ID3 tag playback. Each supports storage capacity up to 8GB, though actual compatibility may depend on the memory device's formatting and software.

Can I connect a device permanently to this head unit? Yes. The rear RCA AUX input sockets allow a permanent audio source such as a TV, DVD player or media device to be connected. The front 3.5mm AUX socket is better suited to temporary connections from portable devices.

Does the head unit include a wiring harness? Yes. A male harness plug to male ISO connector with two female ISO plugs to bare ends (30cm) is included in the box for installation.

What are the mounting dimensions of this head unit? The mounting dimensions are 50mm (H) x 178mm (W) x 158mm (D), fitting a standard single DIN dash opening.
